SW-125

Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch

Allows power and data to be combined on the same Ethernet cable
Ports 1-4 PoE+ capable
Fully compliant to IEEE 802.3af/at
PoE Power Budget: 90W @ 70ºC
Redundant dual power inputs: +44V to +57V DC
Industrial operating temp range -40°C to +70°C / -40°F to +176°F

PDF Datasheet Download

$147.00

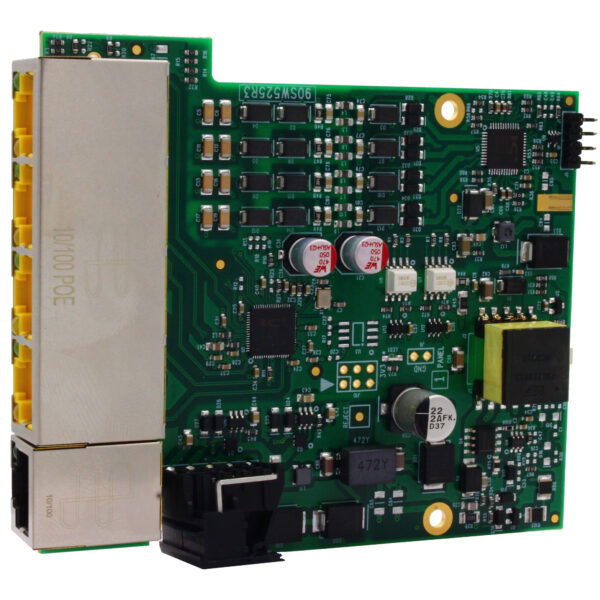

Compact embeddable 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more

Ethernet
Ethernet	Ethernet Ports	5
	Ethernet Speed	10/100 Fast Ethernet
	PoE	PoE+ 802.3at Type 2
Power
Power	Power Input	44V - 57V DC Redundant DC Dual Power Inputs, reverse polarity protected
	PoE Power Budget	90W @ 70℃
General
General	Operating Temperature Range	-40°C to +70°C / -40°F to +158°F
	Storage Temperature	-40°C to +85°C / -40°F to +185°F
	Form Factor	Embedded
	Power Consumption	4 Watts Max : [email protected]+44VDC/[email protected]+57VDC
	Product Weight	0.076 kg, 2.68 ounces
	Product Dimensions	100x90x60 mm, 3.9x3.5x2.4 inches
	Packaged Weight	0.182 kg, 6.42 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324004588
Interface
Interface	PoE Ethernet	4 Ports of PoE Ethernet and 1 Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world, without the need for added power supplies and generators.
