SW-715 Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable

  • 5x Port Gigabit Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 3.6 W Max
  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • Hardened DIN rail mountable

Download SW-715 Technical Datasheet (PDF)

£114.25
Add to Cart
Buy from Reseller
Brainboxes SW-715 5x port gigabit unmanaged ethernet switch dual
Brainboxes SW-715 technical drawing showing ethernet switch dimensions and measurements

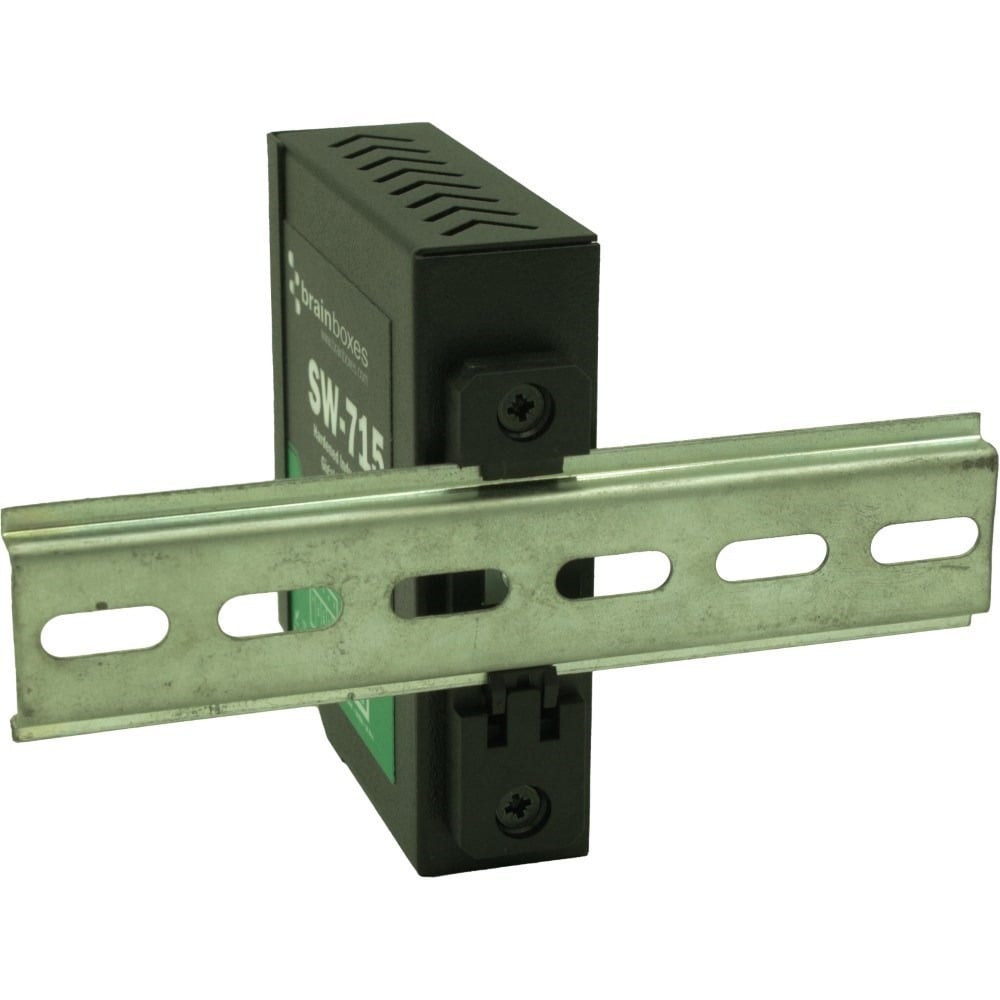

Brainboxes SW-715 industrial ethernet switch mounted on standard din rail showing installation method

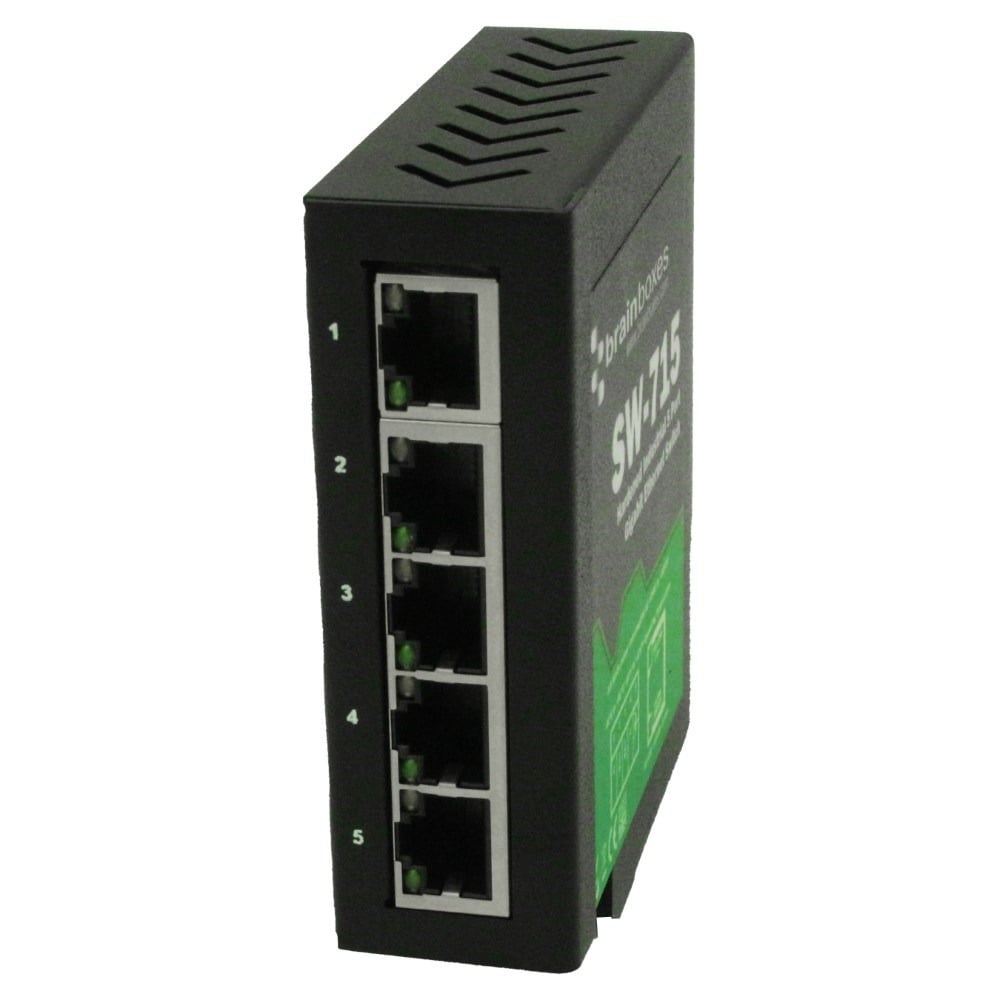

Brainboxes SW-715 industrial ethernet switch showing five numbered ports and ventilation grilles

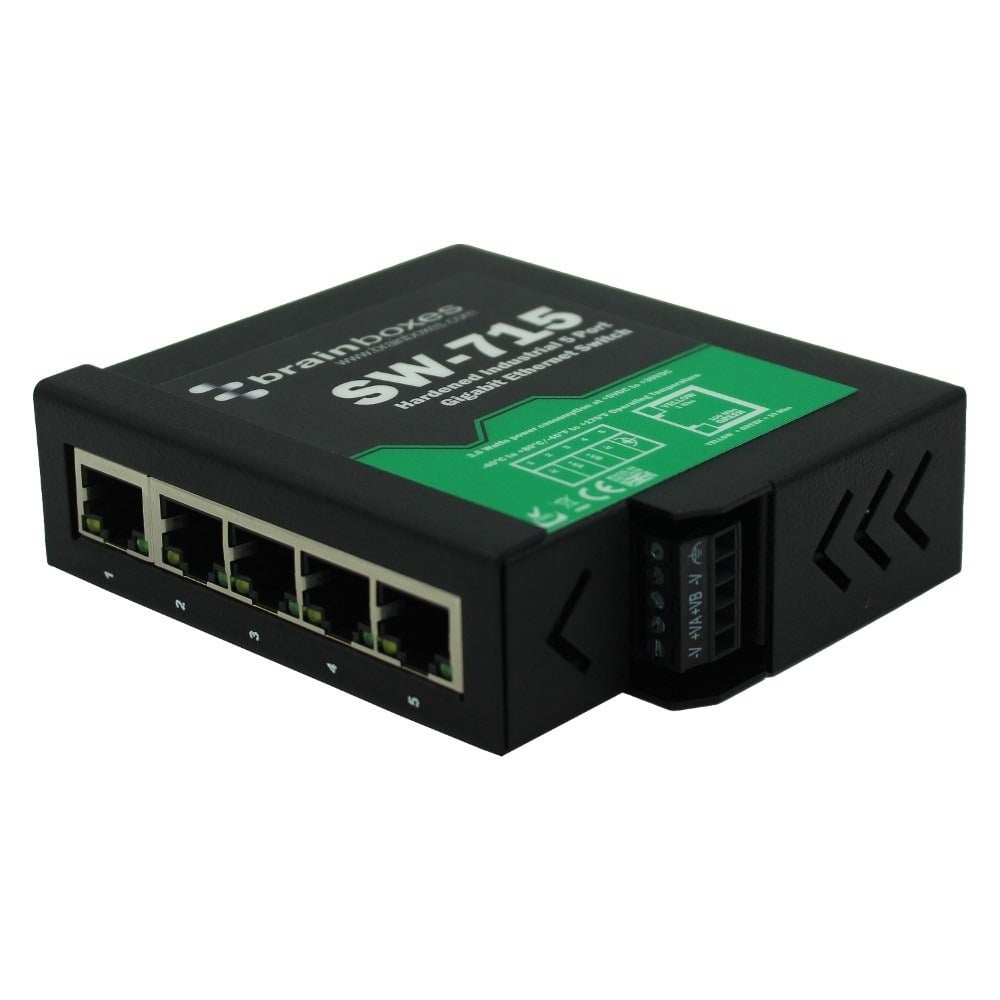

Brainboxes SW-715 industrial ethernet switch showing five ports and terminal block connection
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

See other products the same category as SW-715: Industrial Ethernet Switches

Download SW-715 CAD 3D Model
