SW-015 Light Industrial 5 Port Gigabit Ethernet Switch Wall Mountable

  • 5x Port Gigabit Unmanaged Ethernet Switch
  • Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 3.6 W Max
  • Operating Temperature Rating: -10 °C to +60 °C / 14 °F to +140 °F
  • Wall Mountable or DIN rail mountable with included mounting kit (MK-048)

Download SW-015 Technical Datasheet (PDF)

£59.00
Add to Cart
Buy from Reseller
Brainboxes SW-015 5x port gigabit unmanaged ethernet switch wide power

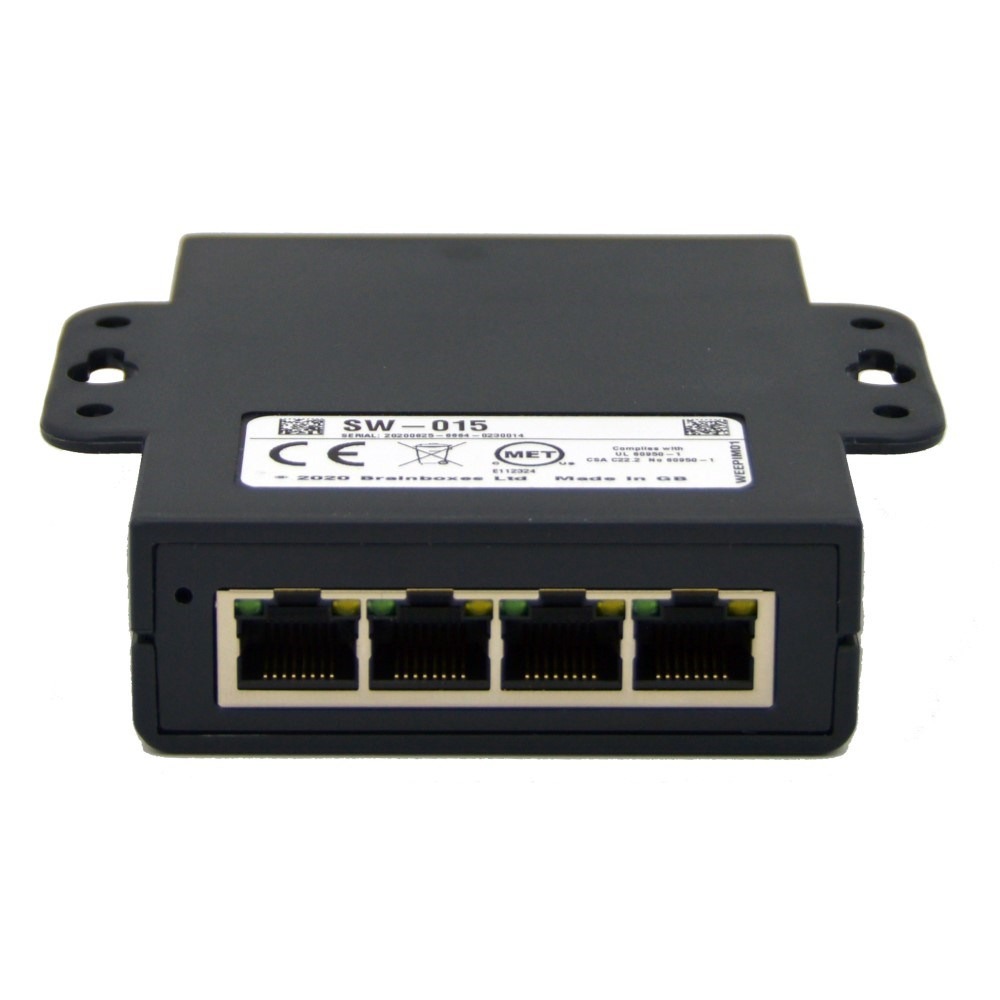

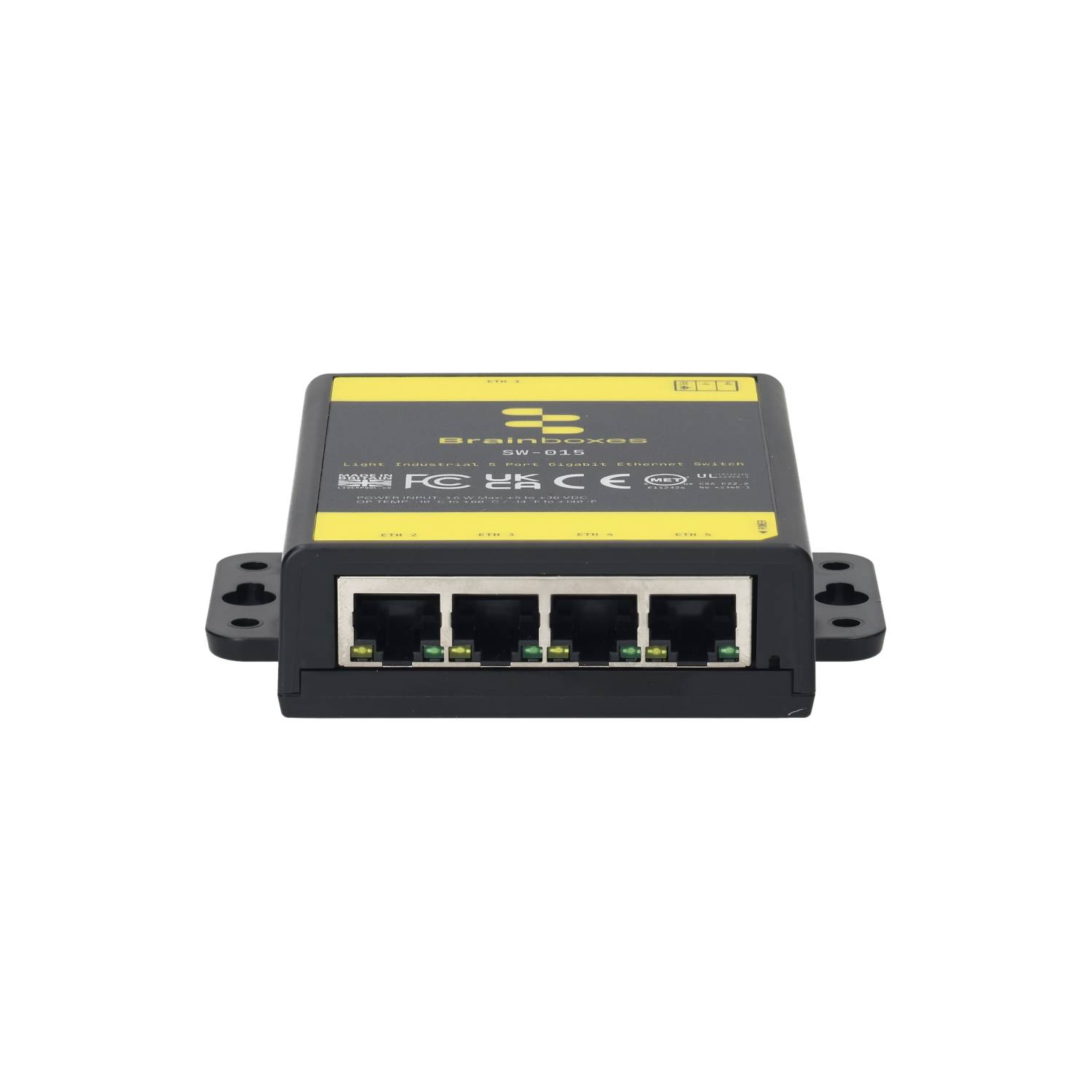

Brainboxes SW-015 industrial ethernet switch showing four gigabit ports and certification label
Brainboxes SW-015 industrial ethernet switch showing four rj45 ports at angled perspective
Brainboxes SW-015 unboxed ethernet switch with quick start guide and product documentation

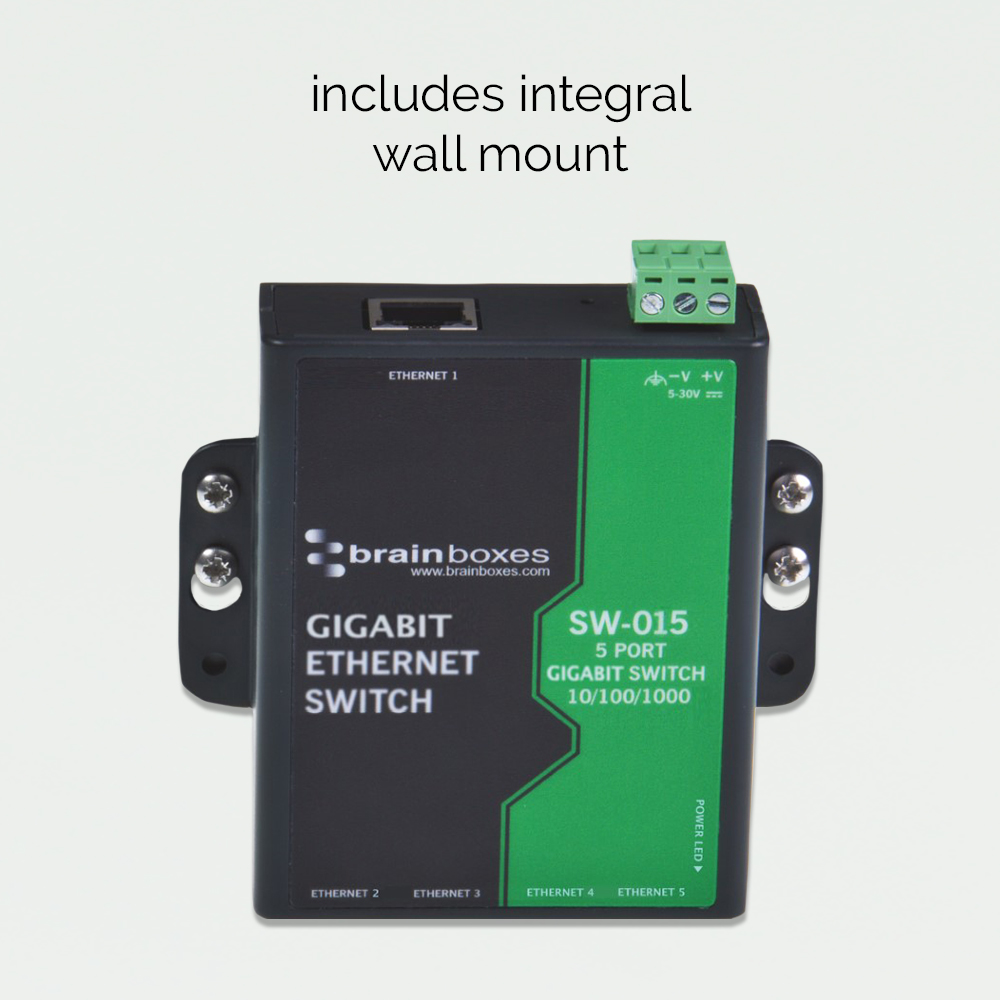

Brainboxes SW-015 industrial gigabit ethernet switch with wall mounting brackets and five ethernet ports

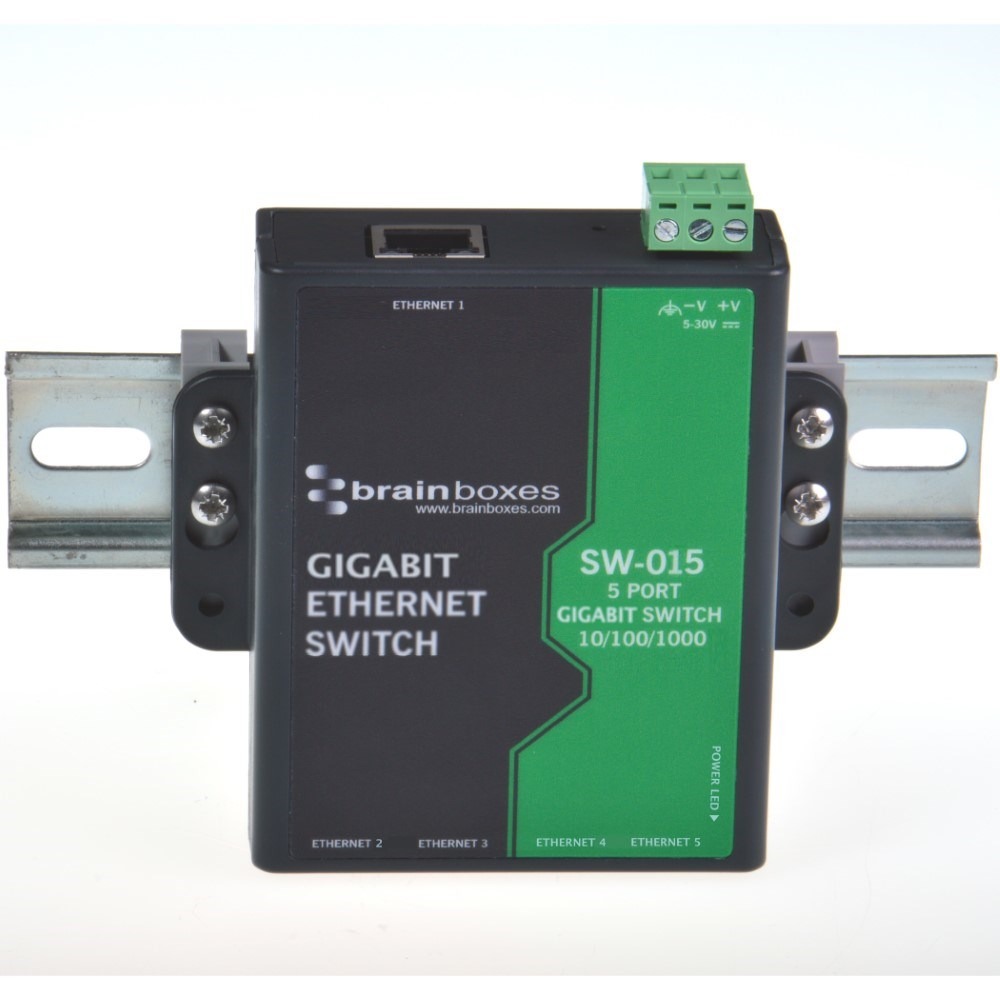

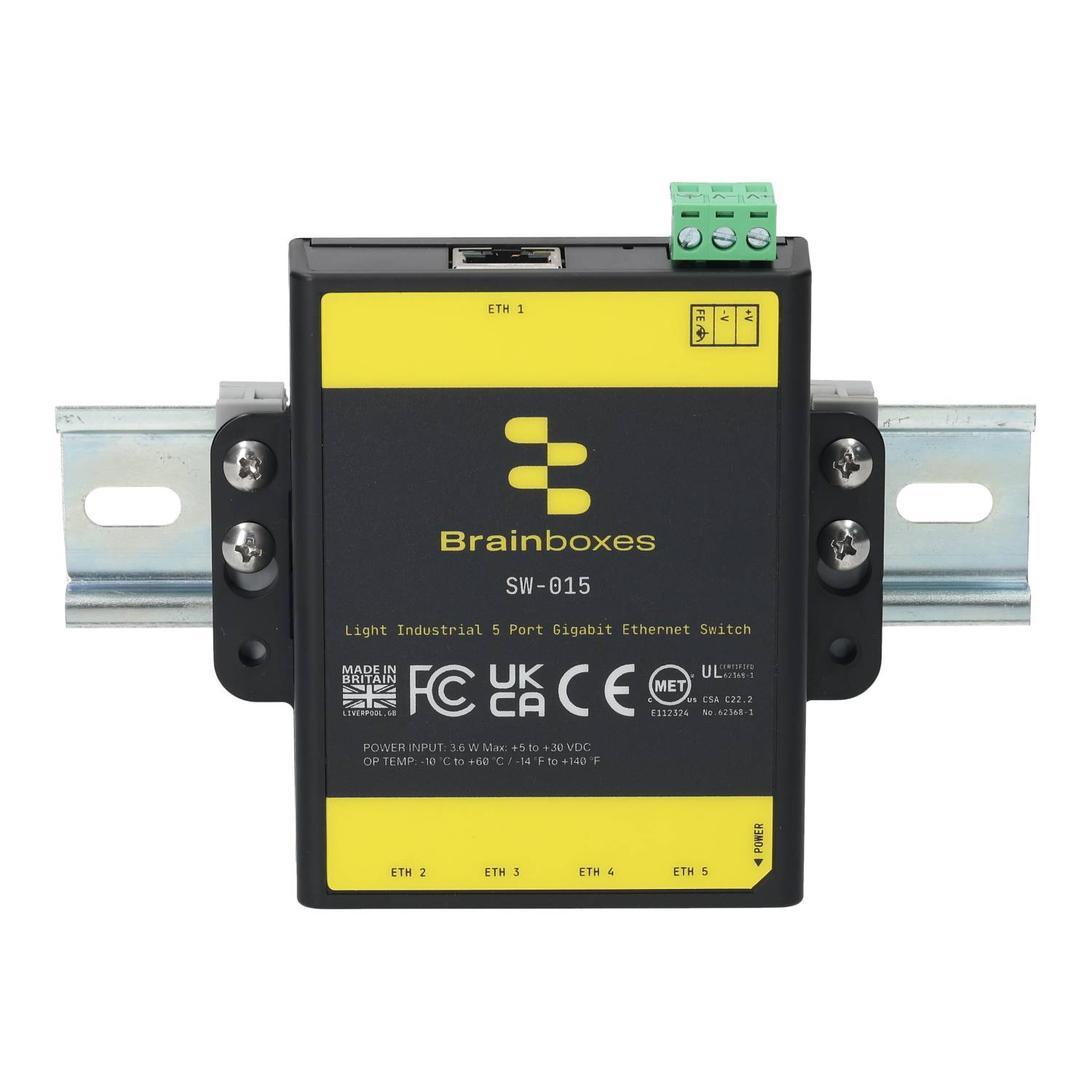

Brainboxes SW-015 industrial ethernet switch mounted on din rail with power terminals

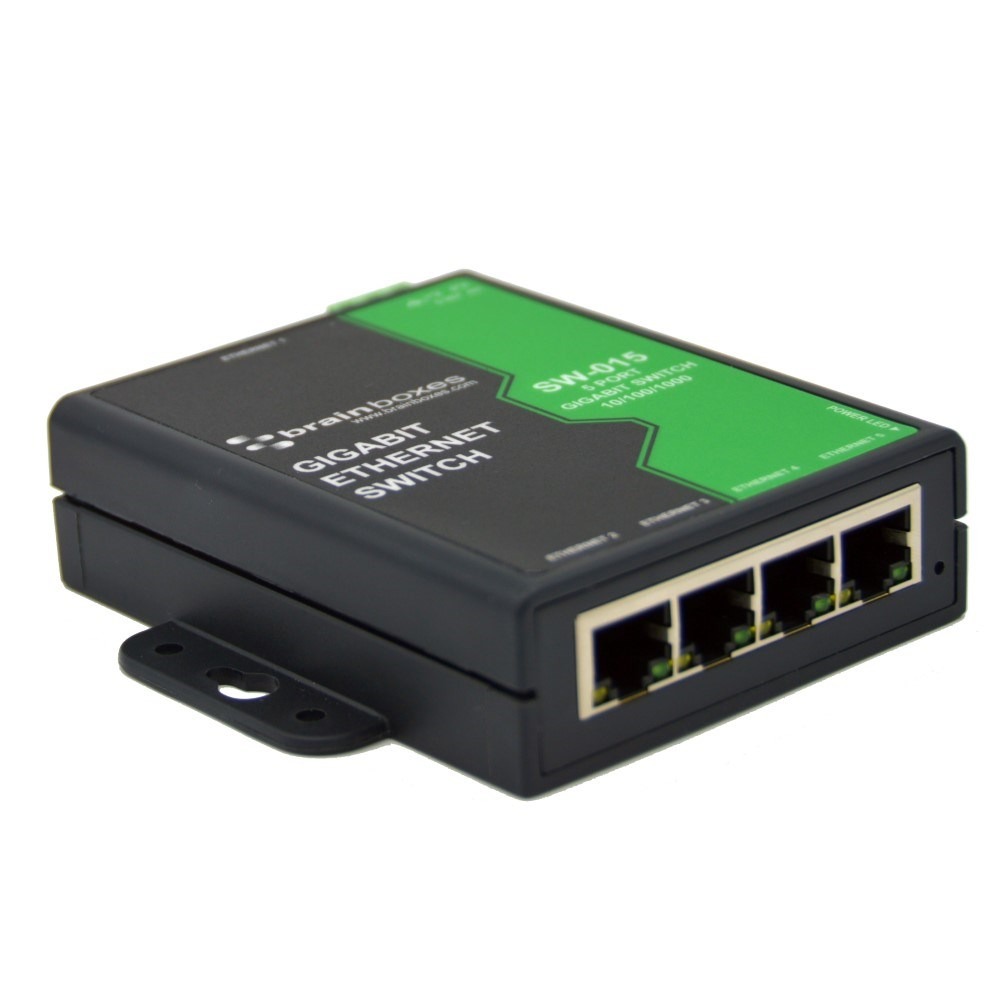

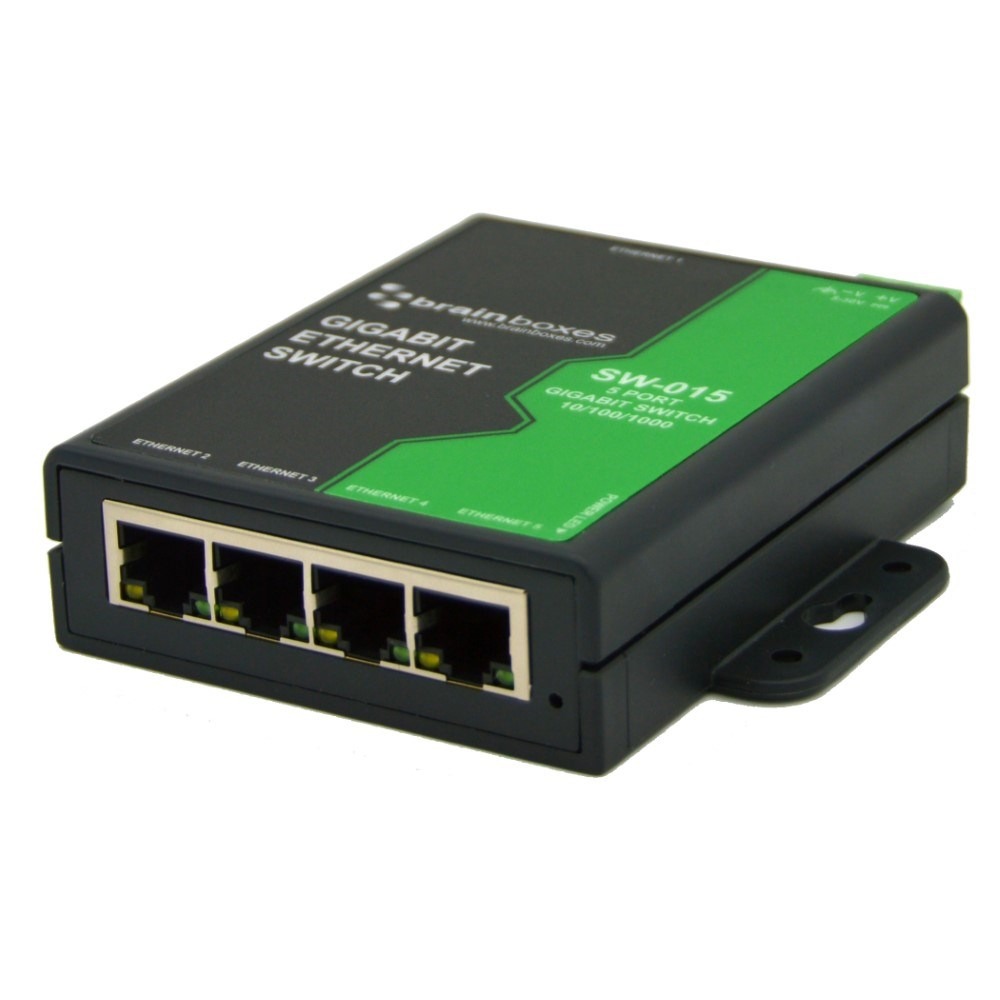

Brainboxes SW-015 angled view showing four gigabit ethernet ports and mounting tabs

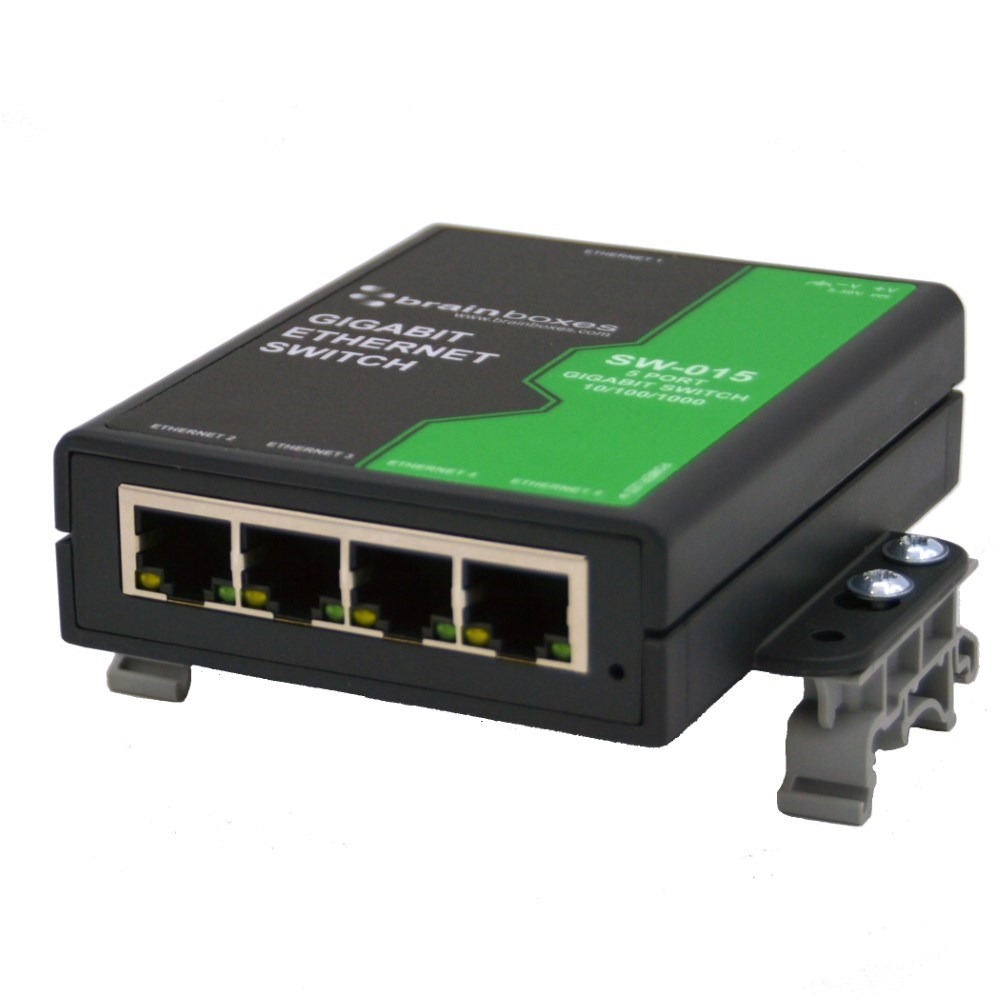

Brainboxes SW-015 industrial ethernet switch with din rail mounting bracket and power connector

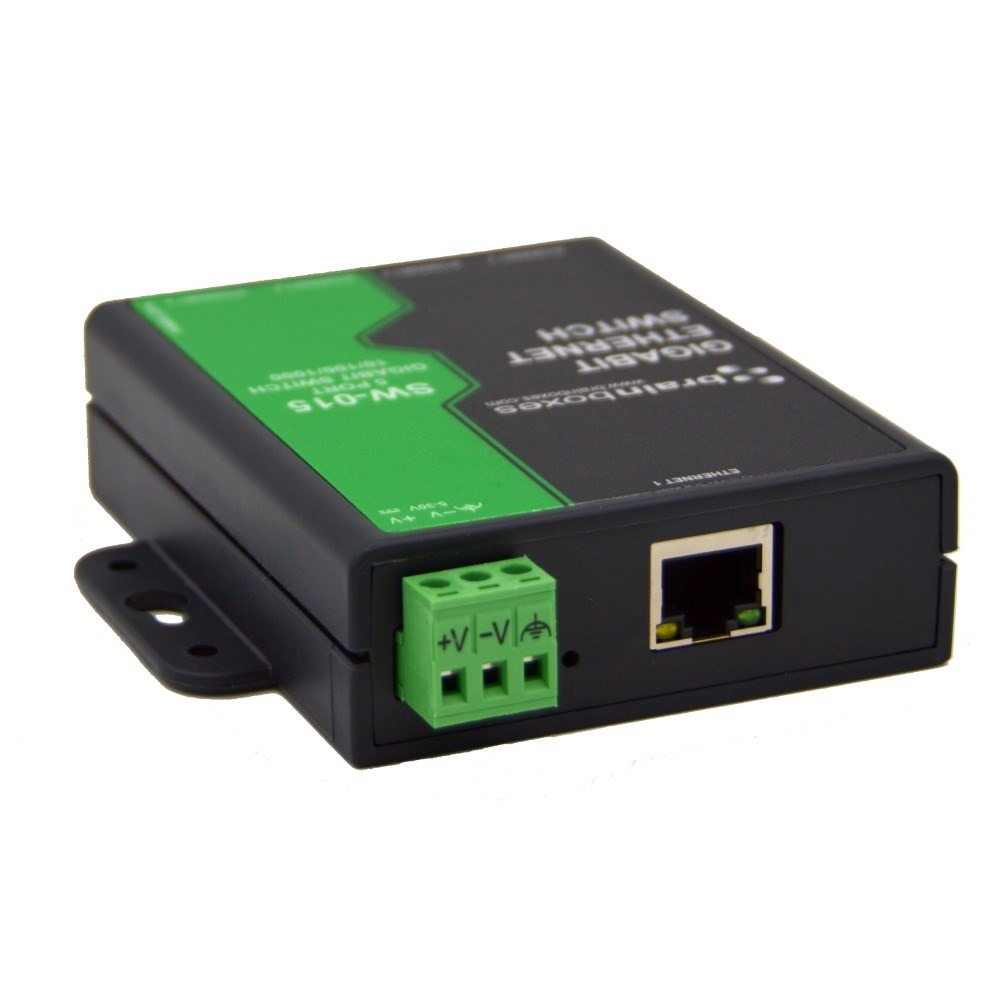

Brainboxes SW-015 industrial ethernet switch showing network port and power connection terminals

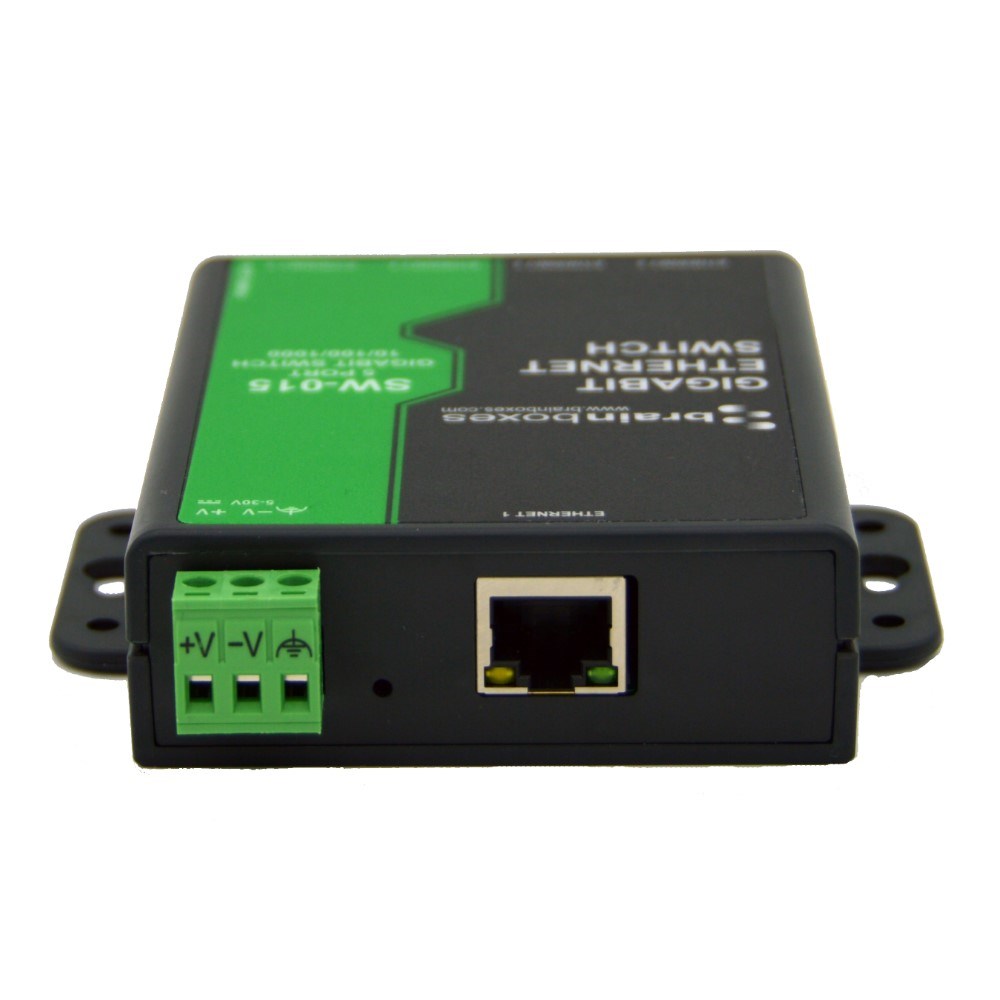

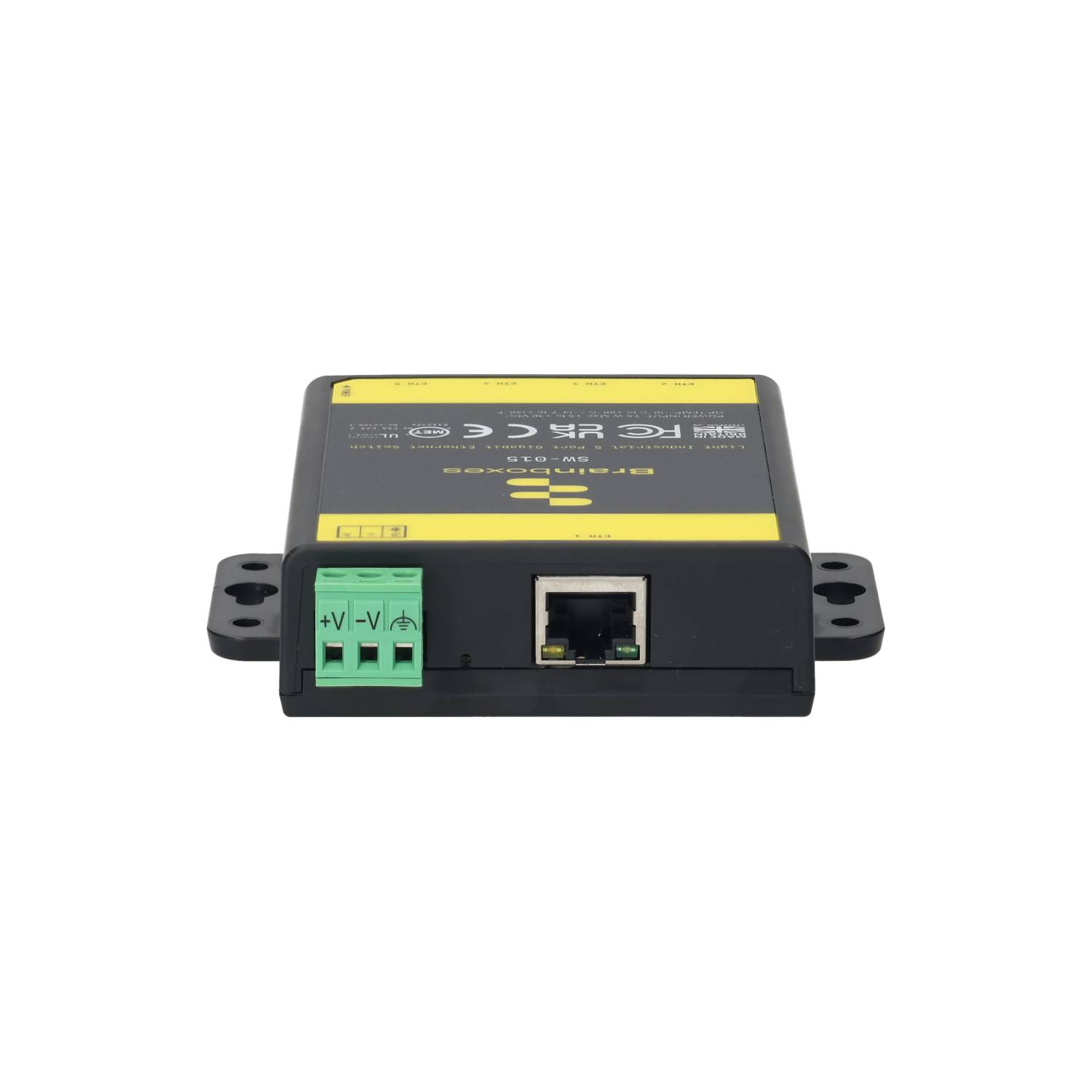

Brainboxes SW-015 front view showing ethernet port and power terminal connections

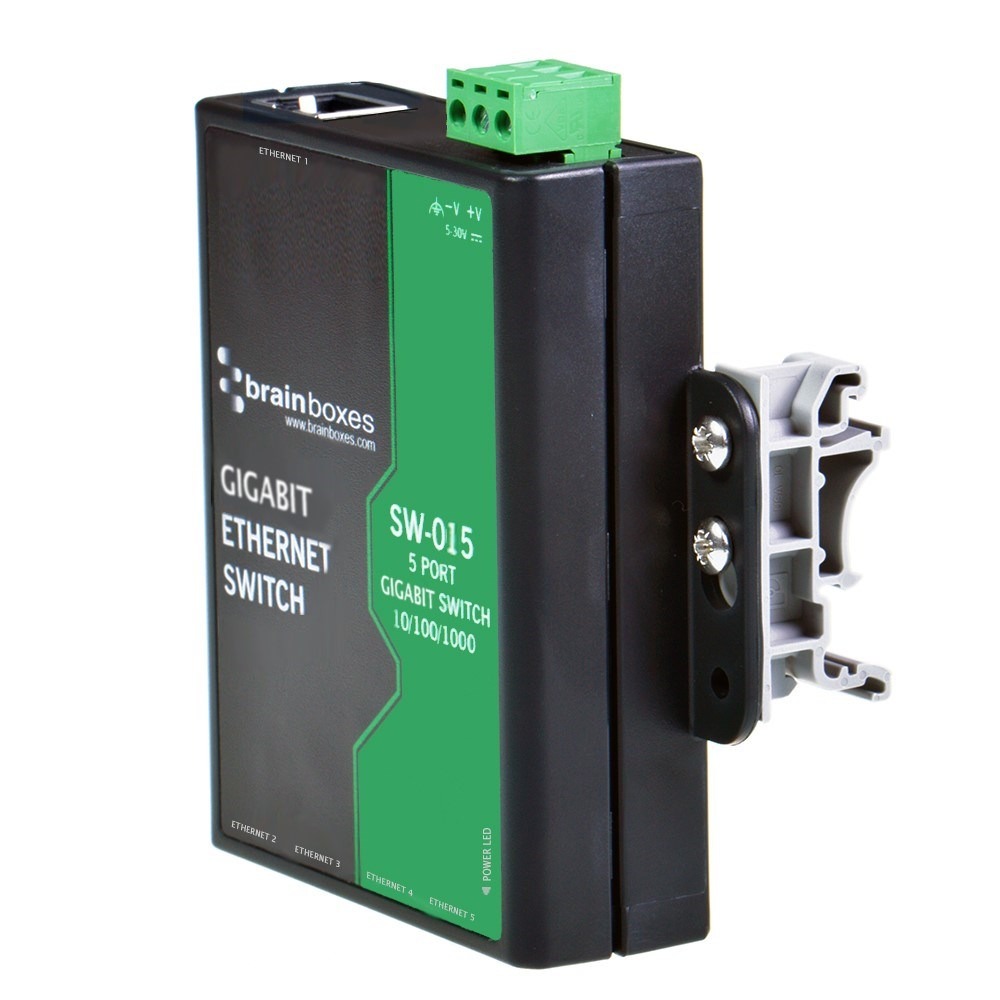

Brainboxes SW-015 industrial ethernet switch with din rail mounting bracket attached
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Compact 5 port Gigabit Ethernet unmanaged switch.

With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.

Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.

As with all Ethernet Switches in the SW range – the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)

Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.

Wall mountable using mounting screw holes, also includes DIN Rail mount accessory (MK-048)



See other products the same category as SW-015: Industrial Ethernet Switches

Download SW-015 CAD 3D Model
