SW-515

Industrial 5 Port Gigabit Ethernet Switch

  • 5x Port Gigabit Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 3.6 W Max

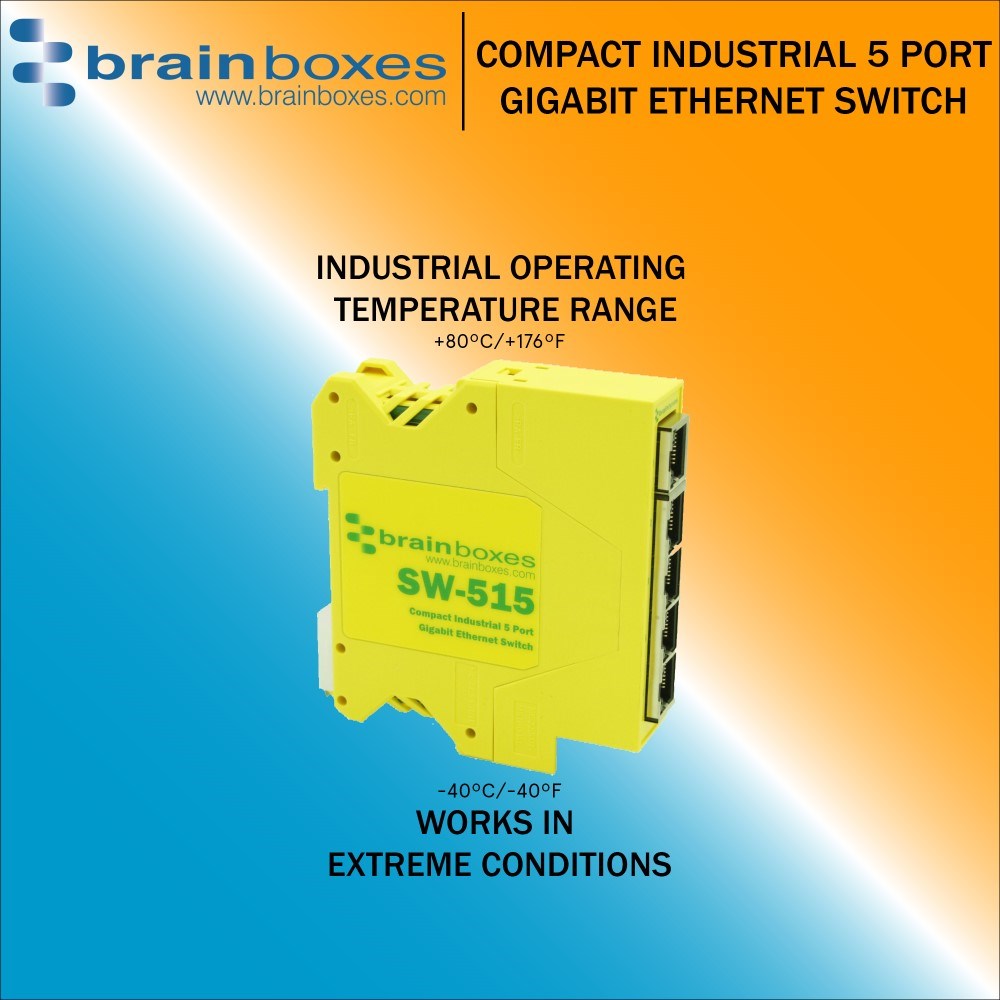

  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • DIN rail mountable
  • Built for Life Warranty
  • Connected for Life Support

PDF Datasheet Download

$137.90
Add to Cart
Buy from Reseller
SW-515
SW-515 - Image 2
SW-515 - Image 3
SW-515 - Image 4
SW-515 - Image 5
SW-515 - Image 6
SW-515 - Image 7
aeo-new
cage
emc-ce
fcc
lifetime-support
lifetime-warranty
made-in-gb
metl-62368
ncage
ndaa
taa
ukca

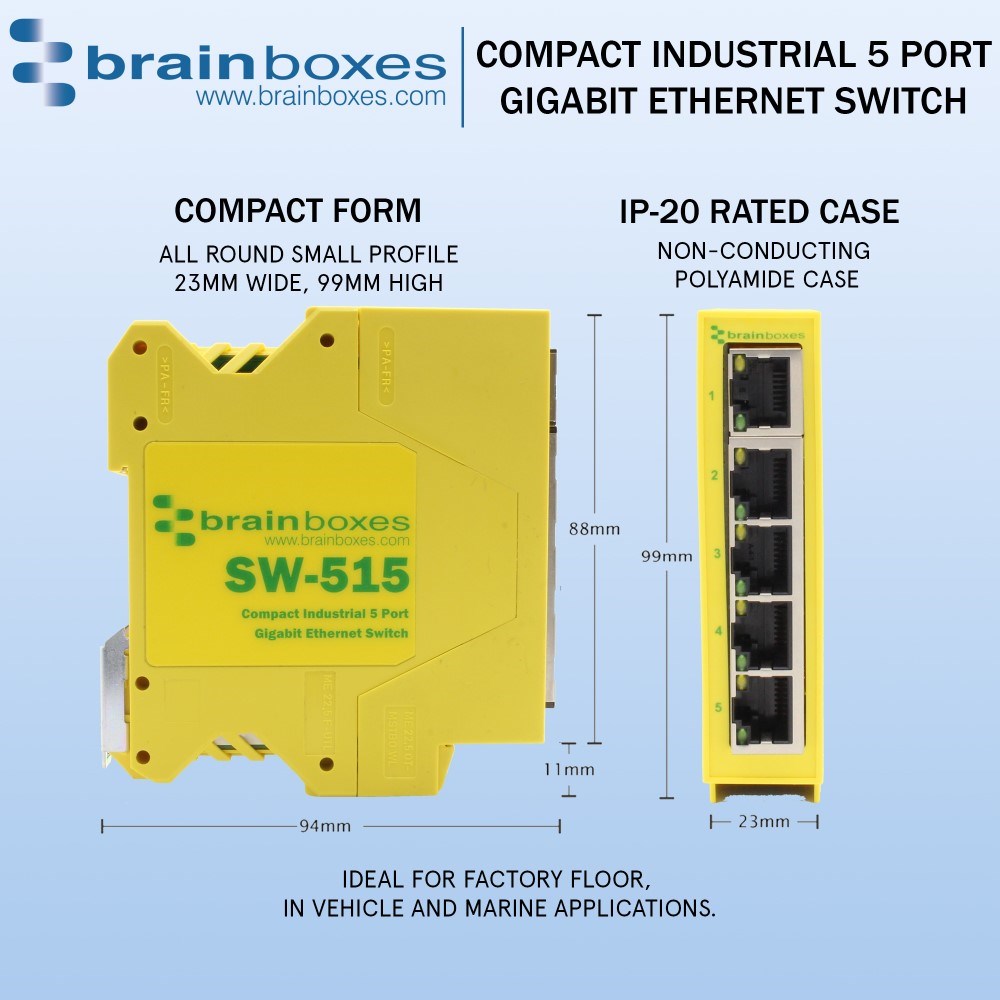

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Download 3D Model

Download 3D Model

Media
