SW-115

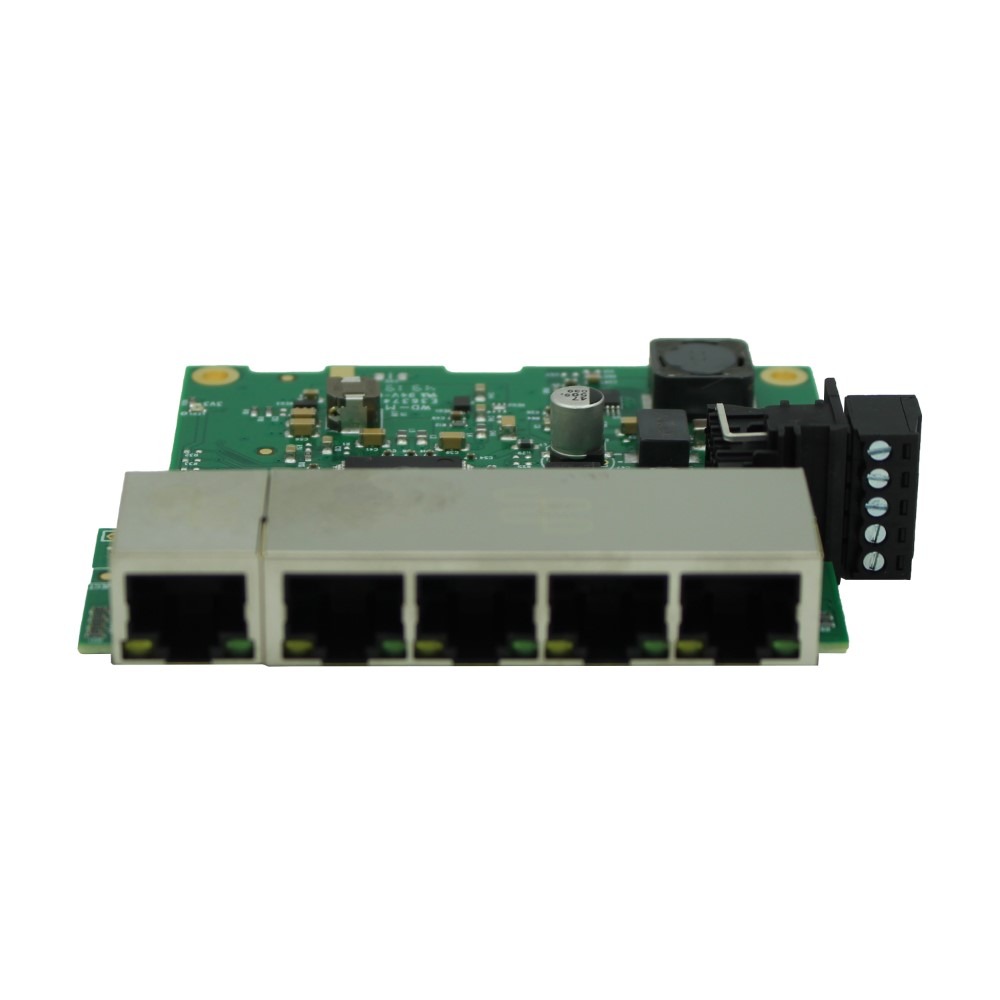

Embedded Industrial 5 Port Gigabit Ethernet Switch

5 Port Gigabit Ethernet Switch
Ready for embedded applications
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Lifetime Warranty and Support

PDF Datasheet Download

$122.05

Add to Cart

Volume Purchase?Request a Quote

sw-115-embedded-industrial-5-port-gigabit-ethernet-switch

Industrial 5 Port Gigabit unmanaged Ethernet switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

Ethernet
Ethernet	Ethernet Ports	5
	Ethernet Speed	10/100/1000 Gigabit Ethernet
	PoE	No
Power
Power	Power Input	5V - 30V DC input, reverse polarity protected
	PoE Power Budget	NA
General
General	Operating Temperature Range	-40 °C to +80 °C / -40 °F to +176 °F
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Form Factor	Embedded
	Power Consumption	3.6W Max: [email protected]+5VDC/[email protected]+30VDC
	Product Weight	0.076 kg, 2.68 ounces

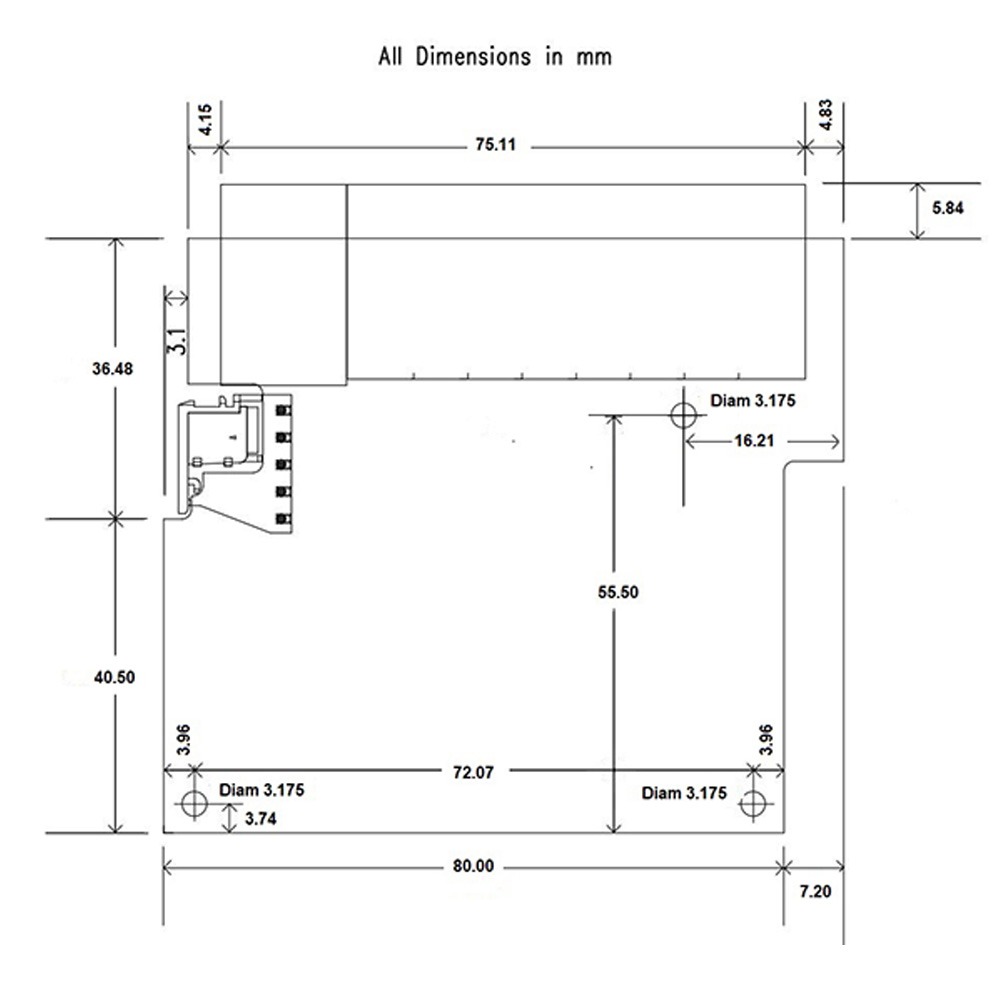

	Product Dimensions	95x90x20 mm, 3.7x3.5x0.8 inches
	Packaged Weight	0.155 kg, 5.47 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324004304
Interface
Interface	Ethernet	Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.

Product Attributes

Weight	0.155 kg
Dimensions	160 × 135 × 49 mm

Documents

SW-115-datasheet.pdf
