SW-505 Industrial 5 Port 10/100 Ethernet Switch

  • 5x Port 10/100 Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 1.35 W Max
  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • DIN rail mountable
  • Small Footprint Case, only 22.5 mm wide, 94 mm deep

Download SW-505 Technical Datasheet (PDF)

£64.74
Add to Cart
Buy from Reseller
Brainboxes SW-505 5x port 10/100 unmanaged ethernet switch dual redundant

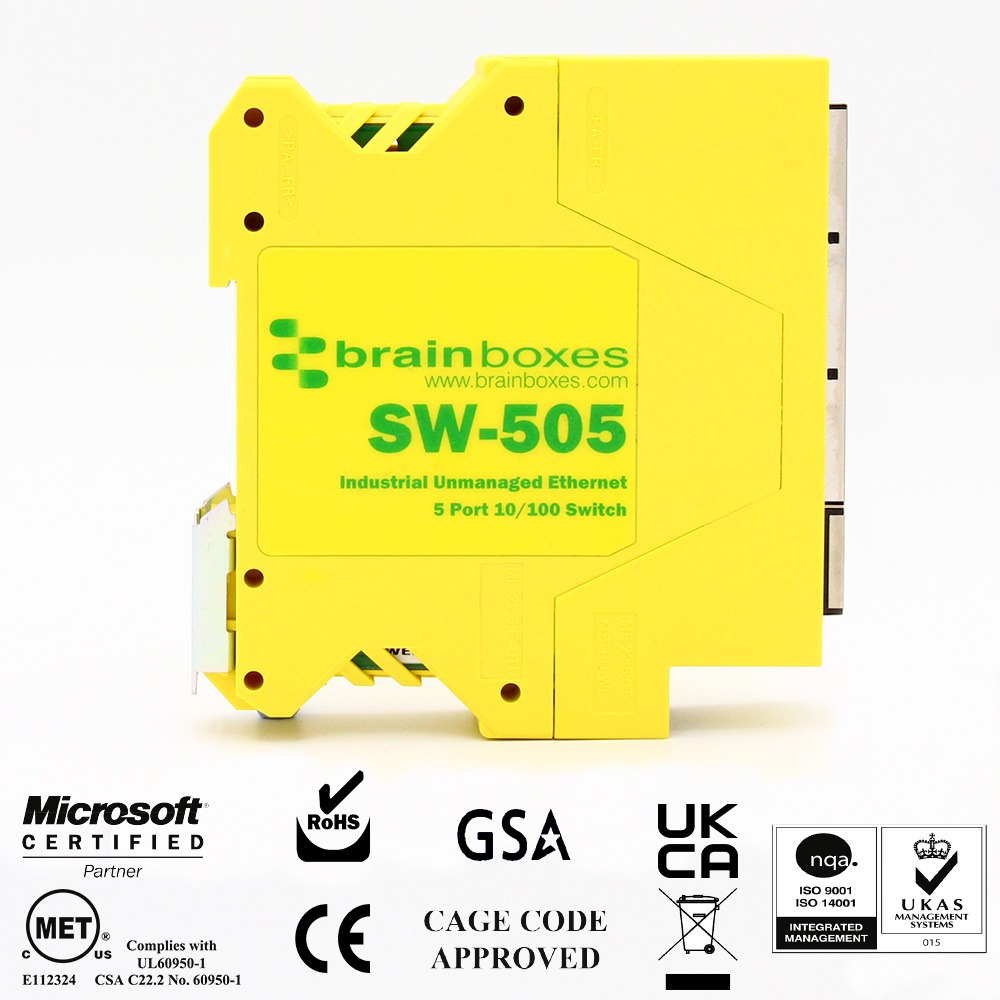

Brainboxes SW-505 industrial ethernet switch with compliance certifications and approval logos displayed
Brainboxes SW-505 industrial ethernet switch showing compact dimensions and port layout specifications

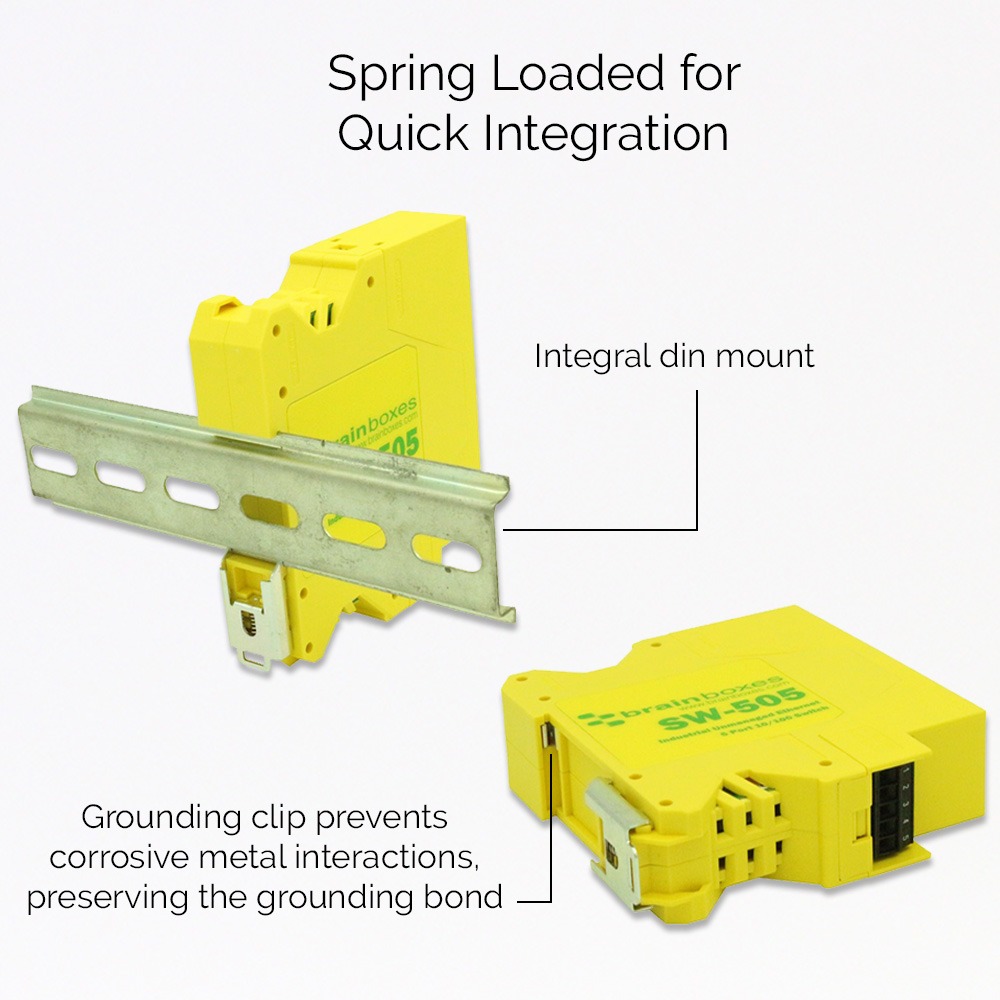

Brainboxes SW-505 ethernet switch with spring loaded din rail mounting mechanism

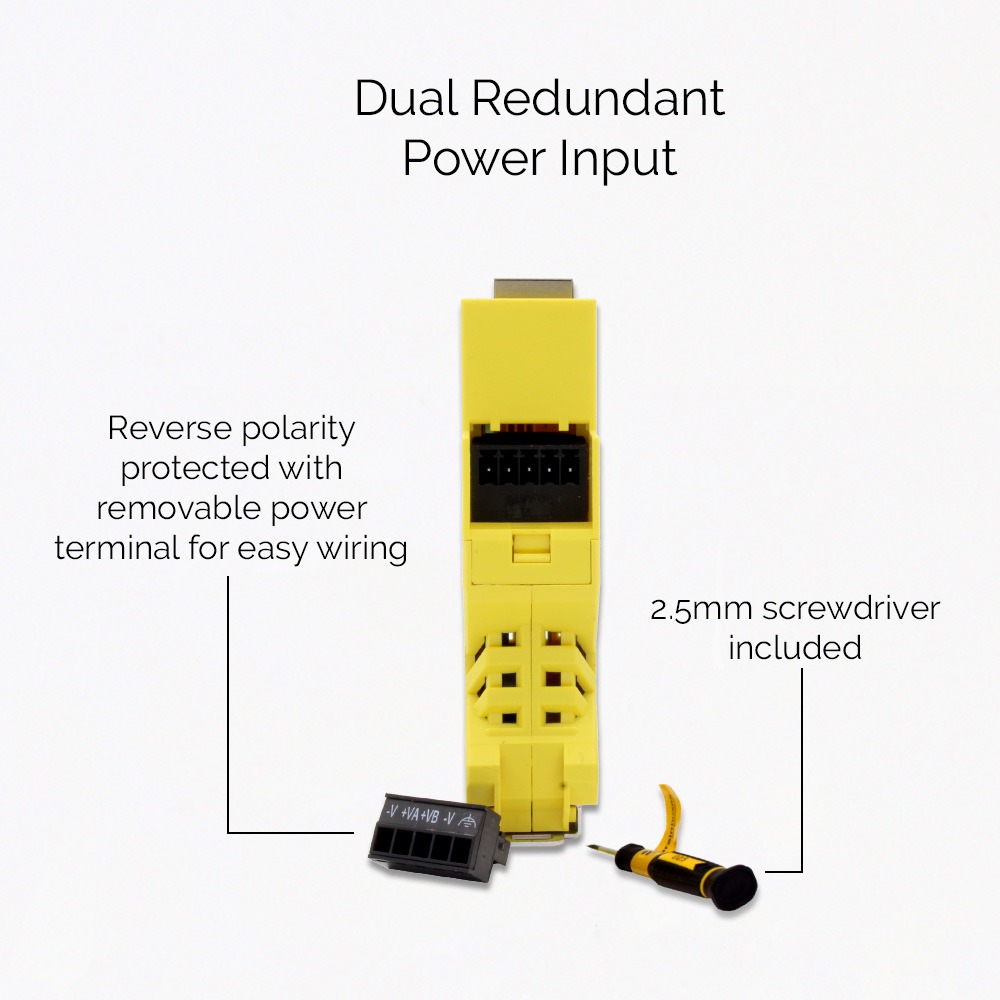

Brainboxes SW-505 ethernet switch showing dual redundant power input with removable terminal and screwdriver
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
KCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

See other products the same category as SW-505: Fast Ethernet Switch

Download SW-505 CAD 3D Model
