SW-084 Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch

SFP Gigabit Ethernet Switch
  • 1x SFP & 4x Gigabit Port Unmanaged Ethernet Switch
  • Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 3.6 W Max
  • Operating Temperature Rating: -10 °C to +60 °C / 14 °F to +140 °F
  • Wall Mountable or DIN rail mountable with included mounting kit (MK-048)

Download SW-084 Technical Datasheet (PDF)

£69.00
Add to Cart
Buy from Reseller
Brainboxes SW-084 sfp gigabit ethernet switch 1x sfp & 4x gigabit

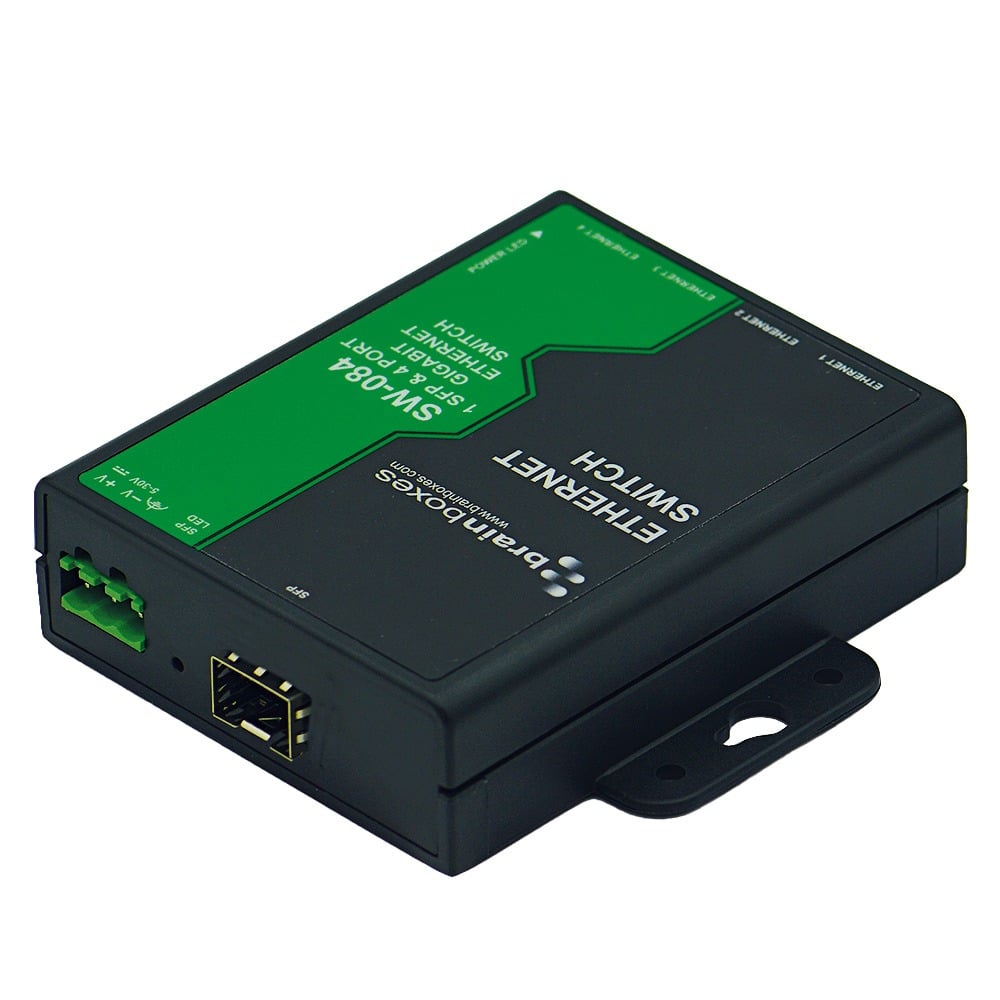

Brainboxes SW-084 angled view showing sfp port and ethernet connections on industrial switch

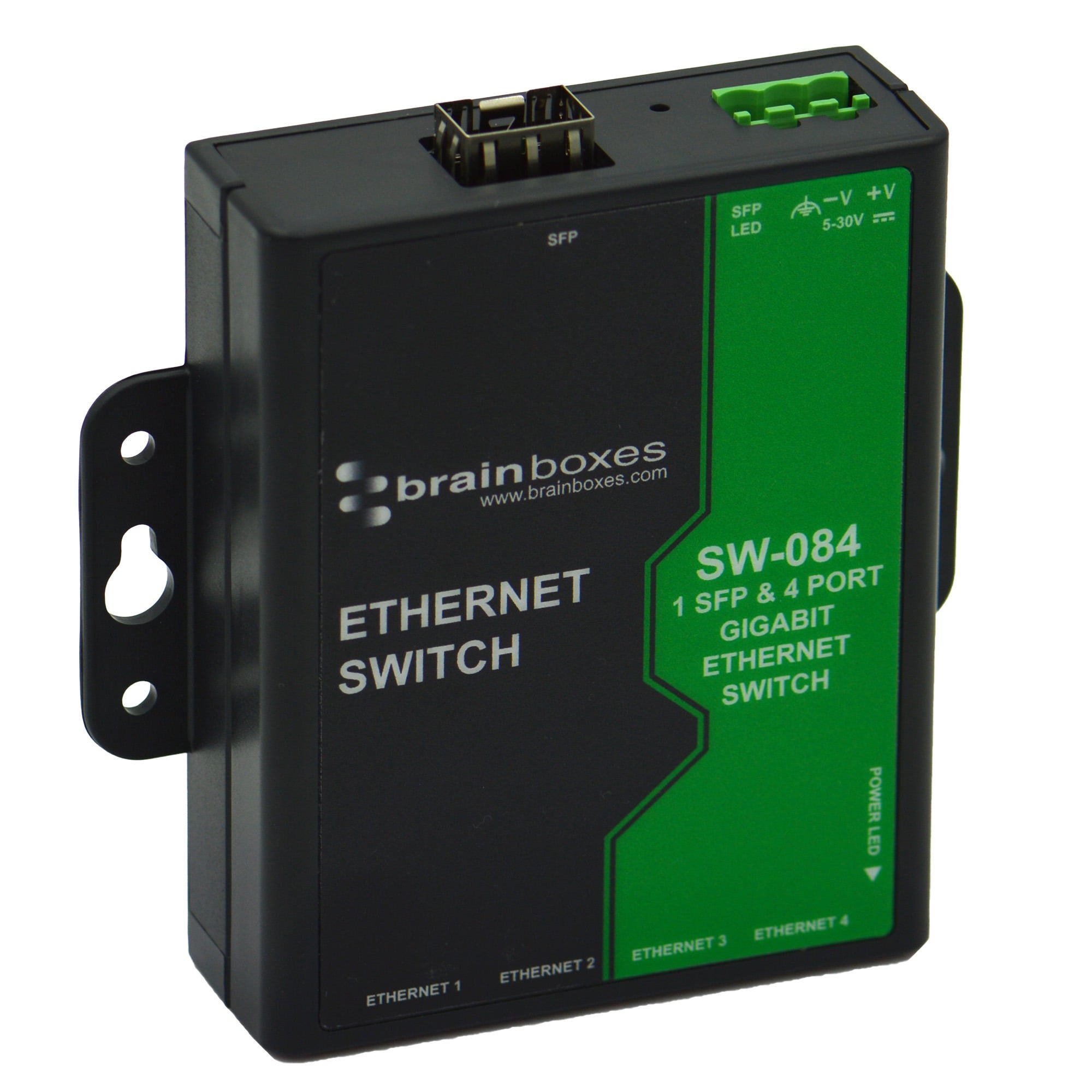

Brainboxes SW-084 angled view showing sfp port and ethernet connections with wall mounting bracket

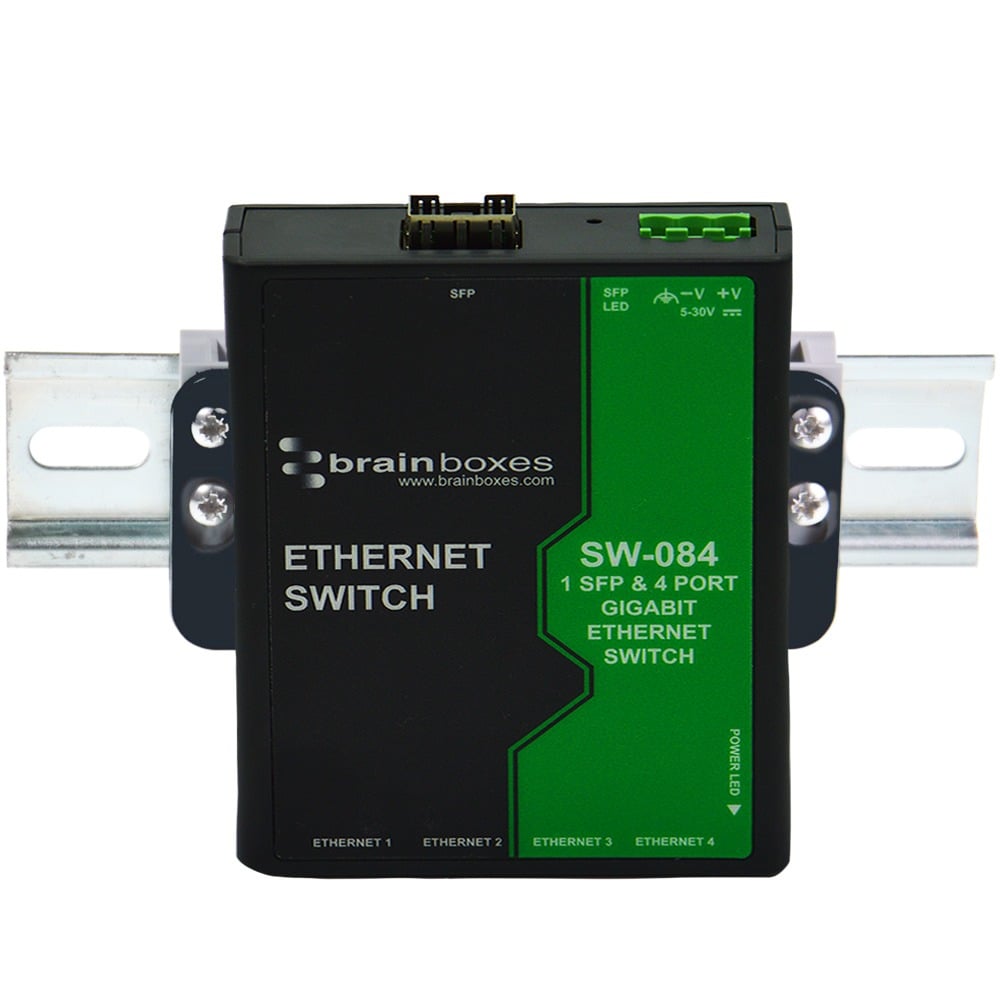

Brainboxes SW-084 industrial ethernet switch mounted on standard din rail bracket

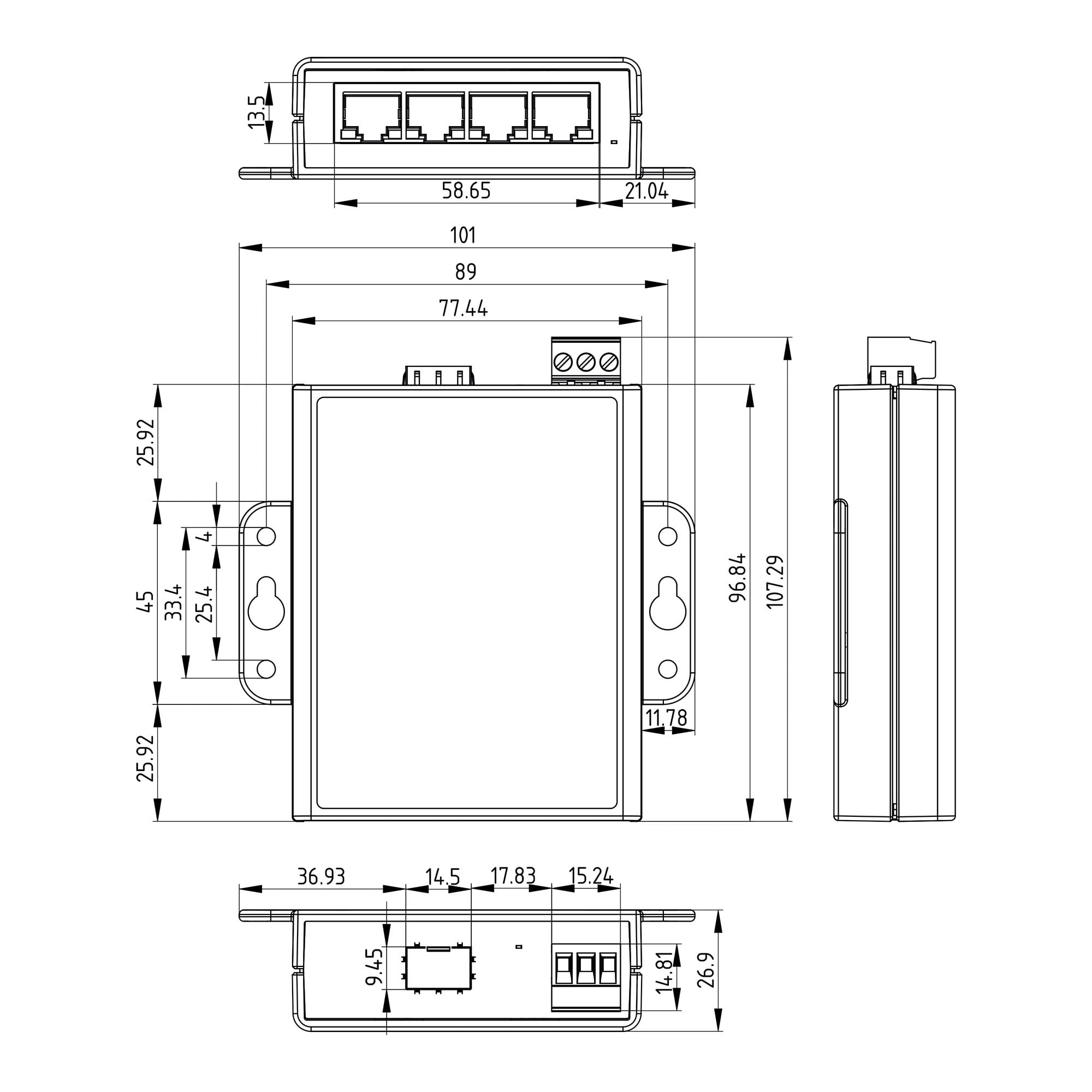

Brainboxes SW-084 detailed technical drawing showing mounting dimensions and port layout specifications
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

SFP & Light Industrial Gigabit Ethernet switch.

Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Wide temperature range of -10ºC to +60ºC/-14ºF to +140ºF and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

See other products the same category as SW-084: Gigabit Ethernet Switch

Download SW-084 CAD 3D Model
