ED-593 Ethernet to 8 Channel Thermocouple Input

8 thermocouple inputs
Factory floor process control and automation, integrated DIN rail mount
Supports simple ASCII
-40°C to +80°C temperature range
Software APIs for Visual Basic, C# and more

Download ED-593 Technical Datasheet (PDF)

£302.50

Volume Purchase?Request a Quote

Brainboxes ED-593 8 thermocouple inputs factory floor process control and

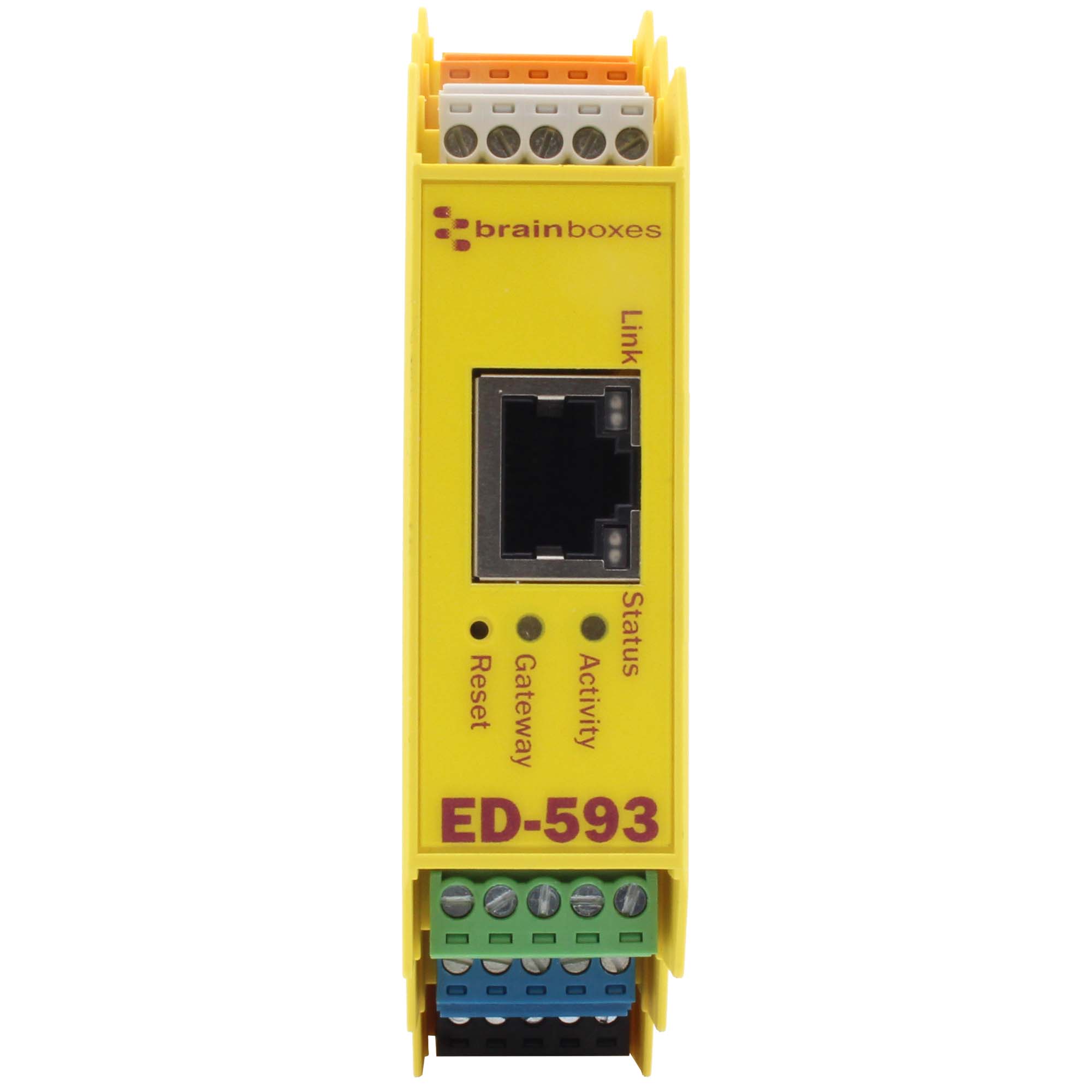

Brainboxes ED-593 thermocouple input module showing ethernet port and status indicator leds

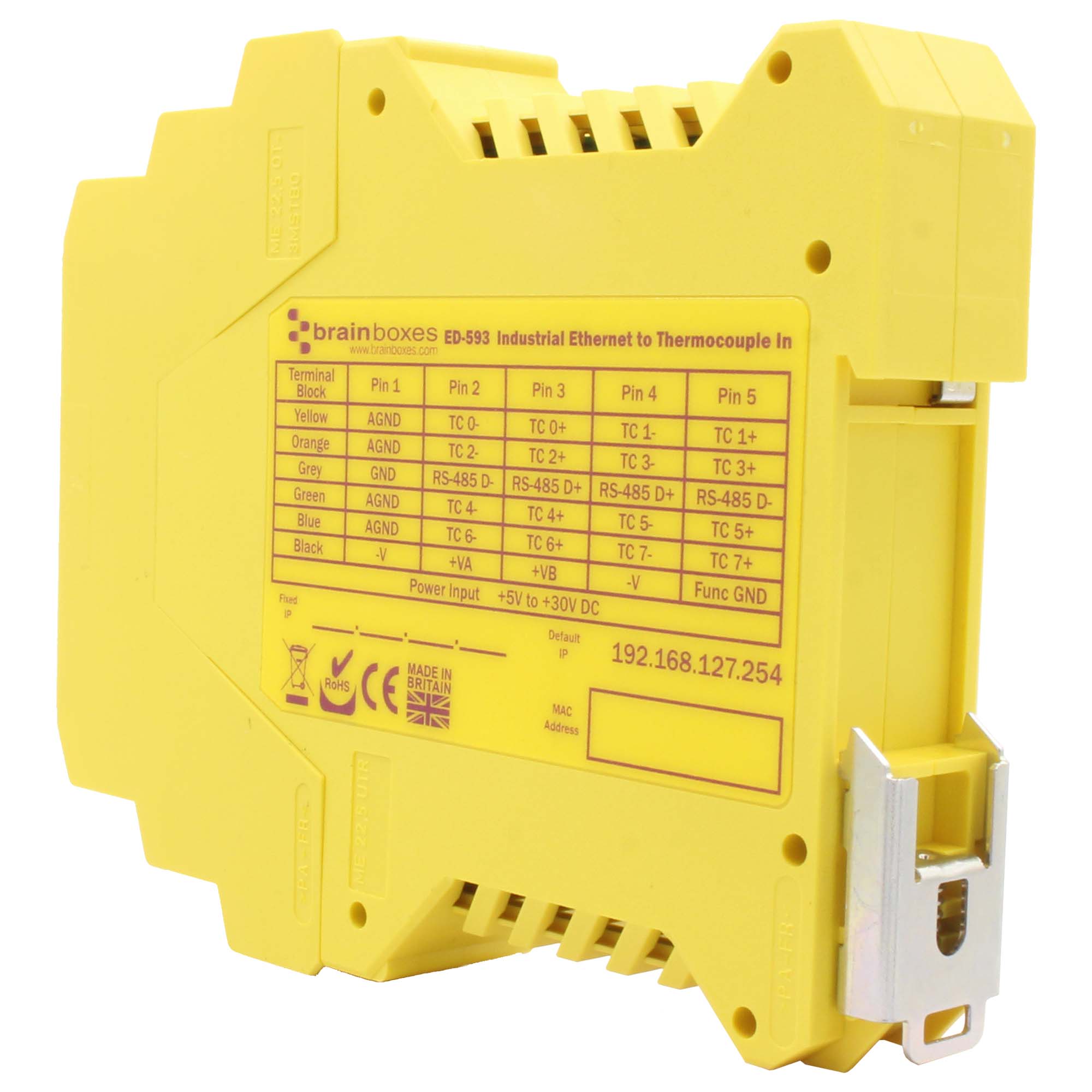

Brainboxes ED-593 thermocouple input module with din rail mounting clip and terminal wiring diagram

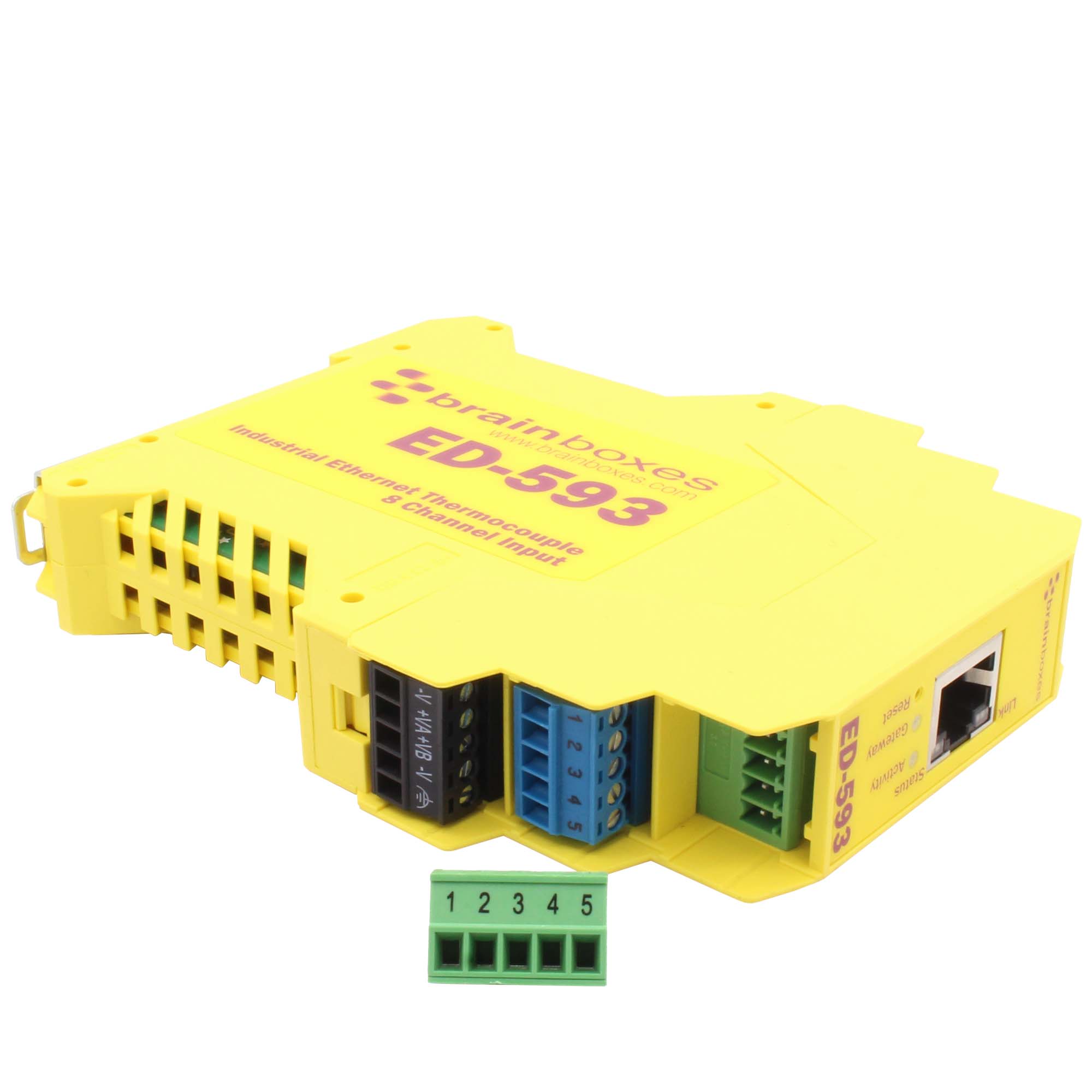

Brainboxes ED-593 thermocouple input device with removable terminal blocks and ethernet port

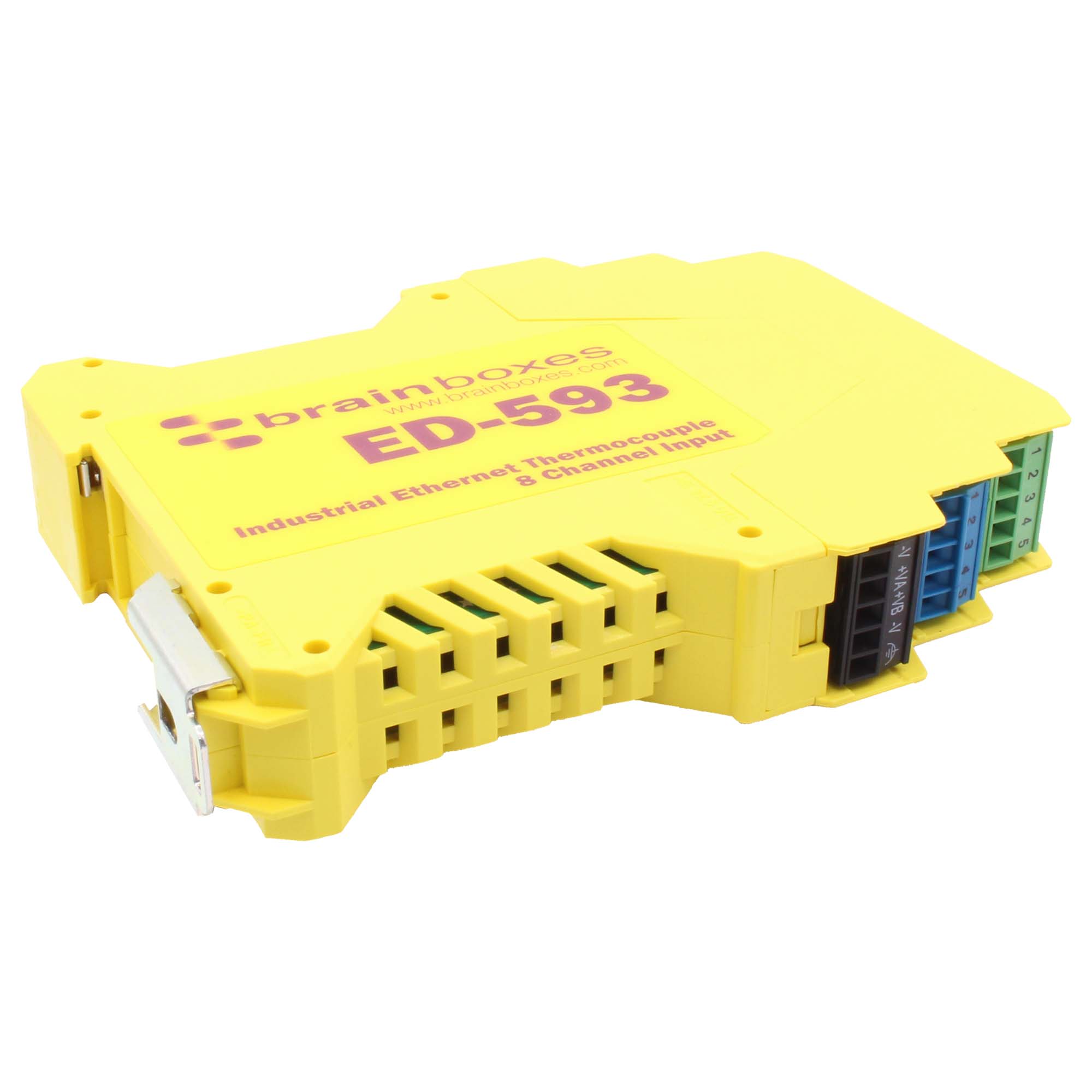

Brainboxes ED-593 industrial thermocouple input module showing terminal connections and din rail mounting

Ethernet to Thermocouple device with 8 input channels. Powerful ARM 80 MHz, 32 Bit CPU.

The device can be controlled over TCP/IP using simple ASCII commands. Additionally, Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device can be configured from any modern web browser, and can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.

Offers robust and intelligent ‘control side’ devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as ‘process side’.

The ED product range is designed for harsh environments.

See other products the same category as ED-593: Remote IO

IO Channels
IO Channels	IO Protocols	DCON ASCII (over TCP or Virtual COM port)
	Description	8 Thermocouple Inputs
	Digital Inputs	0
	Digital Outputs	0
	Analog Inputs	8
	Analog Outputs	0
	Watchdog	N/A
	Power On Values	N/A
	Safe Values	N/A
Digital IO
Serial Port	IO Gateway	ASCII Gateway Port
Network
Network	Number of Ports	1
	Network Port Type	RJ45 Jack 10/100Mbit Autosensing, Cross Over Autosensing (MDIX)
	Network Protocols	ICMP, IP, TCP, DHCP, HTTP
	Protection	1500V Magnetic Isolation between ports and network
Power
Power	Power Input	5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
	Power Supply 1 Description	Global Power Supply - PW-600
	Power Supply 2 Description	Power supply PW-650
	Max Input	30 Volts
General
General	Operating Temperature Range	-40 °C to +80 °C / -40 °F to +176 °F
	Industrial Standard	Yes
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Galvanic Isolation	No
	Power Consumption	Input +5V to +30V DC 100mA@24V 2.5W max
	Product Weight	0.096 kg, 3.39 ounces
	Product Dimensions	129x102x23 mm, 5.1x4.0x0.9 inches
	Packaged Weight	0.192 kg, 6.77 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324004007
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions

ED-593-datasheet.pdf
