ED-560 Ethernet to 4 Analogue Outputs + ASCII Gateway

Name: ED-560 Ethernet to 4 Analogue Outputs + ASCII Gateway - Brainboxes
Brand: brainboxes
SKU: ED-560
Price: 351.45 GBP
Availability: InStock
Rating: 5.00 (3 reviews)

4 Analogue Outputs - individually selectable as Current or Voltage
Precision 0-10V and 4-20mA outputs
Control instantly from any web-browser
-40°C to +80°C Operating Temperature range
Use with Modbus or ASCII commands

Built for Life Warranty

Connected for Life

Download ED-560 Technical Datasheet (PDF)

£351.45

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

Brainboxes ED-560 4 analogue outputs - individually selectable as current or

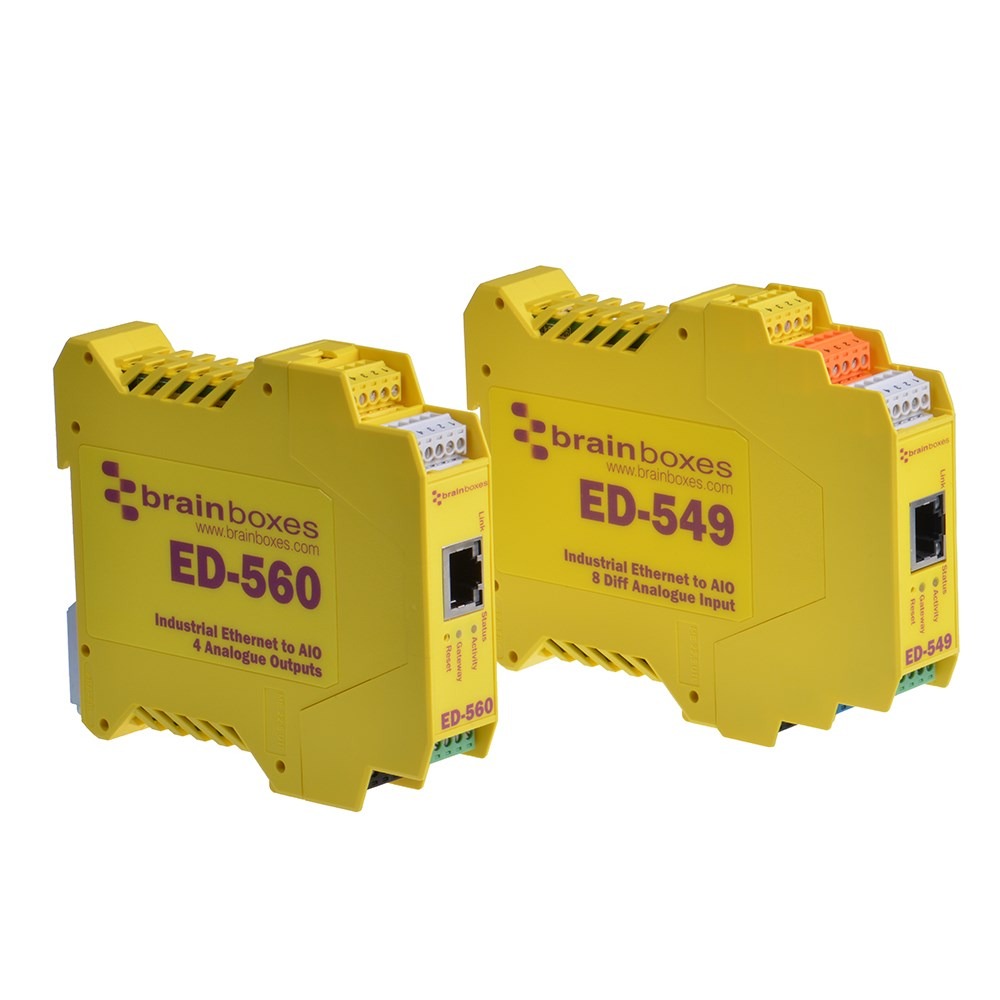

Brainboxes ED-560 two industrial ethernet to analogue output converter modules showing different channel configurations

Brainboxes ED-560 two industrial analogue output modules mounted on din rail showing ethernet ports

Brainboxes ED-560 rear panel showing terminal block wiring diagram and connection pinouts

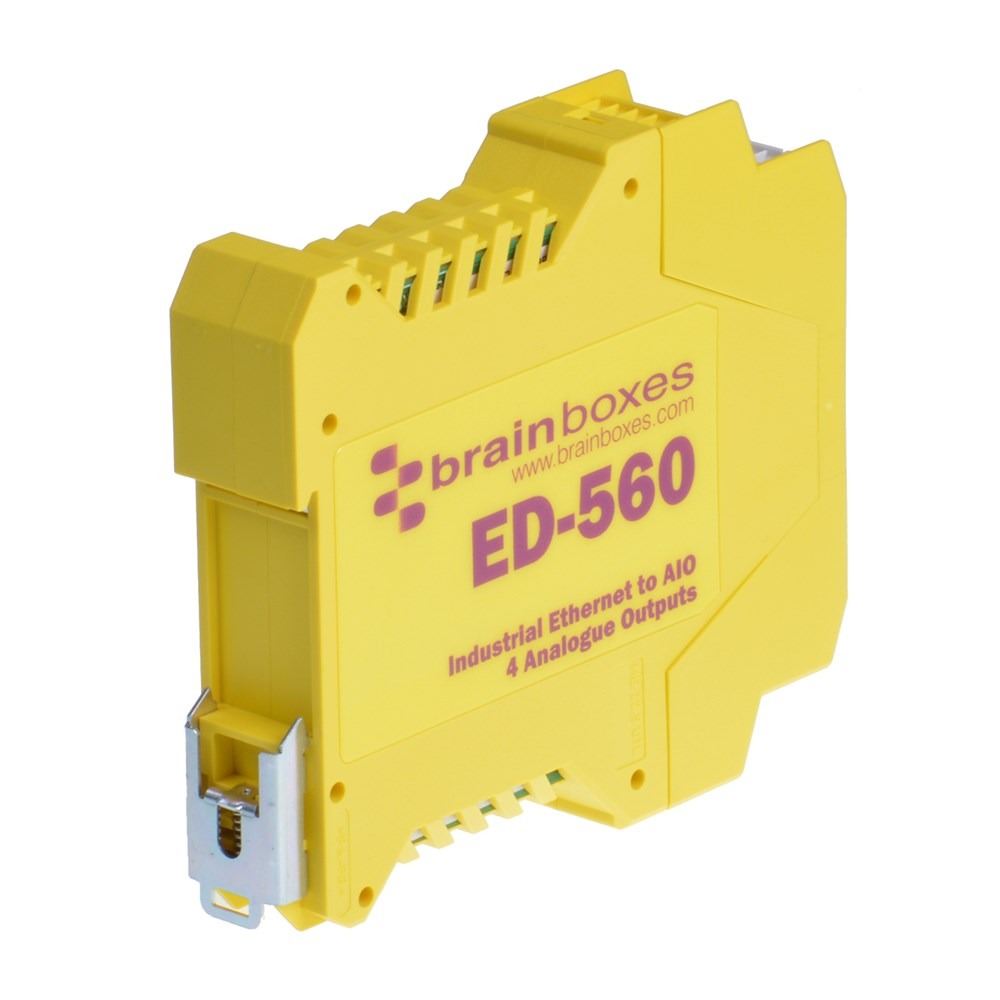

Brainboxes ED-560 industrial analogue output device with din rail mounting clip

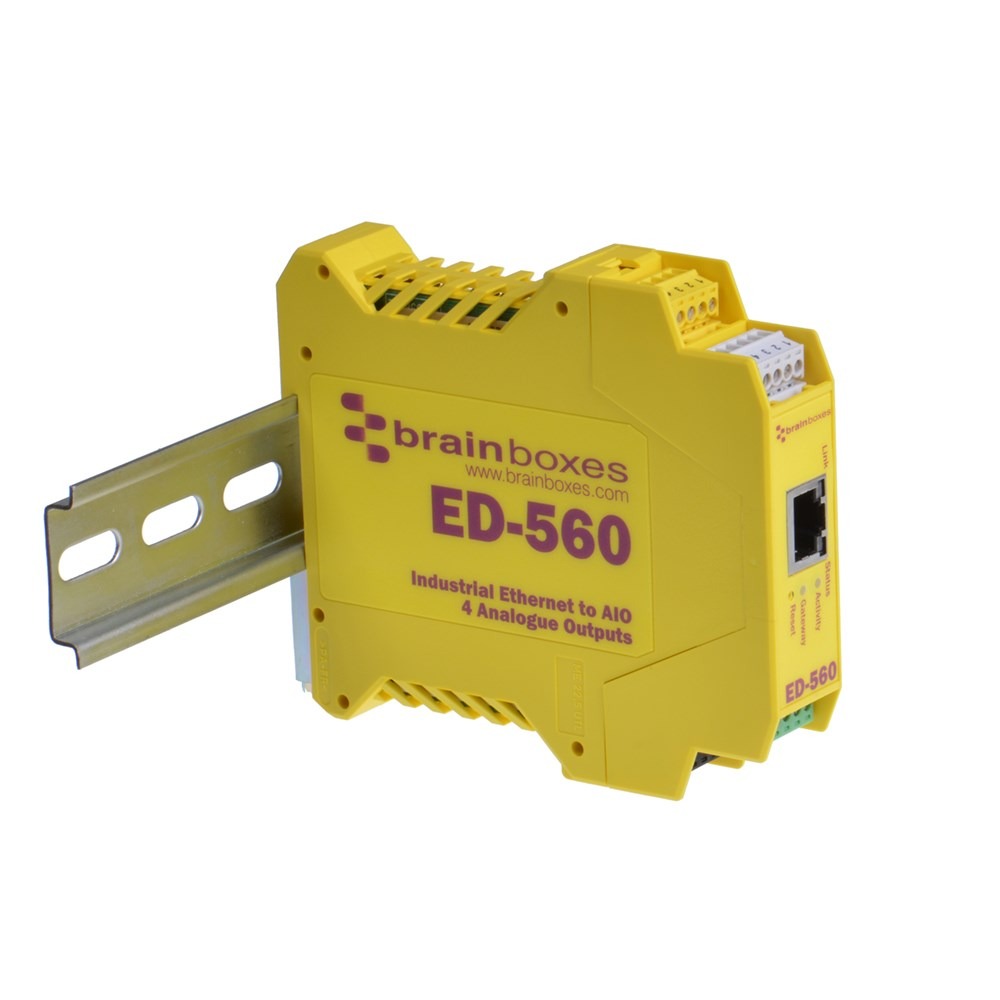

Brainboxes ED-560 industrial ethernet device mounted on standard din rail mounting system

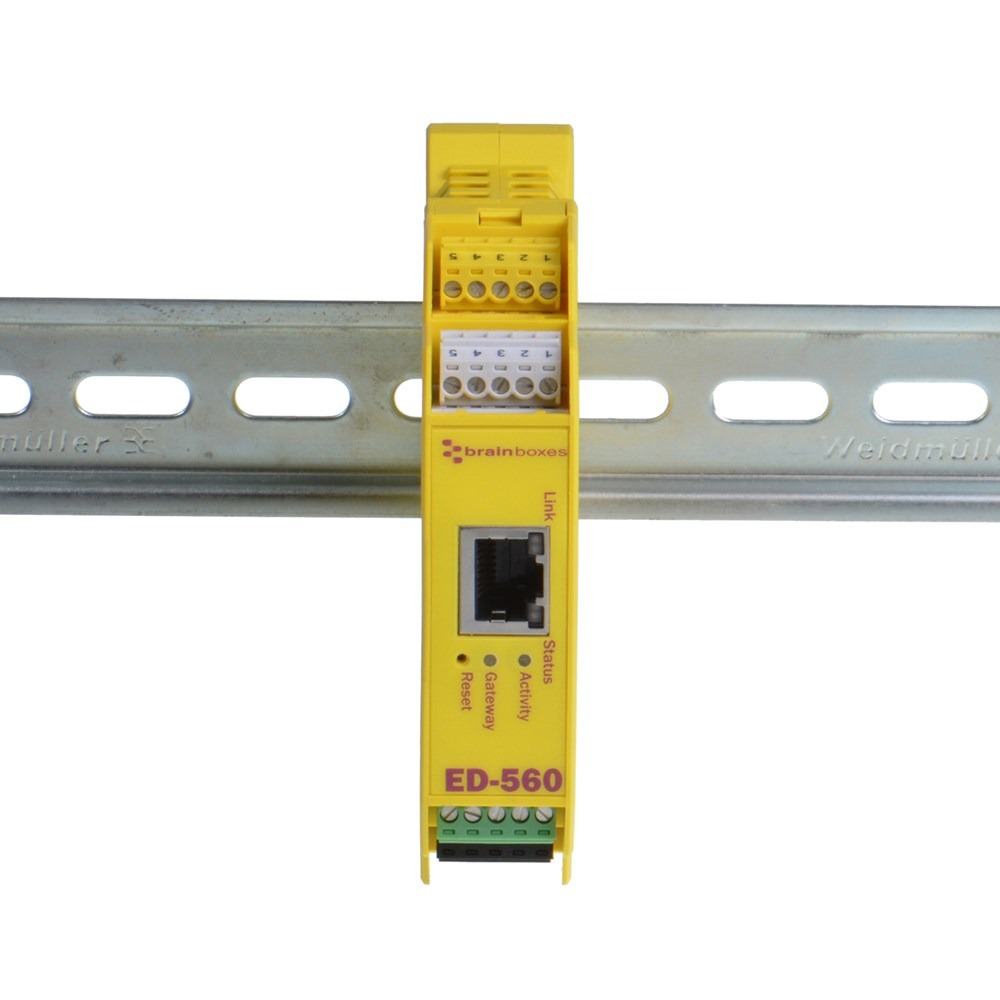

Brainboxes ED-560 industrial analogue output device mounted on standard din rail showing ethernet port

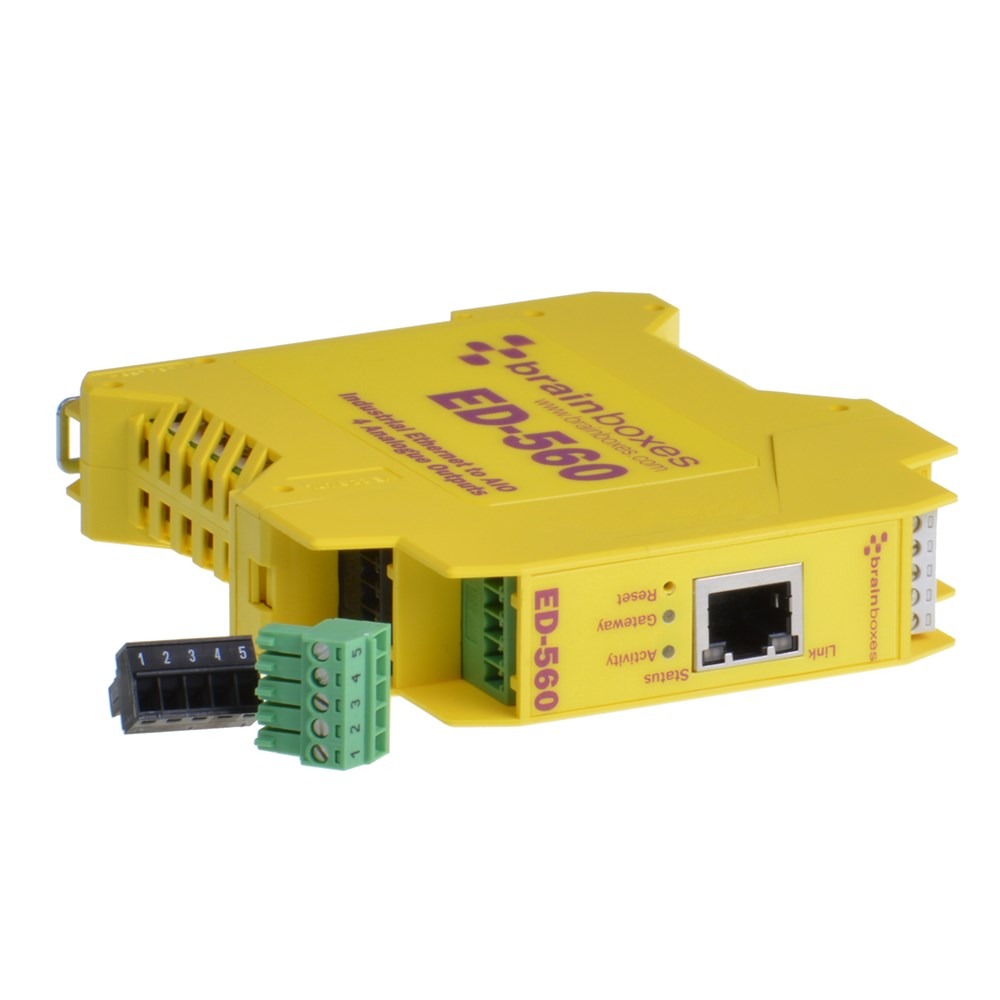

Brainboxes ED-560 industrial device showing removable terminal blocks and ethernet connection port

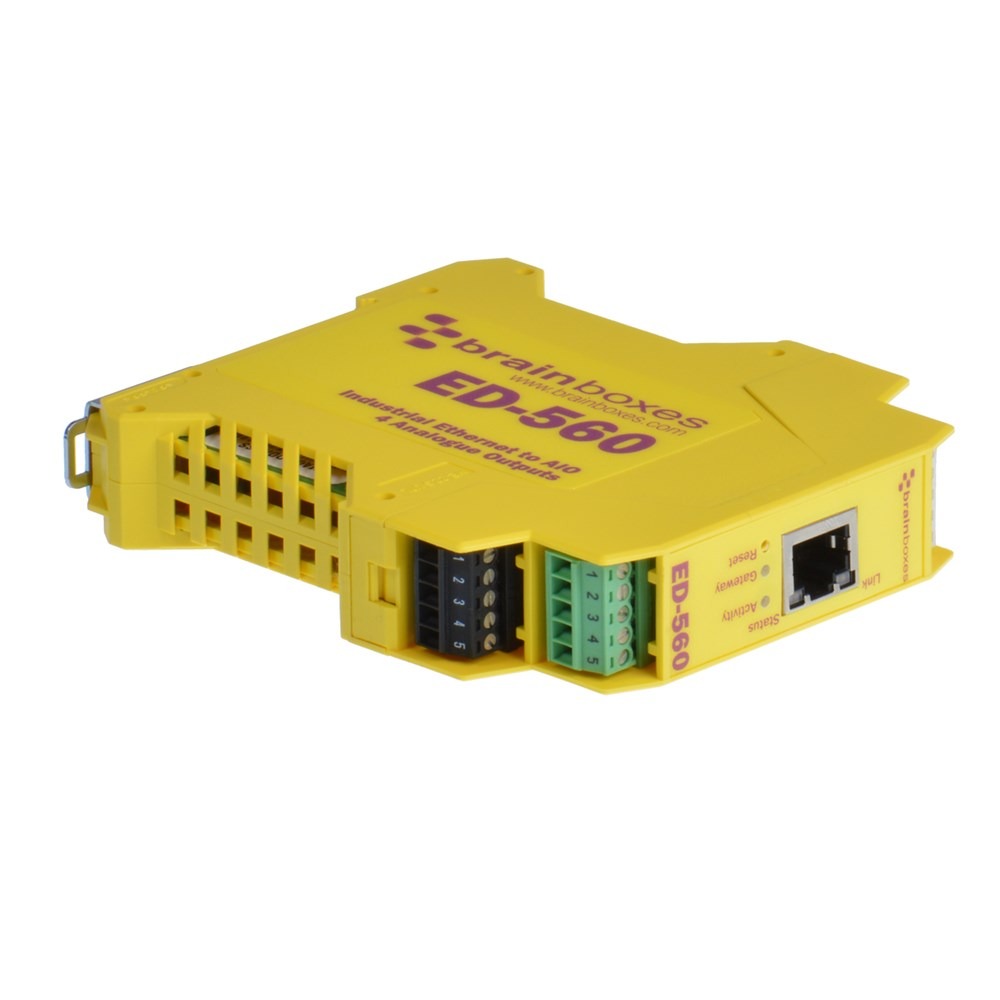

Brainboxes ED-560 industrial device showing terminal blocks and ethernet connection port

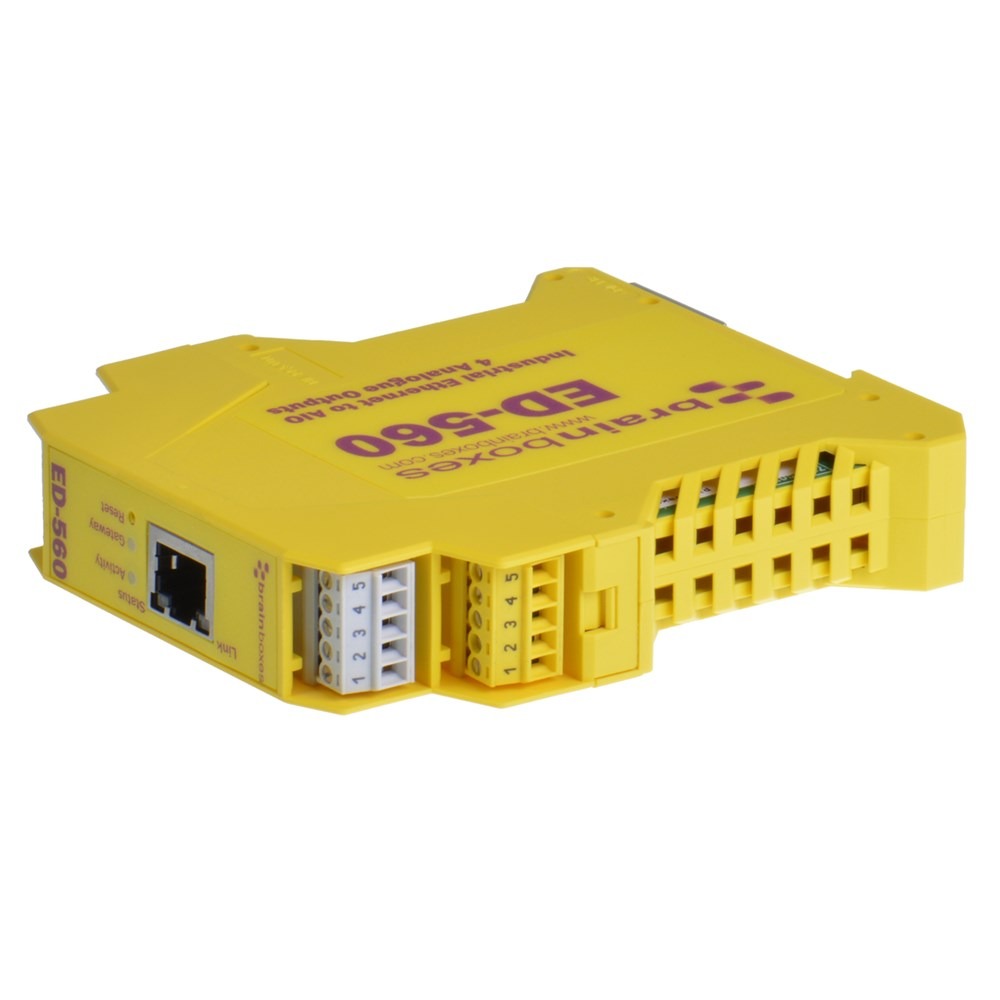

Brainboxes ED-560 angled top view showing terminal blocks and ethernet port connections

The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents.

As well as the popular 0-10V and 4-20mA outputs, the ED-560 allows full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 4 analogue outputs. Each channel is individually configurable for voltage or current output with its own programmable gain.

The device installs as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. From other platforms and operating systems the device can be controlled over TCP/IP. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the ED device using Microsoft .NET framework, C++, Java, Javascript, PHP and more. The device can be configured and secured from a web browser.

The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..

See other products the same category as ED-560: Remote IO

IO Channels
IO Channels	IO Protocols	Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
	Description	4 Analogue Outputs
	Digital Inputs	0
	Digital Outputs	0
	Analog Inputs	0
	Analog Outputs	4
	Watchdog	When device comms is lost, outputs can be set to predetermined state
	Power On Values	Outputs can be set to predetermined values on power on
	Safe Values	N/A
Analog IO
Analog IO	Input Voltage Ranges	N/A
	Input Current Ranges	N/A
	Input Measurement Resolution	N/A
	Input Measurement Accuracy	N/A
	Input Measurement Rate	N/A
	Input Impedance (Voltage Mode)	N/A
	Input Noise (CMRR)	N/A
	Input Noise (NMRR)	N/A
	Output Voltage Ranges	0-10V
	Output Current Ranges	0-20mA or 4-20mA
	Output Current Type	Sink (requires external current source)
	Output Measurement Resolution	12 Bit
	Max Output Load Current (voltage mode)	±5mA
	Max Output Load Voltage (current mode)	30V
	Output Accuracy	0.1% of FSR @ 25°C / 77 °F
	Output Voltage Drift (Voltage Mode)	Zero drift less than 30µV/°C, span drift less than 25ppm/°C
	Output Current Drift (Current Mode)	Zero drift less than 0.2µA/°C, span drift less than 25ppm/°C
	Output Slew Rate	Voltage Mode: 170 kV/s, Current Mode: 4.3A/s
	Output Settling Time	Voltage Mode: 350µs, Current Mode: 4 µs
Serial Port
Serial Port	IO Gateway	ASCII Gateway Port
Network
Network	Number of Ports	1
	Network Port Type	RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
	Network Protocols	ICMP, IP, TCP, DHCP, HTTP
	Protection	1500V Magnetic Isolation between ports and network
Power
Power	Power Input	5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
	Power Supply 1 Description	Global Power Supply - PW-600
	Power Supply 2 Description	Power supply PW-650
	Max Input	35 Volts
	Power Consumption	2.5 Watt Max
General
General	Operating Temperature Range	-40 °C to +80 °C / -40 °F to +176 °F
	Industrial Standard	Yes
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Ambient Relative Humidity	5-95% (Non-condensing)
	Power Consumption	Input +5V to +30V DC 100mA@24V 2.5W max
	Product Weight	0.124 kg, 4.37 ounces
	Product Dimensions	114x99x23 mm, 4.5x3.9x0.9 inches
	Packaged Weight	0.197 kg, 6.95 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324003505
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Raspberry Pi Android Windows Server 2008 R2 Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 Linux
