SW-581 Industrial Gigabit SFP Media Converter

  • Gigabit SFP Media Converter
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 3.6 W Max
  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • DIN rail mountable

Download SW-581 Technical Datasheet (PDF)

£69.00
Add to Cart
Buy from Reseller

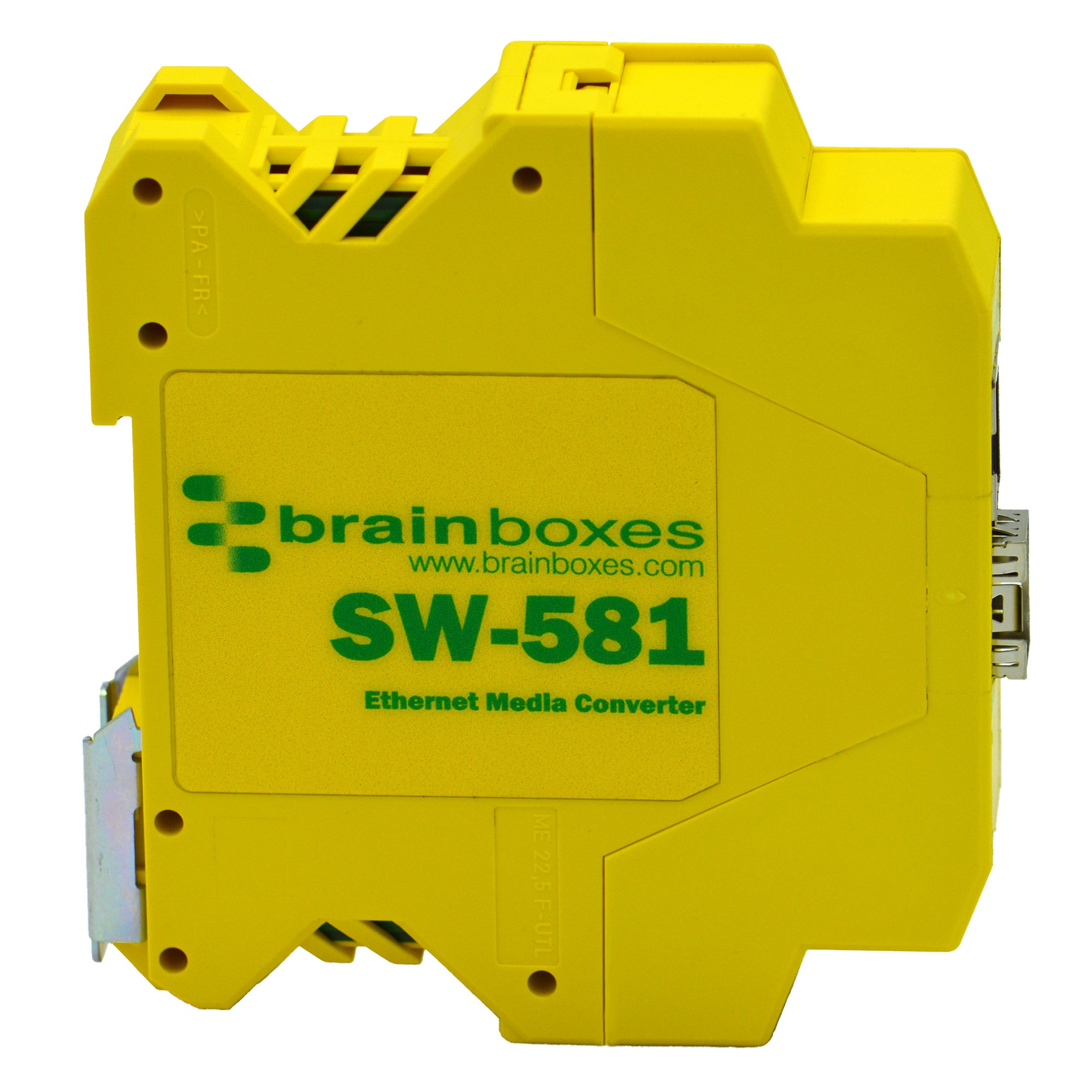

Brainboxes SW-581 gigabit sfp media converter dual redundant, wide power

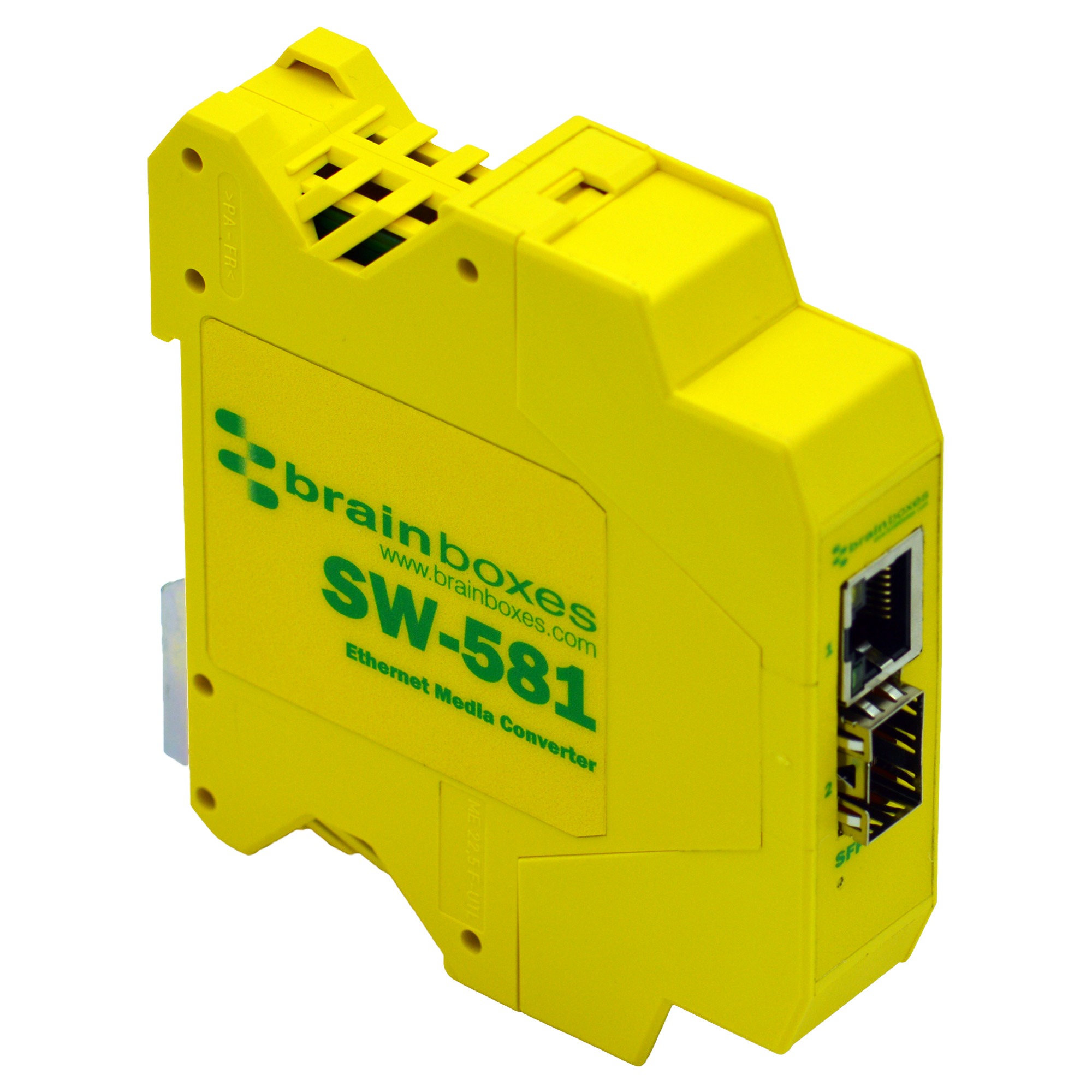

Brainboxes SW-581 din rail mounted gigabit sfp media converter showing ethernet ports

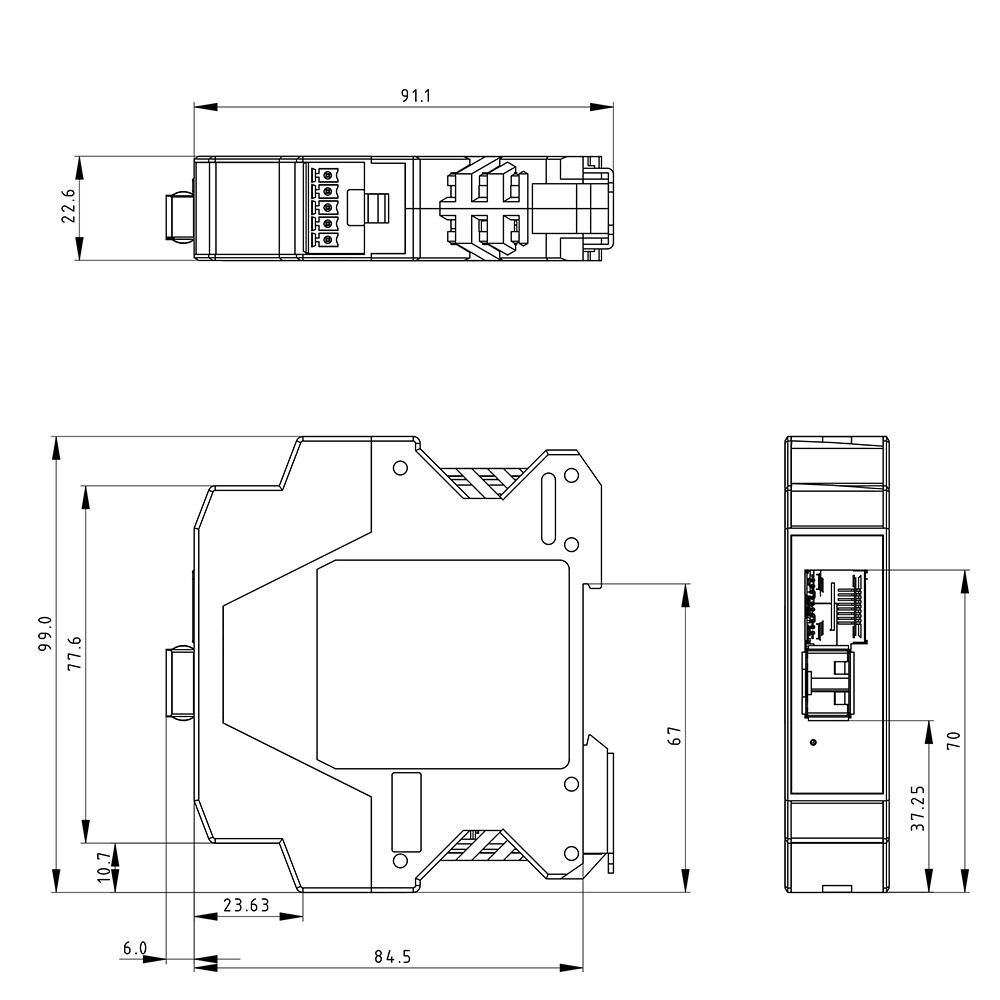

Brainboxes SW-581 technical drawing showing mechanical dimensions and measurements of gigabit sfp media converter

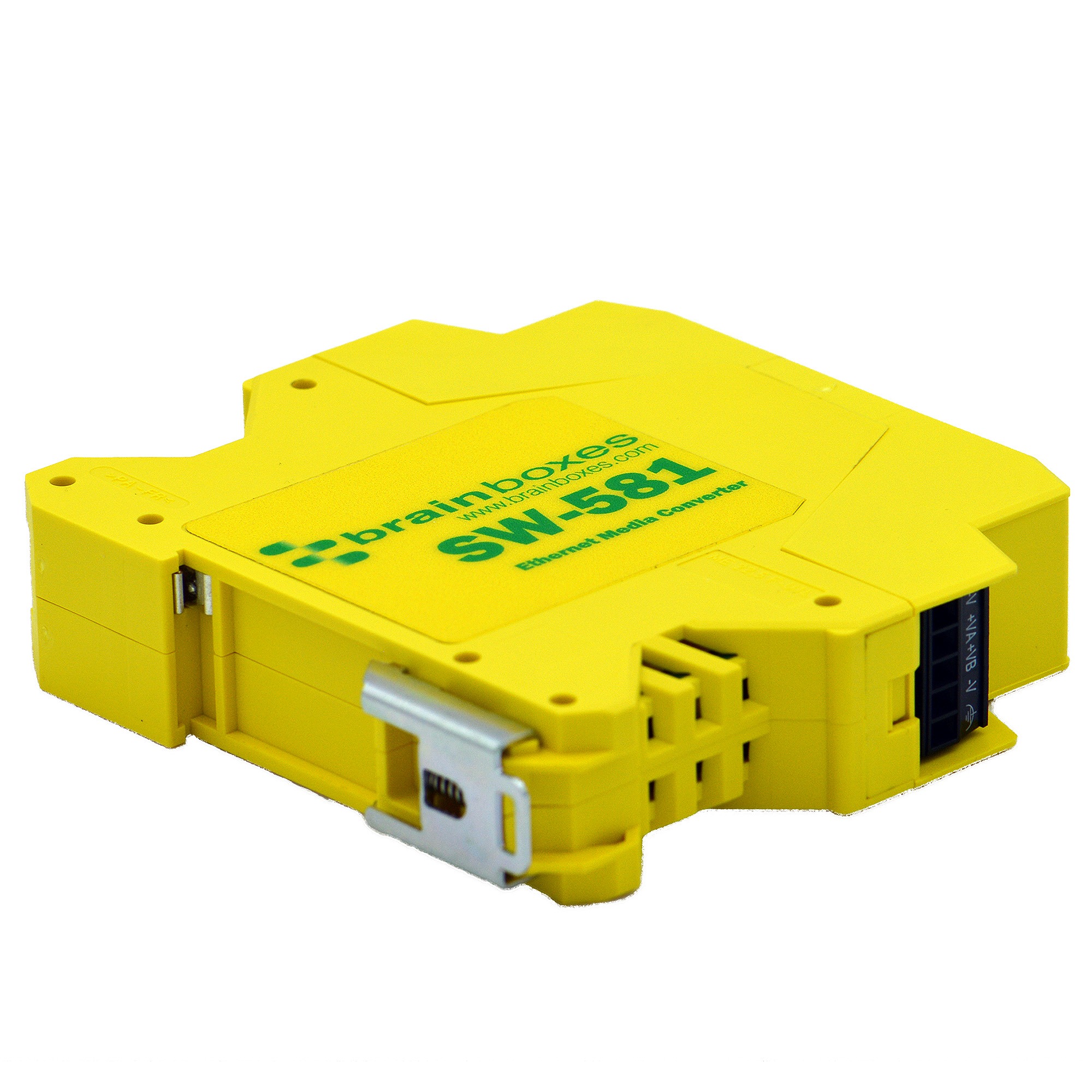

Brainboxes SW-581 compact gigabit sfp media converter showing flat industrial design

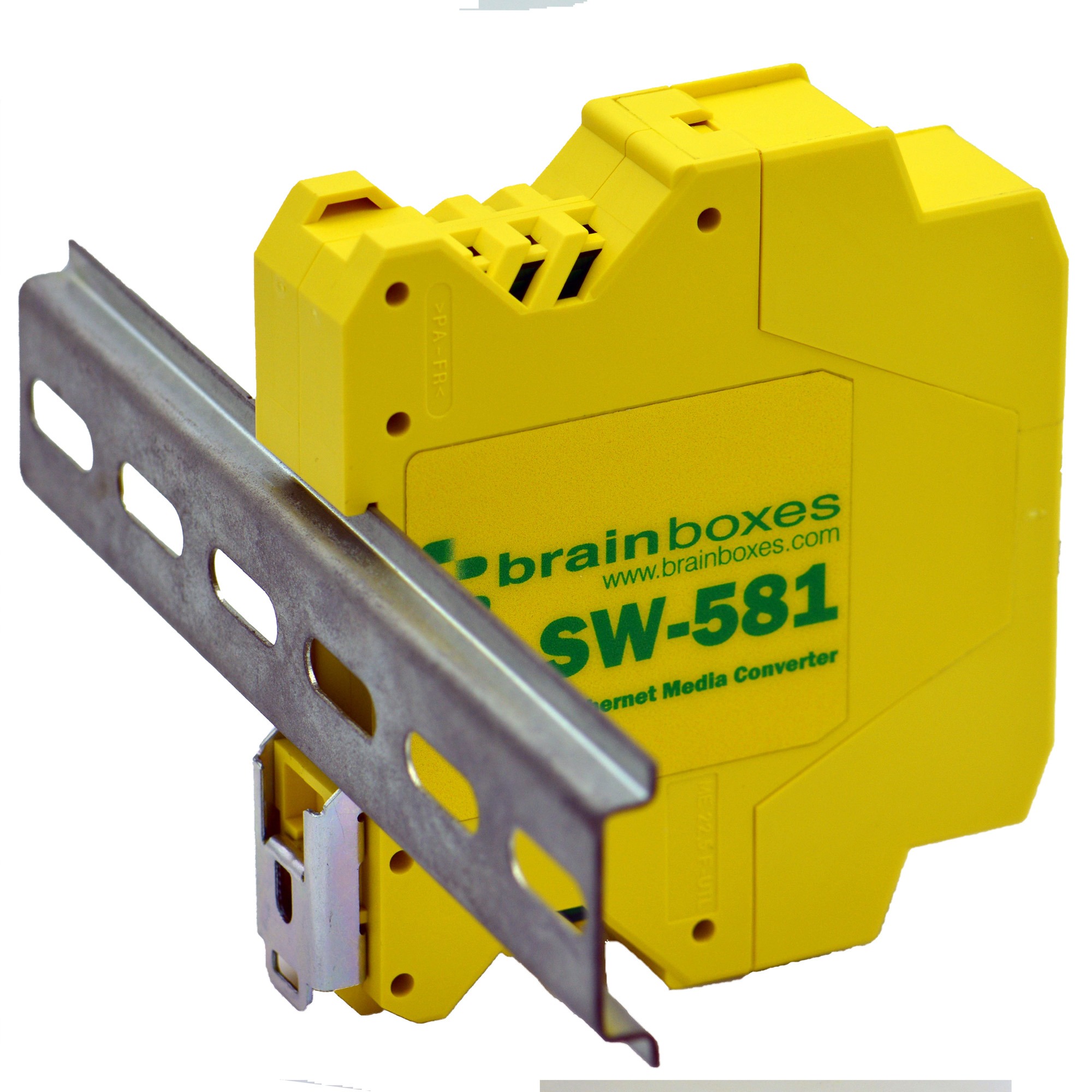

Brainboxes SW-581 gigabit media converter with din rail mounting bracket attachment

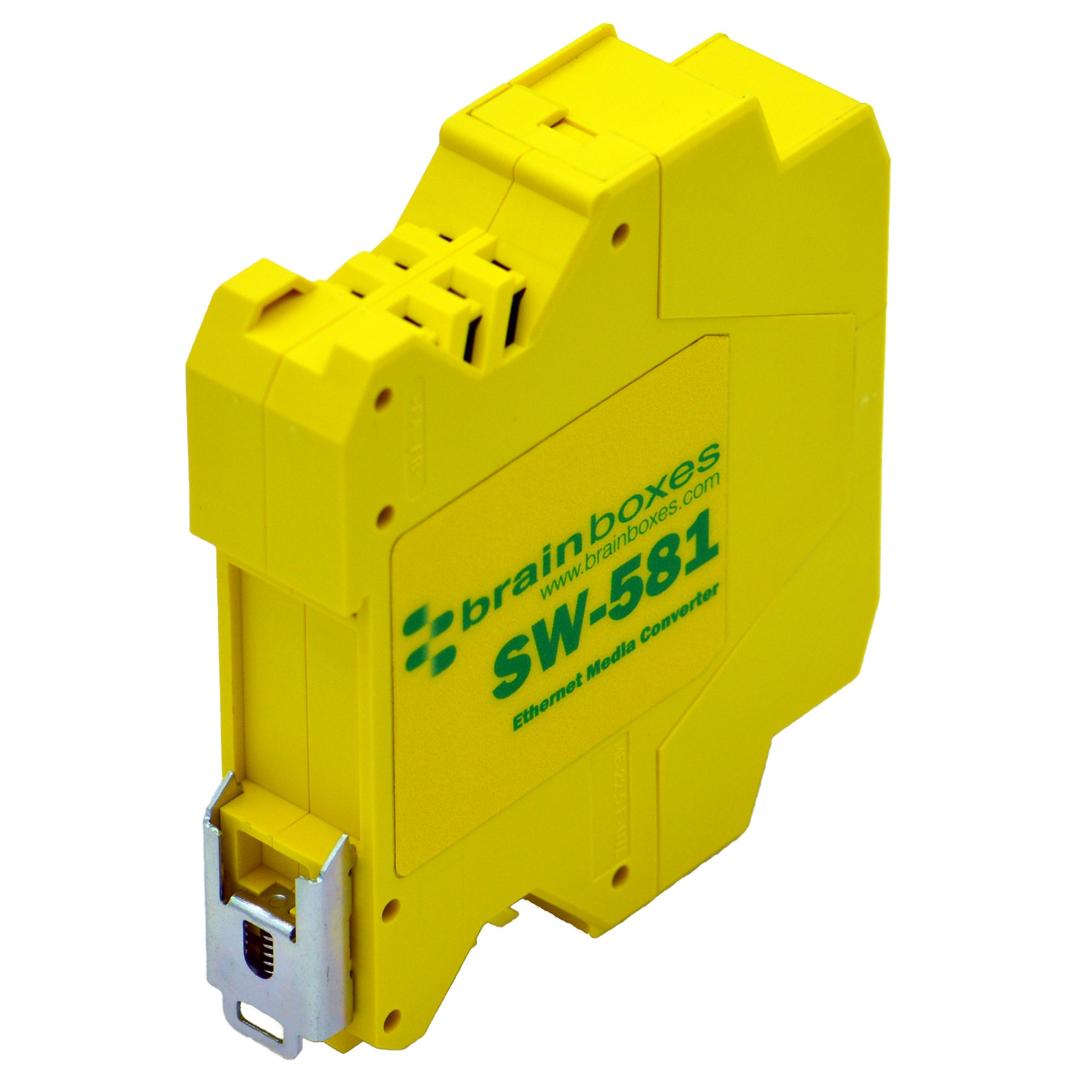

Brainboxes SW-581 gigabit sfp media converter showing din rail mounting and side profile
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Industrial Gigabit SFP Media Converter

Cost-effective connectivity – economical way to integrate devices into a fibre optic network. Scalability: Combine with other switches in the range to create a comprehensive and future-proof network solution

Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

See other products the same category as SW-581: Gigabit Ethernet Switch

Download SW-581 CAD 3D Model
