SW-535 Industrial 5 Port PoE+ Gigabit Ethernet Switch

  • 5x Port PoE+ Gigabit Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +44 V to +57 VDC
  • Low Power Consumption: 5.5 W Max
  • Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F
  • DIN rail mountable

Download SW-535 Technical Datasheet (PDF)

£129.00
Add to Cart
Buy from Reseller
Brainboxes SW-535 5x port poe+ gigabit unmanaged ethernet switch dual
Brainboxes SW-535 industrial ethernet switch showing certification logos and compliance markings

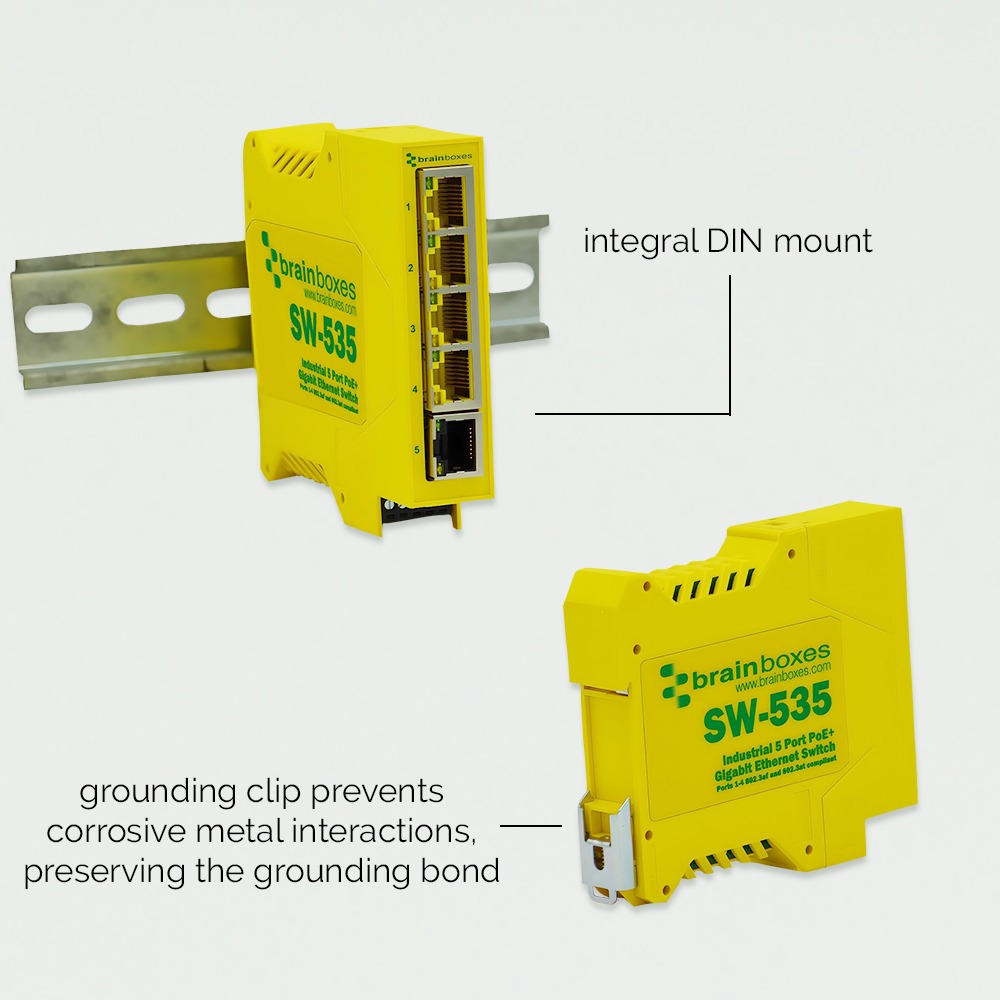

Brainboxes SW-535 industrial ethernet switch showing din rail mount and grounding clip features

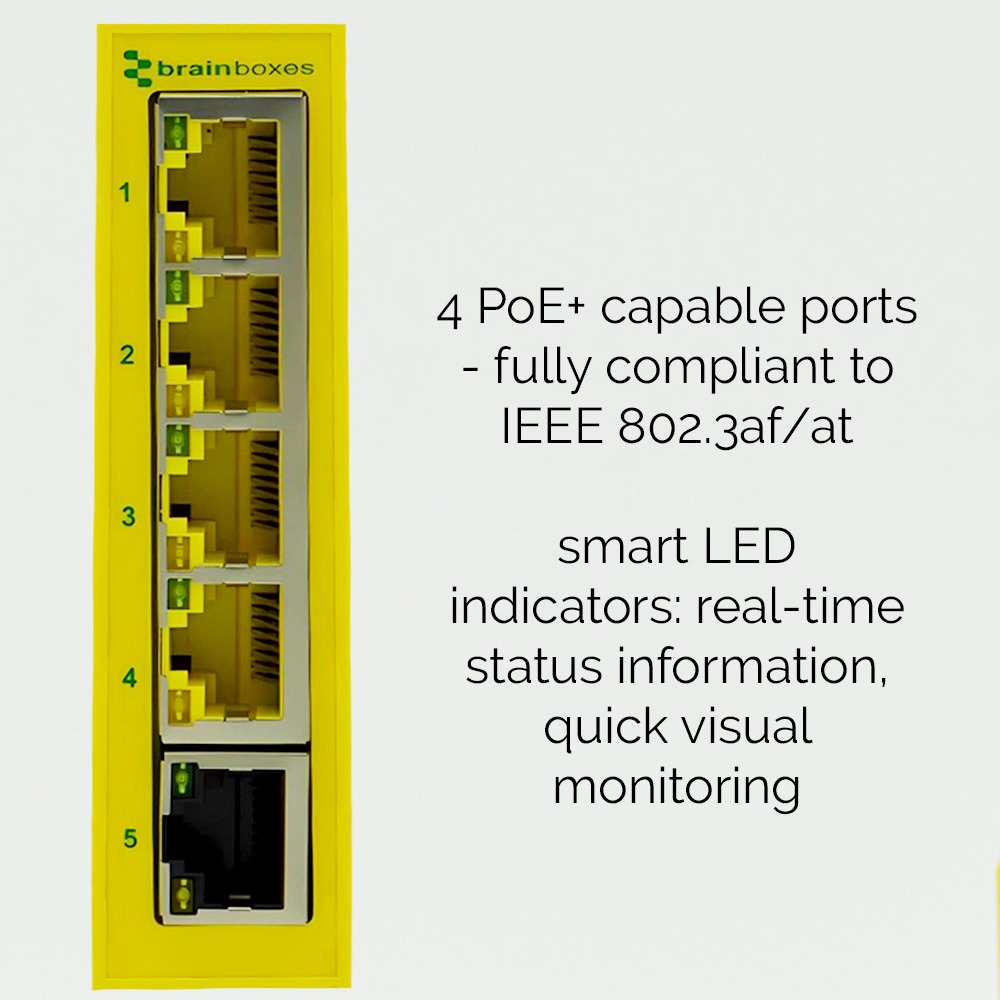

Brainboxes SW-535 five port ethernet switch showing poe capable ports and led indicators

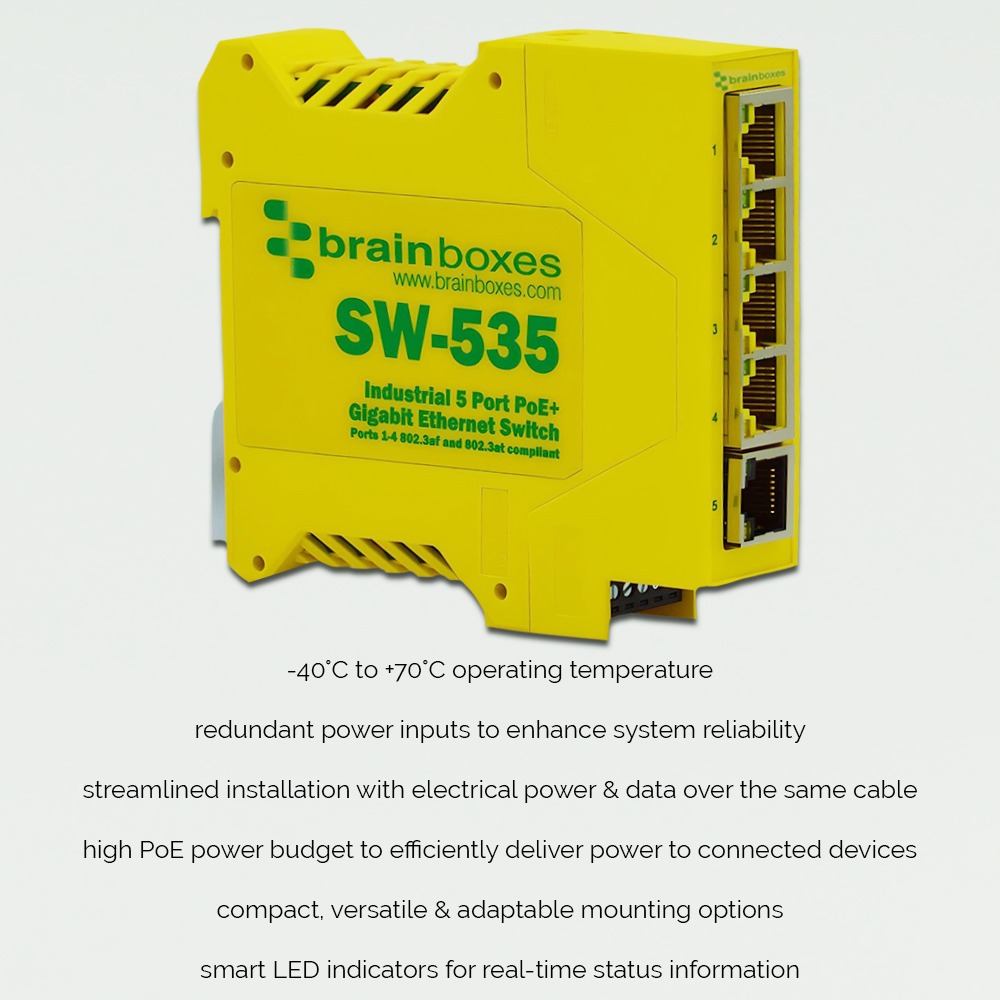

Brainboxes SW-535 industrial ethernet switch with feature highlights and technical specifications
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Industrial Compact 5 Port PoE+ Gigabit Ethernet device.

Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.

Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.

Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.

Compatible DIN rail power supply available: PW-301



See other products the same category as SW-535: Gigabit Ethernet Switch

Download SW-535 CAD 3D Model
