SW-518 Industrial 8 Port Gigabit Ethernet Switch DIN Rail Mountable

  • 8x Port Gigabit Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 6.5 W Max
  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • DIN rail mountable

Download SW-518 Technical Datasheet (PDF)

£117.00
Add to Cart
Buy from Reseller
Brainboxes SW-518 8x port gigabit unmanaged ethernet switch dual

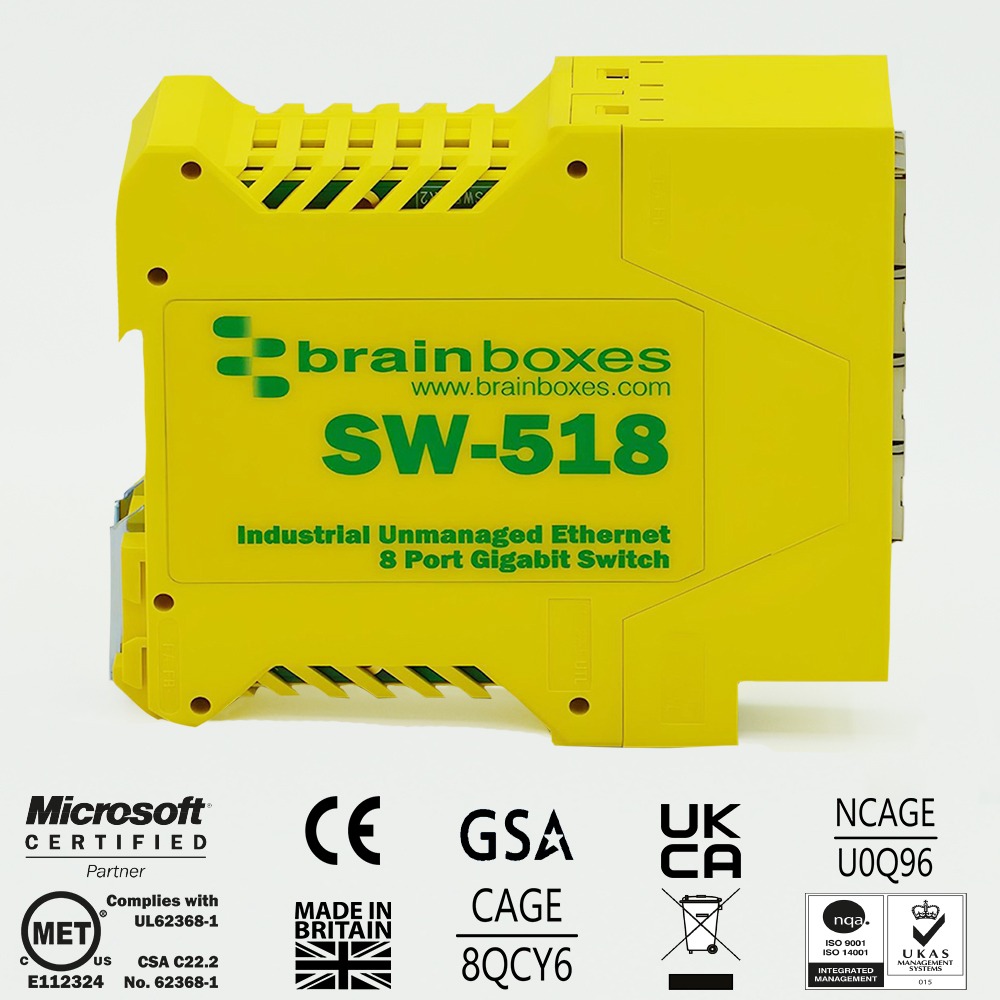

Brainboxes SW-518 industrial ethernet switch showing certification marks and compliance logos

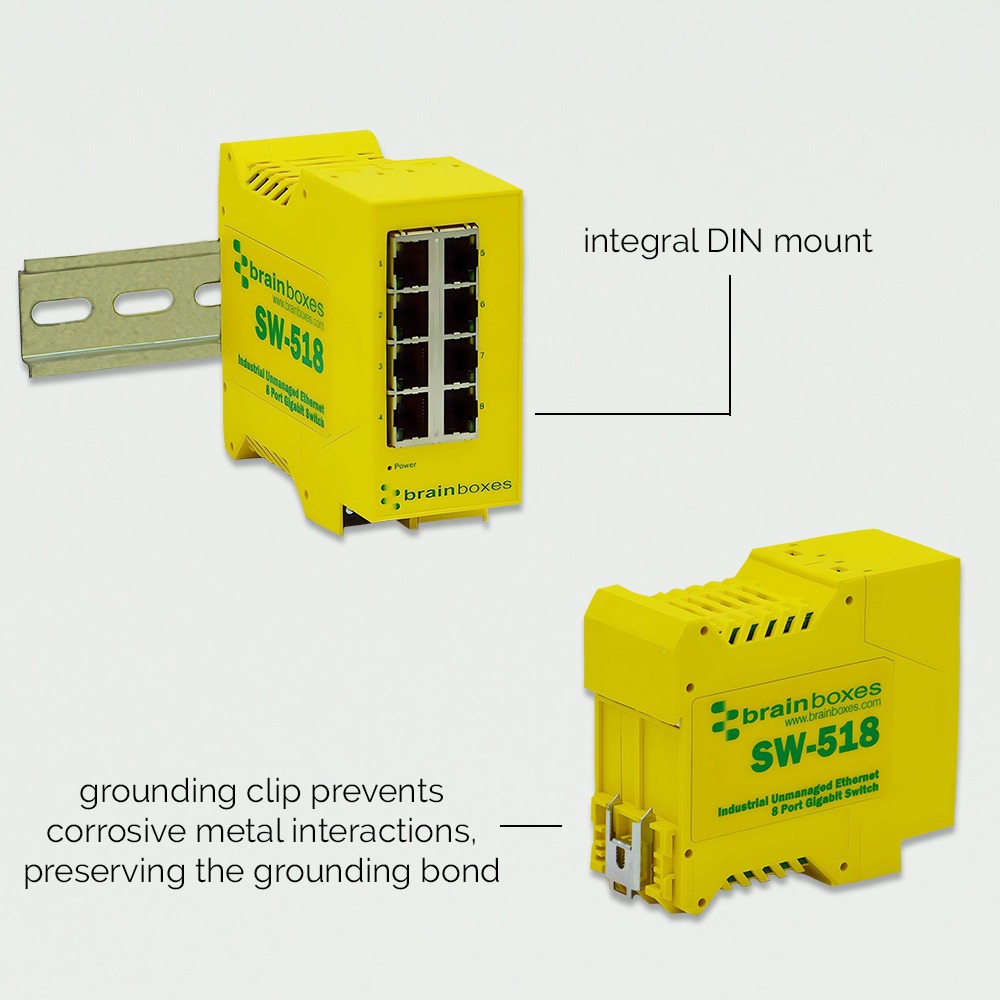

Brainboxes SW-518 industrial ethernet switch showing din rail mount and grounding clip features
Brainboxes SW-518 industrial ethernet switch showing 8 gigabit ports with led status indicators
Brainboxes SW-518 industrial ethernet switch with 8 gigabit ports and key technical specifications

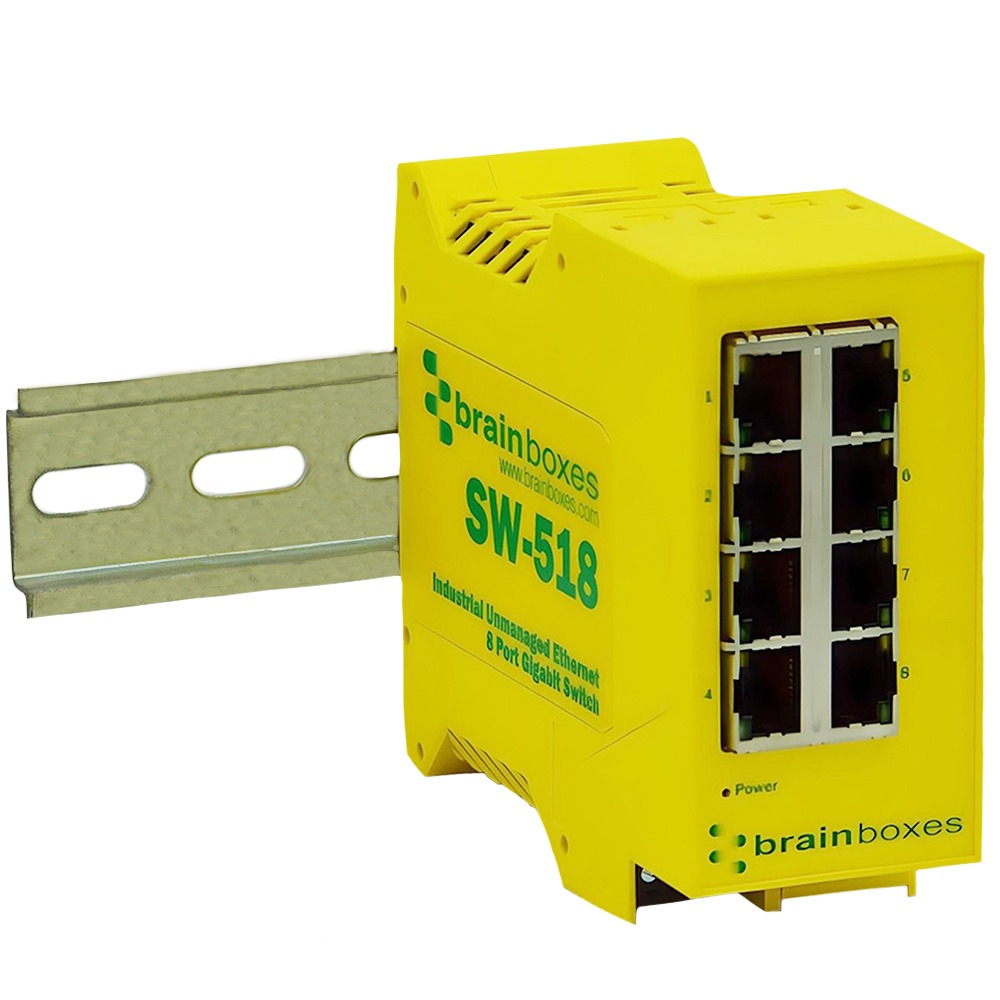

Brainboxes SW-518 industrial ethernet switch showing din rail mounting and ethernet ports

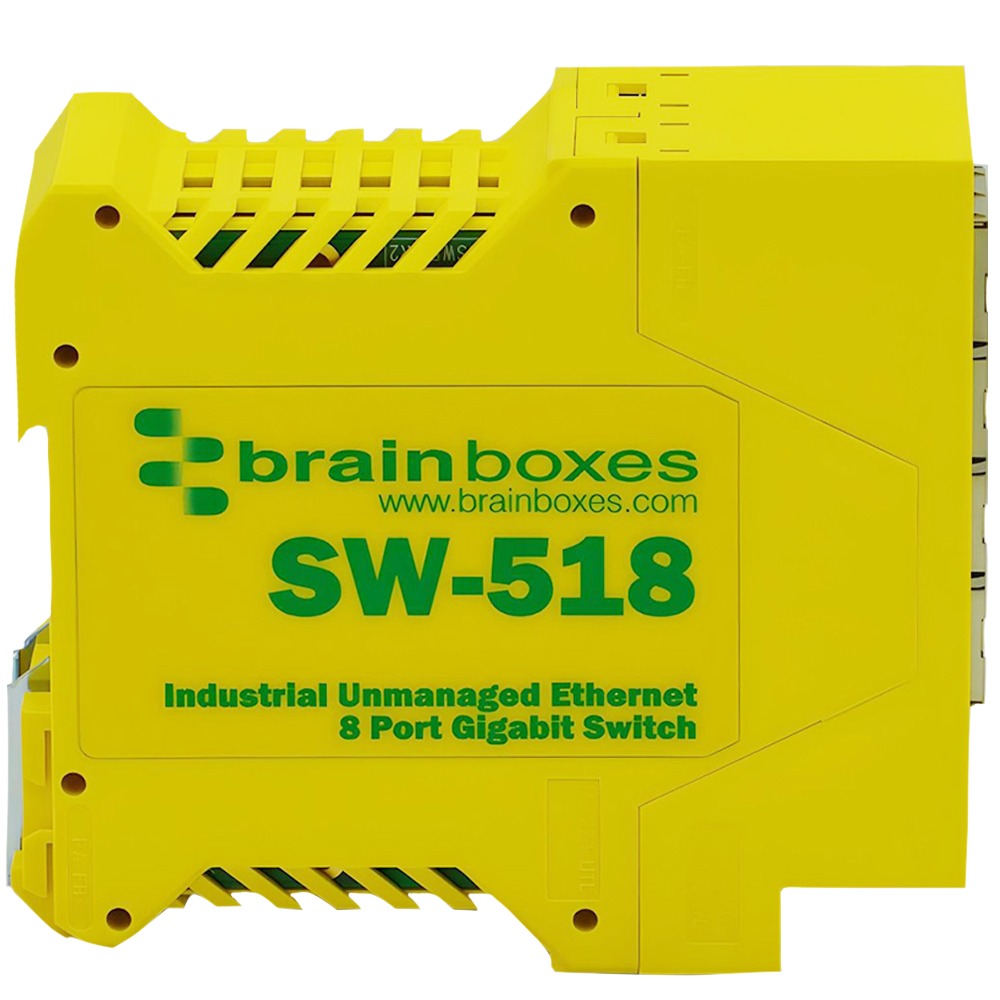

Brainboxes SW-518 industrial ethernet switch showing din rail mounting and side profile

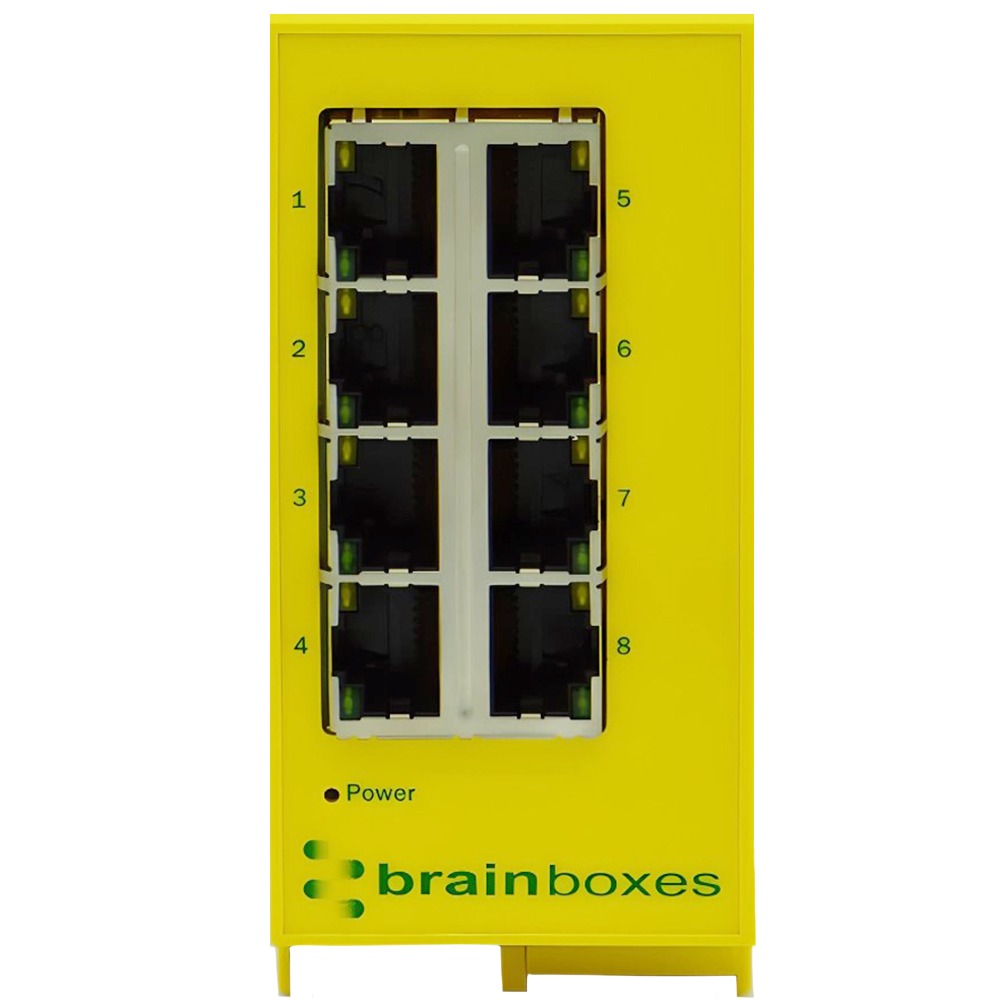

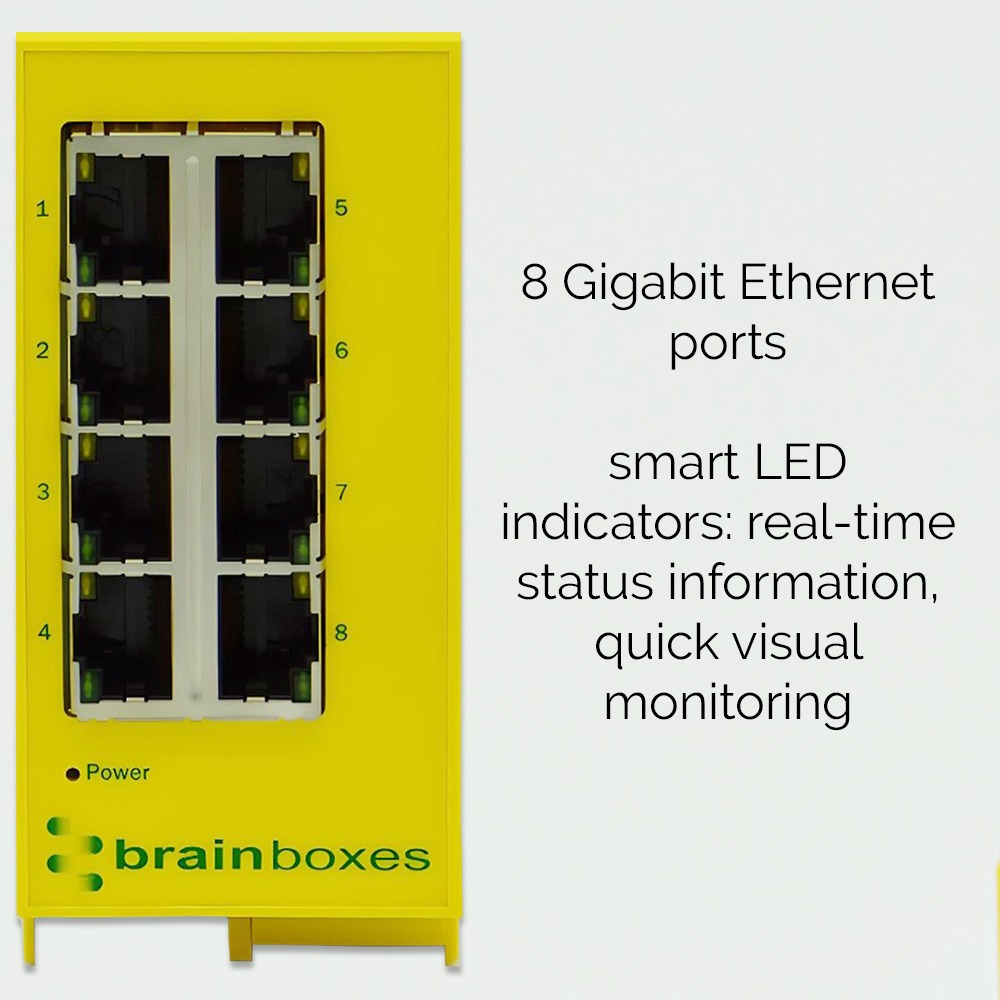

Brainboxes SW-518 front view showing eight numbered ethernet ports and power indicator

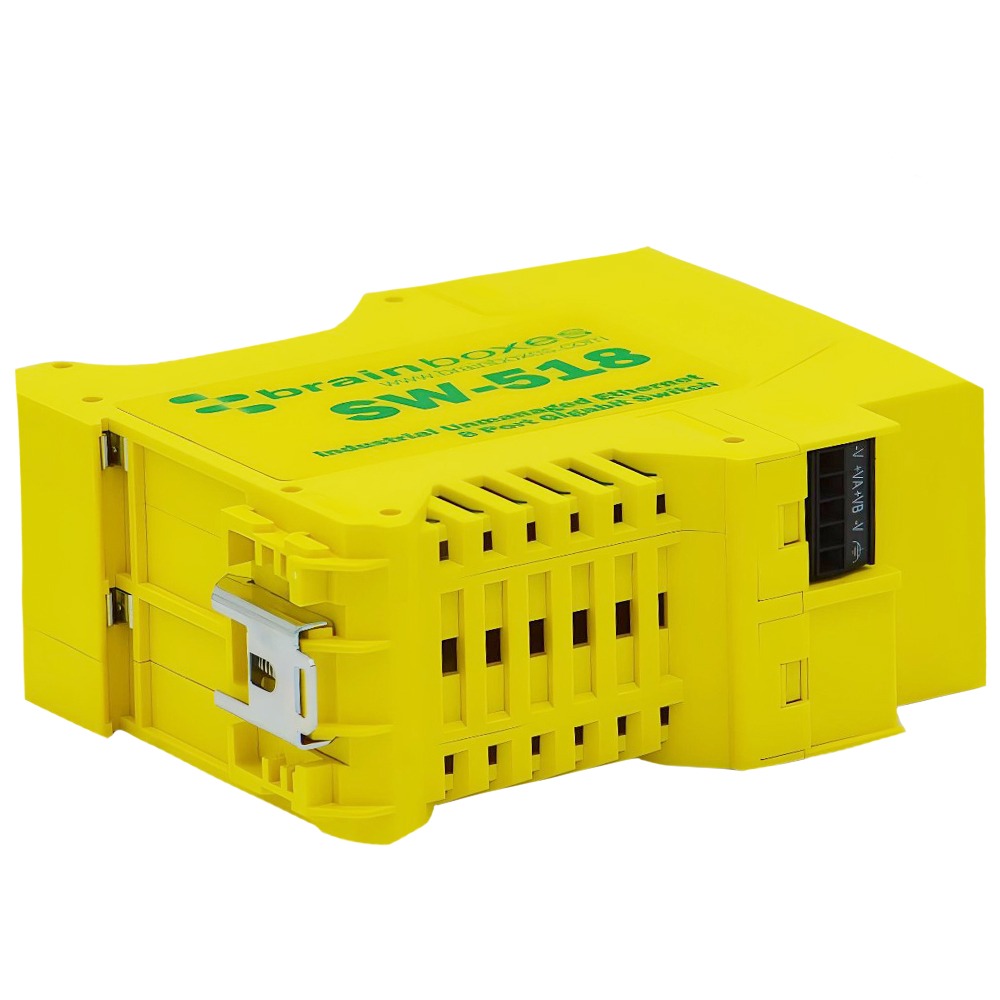

Brainboxes SW-518 flat grounding clip for industrial ethernet switch mounting
Brainboxes SW-518 industrial ethernet switch with 8 ports mounted on standard din rail

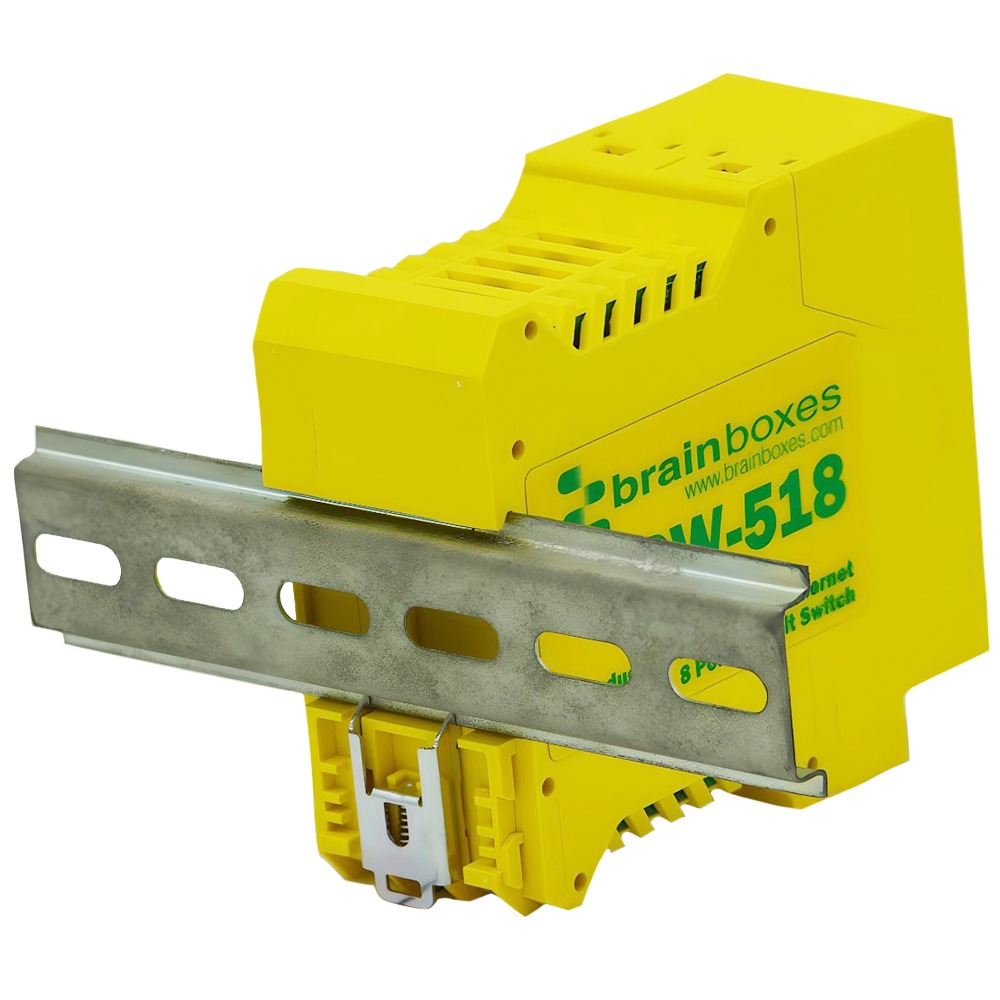

Brainboxes SW-518 industrial ethernet switch mounted on standard din rail from side angle

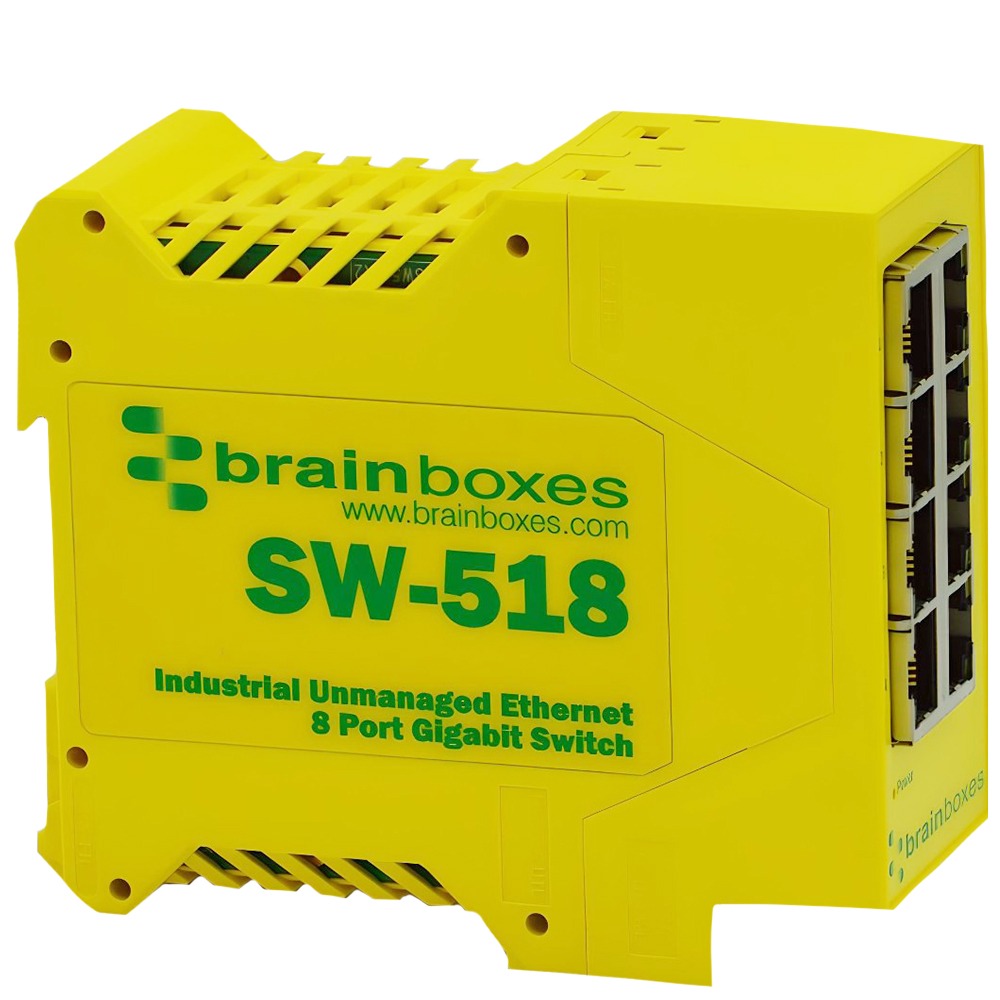

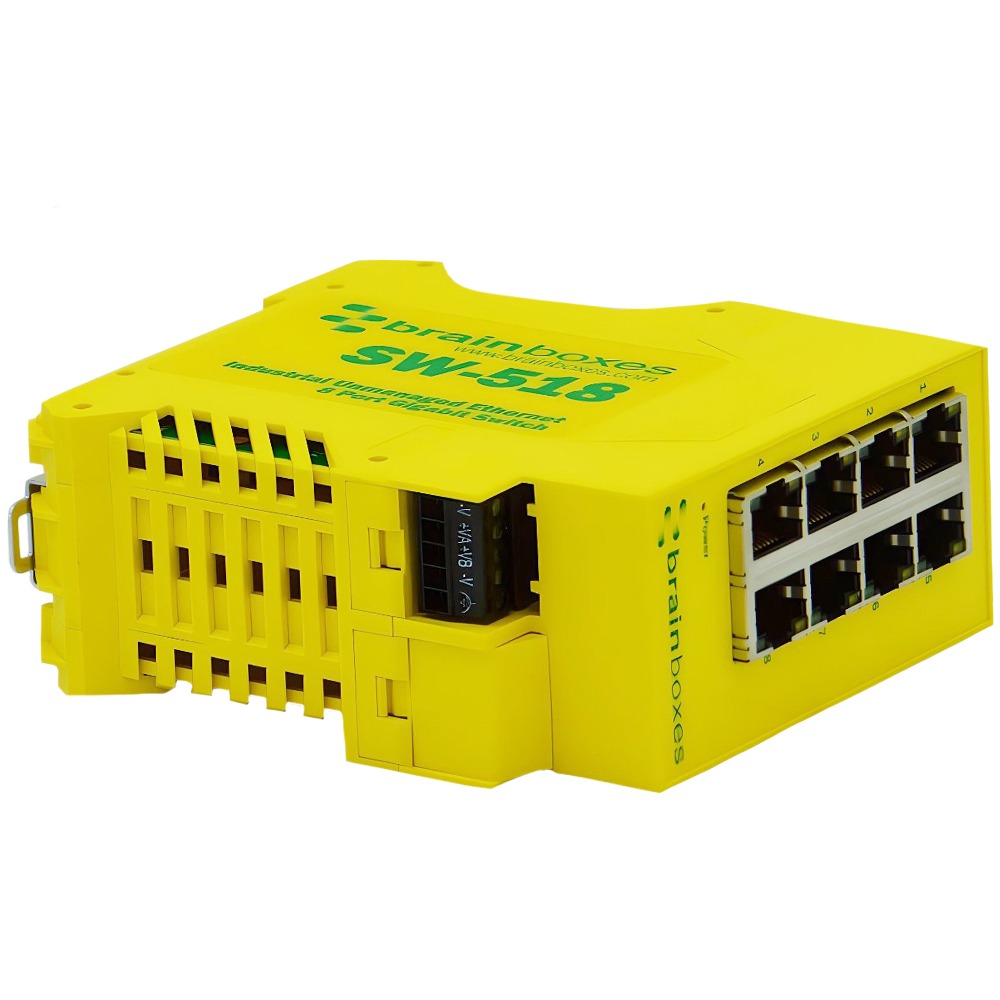

Brainboxes SW-518 industrial ethernet switch showing 8 gigabit ports and din rail mounting system
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Industrial 8 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

See other products the same category as SW-518: Gigabit Ethernet Switch

Download SW-518 CAD 3D Model
