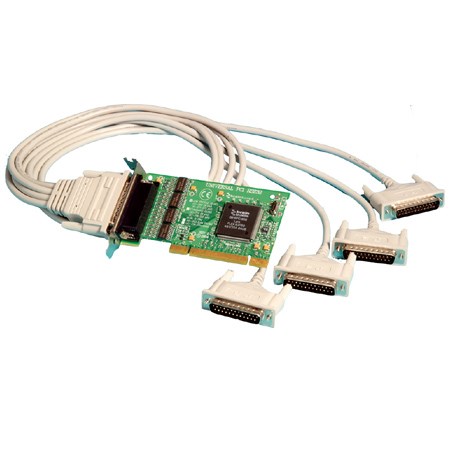

Universal PCI providing four low profile RS232 serial ports (4×25 Pin connectors). Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 10.
Serial Port | ||
|---|---|---|
| Serial Port | Ports | 4 |
| Protocol | RS232 | |
| Connector | DB25 Connector - 25 Pin Male | |
| UART | Brainboxes 16C958 | |
| UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode | |
| Tx FIFO Size | 64 | |
| Rx FIFO Size | 64 | |
| Operating Distance | EIA - RS232 Standard | |
| Cable | 4 port cable (44 way D to 4x25 Pin Male) | |
Serial Port Settings | ||
| Serial Port Settings | Max Baud Rate | 115,200 |
| Data Bits | 5,6,7 or 8 | |
| Parity | Odd, Even, None, Mark or Space | |
| Stop Bits | 1, 1.5 or 2 | |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF | |
| Tx/Rx Modes | Point to Point | |
General | ||
| General | PCB Layers | 4 |
| Form Factor | Low Profile | |
| Includes Printer Port | No | |
| Galvanic Isolation | No | |
| Power Consumption | 210mA @ 5V, 60mA @ 12V | |
| Product Weight | awaiting | |
| Product Dimensions | awaiting | |
| Packaged Weight | 0.645 kg | |
| Packaged Dimensions | 200(l) x 135(w) x 80(h) mm | |
| GTIN (barcode) | 837324000399 | |
Operating System Compatibility | ||
| Operating System Compatibility | Operating Systems |
|
Interface | ||
| Interface | PCI 3.0 | Peripheral Component Interface |
| Weight | 0.645 kg |
|---|---|
| Dimensions | 200 × 135 × 80 mm |
| Ports | 4 Ports |
| Form Factor | Low Profile |
| Protocol | RS232 |
