ED-204 Ethernet to 4 Digital IO and RS232 Serial Port with Ethernet Switch

Contact [email protected] for availability

  • 4 Digital Inputs/Outputs + RS232 Serial Port + Ethernet Switch
  • Complete Ethernet to Serial Device Server: up to 1 MegaBaud
  • Factory floor process control and automation
  • User friendly software interface
  • -10ºC to +60ºC / +14ºF to +140ºF temperature range
  • DIN rail & wall mountable

Download ED-204 Technical Datasheet (PDF)

(opens in a new tab)
£172.10
Add to Cart
Buy from Reseller
Brainboxes ED-204 contact sales@brainboxes

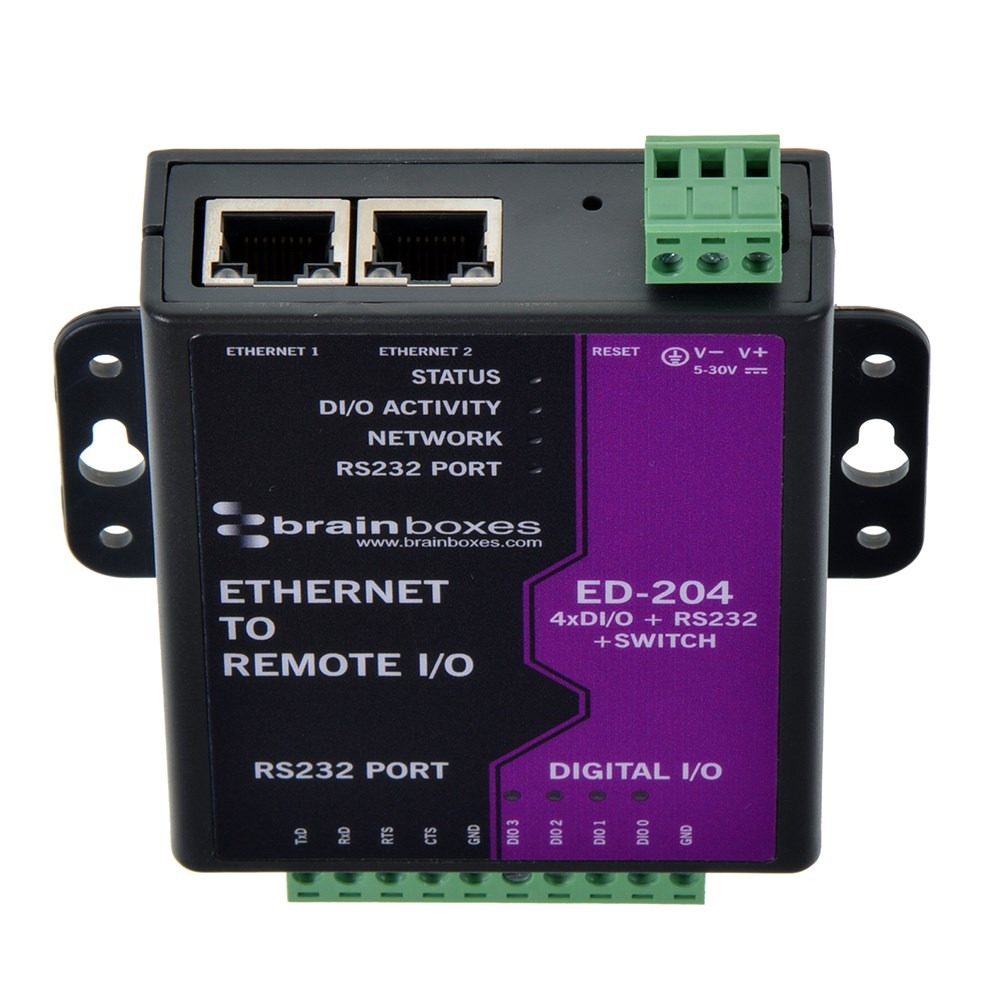

Brainboxes ED-204 industrial ethernet device showing dual rj45 ports and green terminal block connections

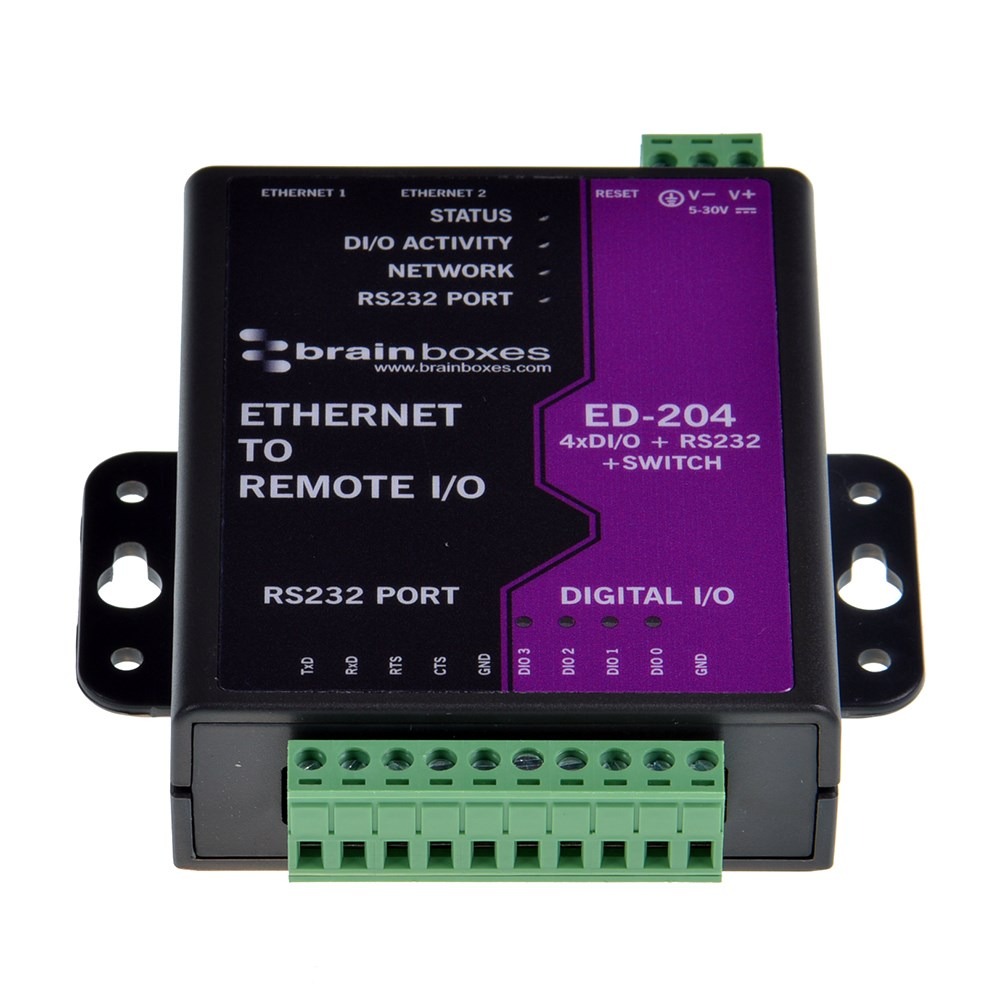

Brainboxes ED-204 industrial ethernet device with rs232 port and digital io terminal blocks
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Ethernet to DIO device with Serial port: 4 digital input channels . Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent ‘control side’ devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as ‘process side’. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.

Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..

See other products the same category as ED-204: Digital

Manage the ED-204 with BB Eco

Free. Local-first. Air-gap ready. No account required.

BB Eco finds the ED-204 on your network, flashes it so you can spot it in the cabinet, upgrades its firmware and keeps its settings in step with a template - for one device or a hundred.

Download BB Eco Get started with the ED range

Transcript
  1. BB Eco. Replaces Boost.IO and Boost.LAN. An ED-008 turns into view as the BB mark draws.
  2. Discover. The ED-008 appears in BB Eco with its name, address and firmware version.
  3. Locate. One click on Locate and the ED-008 flashes its LEDs, so you can find it in the cabinet.
  4. Upgrade, with confidence. BB Eco checks the firmware is right for the device, then upgrades it stage by stage.
  5. One device, or a hundred. One ED-008, then a cabinet of fifteen devices, then a row of cabinets.
  6. Upgrade all, in one workflow. Every device in the cabinet is upgraded in turn.
  7. Apply one template to them all. A template is previewed on eight devices, then applied.
  8. BB Eco spots changes from your template. A changed setting is shown against the saved baseline.
  9. Scan. Script. Automate. A subnet scan, the command line, and automatic upgrades.
  10. BB Eco. Keep the Work Moving. Windows, macOS, Linux and CLI. Free. Local-first. Air-gap ready. No account. brainboxes.com/bb-eco. The end card, with the ED-008 beside it.

Download 3D Model

ED-204 Media

Bring IoT to Legacy Industrial Technology - Part 2

Ethernet to 4 Digital IO and RS232 Serial Port with Ethernet Switch Brainboxes ED-204

Quick Start a Remote I/O device

ED Digital Remote IO Demo 1

Brainboxes Remote IO C# Example Code

Brainboxes Remote IO VB Example Code

ED-204 Supported Operating Systems
