PE-515 Pure Embedded Industrial 5 Port Gigabit Ethernet Switch

Pure Embedded Industrial 5 Port Gigabit Ethernet Switch

5x Port Gigabit Unmanaged Ethernet Switch
Power Input: +3.3 to +5 VDC
Low Power Consumption: 3.3 W Max
Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +185 °F
Pure Embedded

Download PE-515 Technical Datasheet (PDF)

£55.00

Volume Purchase?Request a Quote

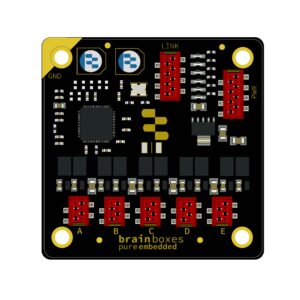

Brainboxes PE-515 pure embedded industrial 5 port gigabit ethernet switch

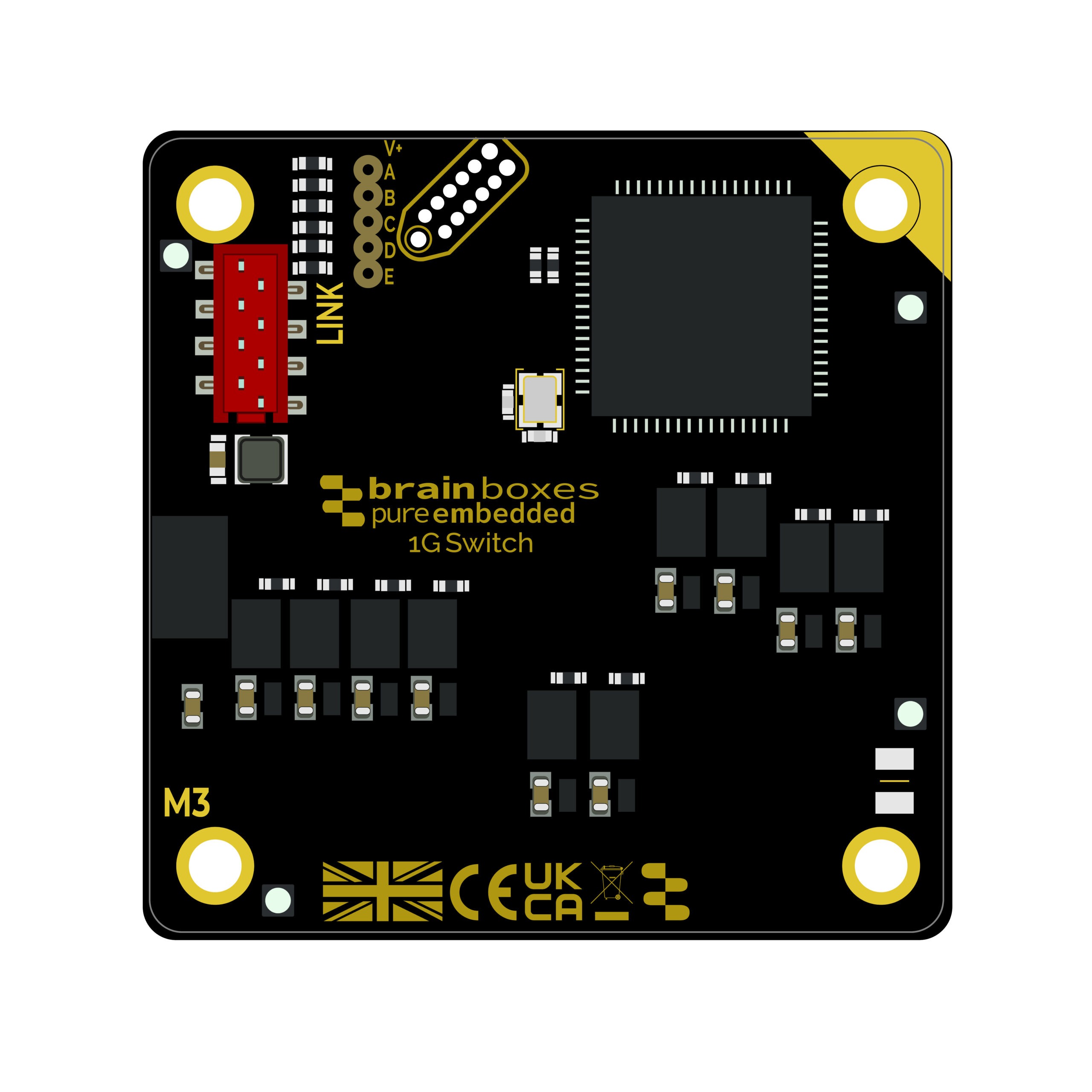

Brainboxes PE-515 back view of industrial ethernet switch pcb showing ce and ukca certifications

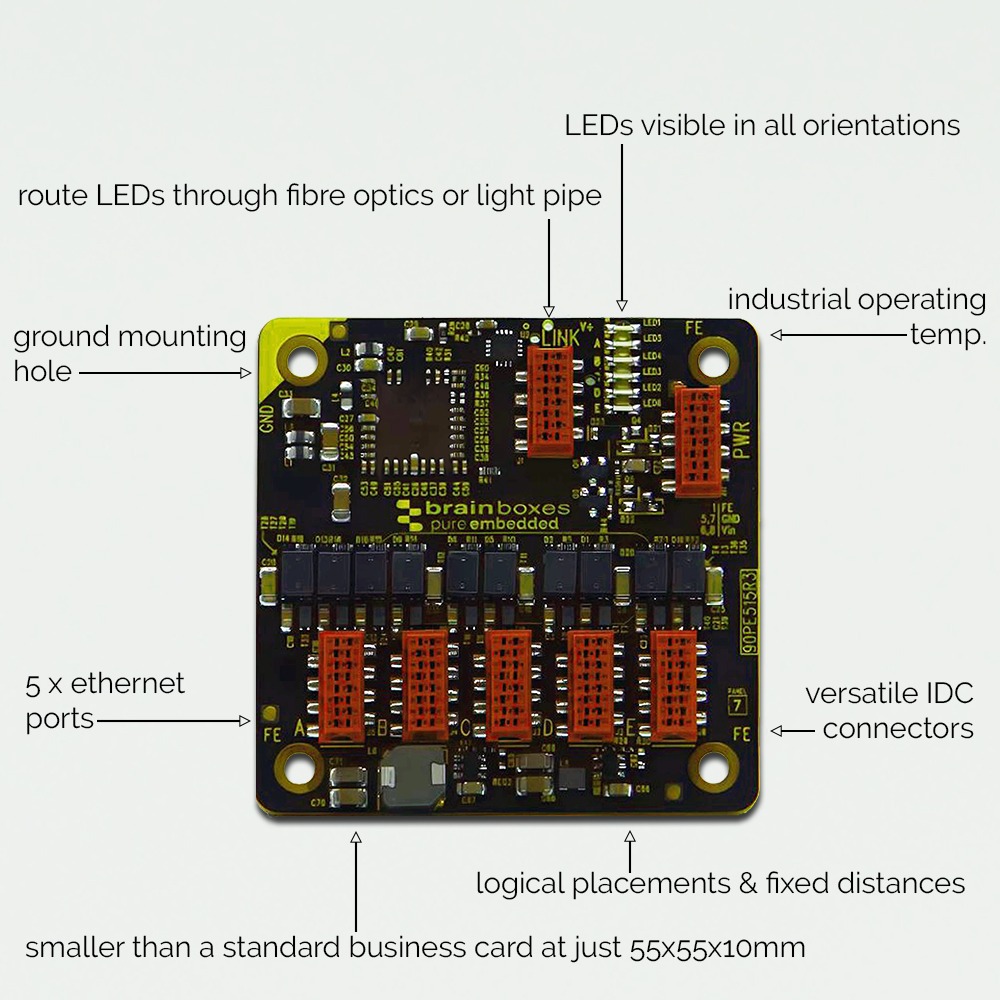

Brainboxes PE-515 industrial ethernet switch with labeled features including ports connectors and mounting options

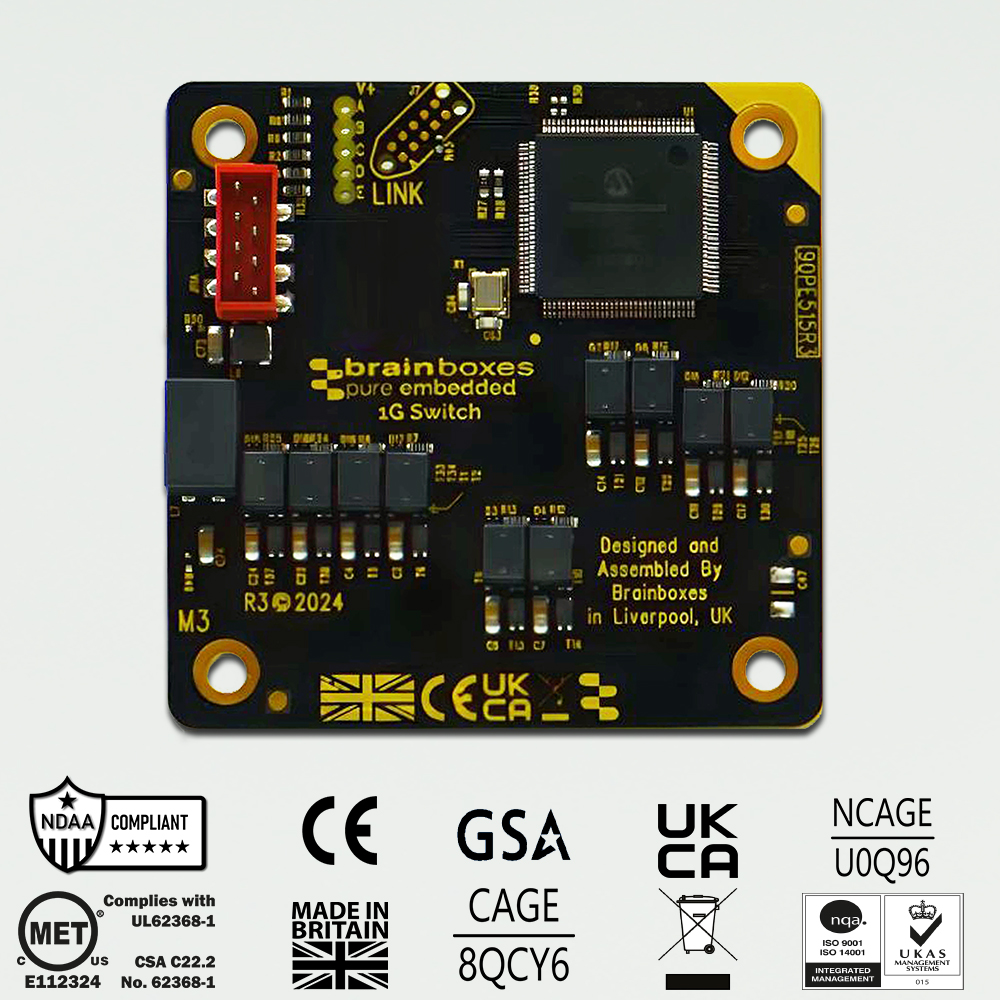

Brainboxes PE-515 industrial ethernet switch showing compliance certifications and regulatory approvals

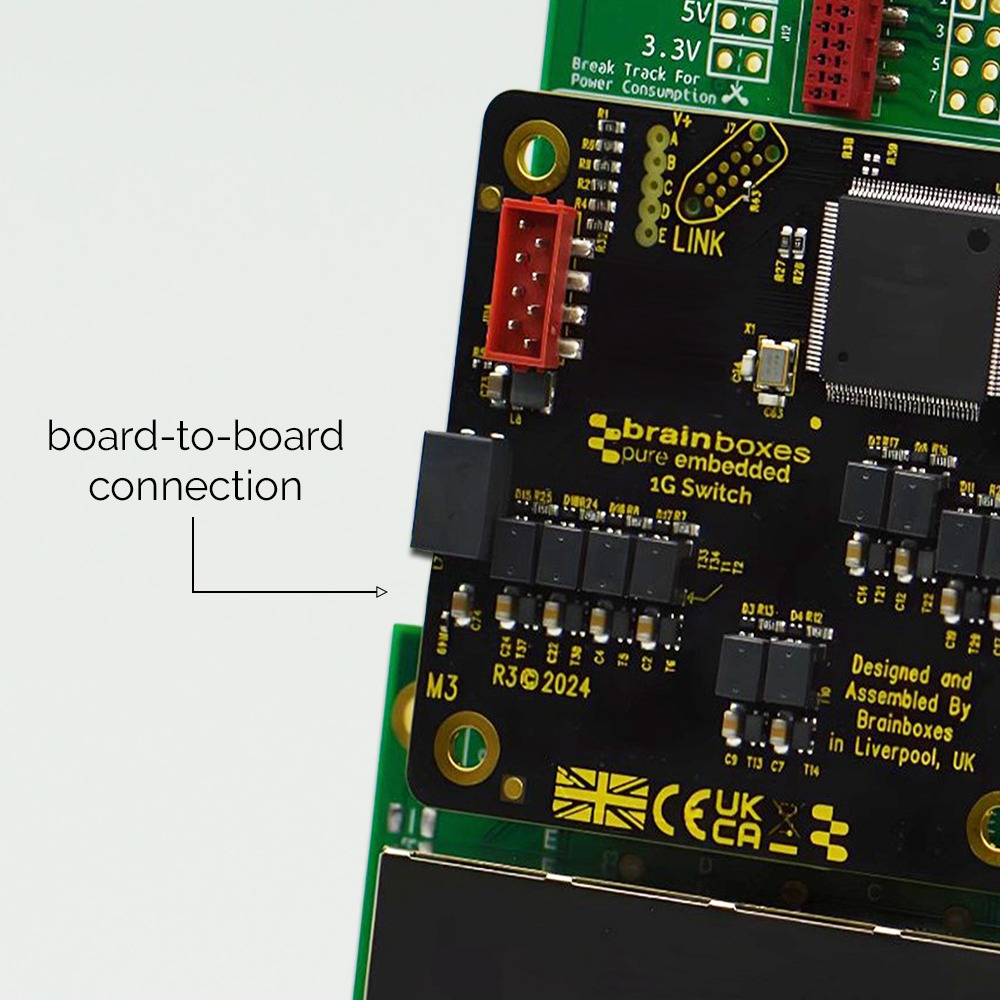

Brainboxes PE-515 close up view showing board to board connection interface

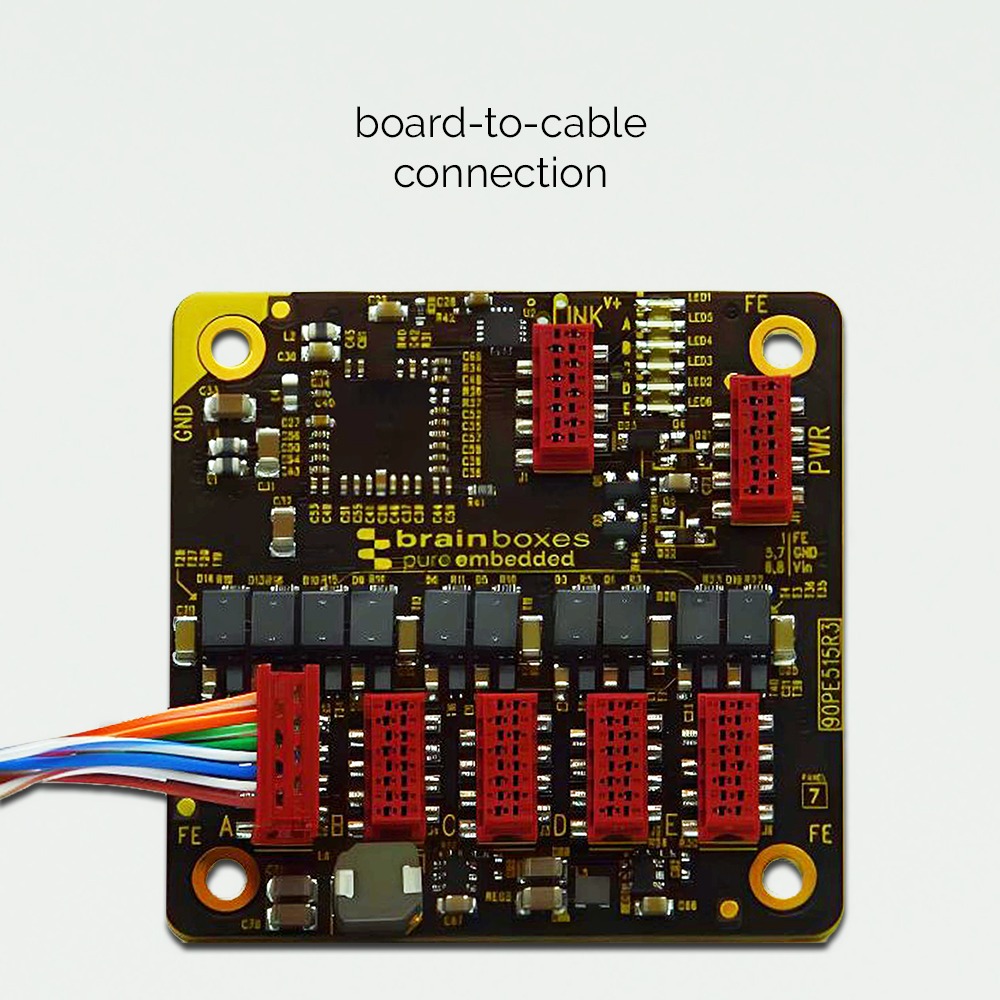

Brainboxes PE-515 industrial ethernet switch showing board to cable connection points and wiring

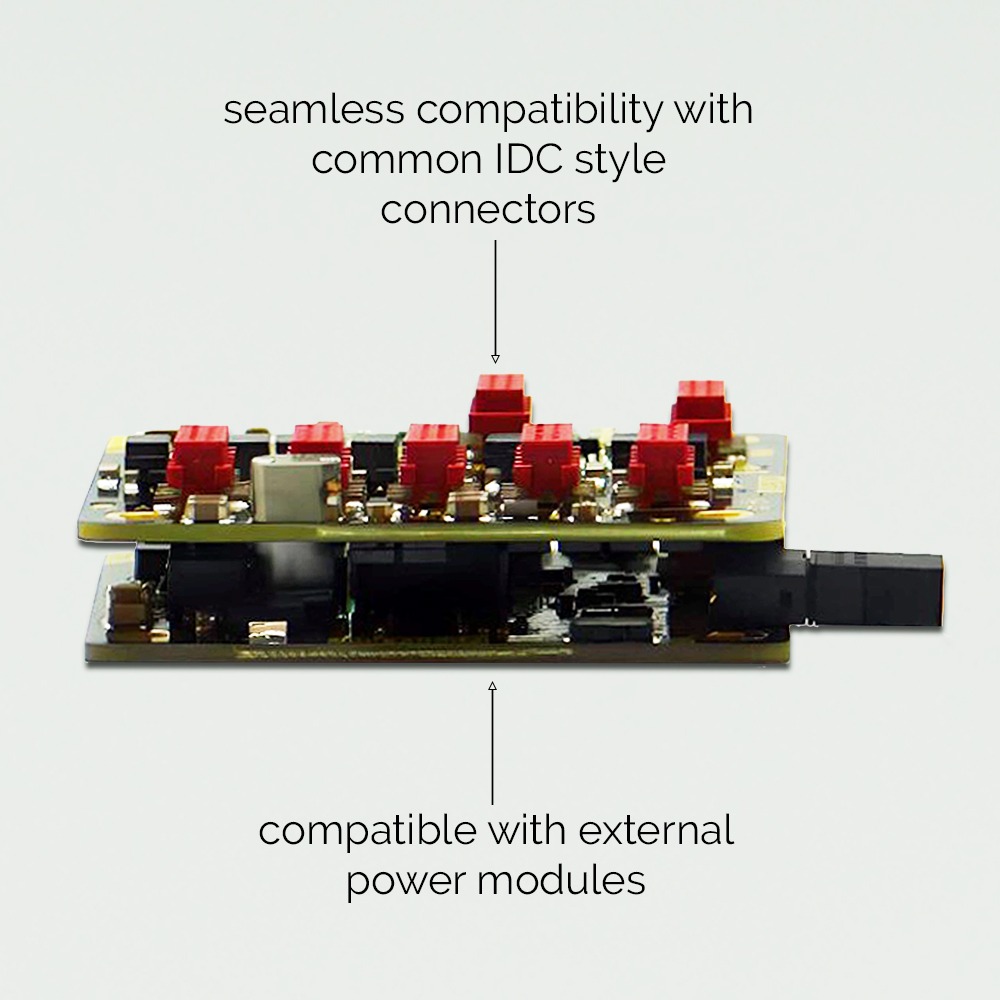

Brainboxes PE-515 industrial ethernet switch showing modular compatibility with external power modules and idc connectors

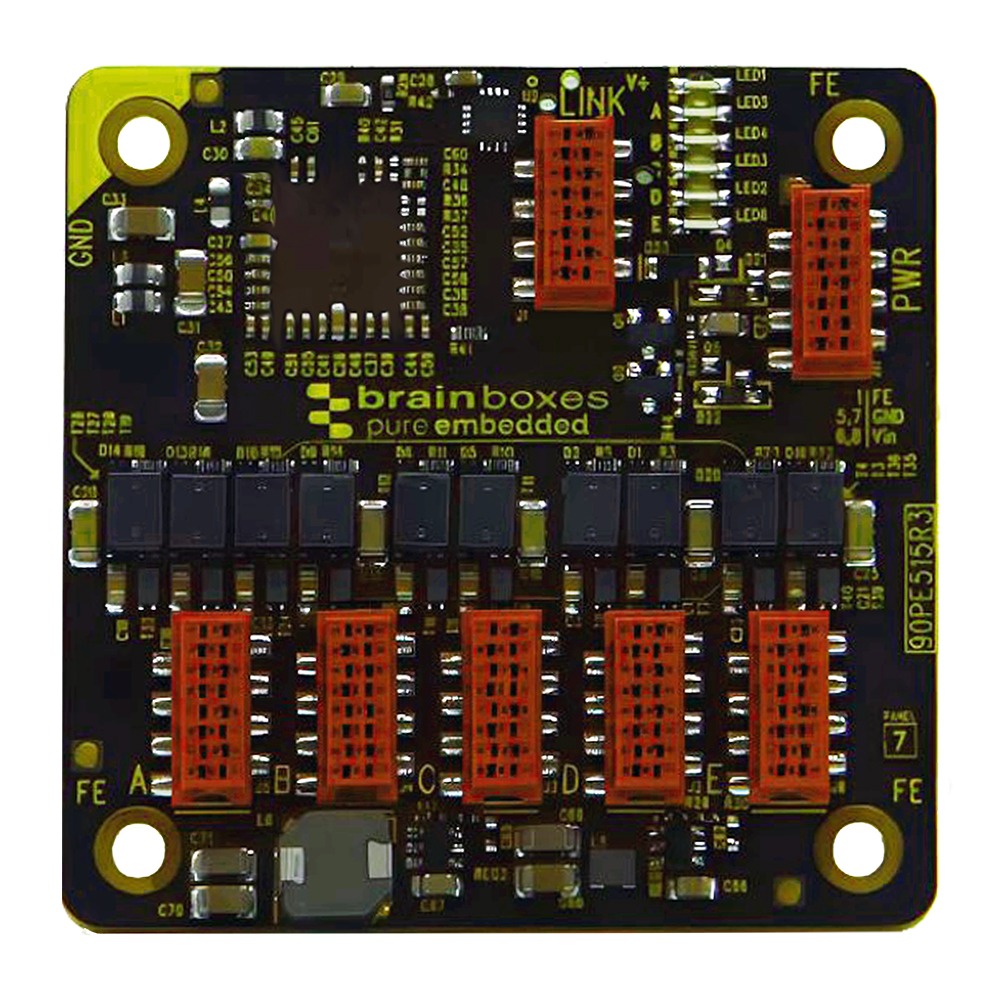

Brainboxes PE-515 industrial ethernet switch showing front panel with five gigabit ports and connection terminals

Brainboxes PE-515 circuit board bottom showing ce mark and uk compliance certifications

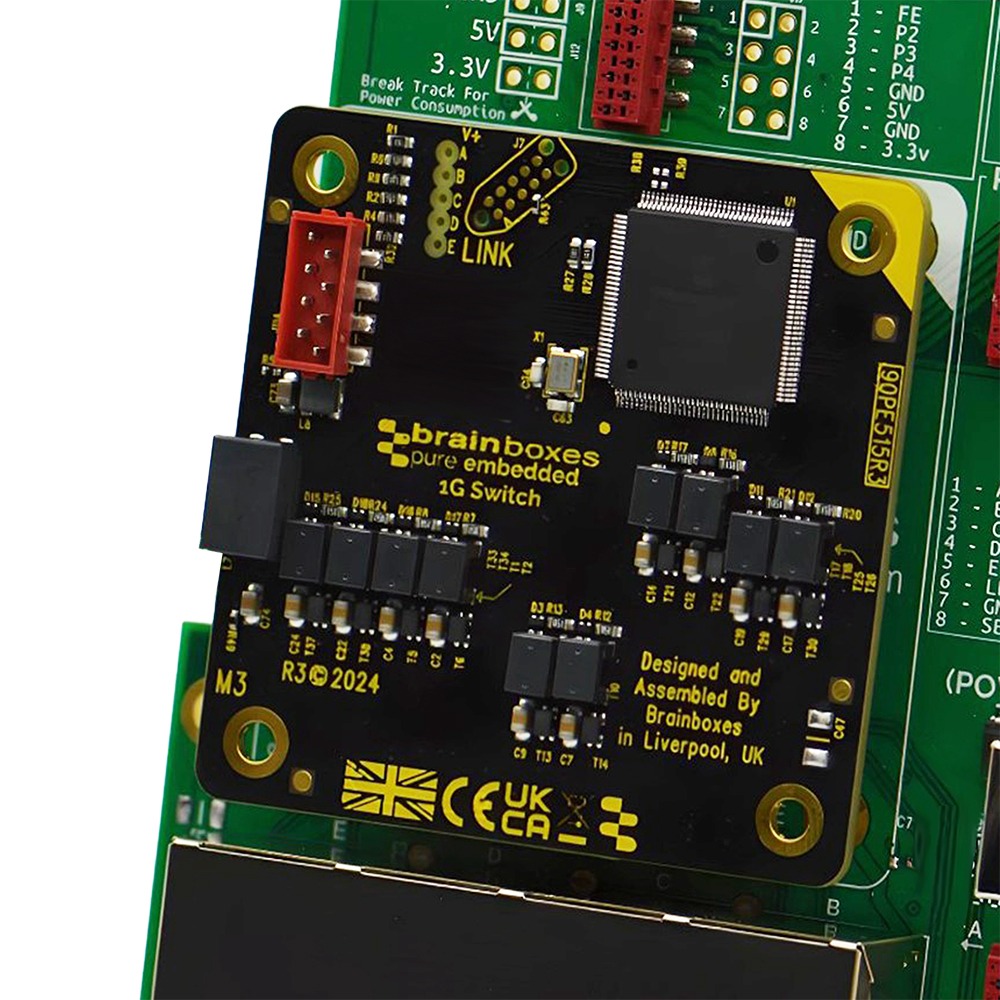

Brainboxes PE-515 industrial ethernet switch board showing embedded mounting and connection points

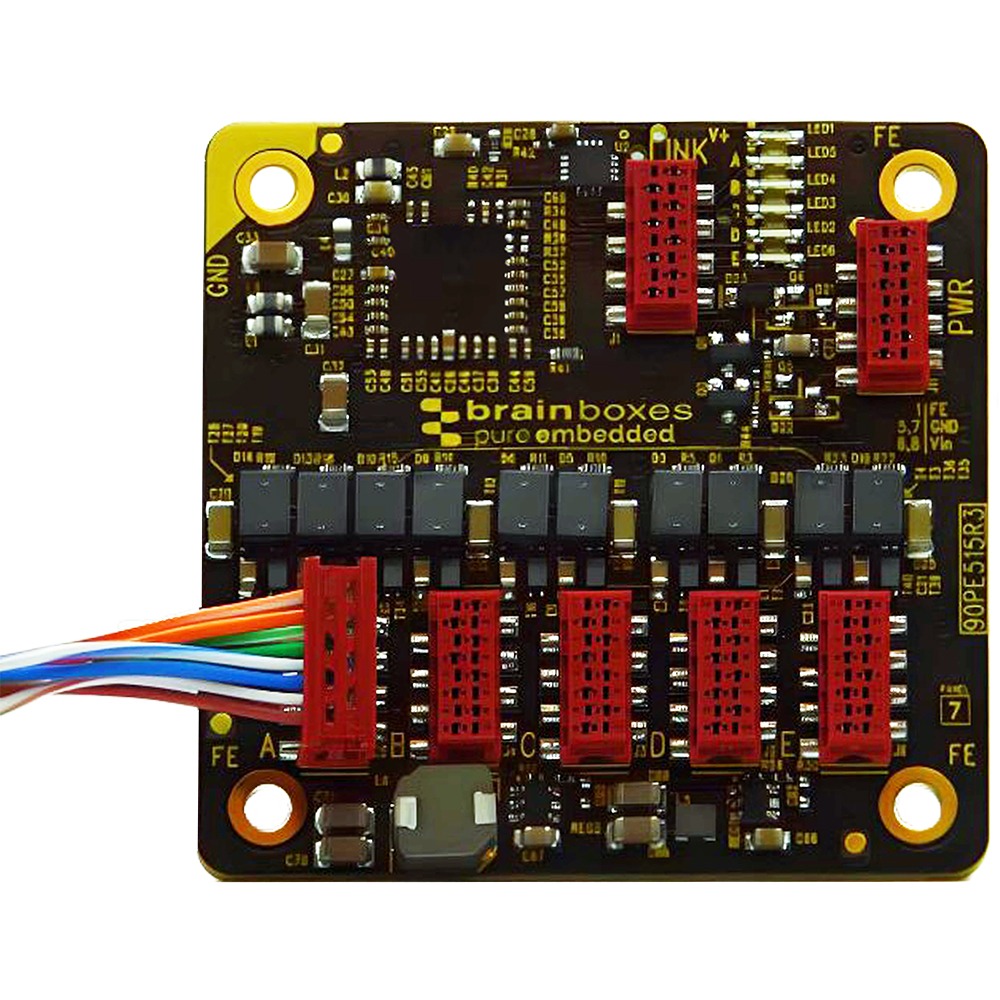

Brainboxes PE-515 industrial ethernet switch with board to cable wiring connections

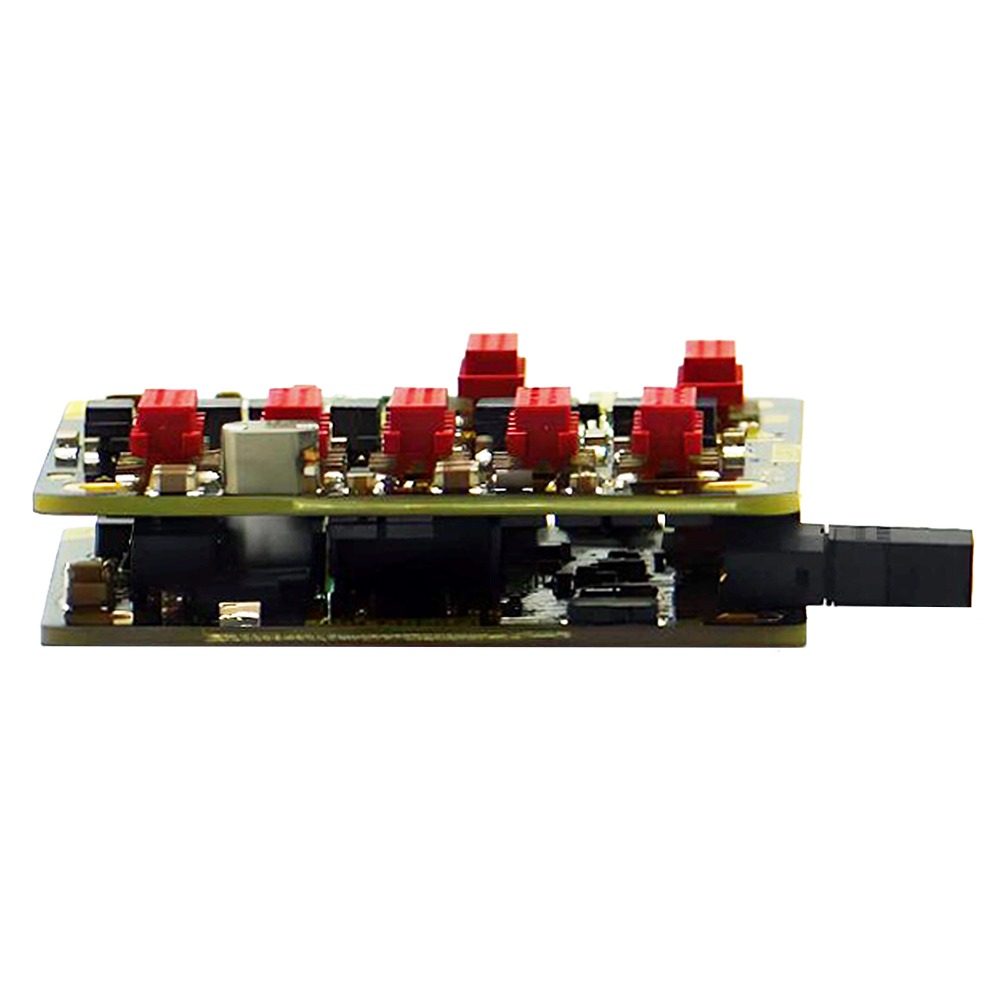

Brainboxes PE-515 industrial ethernet switch shown in stacked dual board configuration

Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

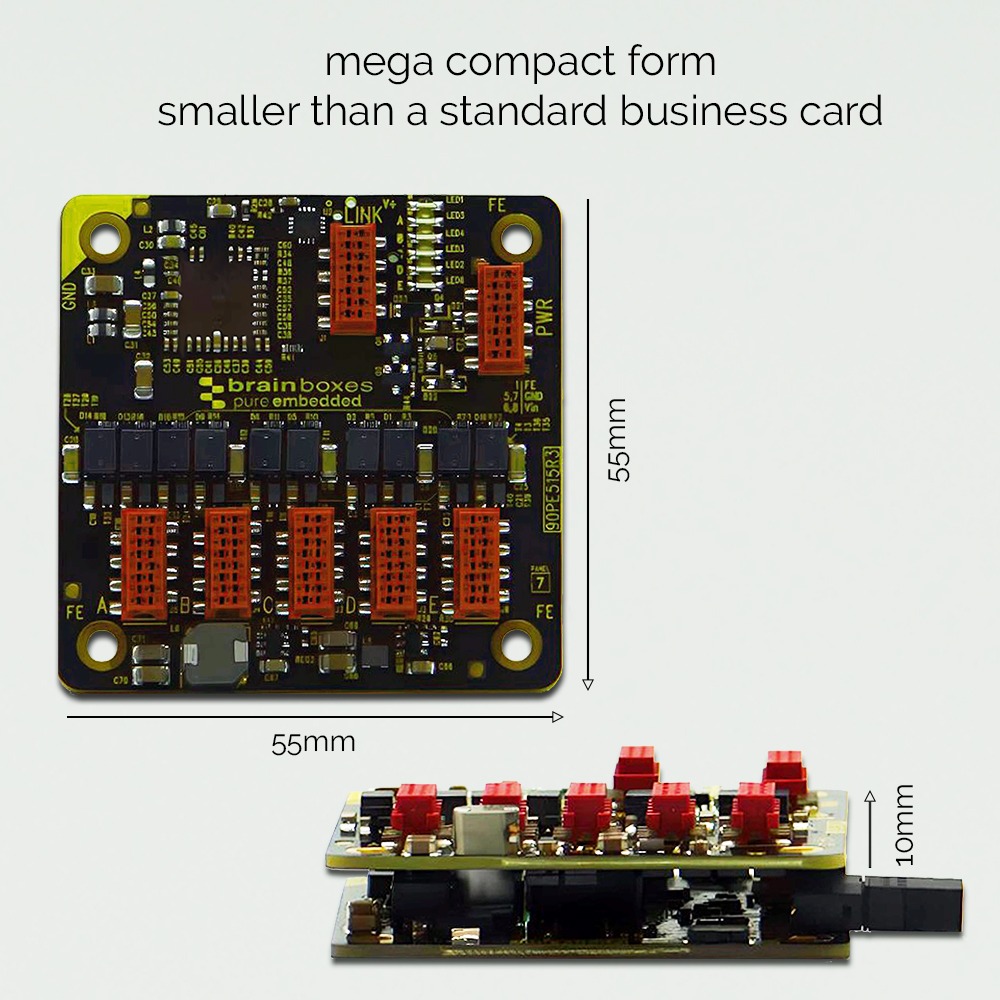

PE-515 Pure Embedded Industrial 5 Port Gigabit Ethernet Switch has a mega compact form – at 55 x 55 x 16mm / 2.17 x 2.17 x 0.63in it’s smaller than a standard business card.
3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.
Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes, or by electrical signal wired out of the connector

See other products the same category as PE-515: Pure Embedded

Power	Input Voltage	+3.3 V to +5 VDC, Reverse Polarity Protected
Power	Power Consumption	3.3 W Max: 1 A @ +3.3 VDC / 660 mA @ +5 VDC
Ethernet	Ethernet Ports	5
Ethernet	Ethernet Speed	10/100/1000 Gigabit Ethernet
Environmental	Operating Temperature	-40 °C to +80 °C / -40 °F to +176 °F
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Humidity Rating	5 to 95% (Non-Condensing)
Physical	Form Factor	Embedded
	Product Weight	0.023 kg / 0.050 lbs
	Product Dimensions	55 x 55 x 12.1 mm / 2.16 x 2.16 x 0.47 in
	Packaged Weight	0.032 kg / 0.070 lbs
	Packaged Dimensions	100 x 90 x 30 mm / 3.3 x 3.5 x 1.2 in
Product Compliance	GTIN	837324005325
	HTS	8517620000
	ECCN	5A991.b
Industry, EMC & Immunity Compliance	General	CE, UKCA, RoHS, REACH, WEEE
	Ethernet	IEEE 802.3, 802.3u, 802.3x
	Safety	IEC/EN/BS 62368-1
	EMC	EN/BS 55032
	EMC	EN/BS 55035
	Flammability	UL-94 V0
	RoHS	2015/863/EU
	RoHS	IEC/EN/BS 63000
	REACH	(EC)1907/2006
	Robustness	EN 60068-2-31
Company Compliance	General	ISO9001, ISO14001, AEO (C-TPAT)
	CAGE	8QCY6
	NCAGE	U0Q96
	GSA	47QTCA23D009X
	Sustainability	Ecovadis Silver Medal
	Country of Origin	Made in GB, United Kingdom of Great Britain & Northern Ireland
