PE-505 Pure Embedded Industrial 5 Port 10/100 Ethernet Switch

Pure Embedded Industrial 5 Port 10/100 Ethernet Switch

5x Port 10/100 Unmanaged Ethernet Switch
Power Input: +3.3 or 5 VDC
Low Power Consumption: 2.5 W Max
Operating Temperature Rating: -40 °C to +85 °C /-40 °F to +185 °F
Pure Embedded

Download PE-505 Technical Datasheet (PDF)

£35.00

Volume Purchase?Request a Quote

Brainboxes PE-505 pure embedded industrial 5 port 10/100 ethernet switch

Brainboxes PE-505 industrial ethernet switch circuit board showing ports and embedded components

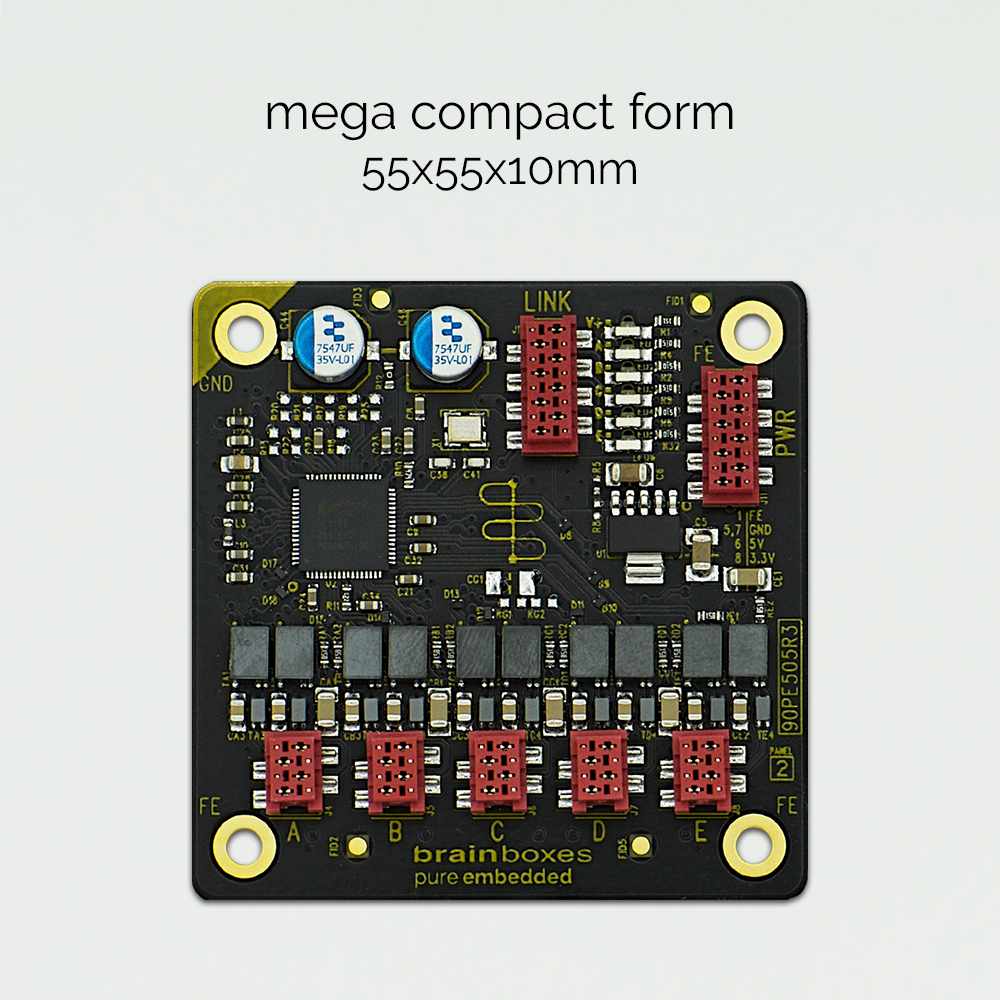

Brainboxes PE-505 compact industrial ethernet switch showing small 55x55x10mm form factor

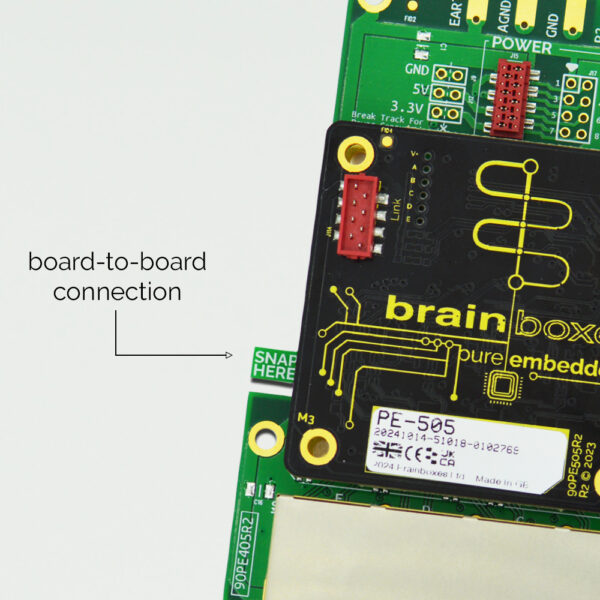

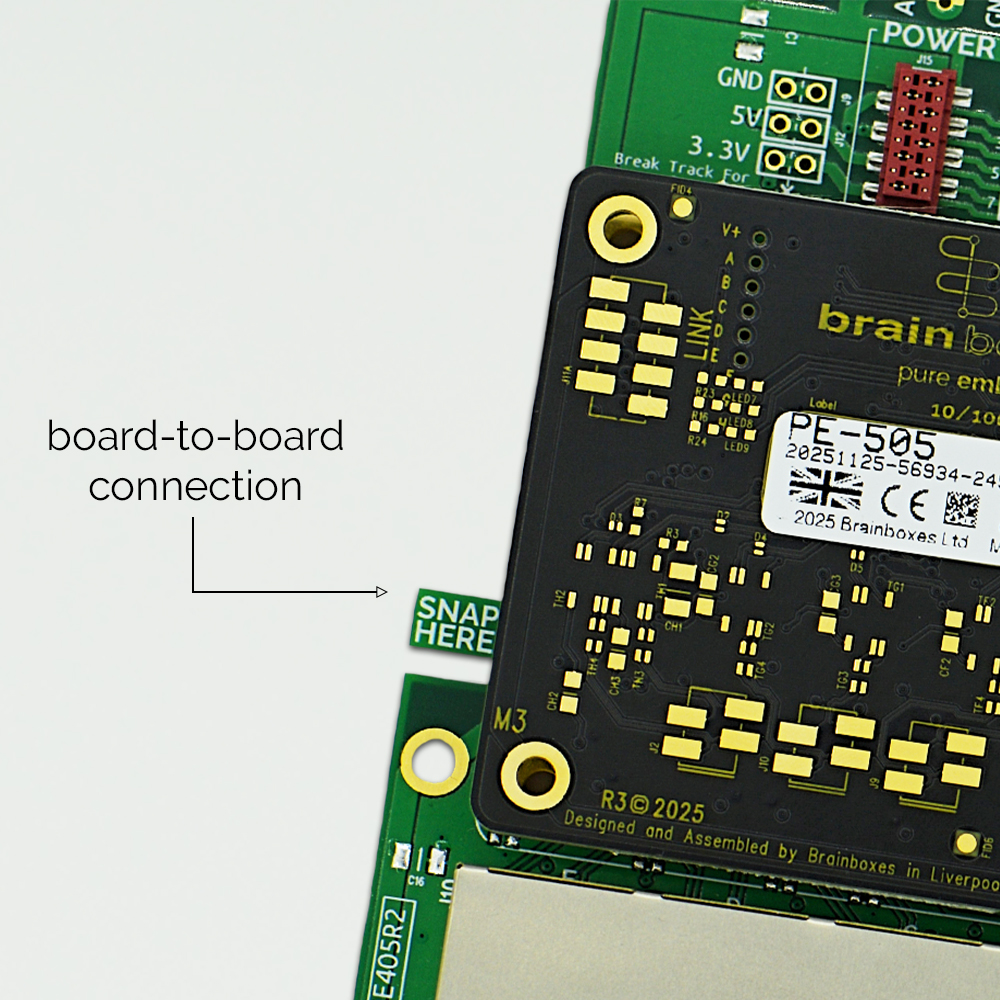

Brainboxes PE-505 industrial ethernet switch showing board to board connection interface

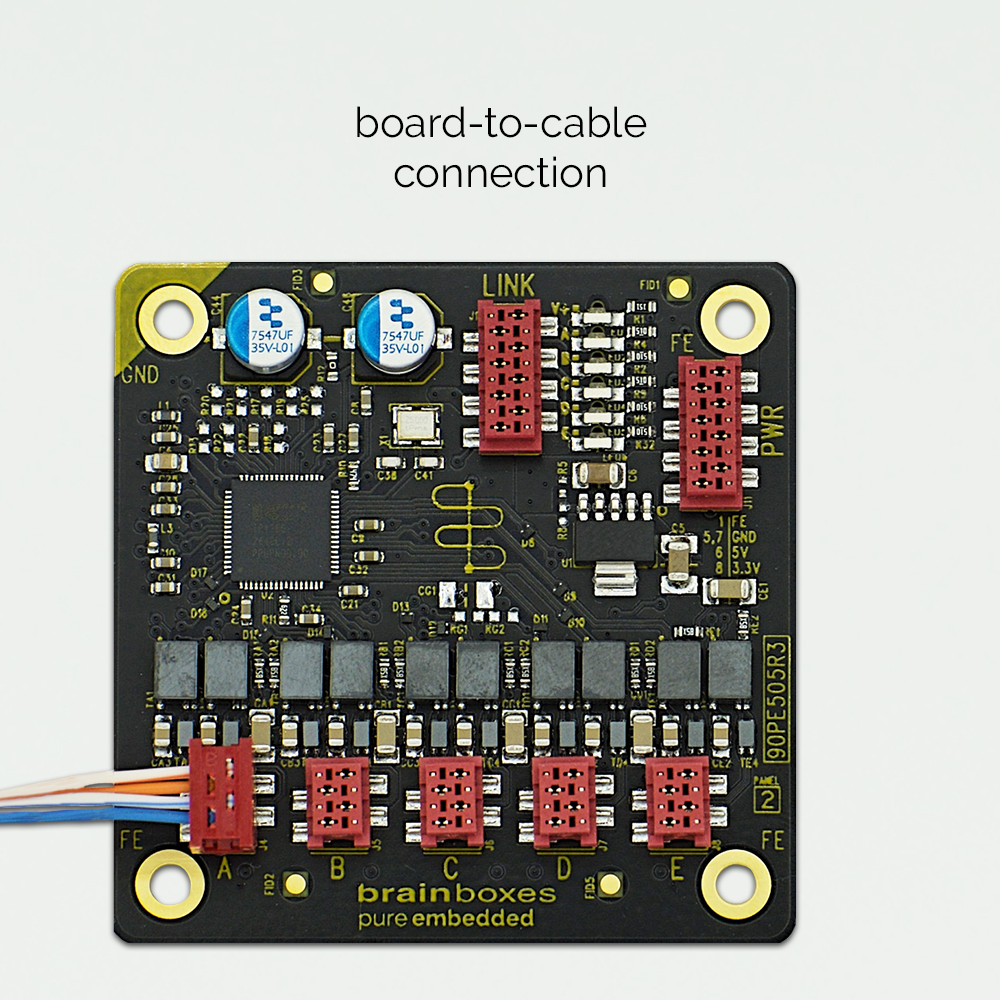

Brainboxes PE-505 industrial ethernet switch circuit board showing cable connection points

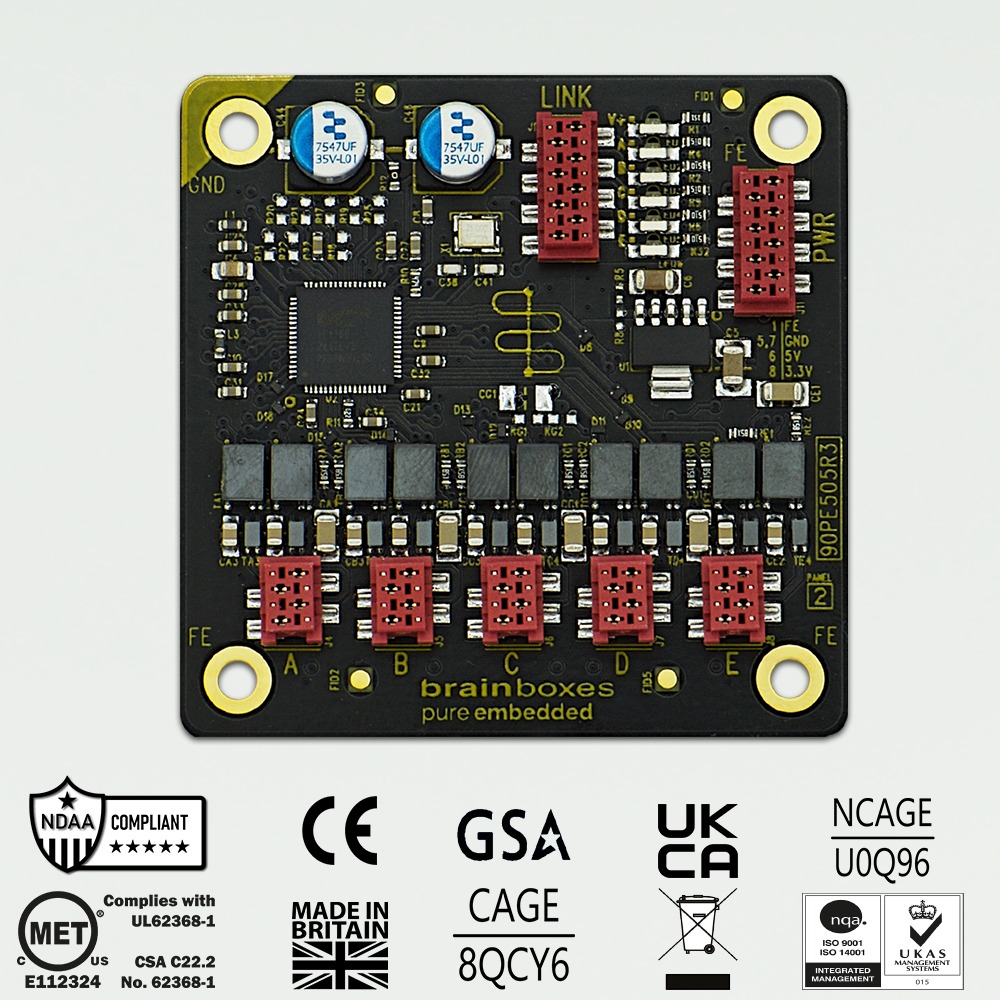

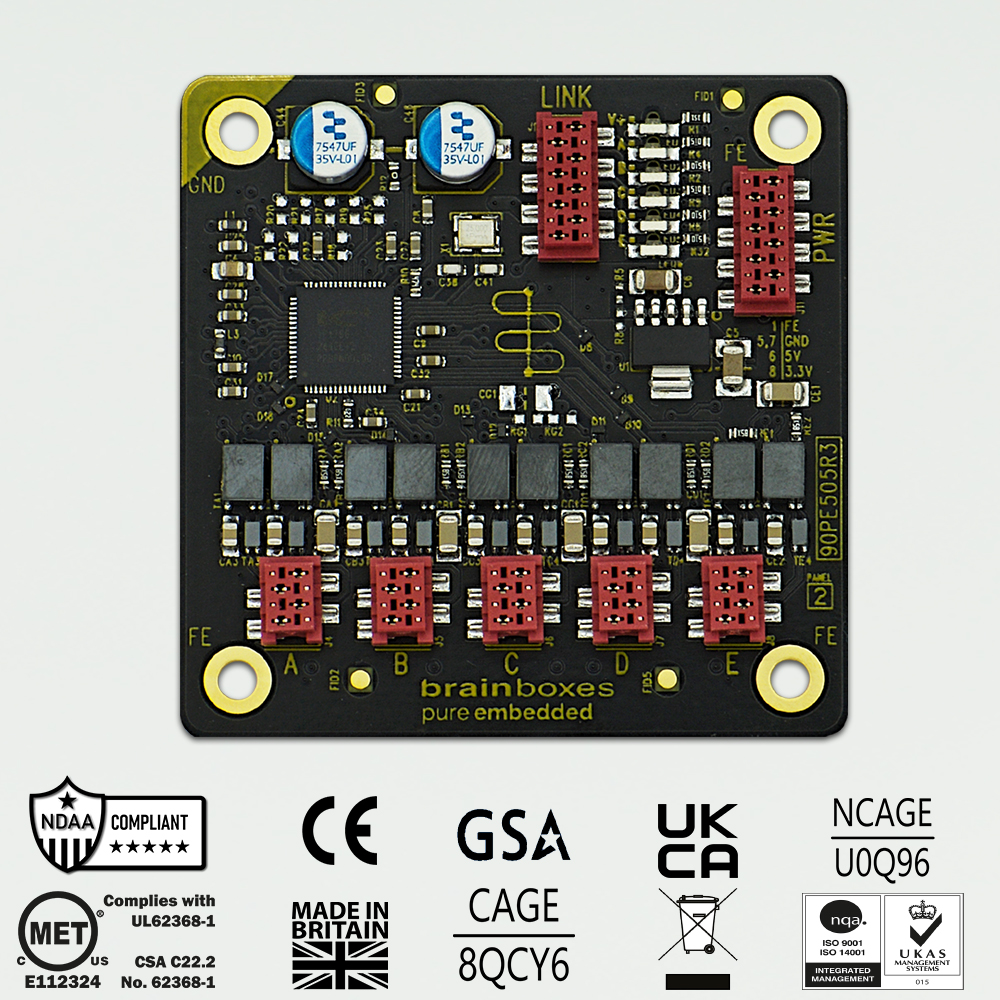

Brainboxes PE-505 industrial ethernet switch showing compliance certifications and regulatory approvals

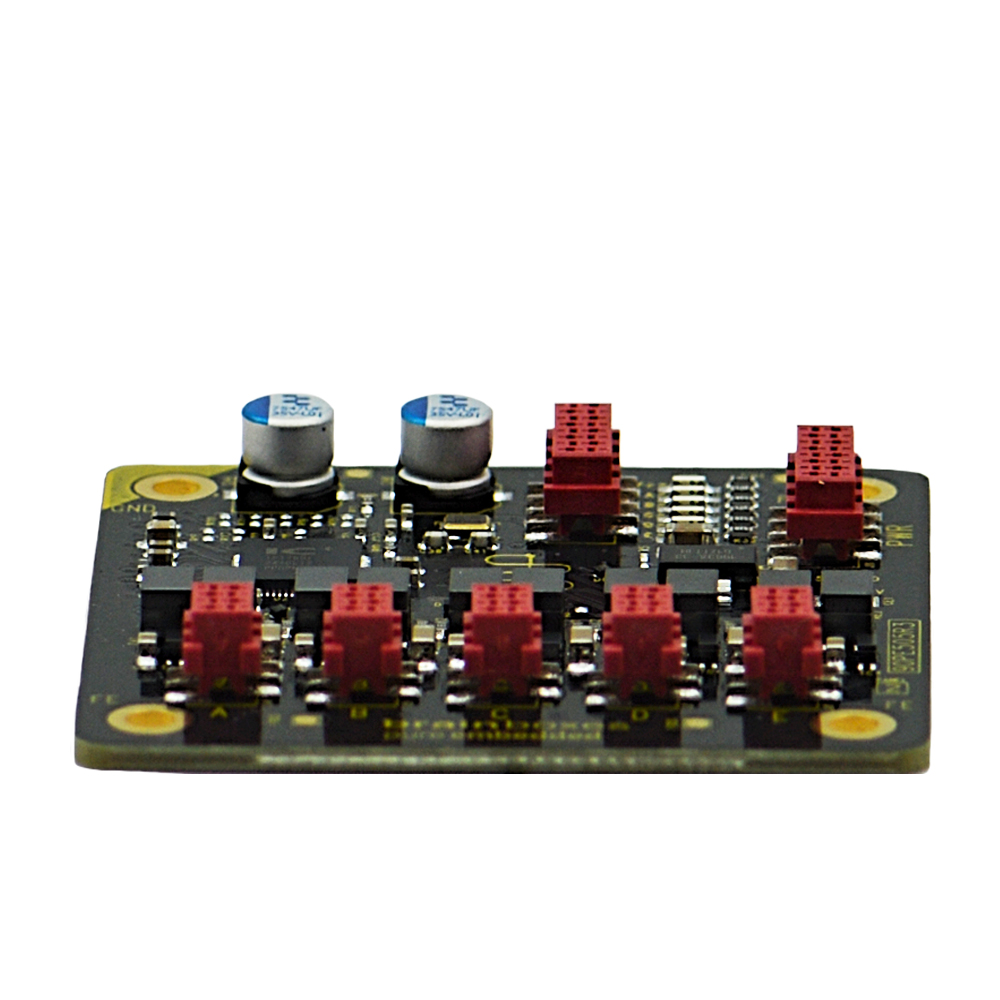

Brainboxes PE-505 circuit board showing ethernet ports and electronic components from above

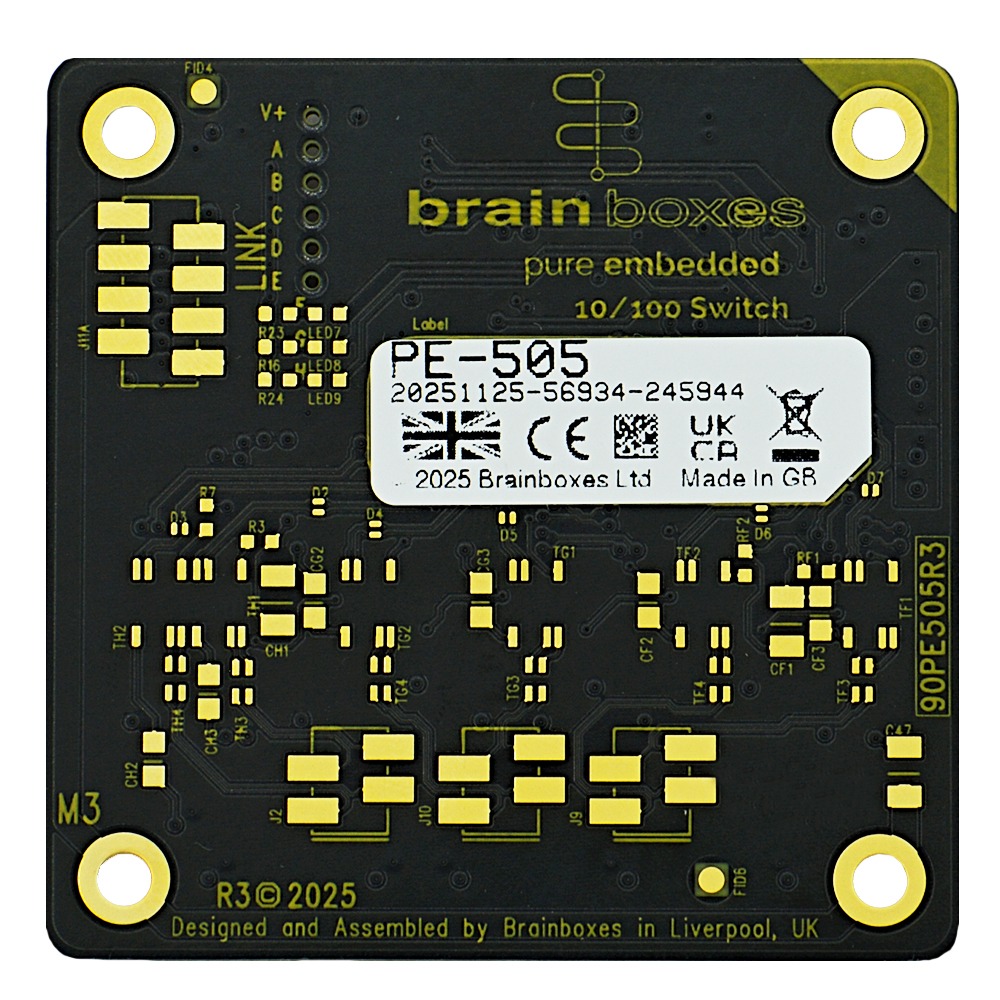

Brainboxes PE-505 circuit board back showing electronic components and ce certification label

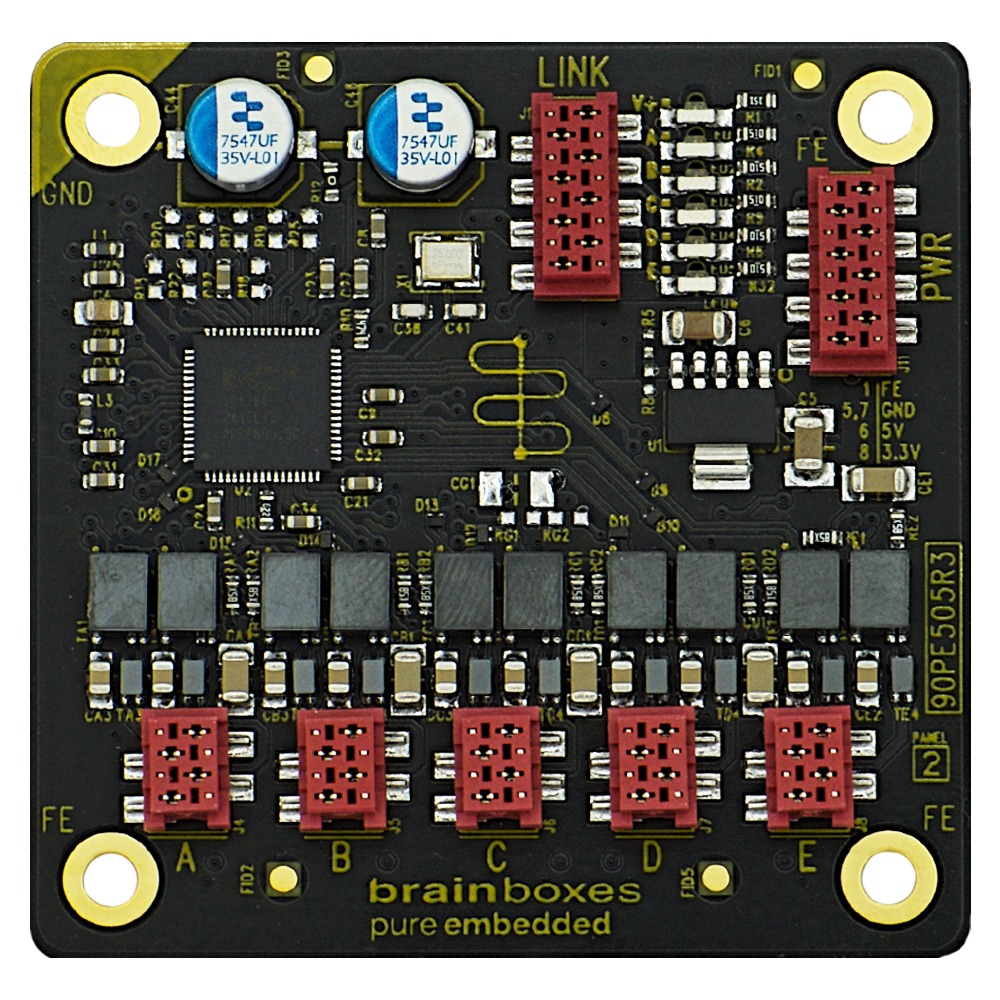

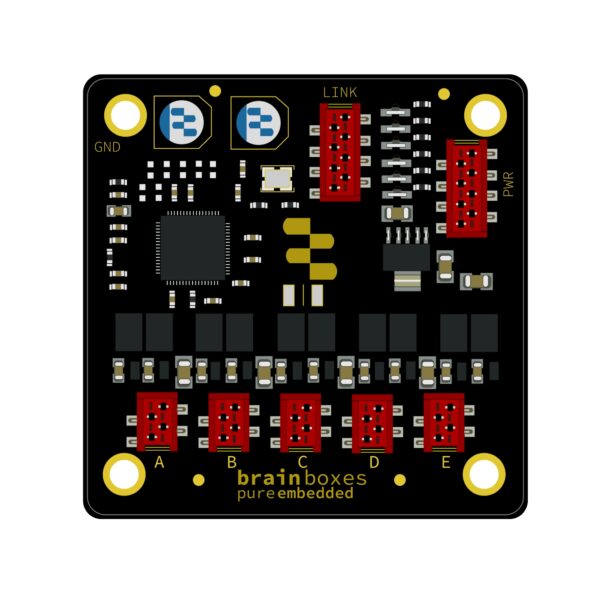

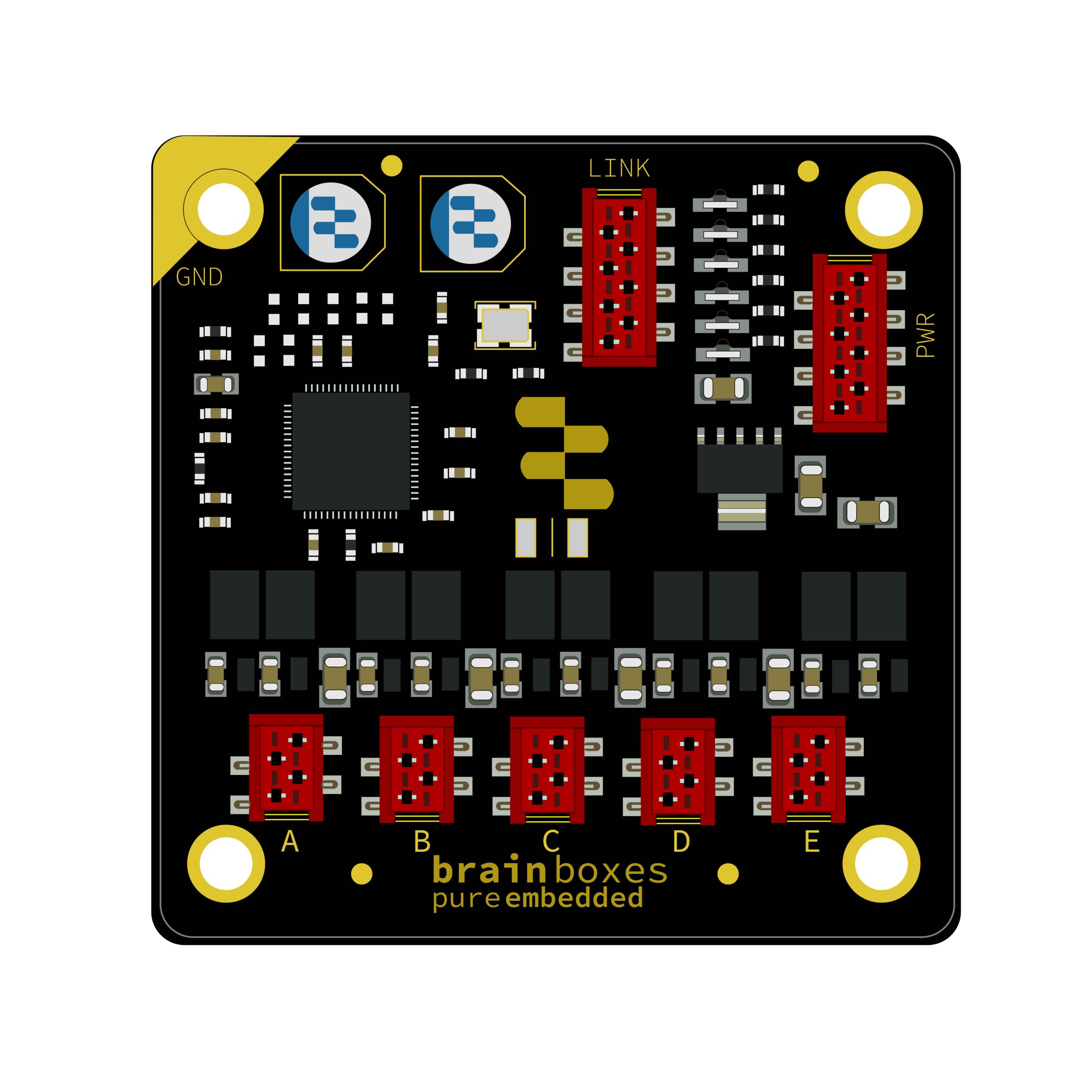

Brainboxes PE-505 top view of industrial ethernet switch showing ports and components

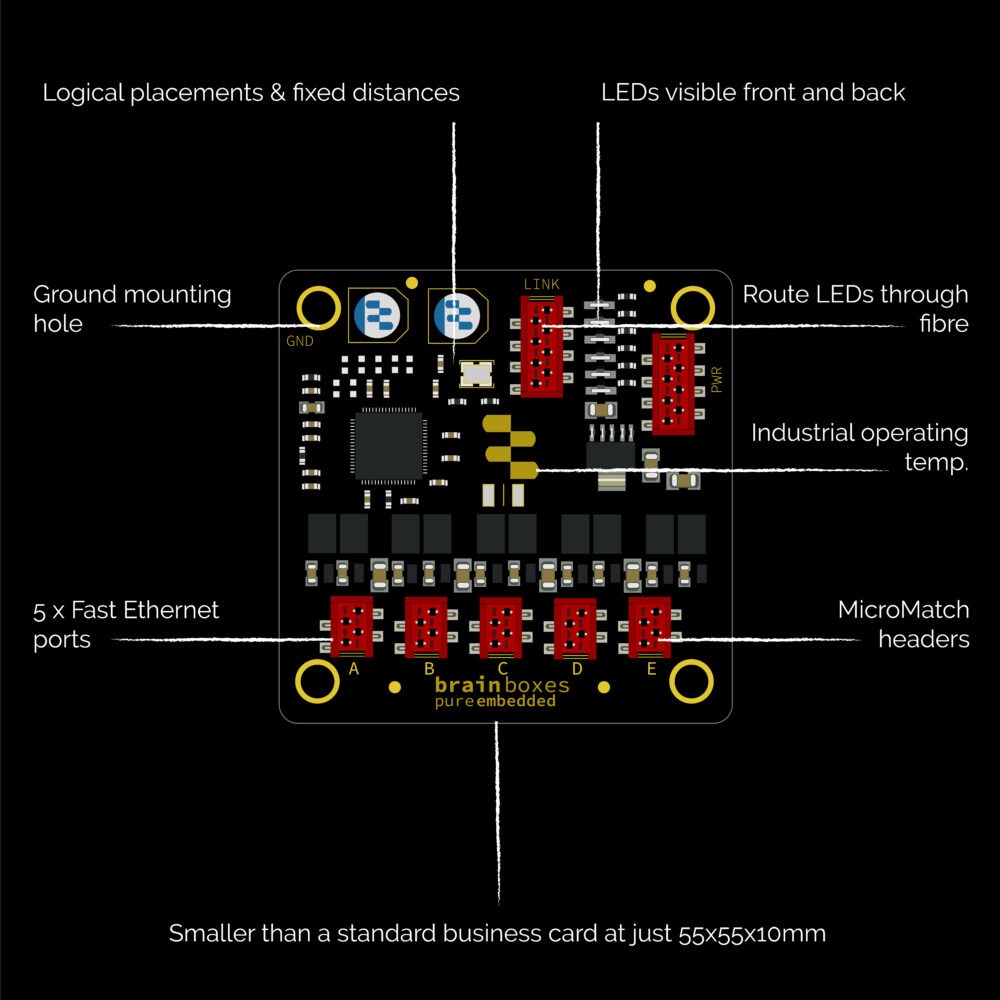

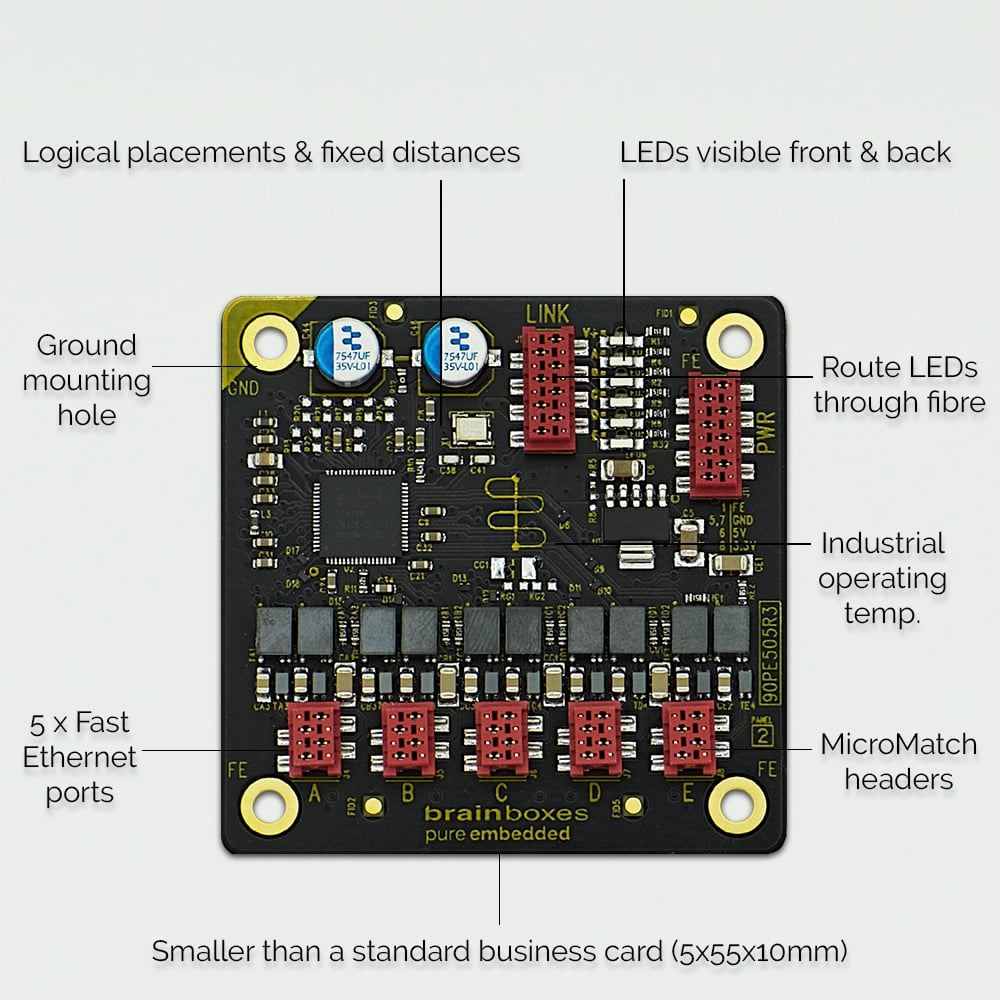

Brainboxes PE-505 compact industrial ethernet switch with labeled features and mounting options

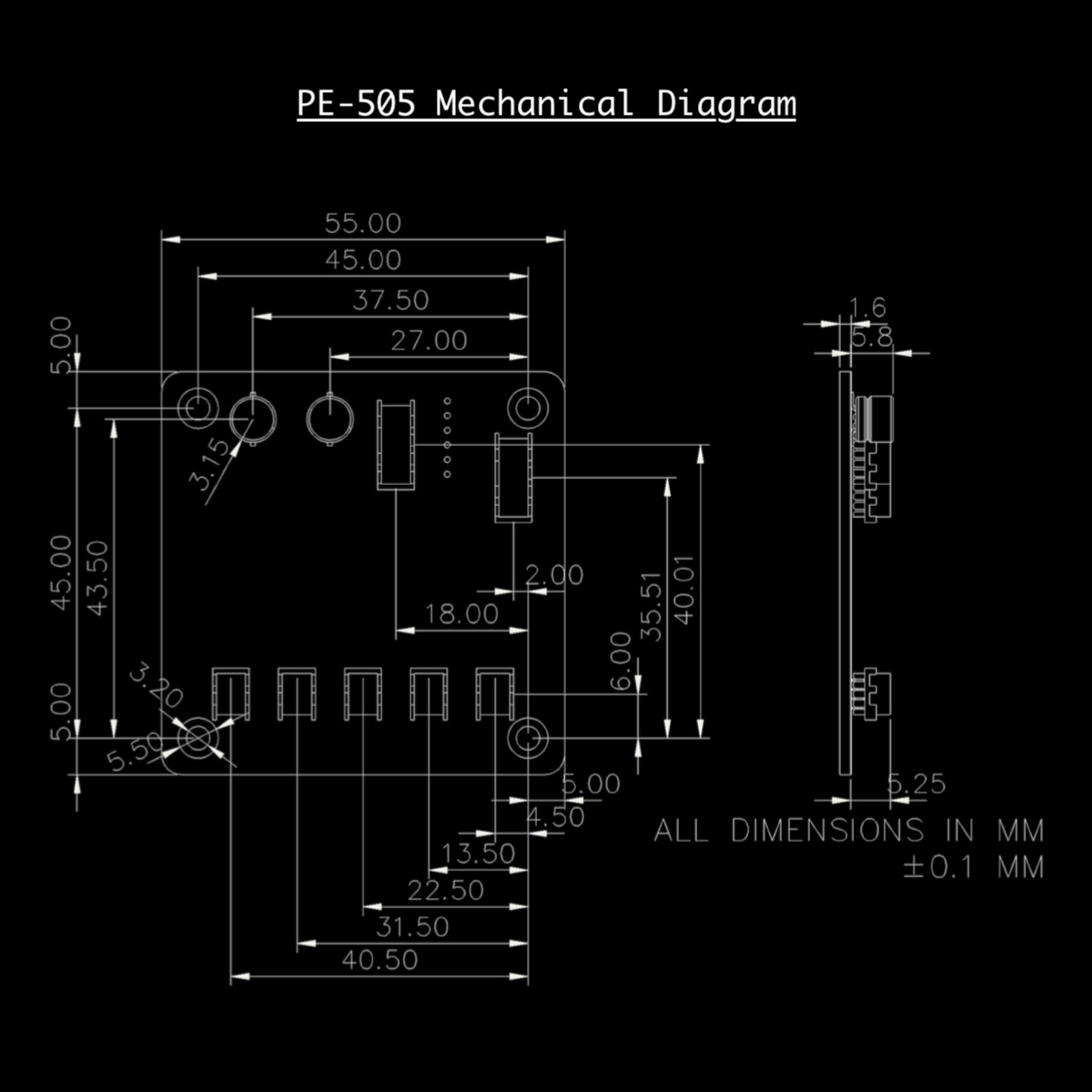

Brainboxes PE-505 technical drawing showing precise measurements and dimensions in millimeters

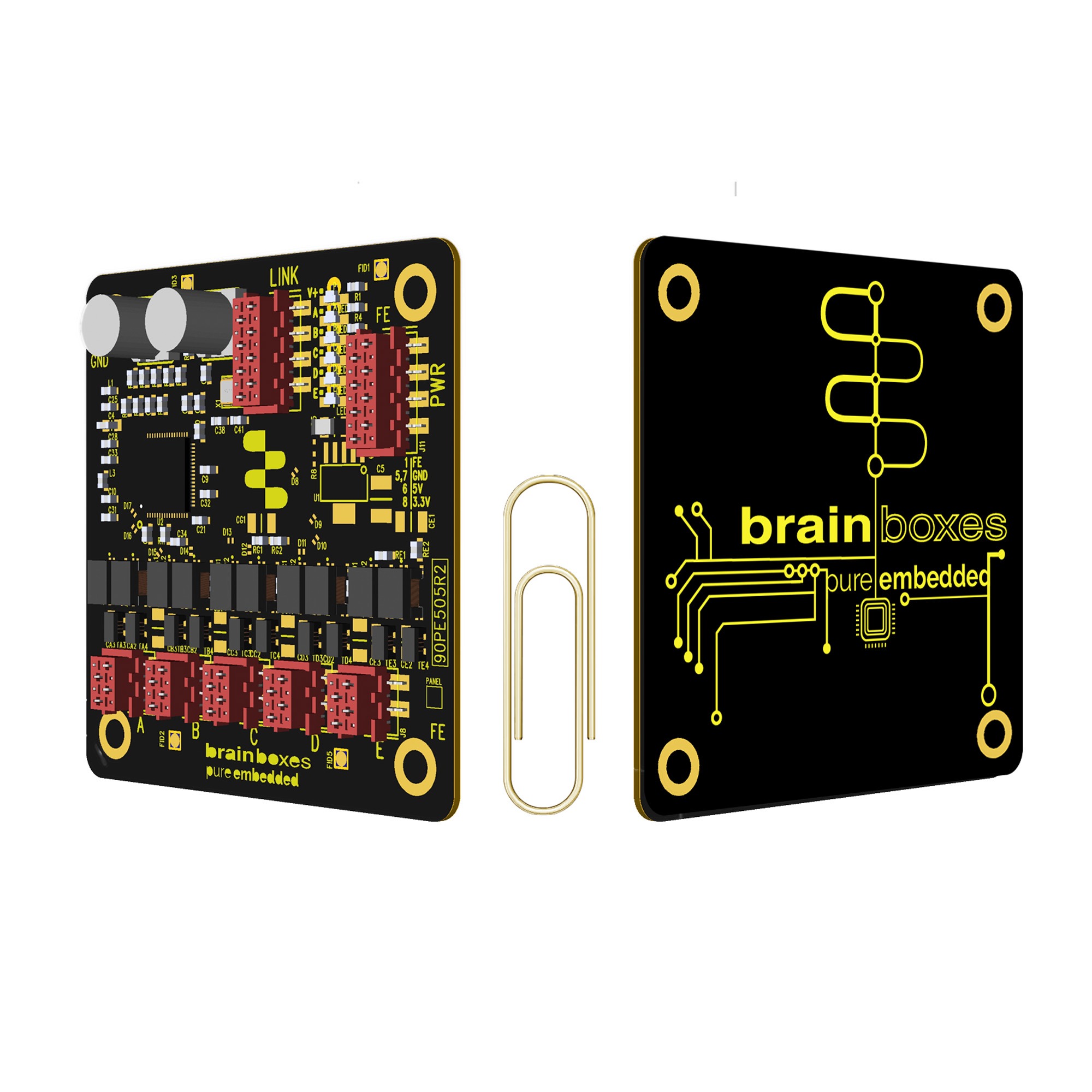

Brainboxes PE-505 industrial ethernet switch shown with paperclip for size reference

Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

PE-505 Pure Embedded Industrial 5 Port 10/100 Ethernet Switch has a mega compact form – at 55x55x10mm it’s smaller than a standard business card.
3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.
Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes, or by electrical signal wired out of the connector.

See other products the same category as PE-505: Pure Embedded

Power	Input Voltage	+3.3 V or +5 VDC, Reverse Polarity Protected
Power	Power Consumption	2.5 W Max: 758 mA @ +3.3 VDC / 500 mA @ +5 VDC
Ethernet	Ethernet Ports	5
Ethernet	Ethernet Speed	10/100 Fast Ethernet
Environmental	Operating Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Humidity Rating	5 to 95% (Non-Condensing)
Physical	Form Factor	Embedded
	Product Weight	0.018 kg / 0.039 lbs
	Product Dimensions	55 x 55 x 7.1 mm / 2.16 x 2.16 x 0.27 in
	Packaged Weight	0.027 kg / 0.059 in
	Packaged Dimensions	100 x 90 x 30 mm / 3.3 x 3.5 x 1.2 in
Product Compliance	GTIN	837324004960
	HTS	8517620000
	ECCN	5A991.b
Industry, EMC & Immunity Compliance	General	CE, UKCA, RoHS, REACH, WEEE
	Ethernet	IEEE 802.3, 802.3u, 802.3x
	Safety	IEC/EN/BS 62368-1
	EMC	EN/BS 55032
	EMC	EN/BS 55035
	Flammability	UL-94 V0
	RoHS	2015/863/EU
	RoHS	IEC/EN/BS 63000
	REACH	(EC)1907/2006
	Robustness	EN 60068-2-31
Company Compliance	General	ISO9001, ISO14001, AEO (C-TPAT)
	CAGE	8QCY6
	NCAGE	U0Q96
	GSA	47QTCA23D009X
	Sustainability	Ecovadis Silver Medal
	Country of Origin	Made in GB, United Kingdom of Great Britain & Northern Ireland
