Pure Embedded Ethernet Evaluation Kit

  • Embedded Ethernet evaluation kit
  • PE-505 included - quick easy access to all functionality
  • Simplifies integration into test systems
  • Test and debug prototypes before committing to design
  • Monitor power consumption, self-test button, link header, LEDs
  • Instant start-up - USB power option

Pure Embedded Ethernet switch evaluation kit – allows easy access to all features of the PE-505* and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made.

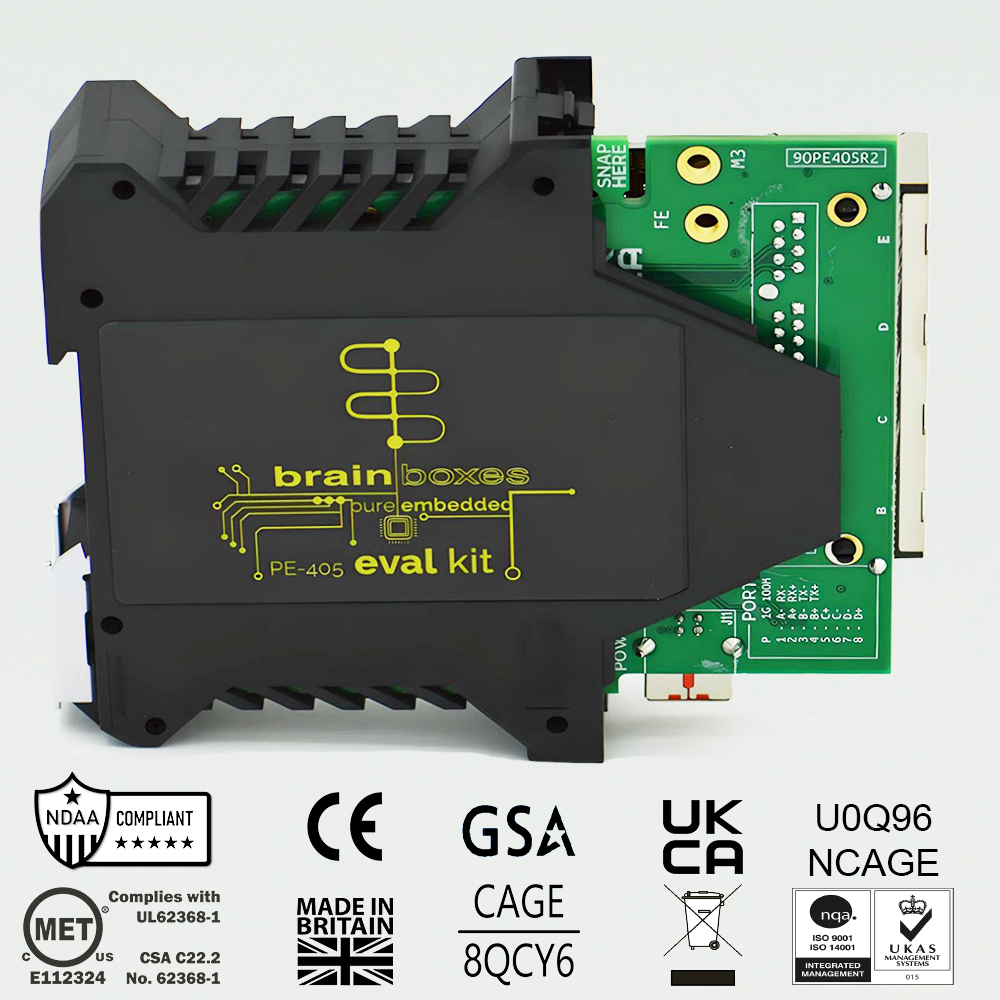

PE-405 Embedded Ethernet Evaluation Kit includes:

  • Pure Embedded Industrial 5 Port Ethernet Switch (PE-505)*

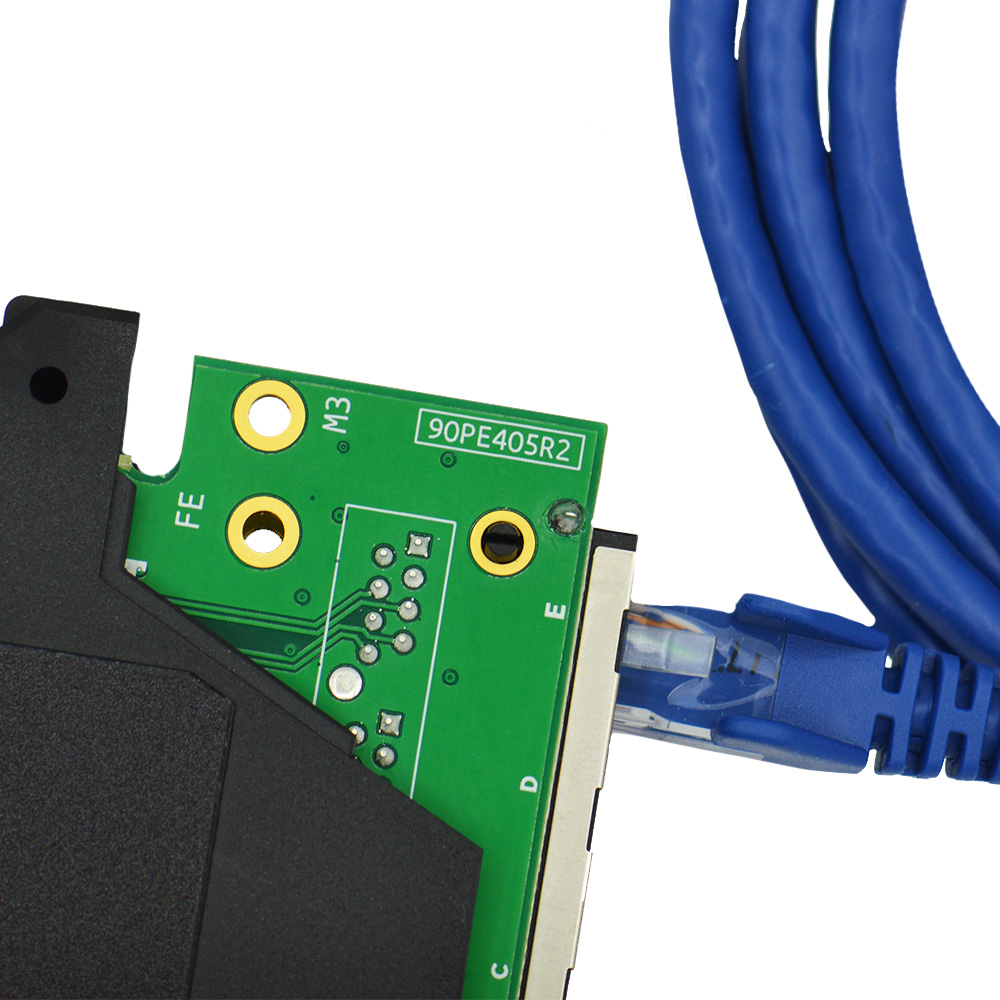

  • Mating board (breaks out all ports and functionality to RJ45 or usable headers)
  • USB cable
  • MicroMatch to RJ45 adaptor cable
  • 4 x MicroMatch 4-way headers
  • 1 x MicroMatch 8-way header

*PE-505 Pure Embedded Industrial 5 Port Ethernet Switch

  • 3D CAD files and PCB footprints
  • Mega compact form – smaller than a standard business card (55x55x10mm)
  • Seamless integration with design software – logical placements and fixed distances
  • Board-to-board and board-to-cable connection
  • Stability of design guaranteed for min. 10 years
  • LEDs visible in all orientations – option to route through fibre

Download 3D Model

Download 3D Model
