PE-415 Pure Embedded Industrial Gigabit Ethernet Evaluation Kit

Pure Embedded Industrial Gigabit Ethernet Evaluation Kit
Power Input: +3.3 or 5 VDC
Low Power Consumption: 3.3 W Max
Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
Pure Embedded

Download PE-415 Technical Datasheet (PDF)

£150.00

Volume Purchase?Request a Quote

Brainboxes PE-415 pure embedded industrial gigabit ethernet evaluation kit

Brainboxes PE-415 industrial ethernet switch with labeled components and connection points

Brainboxes PE-415 industrial ethernet evaluation kit with all components and accessories displayed

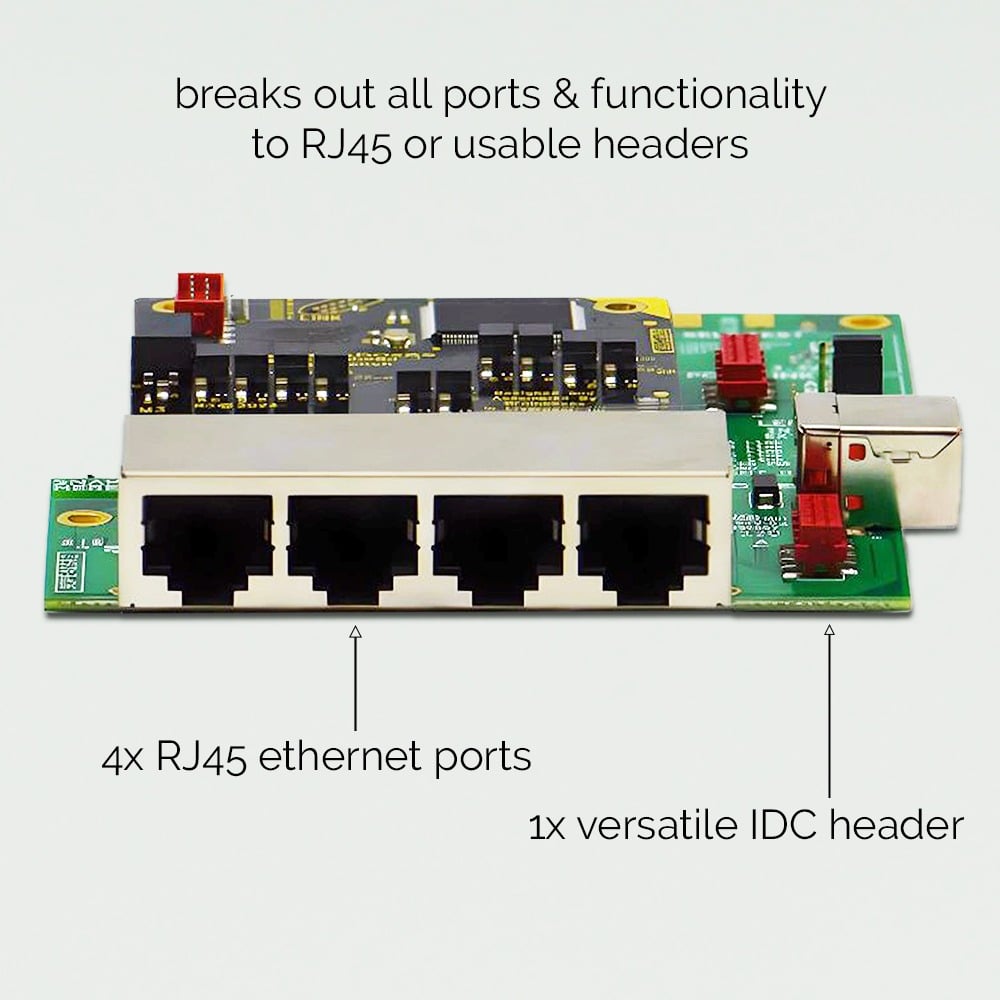

Brainboxes PE-415 industrial ethernet switch showing four rj45 ports and versatile idc header connection

Brainboxes PE-415 industrial ethernet evaluation kit with usb power connector and test ports

Brainboxes PE-415 industrial gigabit ethernet evaluation kit with breakout board and switch module

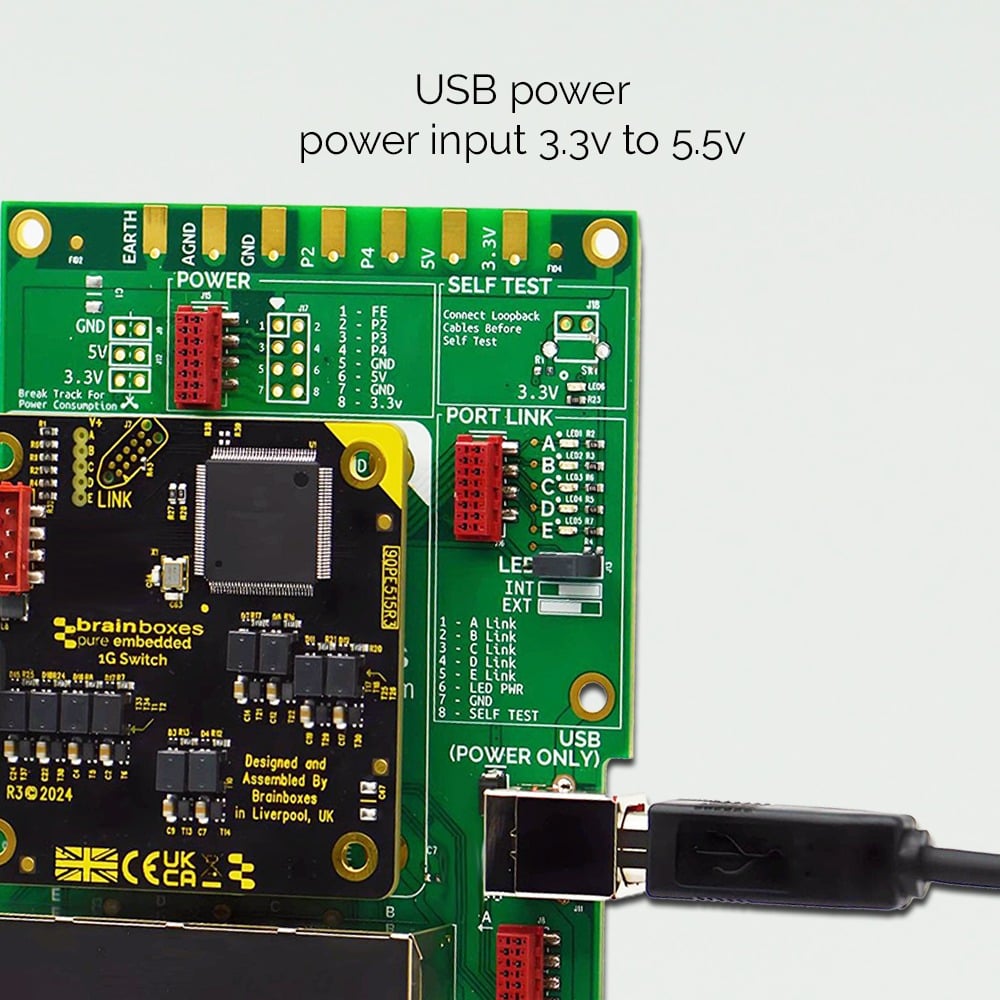

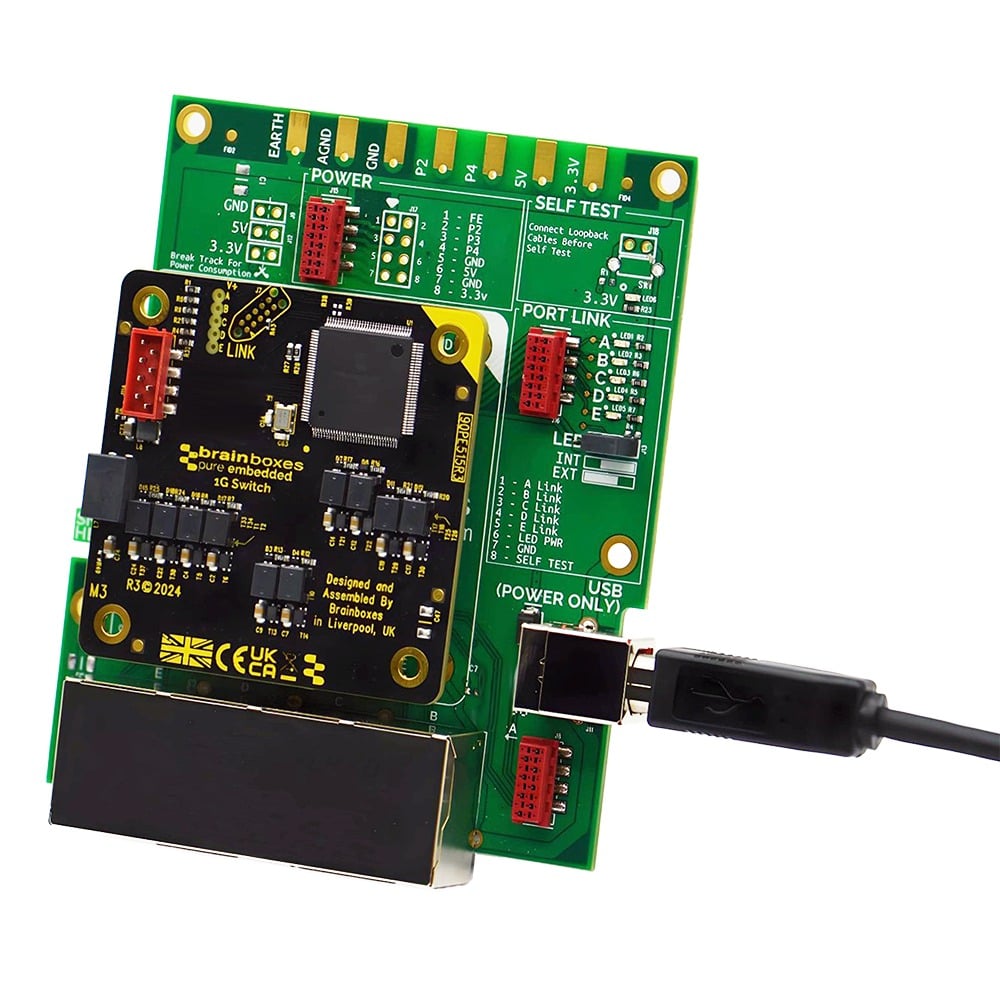

Brainboxes PE-415 industrial ethernet evaluation board with usb cable connected showing connection interface

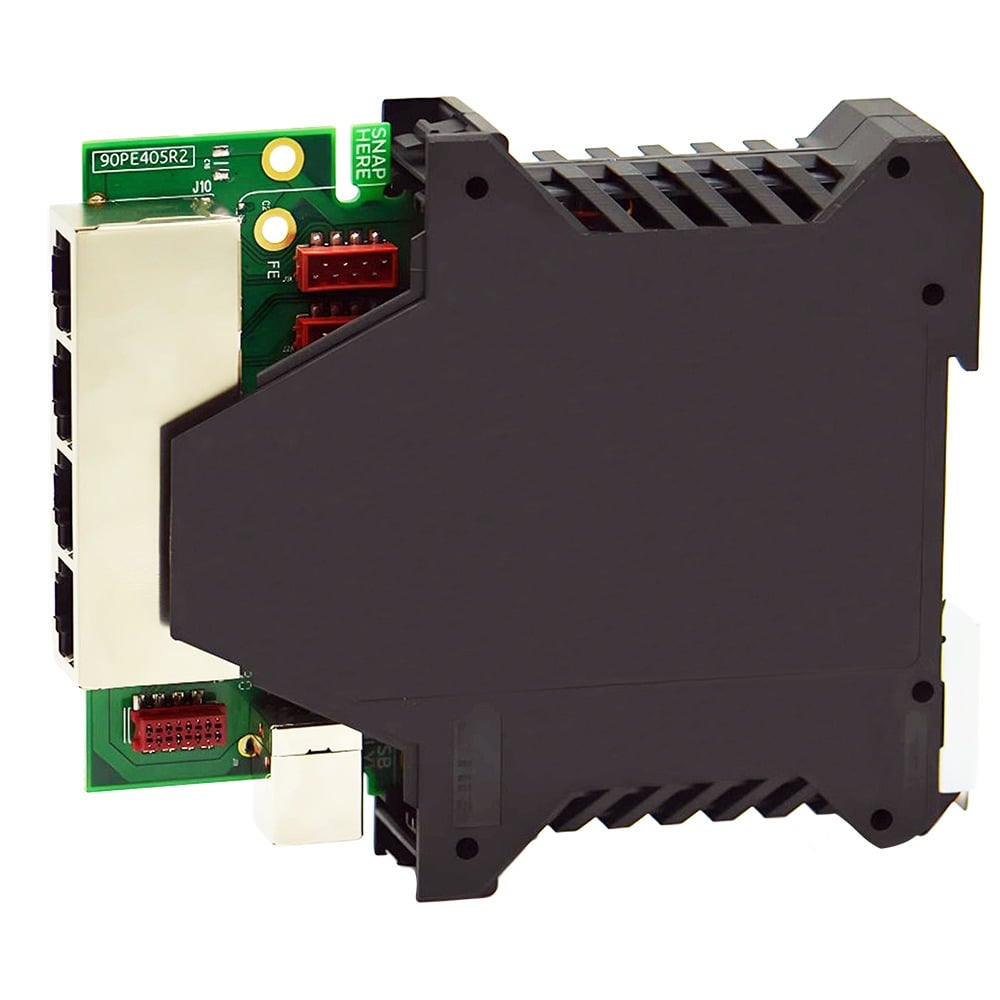

Brainboxes PE-415 industrial ethernet evaluation kit showing din rail mounting and internal circuit board

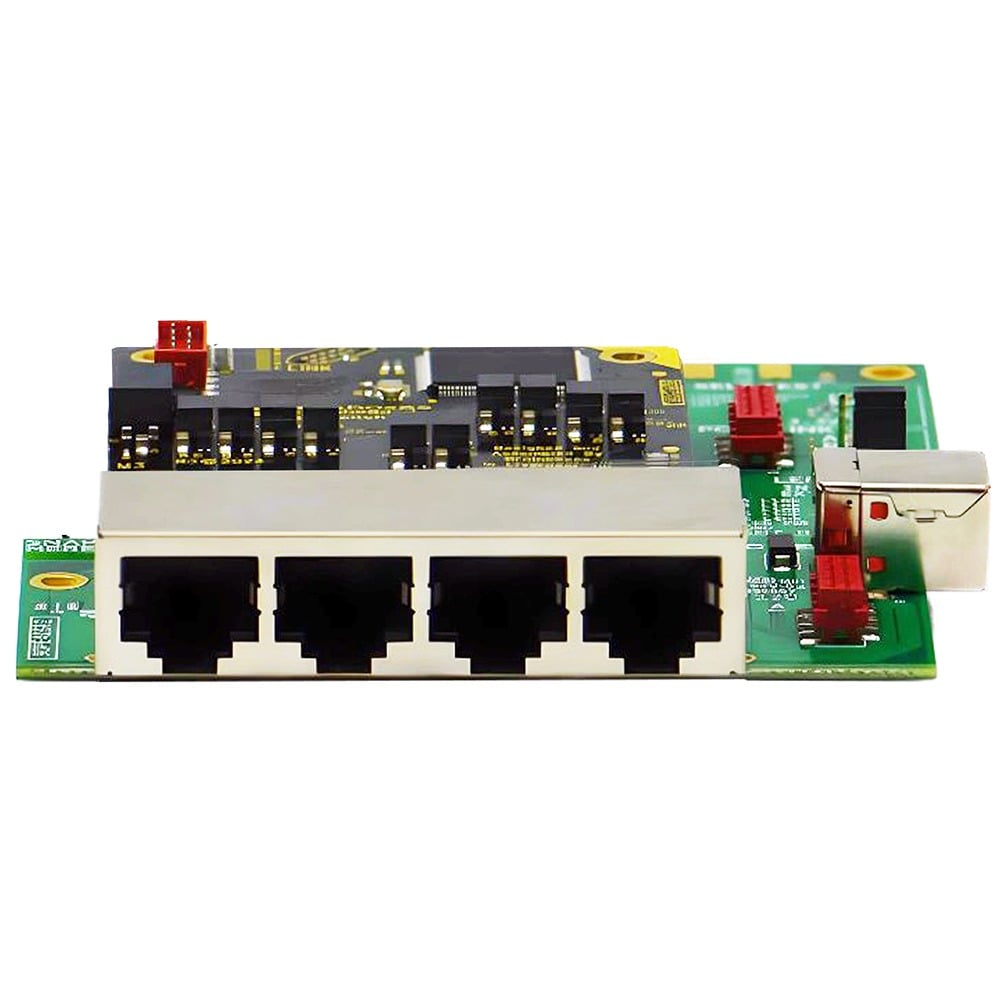

Brainboxes PE-415 industrial ethernet evaluation kit showing four ethernet ports and usb connector

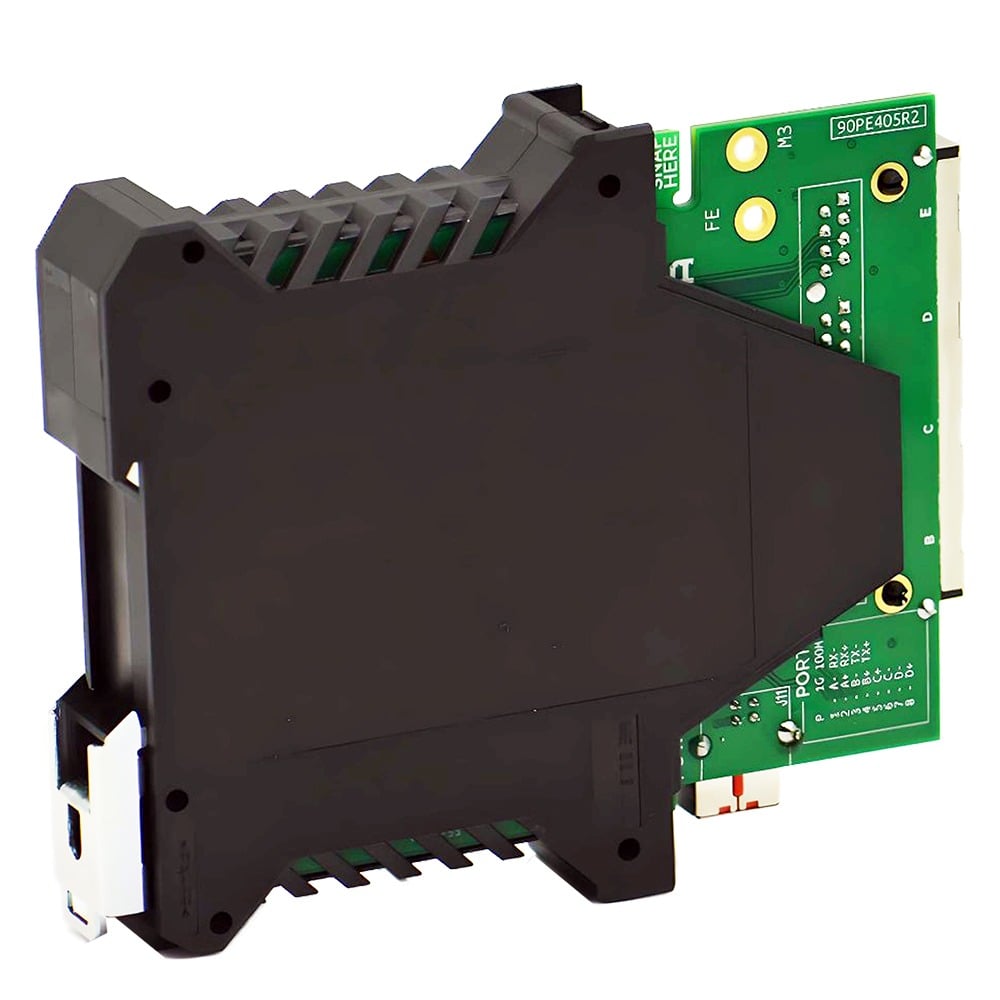

Brainboxes PE-415 industrial gigabit ethernet evaluation kit mounted on din rail with circuit board visible

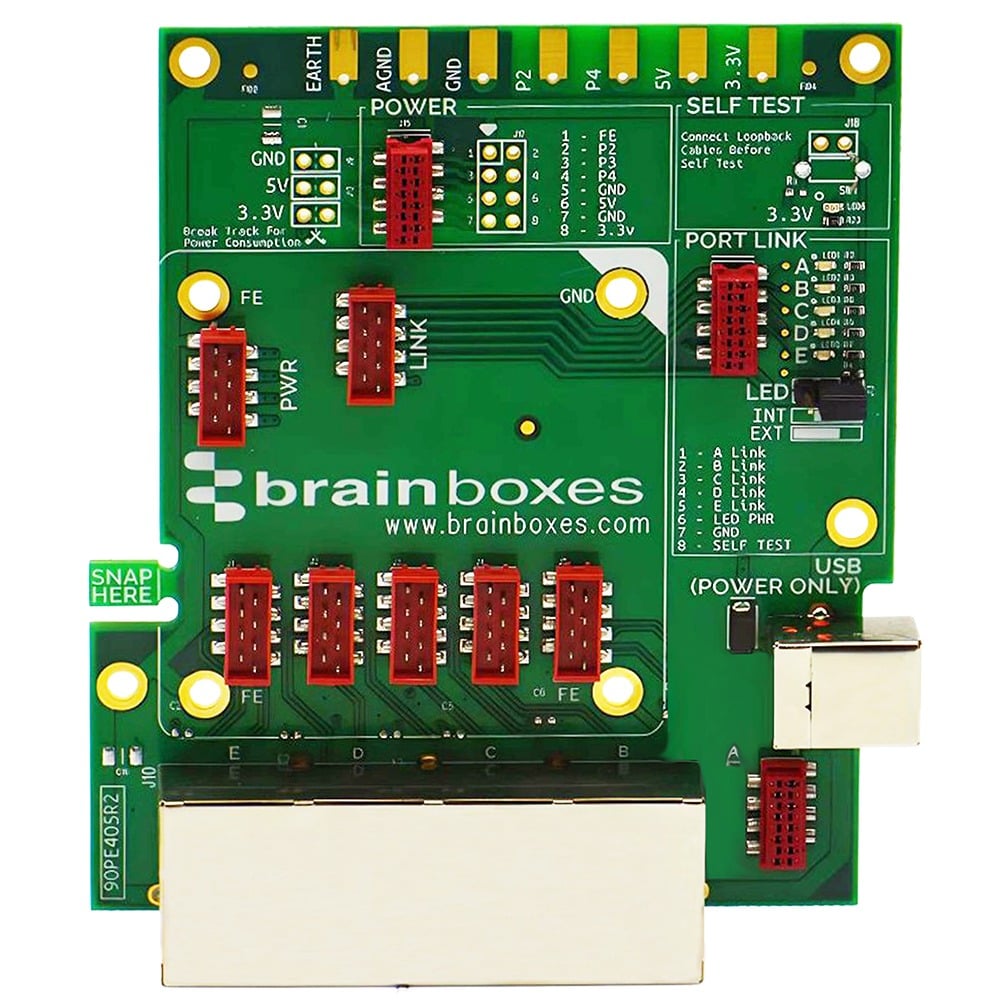

Brainboxes PE-415 industrial ethernet evaluation kit circuit board showing multiple connectors and test points

Pure Embedded Industrial Gigabit Ethernet Switch Evaluation Kit – allows easy access to all features of the PE-51 5* and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made.

PE-415 Embedded Industrial Gigabit Ethernet Evaluation Kit includes:

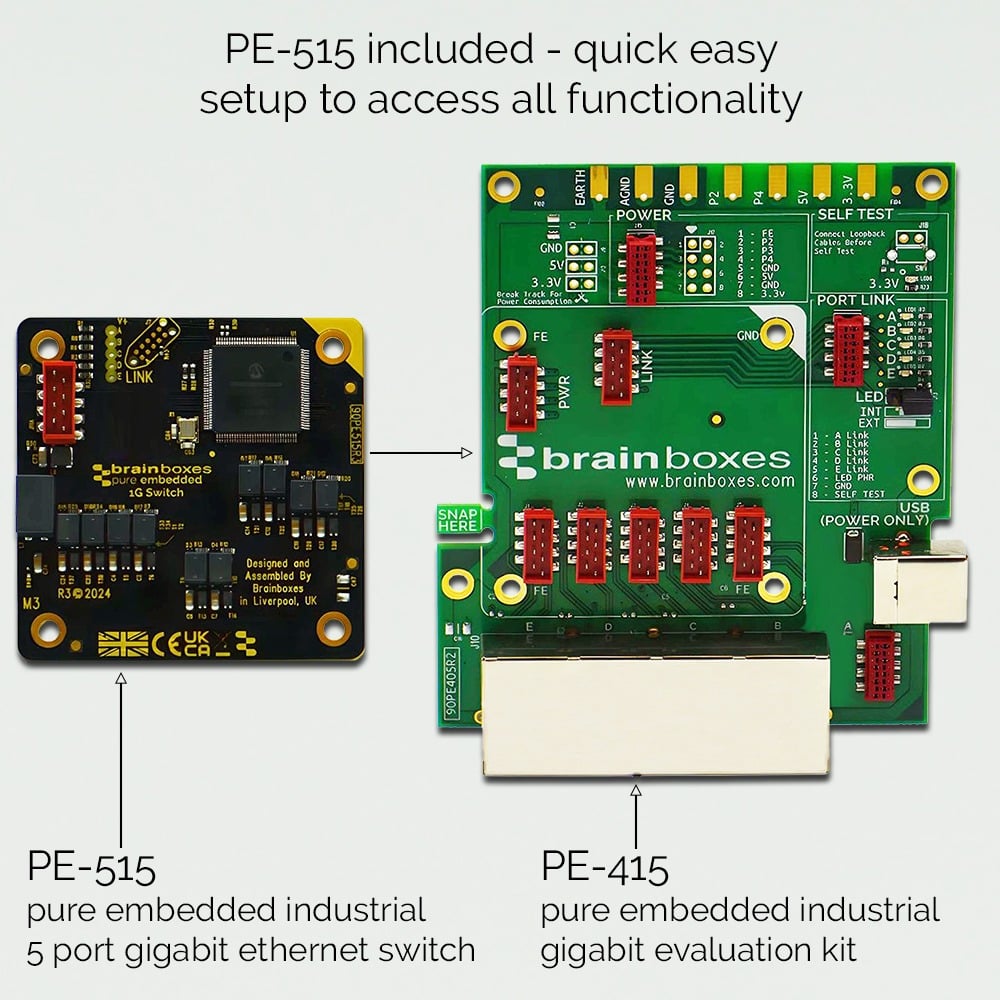

Pure Embedded Industrial 5 Port Gigabit Ethernet Switch (PE-515)*
Evaluation Board (breaks out all ports and functionality to RJ45 or usable headers)
5x IDC Header to RJ45 Cable
IDC Headers
USB Power Cable

*PE-515 Pure Embedded Industrial 5 Port Gigabit Ethernet Switch

3D CAD files and PCB footprints
Mega compact form – smaller than a standard business card (55x55x10mm)
Seamless integration with design software – logical placements and fixed distances
Board-to-board and board-to-cable connection
Stability of design guaranteed for min. 10 years
LEDs visible in all orientations – option to route through fibre

See other products the same category as PE-415: Pure Embedded

Power	Input Voltage	+3.3 V or +5 VDC, Reverse Polarity Protected
Power	Power Consumption	3.3 W Max: 1 A @ +3.3 VDC / 660 mA @ +5 VDC
Ethernet	Ethernet Ports	5 (4 x RJ45 & 1 x IDC)
Ethernet	Ethernet Speed	10/100/1000 Gigabit Ethernet
Environmental	Operating Temperature	-40 °C to +80 °C / -40 °F to +176 °F
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Humidity Rating	5 to 95% (Non-Condensing)
Physical	Form Factor	Embedded
	Product Weight	0.123 kg / 0.271 lbs
	Product Dimensions	117 x 98 x 22 mm / 4.60 x 3.85 x 0.86 in
	Packaged Weight	0.261 kg / 0.575 lbs
	Packaged Dimensions	160 x 135 x 49 mm / 6.29 x 5.31 x 1.92 in
Product Compliance	GTIN	837324004953
	HTS	8517620000
	ECCN	5A991.b
Industry, EMC & Immunity Compliance	General	CE, UKCA, RoHS, REACH, WEEE
	Ethernet	IEEE 802.3, 802.3u, 802.3x
	Safety	IEC/EN/BS 62368-1
	EMC	EN/BS 55032
	EMC	EN/BS 55035
	Flammability	UL-94 V0
	RoHS	2015/863/EU
	RoHS	IEC/EN/BS 63000
	REACH	(EC)1907/2006
	Robustness	EN 60068-2-31
Company Compliance	General	ISO9001, ISO14001, AEO (C-TPAT)
	CAGE	8QCY6
	NCAGE	U0Q96
	GSA	47QTCA23D009X
	Sustainability	Ecovadis Silver Medal
	Country of Origin	Made in GB, United Kingdom of Great Britain & Northern Ireland
