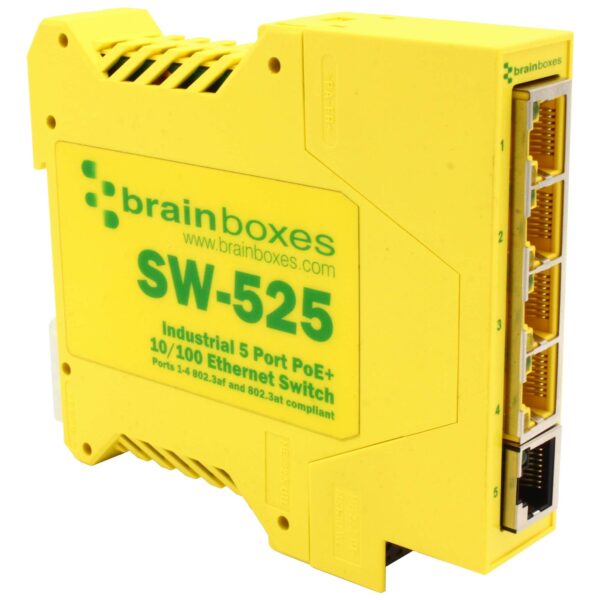

SW-525

Industrial 5 Port PoE+ 10/100 Ethernet Switch

  • Allows power and data to be combined on the same Ethernet cable
  • Ports 1-4 PoE+ capable
  • Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
  • PoE Power Budget: 90W @ 70ºC between all 4 PoE ports simultaneously
  • Redundant dual power inputs: +44V to +57V DC
  • Industrial operating temp range -40°C to +70°C / -40°F to +176°F

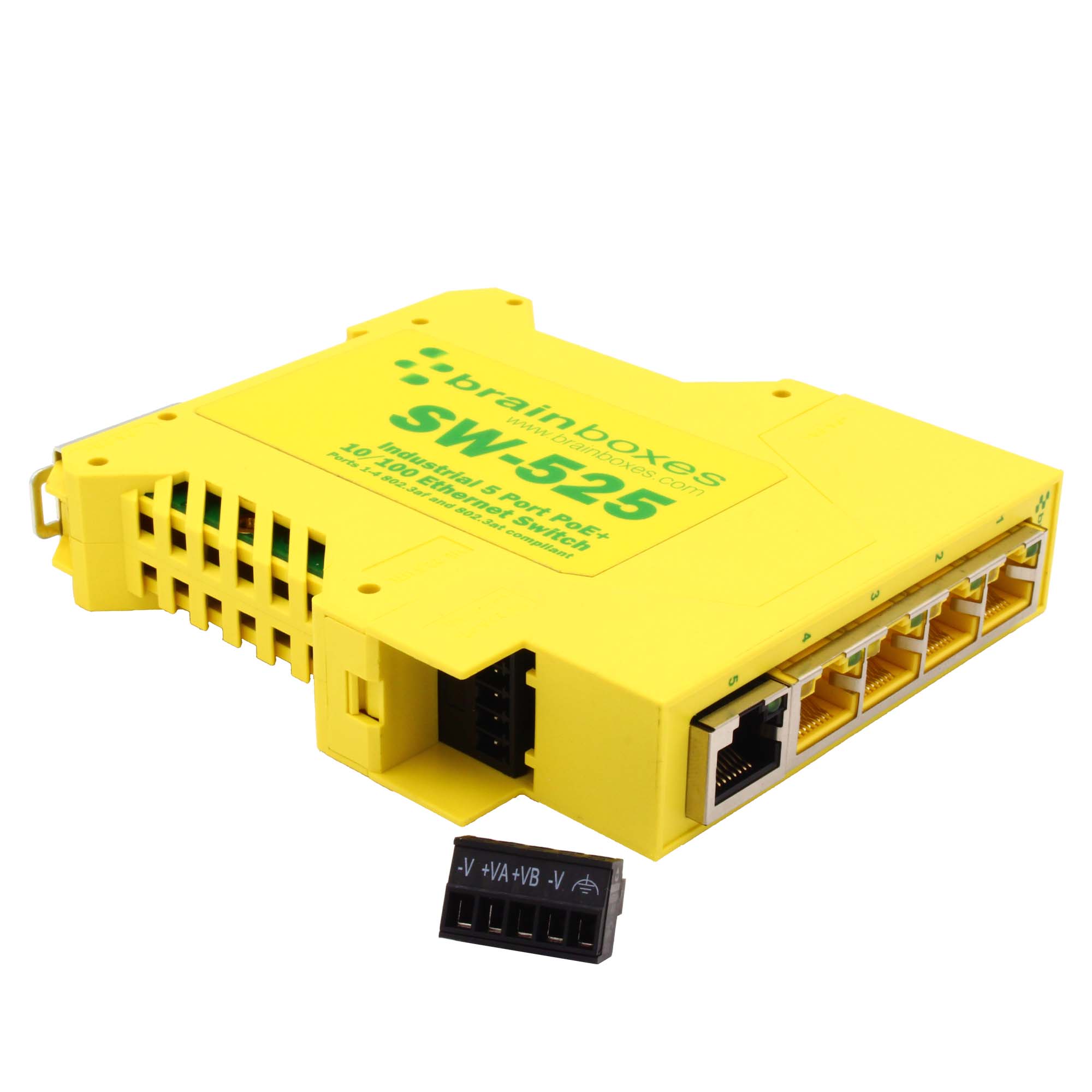

Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
