SW-7617 Hardened Industrial 16x 10/100 & 1x SFP Ethernet Switch

Hardened Industrial 16x 10/100 & 1x SFP Ethernet Switch
  • 16x 10/100 & 1x SFP Port Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 7.5 W Max
  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • DIN rail mountable with included mounting kit (MK-103)

Download SW-7617 Technical Datasheet (PDF)

£199.00
Add to Cart
Buy from Reseller
Brainboxes SW-7617 hardened industrial 16x 10/100 & 1x sfp ethernet
Brainboxes SW-7617 industrial ethernet switch with certification logos and compliance markings displayed

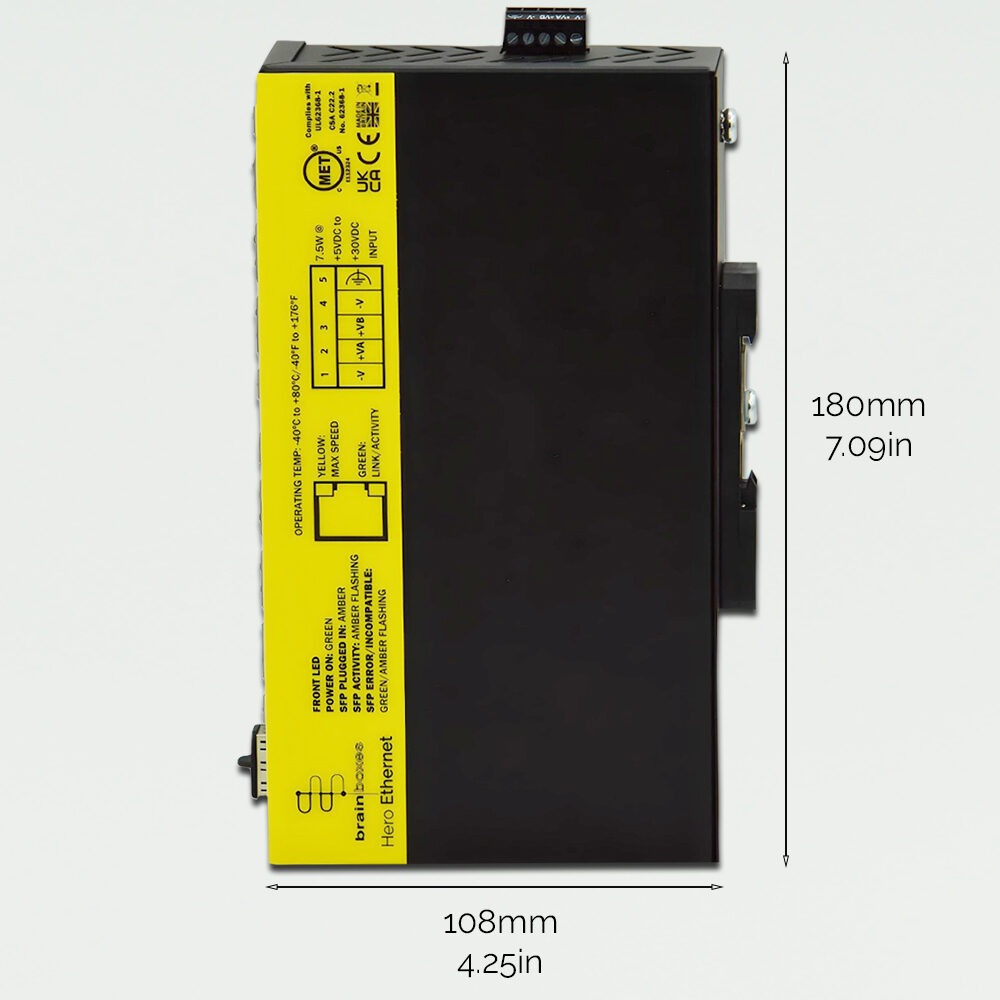

Brainboxes SW-7617 industrial ethernet switch showing physical dimensions and measurements

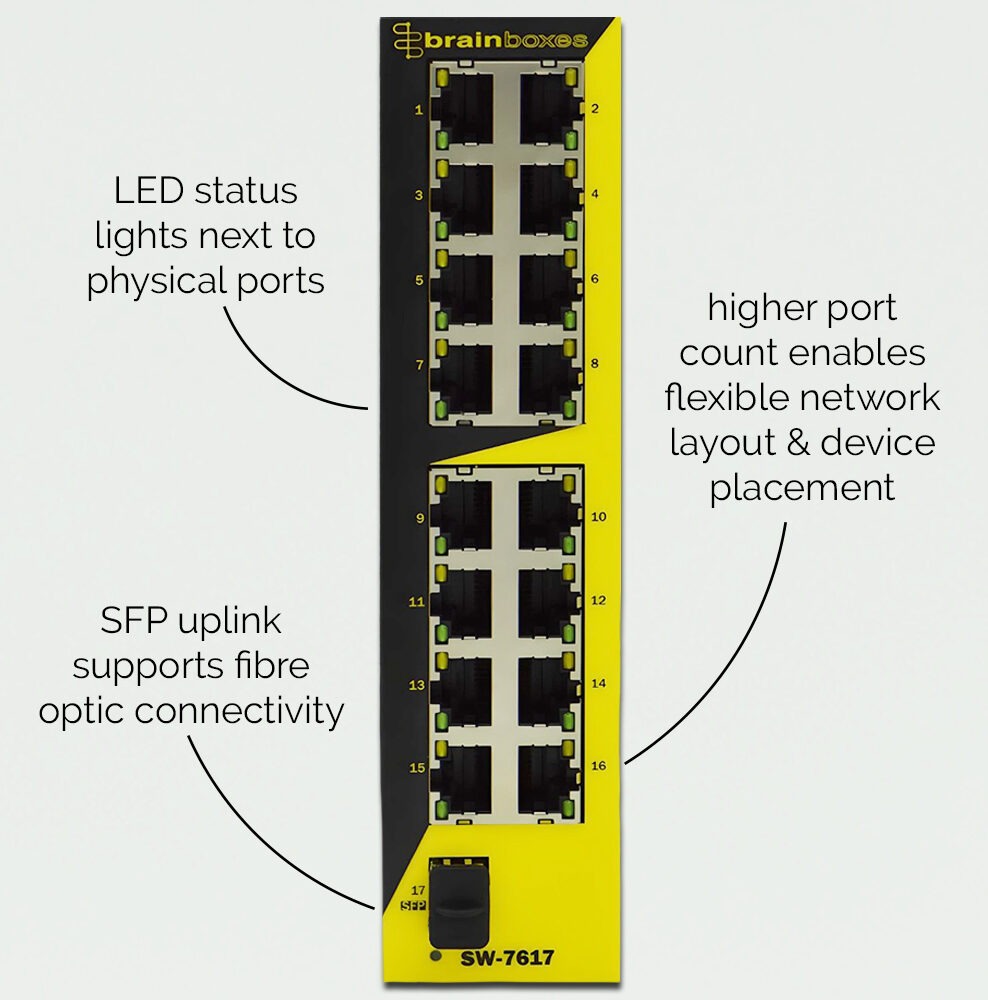

Brainboxes SW-7617 front panel showing 16 ethernet ports and 1 sfp port with led status indicators

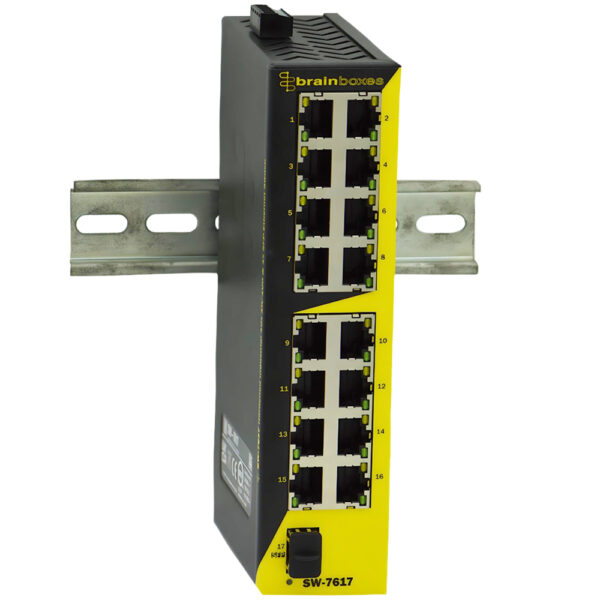

Brainboxes SW-7717 industrial ethernet switches showing din rail mounting options and different heights
Brainboxes SW-7717 din rail mounting clip showing two different height positions and rotation options
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Hardened Industrial 16x 10/100 & 1x SFP Ethernet Switch – SFP uplink supports fibre optic connectivity, overcoming distance limitations of copper Ethernet cables and enabling communication between remote devices and control systems.

16x Fast Ethernet 10/100 ports provide ample connectivity for expanding industrial automation networks without compromising performance.

Extend network reach and reliability by integrating fibre optic uplinks to connect equipment across large production areas/multiple manufacturing floors.

Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.

Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.

Includes MK-103 DIN Rail clip for several mounting options: 2 different heights and 180° rotation.

See other products the same category as SW-7617: Fast Ethernet Switch

Download SW-7617 CAD 3D Model
