SW-7416 Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch

Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch

14x 10/100 & 2x Gigabit Port Unmanaged Ethernet Switch
Dual Redundant, Wide Power Input: +5 V to +30 VDC
Low Power Consumption: 6 W Max
Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
DIN rail mountable with included mounting kit (MK-103)

Download SW-7416 Technical Datasheet (PDF)

£199.00

Volume Purchase?Request a Quote

Brainboxes SW-7416 hardened industrial 14x 10/100 & 2x 1g ethernet

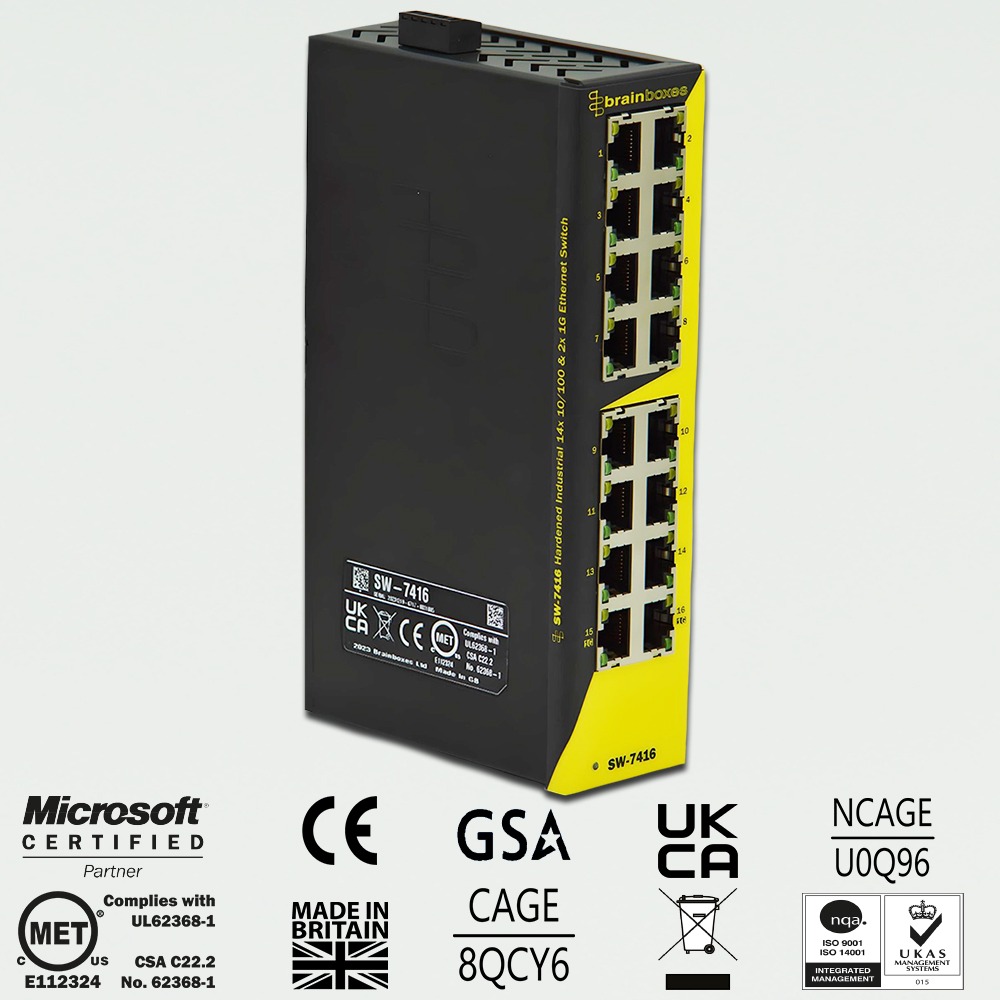

Brainboxes SW-7416 industrial ethernet switch showing certification marks and compliance logos

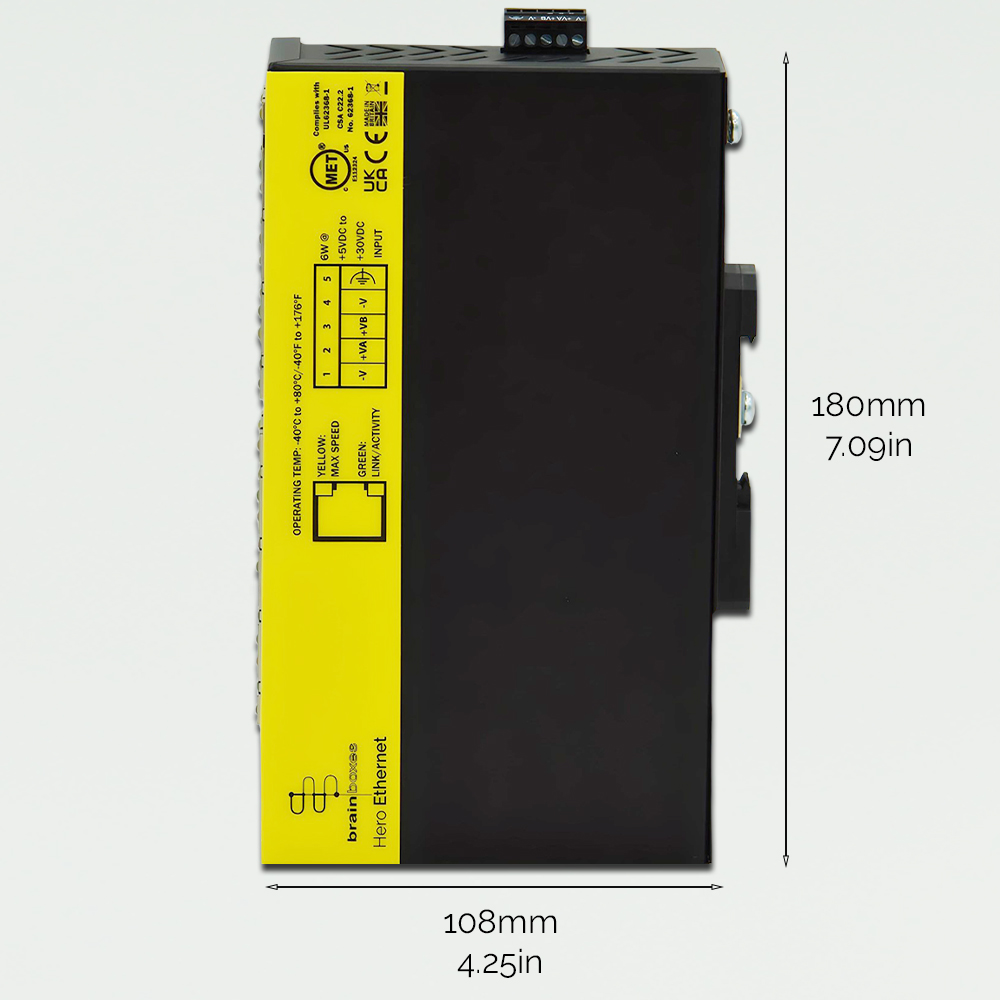

Brainboxes SW-7416 industrial ethernet switch showing physical dimensions of 180mm height and 108mm width

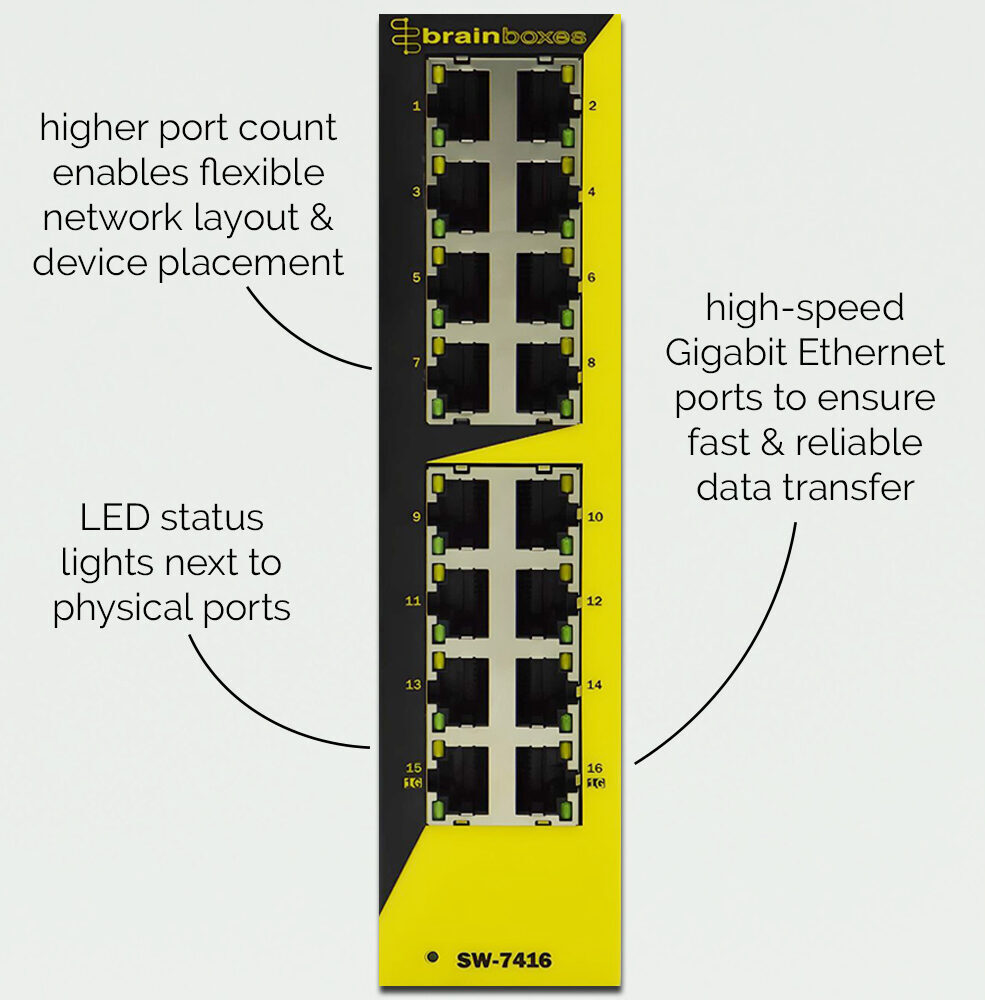

Brainboxes SW-7416 industrial ethernet switch port layout with numbered gigabit connections

Brainboxes SW-7717 industrial ethernet switches showing din rail mounting options and different heights

Brainboxes SW-7717 din rail mounting clip showing two different height positions and rotation options

Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch – enhance efficiency, accuracy, and throughput in high-speed assembly operations.

14x 10/100 Fast Ethernet ports and 2x 10/100/1000 Gigabit ports ensure flexibility in network integration, accommodating diverse network requirements and device capabilities, making it easier to integrate into existing industrial automation setups.

Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.

Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.

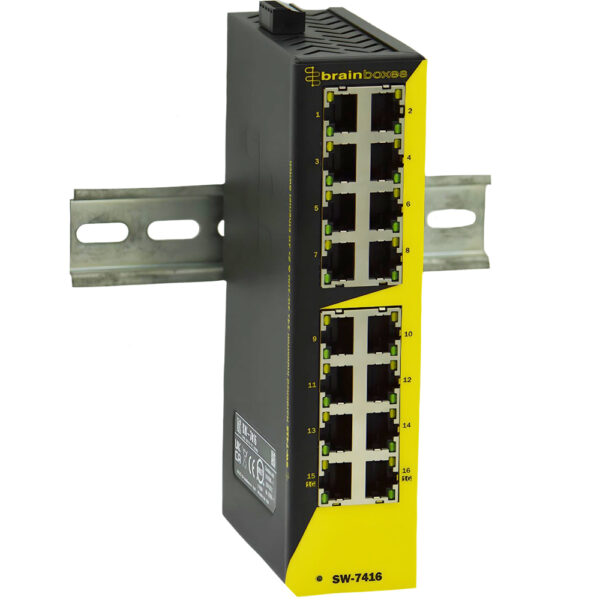

Includes MK-103 DIN Rail clip for several mounting options: 2 different heights and 180° rotation.

See other products the same category as SW-7416: Fast Ethernet Switch

Ethernet
Ethernet	Ethernet Ports	16
	Ethernet Speed	14x 10/100 Fast Ethernet & 2x 10/100/1000 Gigabit Ethernet
Power
Power	Power Input	5V - 30V DC input, reverse polarity protected
	PoE Power Budget	NA
General
General	Operating Temperature Range	-40 °C to +80 °C / -40 °F to +176 °F
	Storage Temperature	-40 °C to +80 °C / -40 °F to +176 °F
	Form Factor	Hardened Din-Rail Mountable
	Power Consumption	6 Watts Max: @+5V to +30VDC
	Product Weight	0.64 kg, 22.64 ounces
	Product Dimensions	180 x 108 x 43 mm, 7.09 x 4.25 x 1.69 inches
	Packaged Weight	0.75 kg, 26.46 ounces
	Packaged Dimensions	200 x 140 x 80 mm, 7.87 x 5.51 x 3.15 inches
	GTIN (barcode)	837324005202
Interface
Interface	Ethernet	Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
