SW-7016 Hardened Industrial 16x 10/100 Ethernet Switch

Hardened Industrial 16x 10/100 Ethernet Switch

16x Port 10/100 Unmanaged Ethernet Switch
Dual Redundant, Wide Power Input: +5 V to +30 VDC
Low Power Consumption: 3.8 W Max
Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
DIN rail mountable with included mounting kit (MK-103)

Download SW-7016 Technical Datasheet (PDF)

£179.00

Volume Purchase?Request a Quote

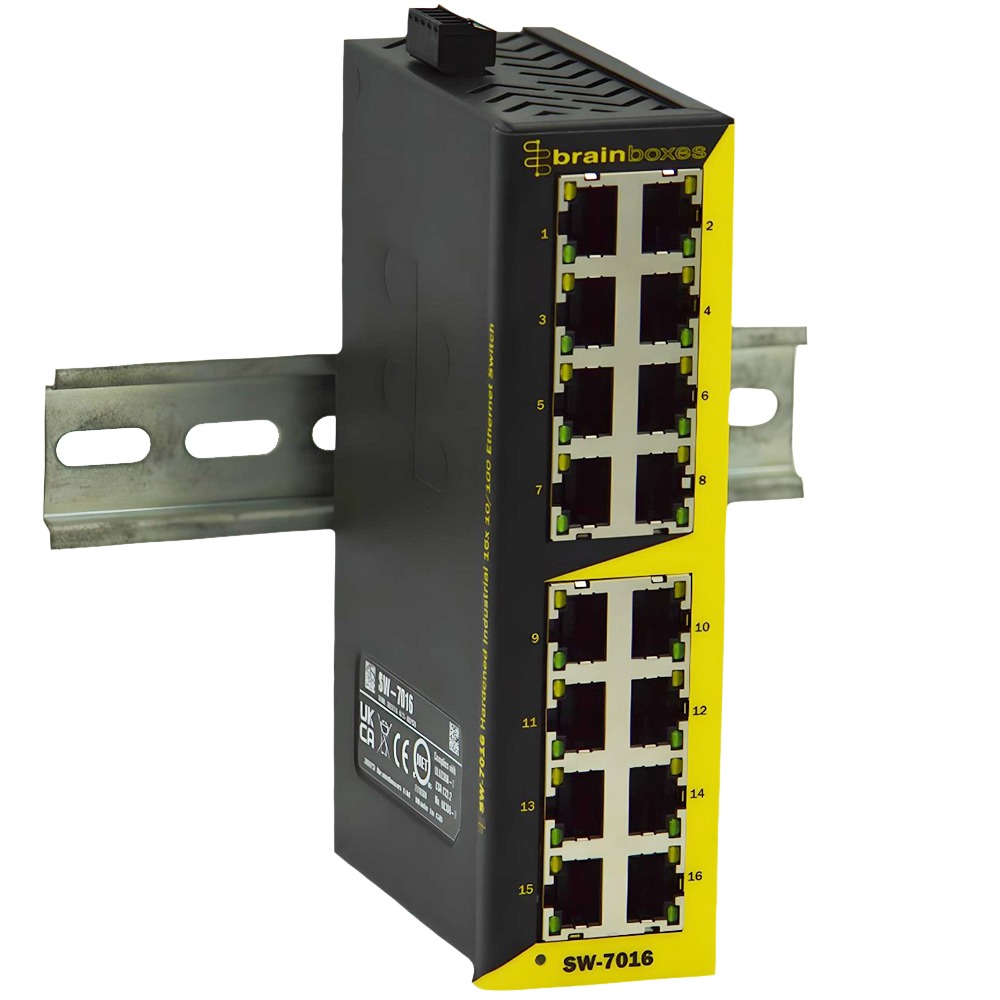

Brainboxes SW-7016 hardened industrial 16x 10/100 ethernet switch 16x

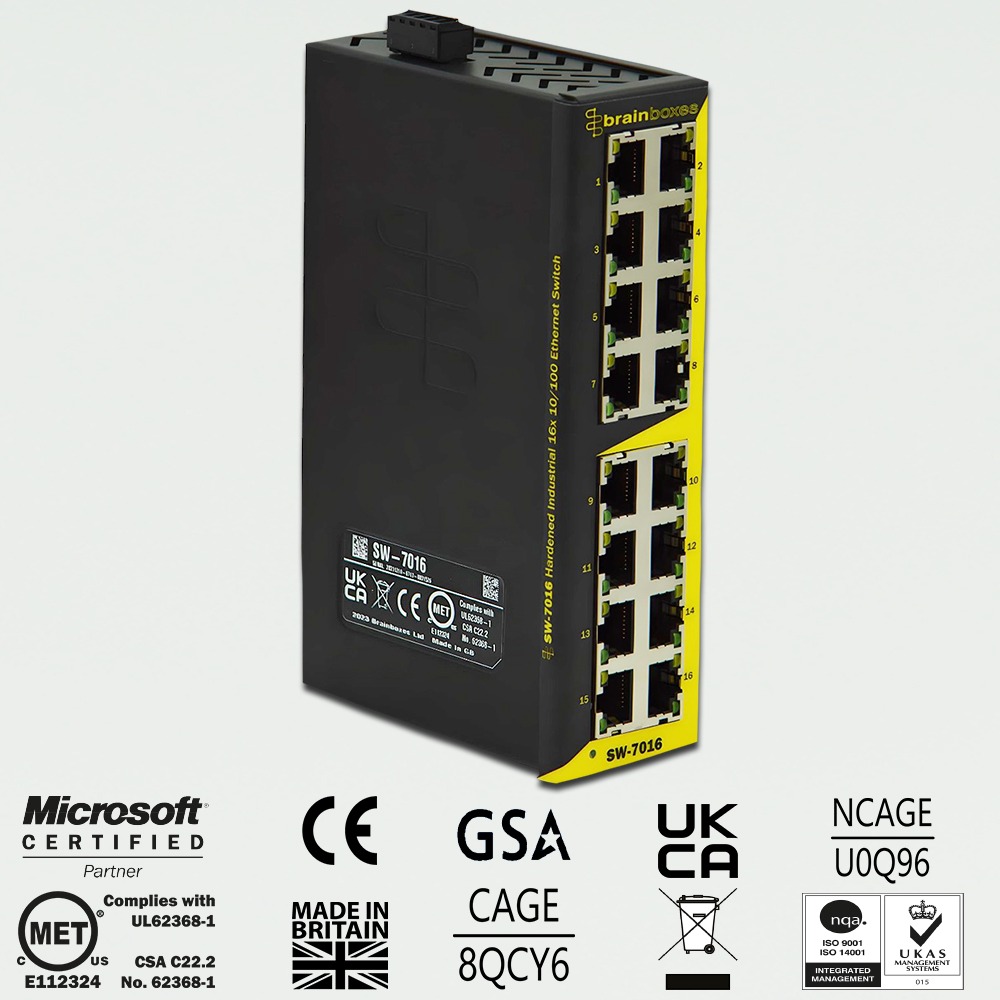

Brainboxes SW-7016 industrial ethernet switch showing certification marks and compliance logos

Brainboxes SW-7016 industrial ethernet switch showing physical dimensions and measurements

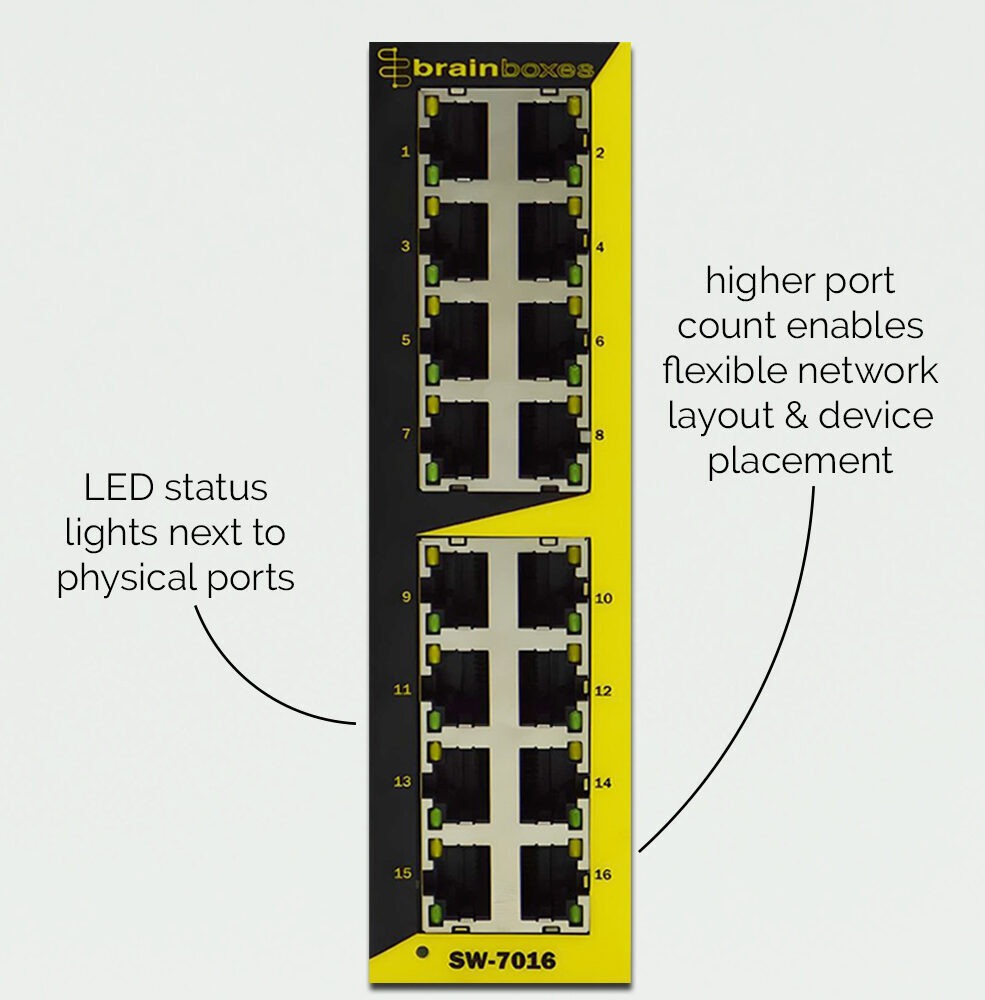

Brainboxes SW-7016 16 port ethernet switch showing numbered rj45 ports with led status indicators

Brainboxes SW-7717 industrial ethernet switches showing din rail mounting options and different heights

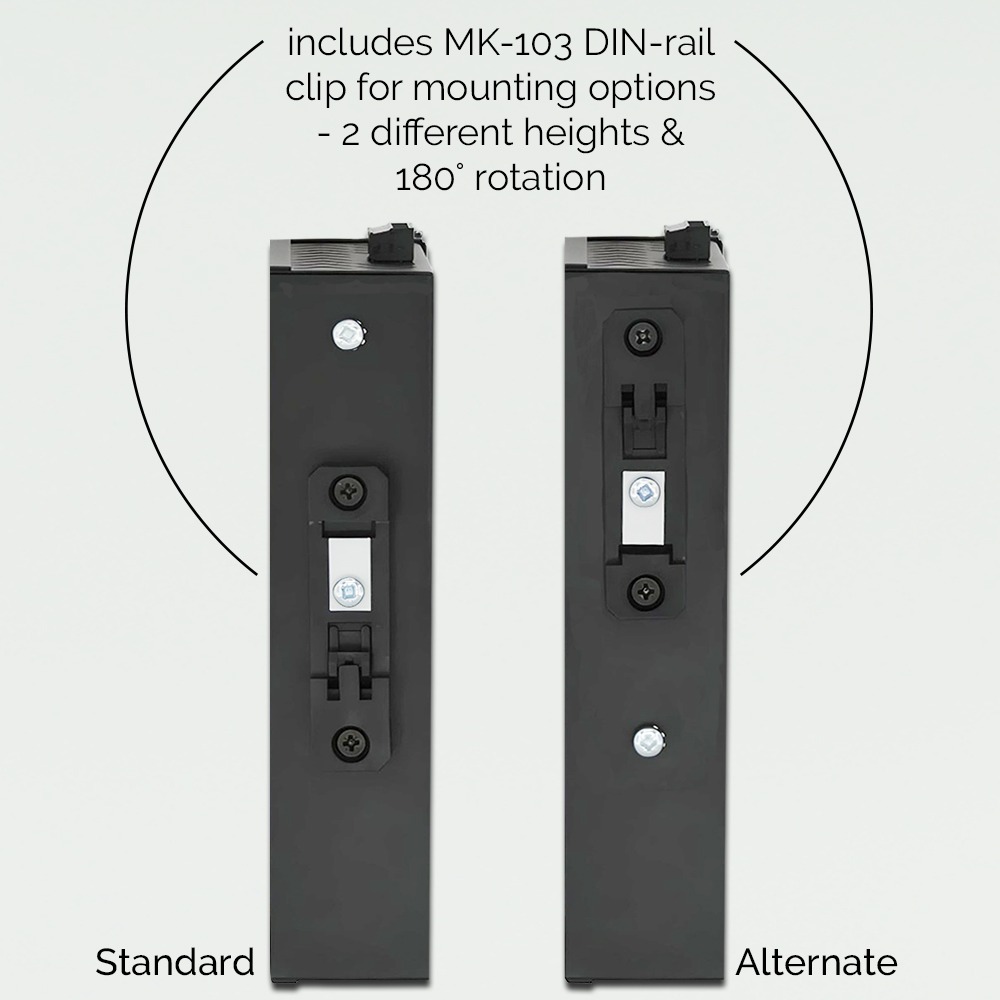

Brainboxes SW-7717 din rail mounting clip showing two different height positions and rotation options

Hardened Industrial 16x 10/100 Ethernet Switch – enables real-time communication between control units, sensors, and central monitoring systems; streamlining operations to improve efficiency and productivity.

16x Fast Ethernet 10/100 ports provide ample connectivity for expanding industrial automation networks without compromising performance.

Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.

Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.

Includes MK-103 DIN Rail clip for several mounting options: 2 different heights and 180° rotation.

See other products the same category as SW-7016: Fast Ethernet Switch

Ethernet
Ethernet	Ethernet Ports	16
	Ethernet Speed	10/100 Fast Ethernet
Power
Power	Power Input	5V - 30V DC input, reverse polarity protected
	PoE Power Budget	NA
General
General	Operating Temperature Range	-40 °C to +80 °C / -40 °F to +176 °F
	Storage Temperature	-40 °C to +80 °C / -40 °F to +176 °F
	Form Factor	Hardened Din-Rail Mountable
	Power Consumption	3.8 Watts Max: @+5V to +30VDC
	Product Weight	0.53 kg, 18.68 ounces
	Product Dimensions	158 x 103 x 43 mm, 6.22 x 4.06 x 1.69 inches
	Packaged Weight	0.67 kg, 23.63 ounces
	Packaged Dimensions	200 x 140 x 80 mm, 7.87 x 5.51 x 3.15 inches
	GTIN (barcode)	837324005196
Interface
Interface	Ethernet	Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
