SW-735 Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch

  • 5x Port PoE+ Gigabit Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +44 V to +70 VDC
  • Low Power Consumption: 5.5 W Max
  • Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F
  • Hardened DIN rail mountable

Download SW-735 Technical Datasheet (PDF)

£139.00
Add to Cart
Buy from Reseller
Brainboxes SW-735 5x port poe+ gigabit unmanaged ethernet switch dual

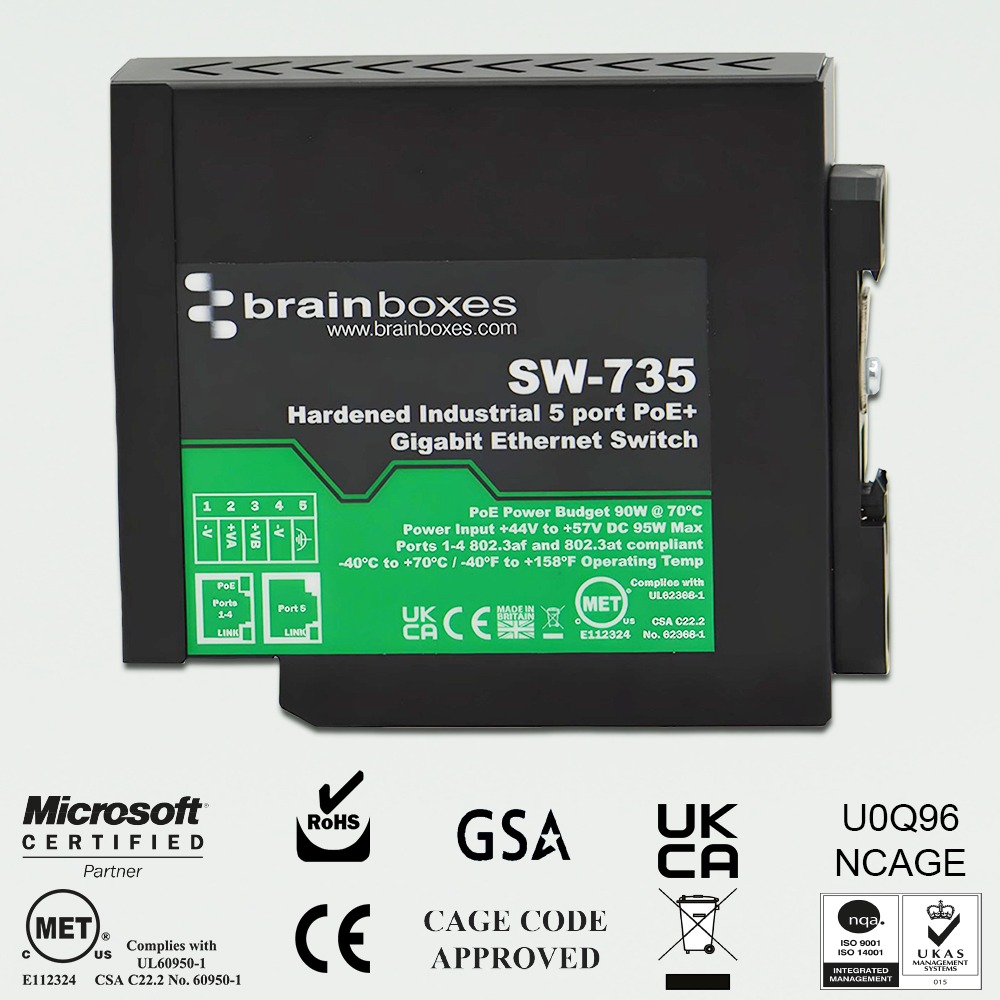

Brainboxes SW-735 industrial ethernet switch showing compliance certifications and approval logos

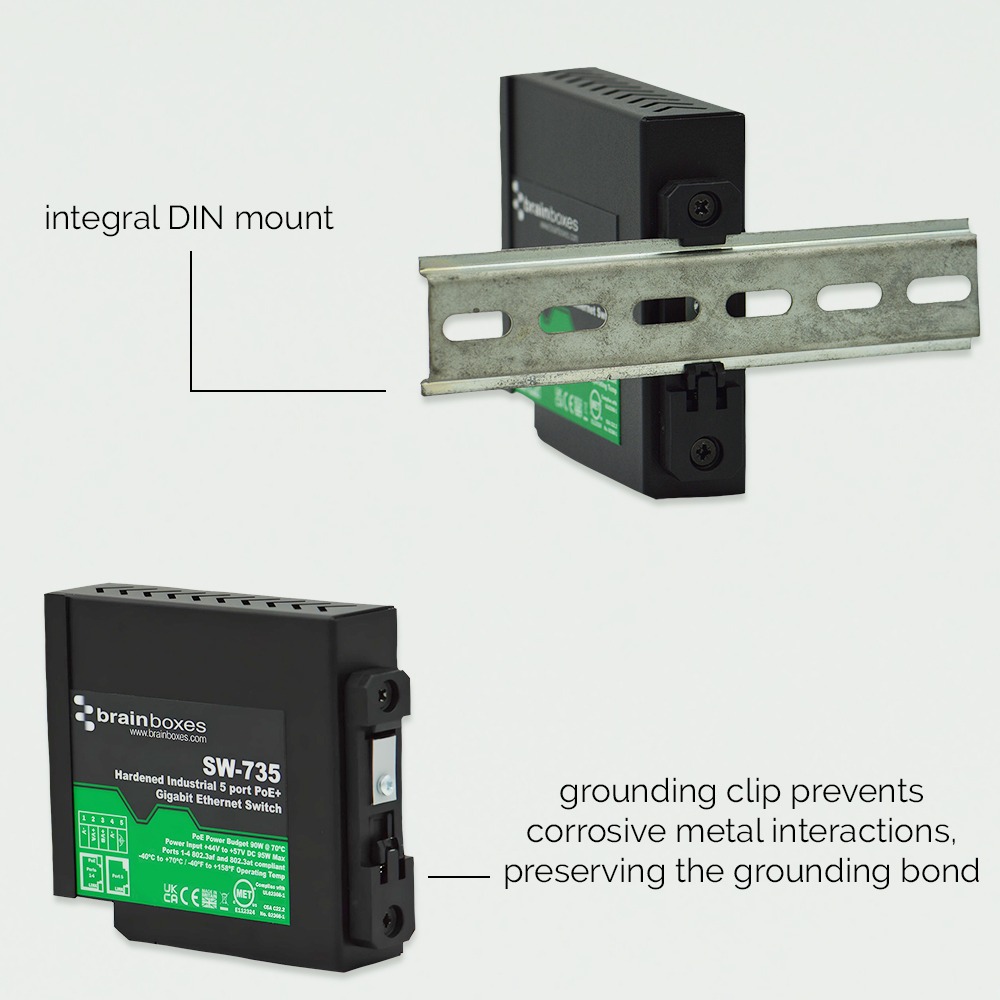

Brainboxes SW-735 industrial ethernet switch showing din rail mount and grounding clip features

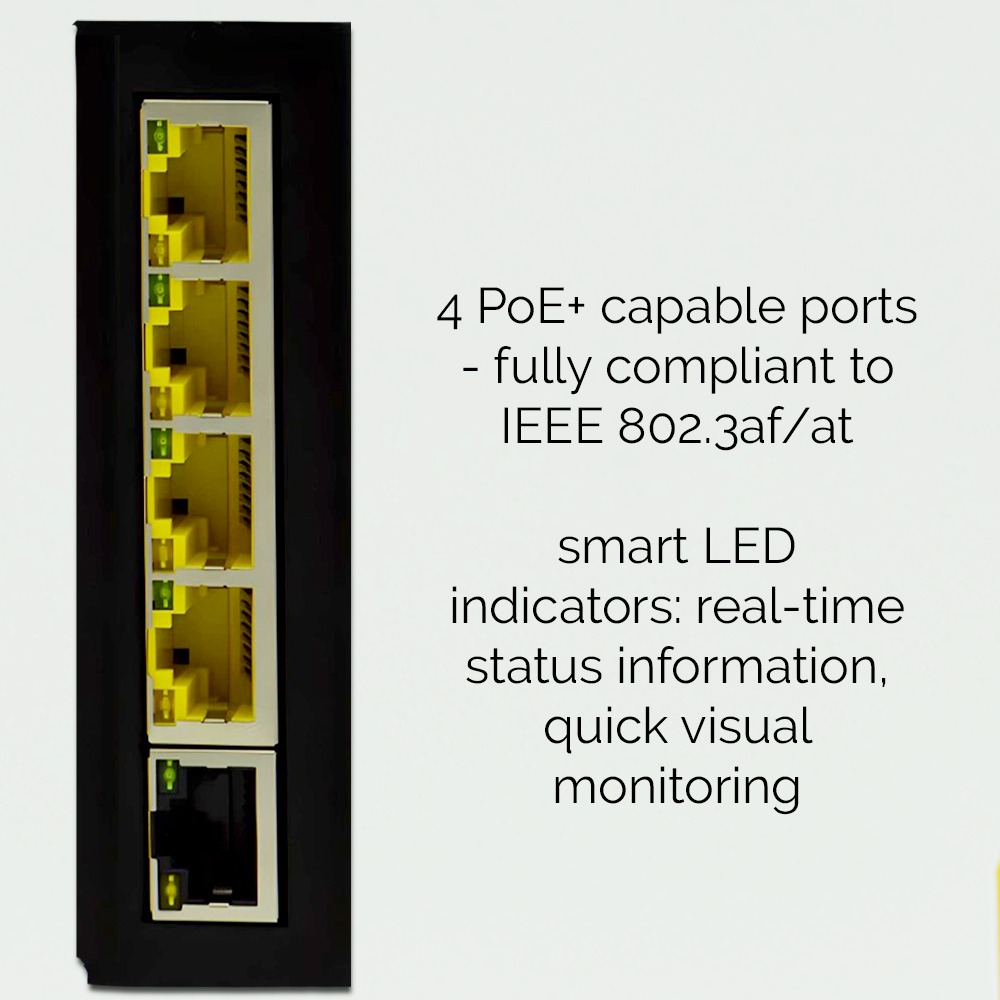

Brainboxes SW-735 five port industrial ethernet switch showing poe ports with led status indicators

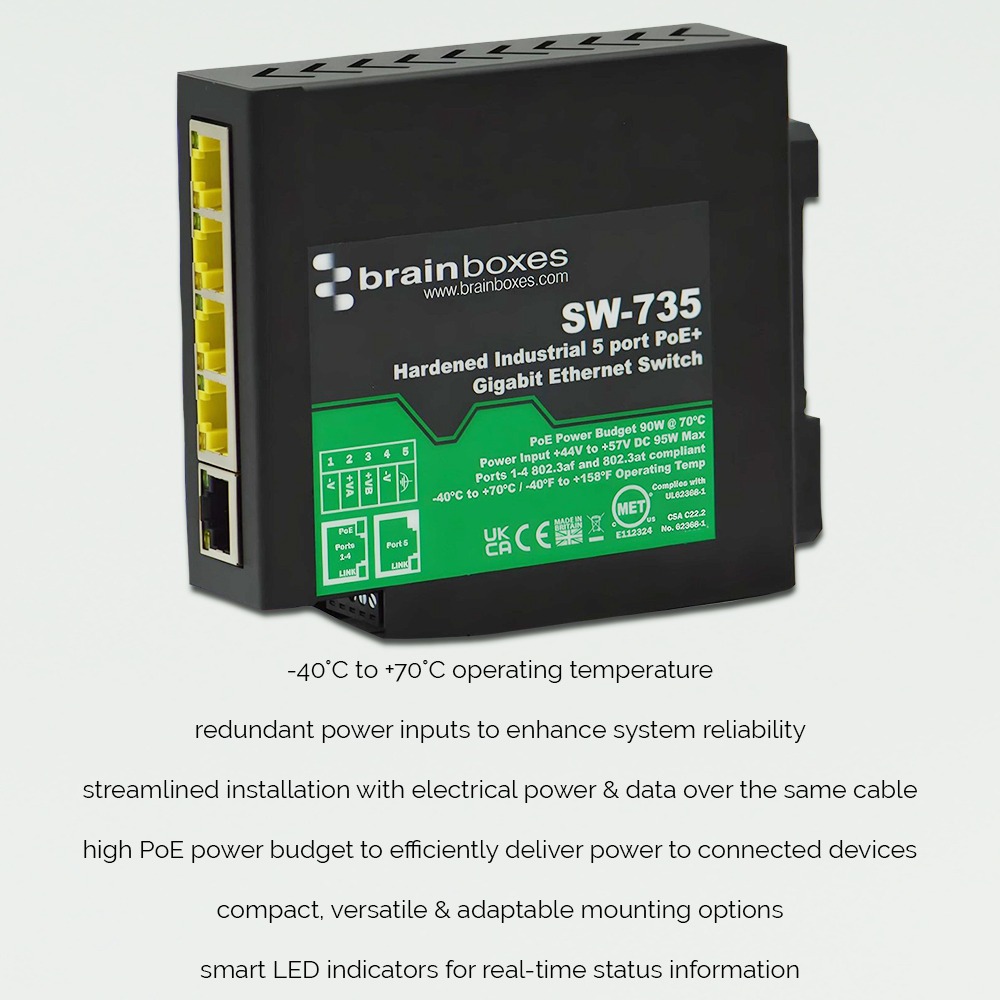

Brainboxes SW-735 industrial ethernet switch showing ports and temperature specifications with mounting options
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Hardened Industrial 5 Port PoE+ Fast Ethernet device.

Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.

Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.

Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more

See other products the same category as SW-735: Gigabit Ethernet Switch

Download SW-735 CAD 3D Model
