ED-004 Ethernet to 4 Digital IO and RS232 Serial Port

Name: ED-004 Ethernet to 4 Digital IO and RS232 Serial Port - Brainboxes
Brand: Brainboxes
SKU: ED-004
Price: 137.50 GBP
Availability: InStock
Rating: 5.00 (2 reviews)

Contact [email protected] for availability

4 Digital Inputs/Outputs + RS232 Serial Port
Complete Ethernet to Serial Device Server: up to 1 MegaBaud
Factory floor process control and automation
User friendly software interface, Legacy compatible
-10ºC to +60ºC / +14ºF to +140ºF Temperature range, Wall mountable
Software APIs for Visual Basic, C# and more

Built for Life Warranty

Connected for Life

Download ED-004 Technical Datasheet (PDF)

£137.50

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

Brainboxes ED-004 ethernet to 4 dio ethernet to rs232

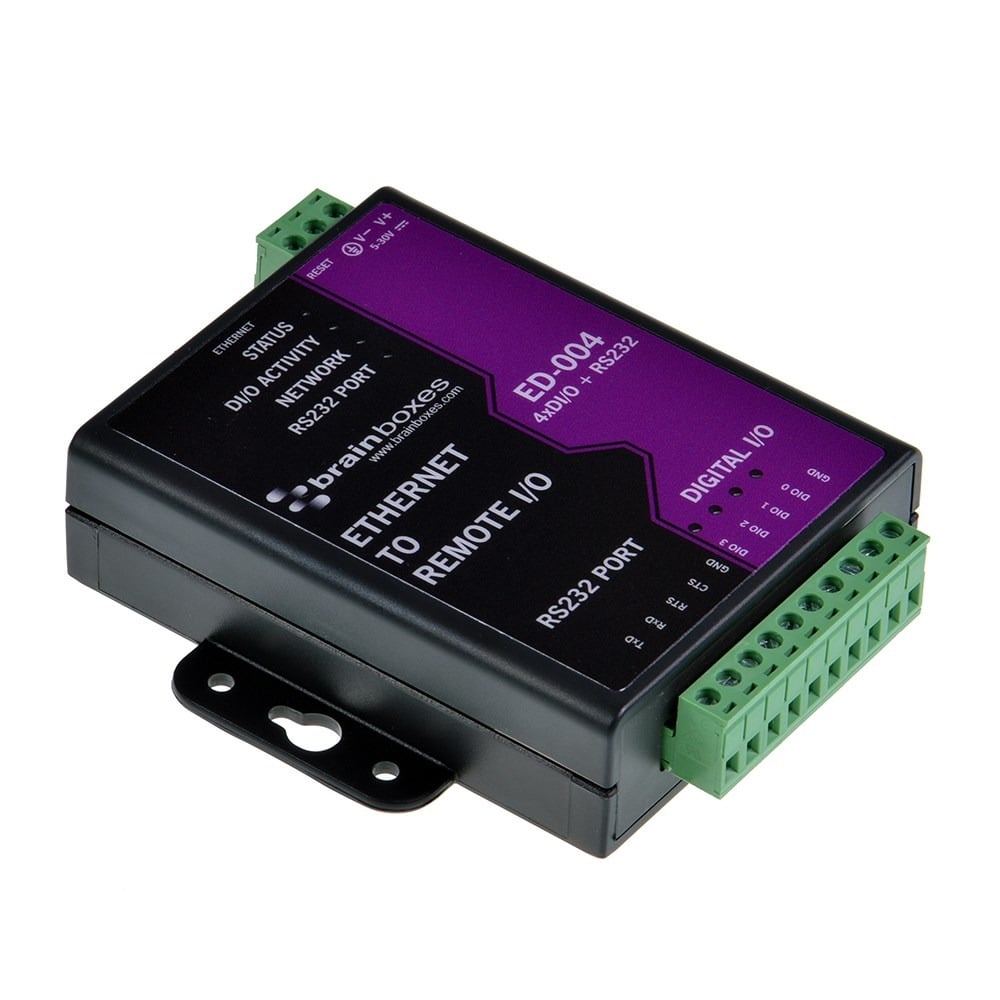

Brainboxes ED-004 ethernet to serial device server with green terminal blocks and mounting bracket

Brainboxes ED-004 ethernet to serial device server showing green terminal blocks and connection ports

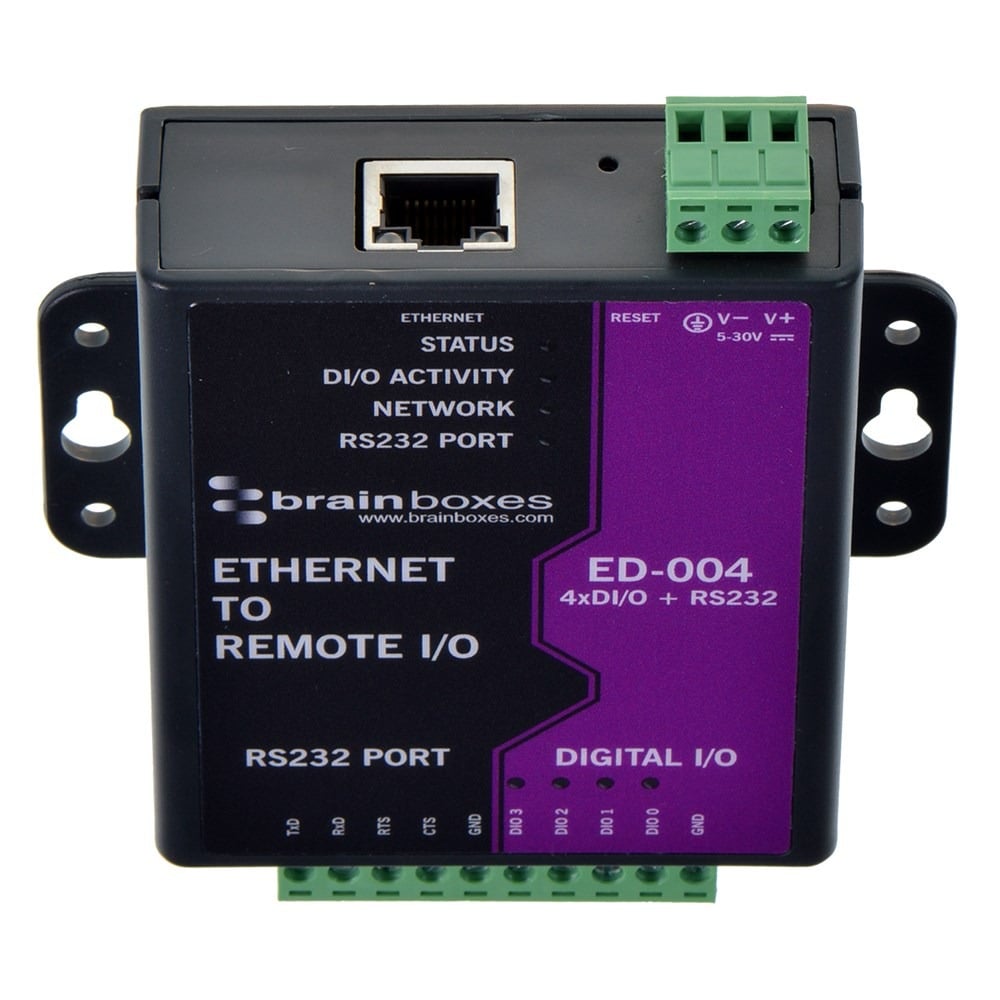

Brainboxes ED-004 industrial ethernet to serial converter showing ethernet port and digital input output terminal connections

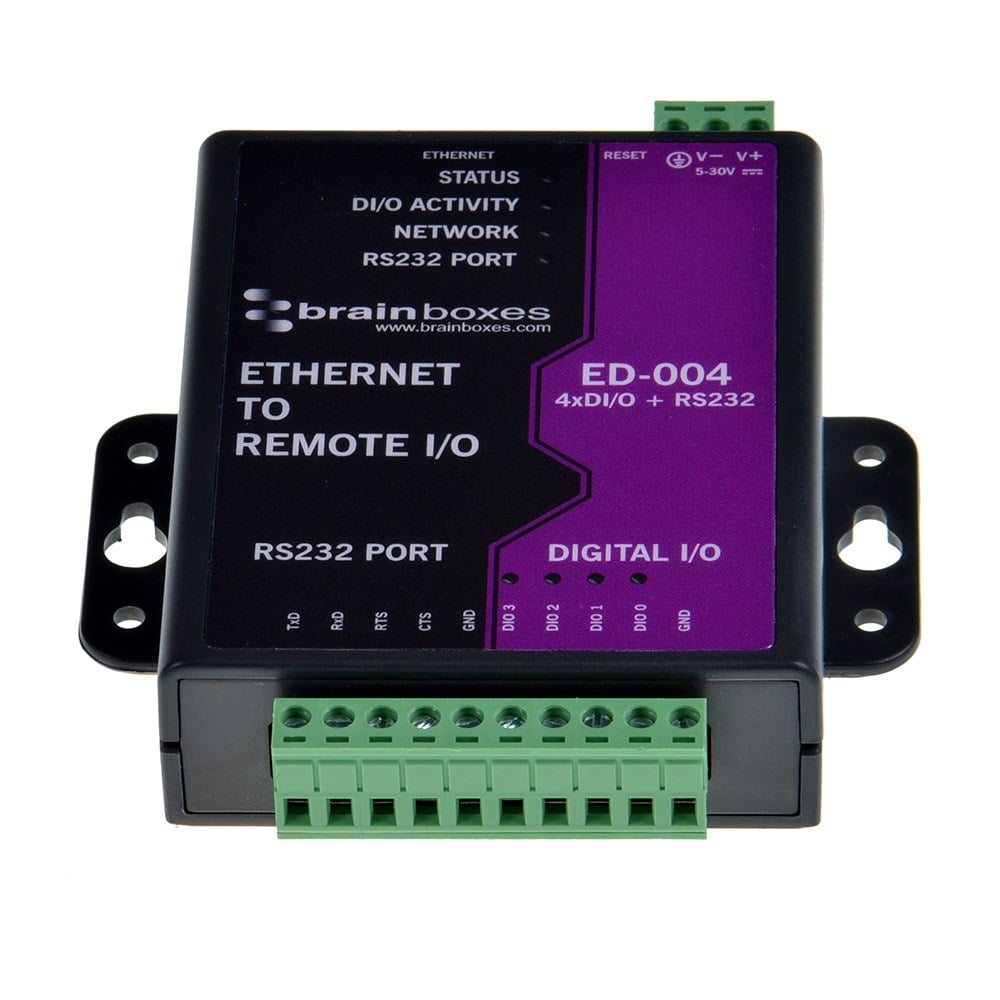

Brainboxes ED-004 industrial ethernet to serial device server with digital io terminal connections

Ethernet to DIO device with Serial port: 4 digital input channels or 4 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent ‘control side’ devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as ‘process side’. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.

Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..

See other products the same category as ED-004: Digital

IO Channels
IO Channels	IO Protocols	Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
	Description	4 Digital Inputs/Outputs
	Digital Inputs	4
	Digital Outputs	4
	Analog Inputs	0
	Analog Outputs	0
	Watchdog	When device comms is lost, outputs can be set to predetermined state
	Power On Values	Outputs can be set to predetermined values on power on
	Safe Values	When Input triggered, outputs can be automatically set to predetermined value
Digital IO
Digital IO	Input Logic Level 0	0.0V to + 1.0V
	Input Logic Level 1	+2.0V to +30V
	Input Latches	Triggered by user programmable positive or negative edges, stays true until acknowledged
	Input Counter	User progammable- counts positive or negative transitions up to 200Hz
	Digital Output Type	Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
	Maximum Output Load Voltage	30 VDC
	Maximum Output Current Sink	0.85A per channel
Serial Port
Serial Port	IO Gateway	True serial port: RS232/422/485
	Protocol	RS232
Network
Network	Number of Ports	1
	Network Port Type	RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
	Network Protocols	ICMP, IP, TCP, DHCP, HTTP
	Protection	1500V Magnetic Isolation between ports and network
Power
Power	Power Input	5V - 30V DC input, reverse polarity protected
	Power Supply 1 Description	Global Power Supply - PW-600
	Power Supply 2 Description	Power supply PW-650
	Max Input	35 Volts
General
General	Operating Temperature Range	-10ºC to +60ºC / +14ºF to +140ºF
	Storage Temperature	-10ºC to +70ºC / +14ºF to +158ºF
	Industrial Standard	No
	Galvanic Isolation	No
	Power Consumption	2.5 Watts Max : 220 mAmps@+5VDC/36mAmps@+30VDC
	Product Weight	0.126 kg, 4.44 ounces
	Product Dimensions	116x100x26 mm, 4.6x3.9x1.0 inches
	Packaged Weight	0.222 kg, 7.83 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324009859
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Raspberry Pi Android Windows Server 2008 R2 Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 Linux
