PE-405 Pure Embedded Industrial 10/100 Ethernet Evaluation Kit
- Pure Embedded Industrial 10/100 Ethernet Evaluation Kit
- Power Input: +3.3 or 5 VDC
- Low Power Consumption: 2.5 W Max
- Operating Temperature Rating: -40 °C to +85 °C /-40 °F to +185 °F
- Pure Embedded

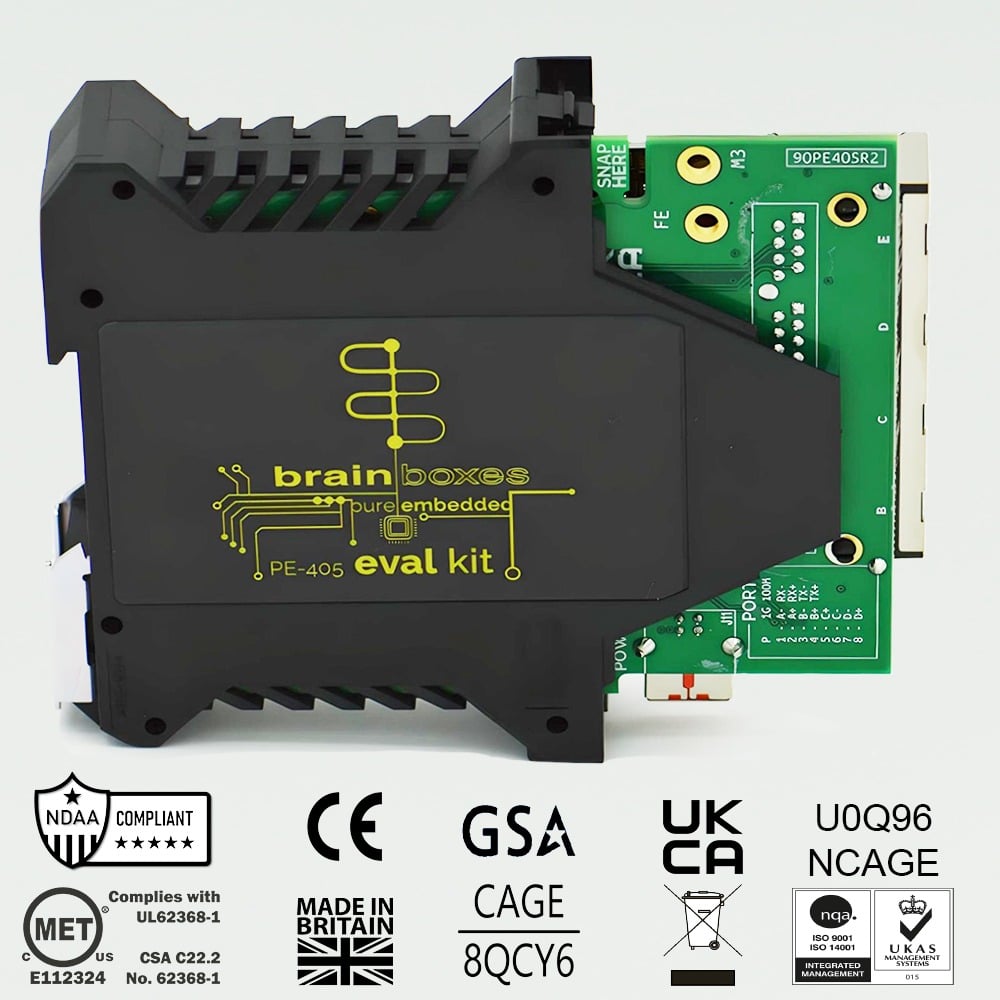

PE-405 Approvals
PE-405 Description
Pure Embedded Industrial 10/100 Ethernet Switch Evaluation Kit – allows easy access to all features of the PE-505* and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made.

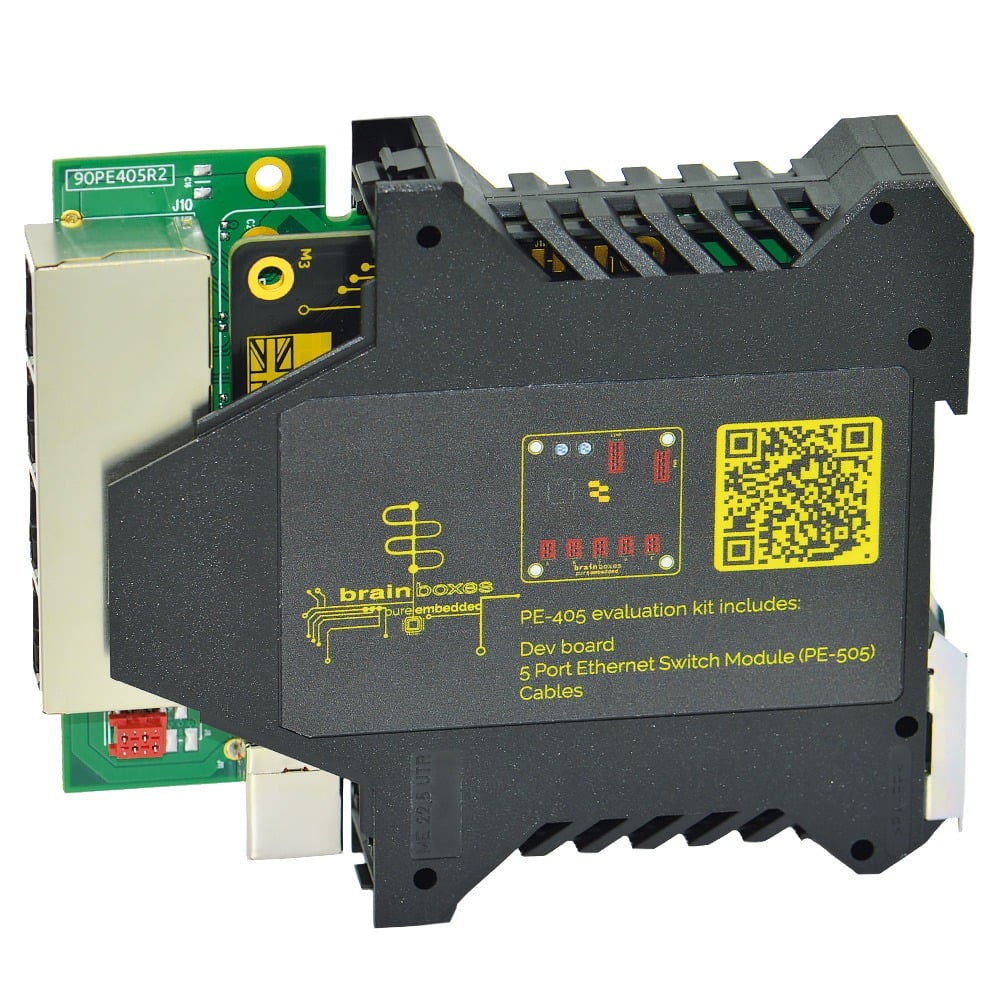

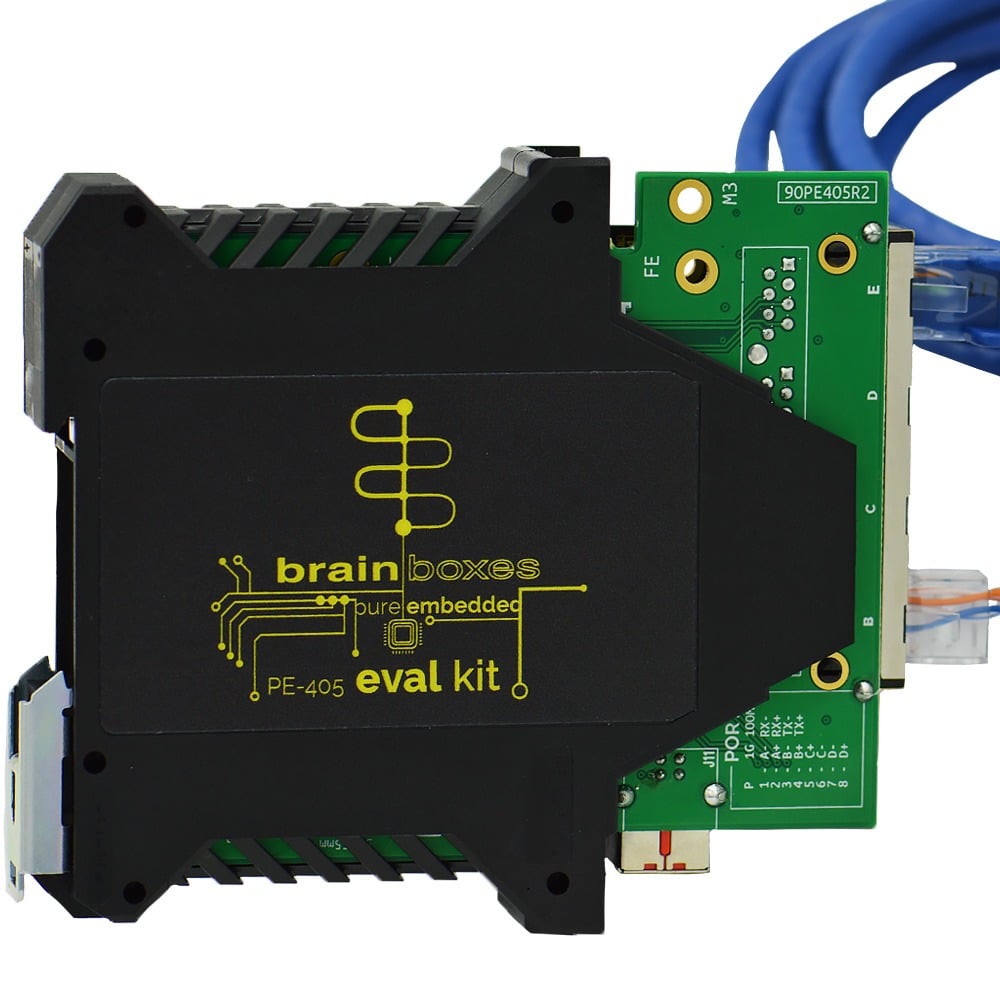

PE-405 Embedded Industrial 10/100 Ethernet Evaluation Kit includes:

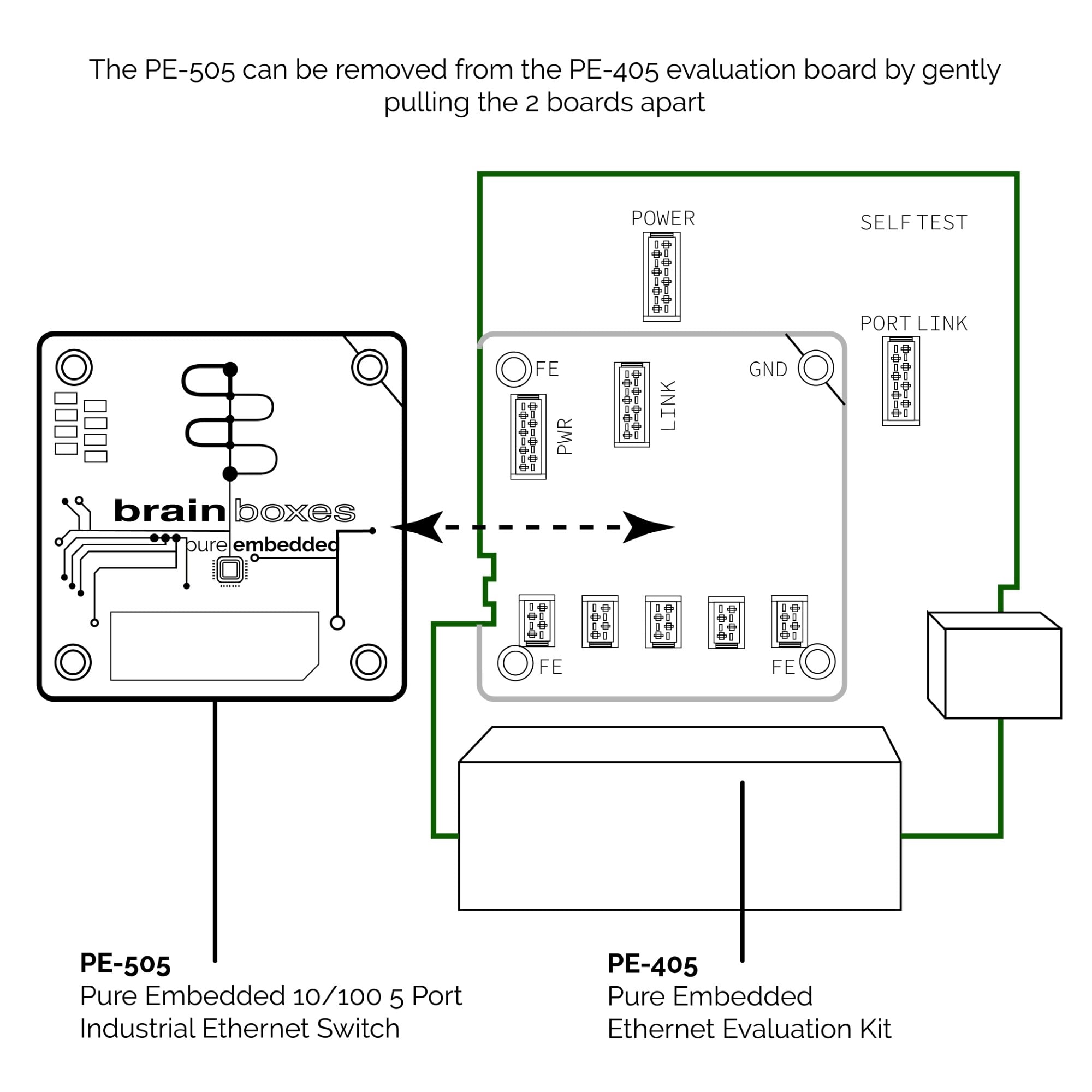

- Pure Embedded Industrial 5 Port 10/100 Ethernet Switch (PE-505)*

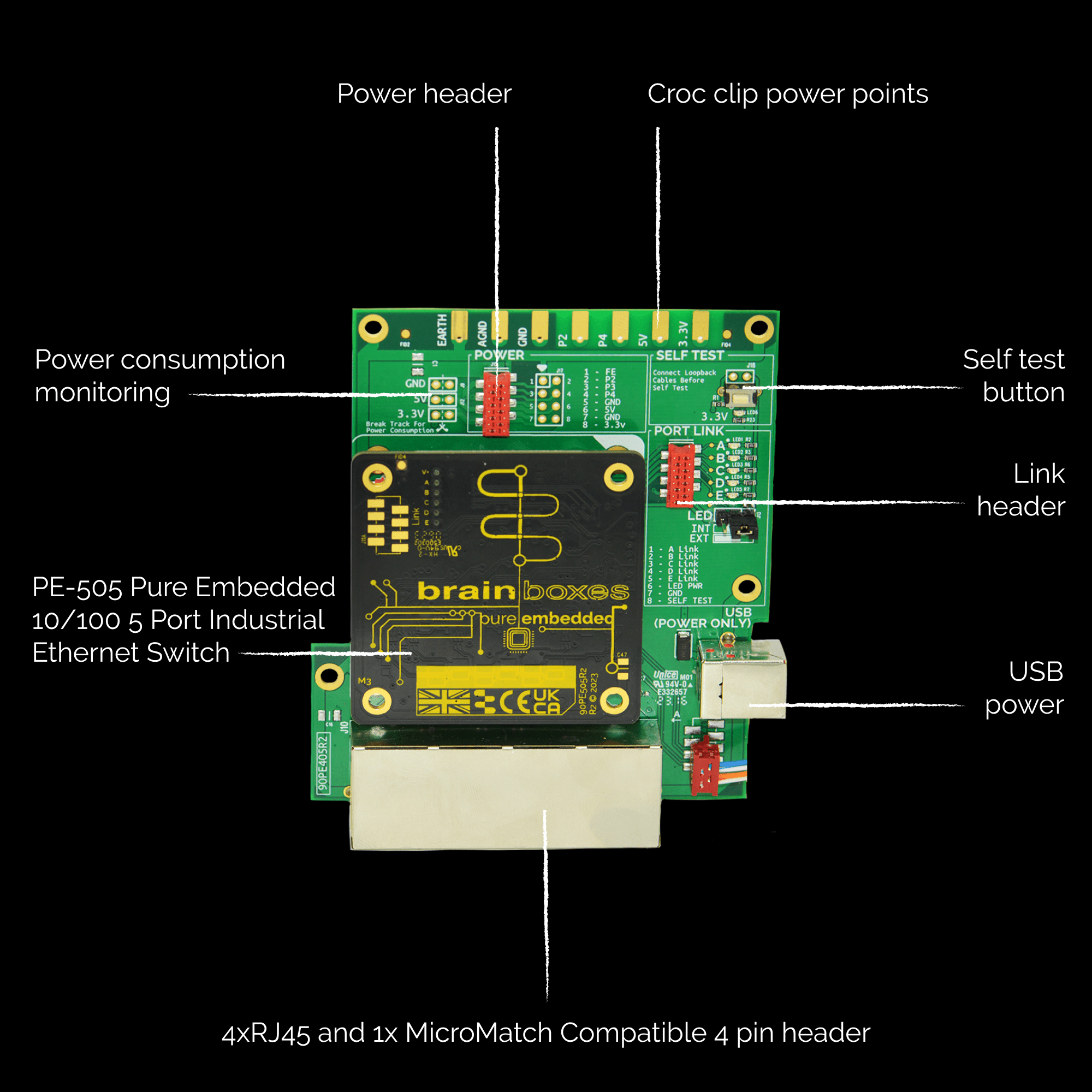

- Evaluation board (breaks out all ports and functionality to RJ45 or usable headers)

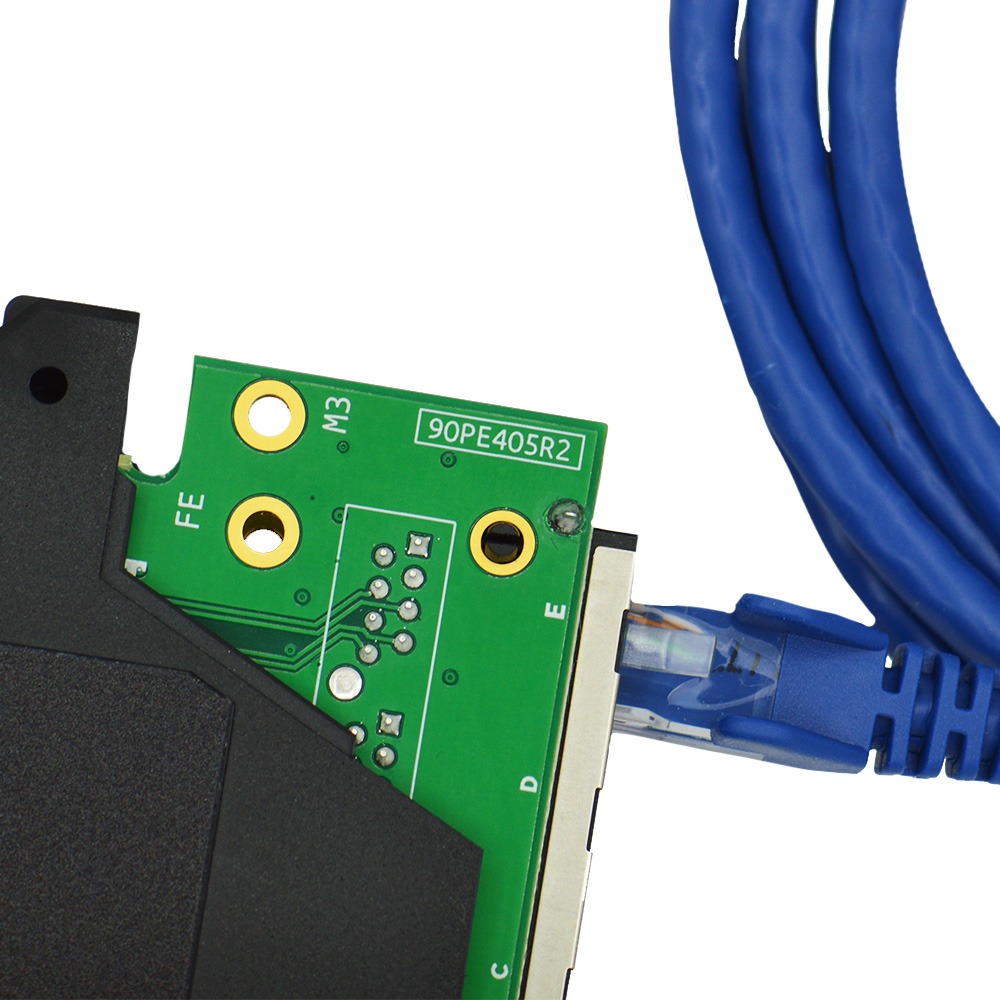

- 5x IDC Header to RJ45 Cable
- IDC Headers
- USB Power Cable
*PE-505 Pure Embedded Industrial 5 Port 10/100 Ethernet Switch
- 3D CAD files and PCB footprints
- Mega compact form – smaller than a standard business card (55x55x10mm)
- Seamless integration with design software – logical placements and fixed distances
- Board-to-board and board-to-cable connection
- Stability of design guaranteed for min. 10 years
- LEDs visible in all orientations – option to route through fibre
See other products the same category as PE-405: Pure Embedded
PE-405 Media
Pure Compatibility, Pure Stability, Pure Design: Brainboxes Pure Embedded Range
