PE-205 Pure Embedded DC-DC Industrial Power Supply Module 3.3V, 4W

Pure Embedded DC-DC industrial power supply module 3.3 V, 4 W

Pure Embedded DC-DC industrial power supply module 3.3 V, 4 W
Wide Power Input: +5 V to +30 VDC
Low Power Consumption: 5 W Max
Operating Temperate Rating: -40 °C to +85 °C / -40 °F to +185 °F
Pure Embedded

Download PE-205 Technical Datasheet (PDF)

£35.00

Volume Purchase?Request a Quote

Brainboxes PE-205 pure embedded dc-dc industrial power supply module 3

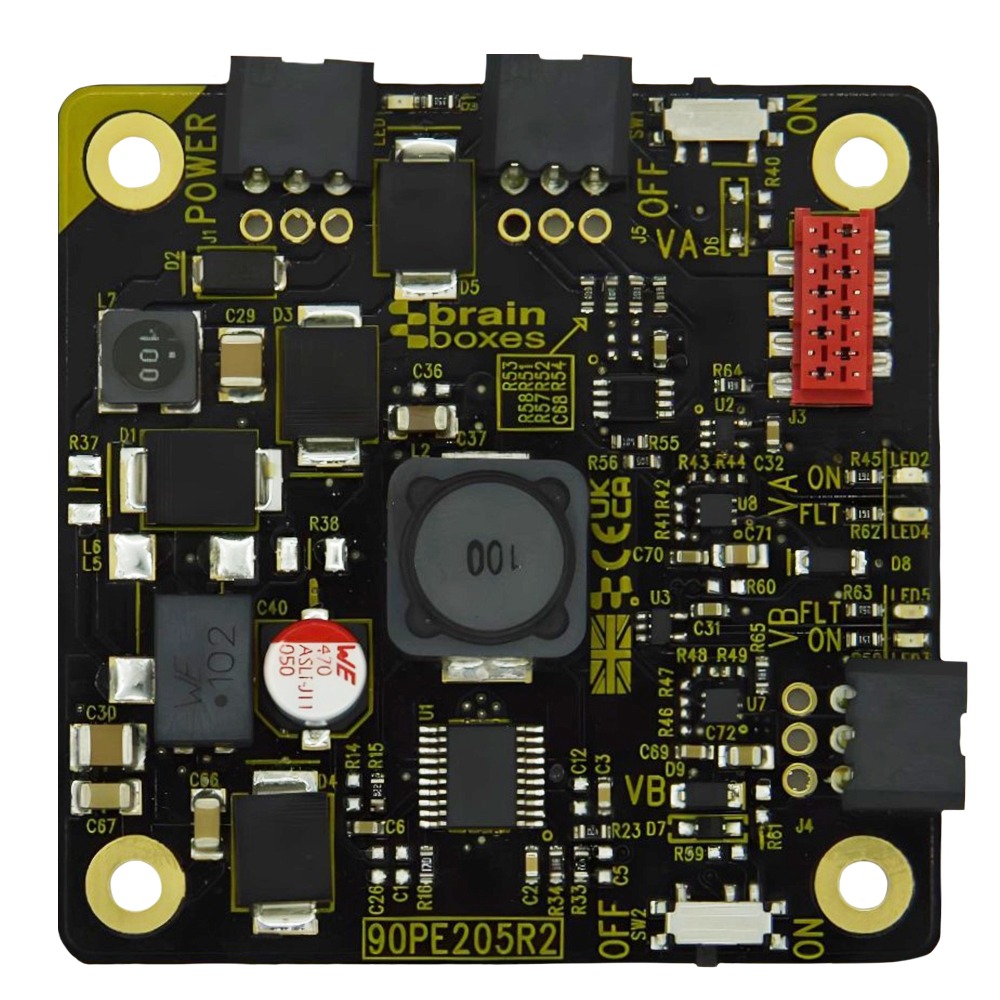

Brainboxes PE-205 industrial power supply module circuit board showing components and mounting holes

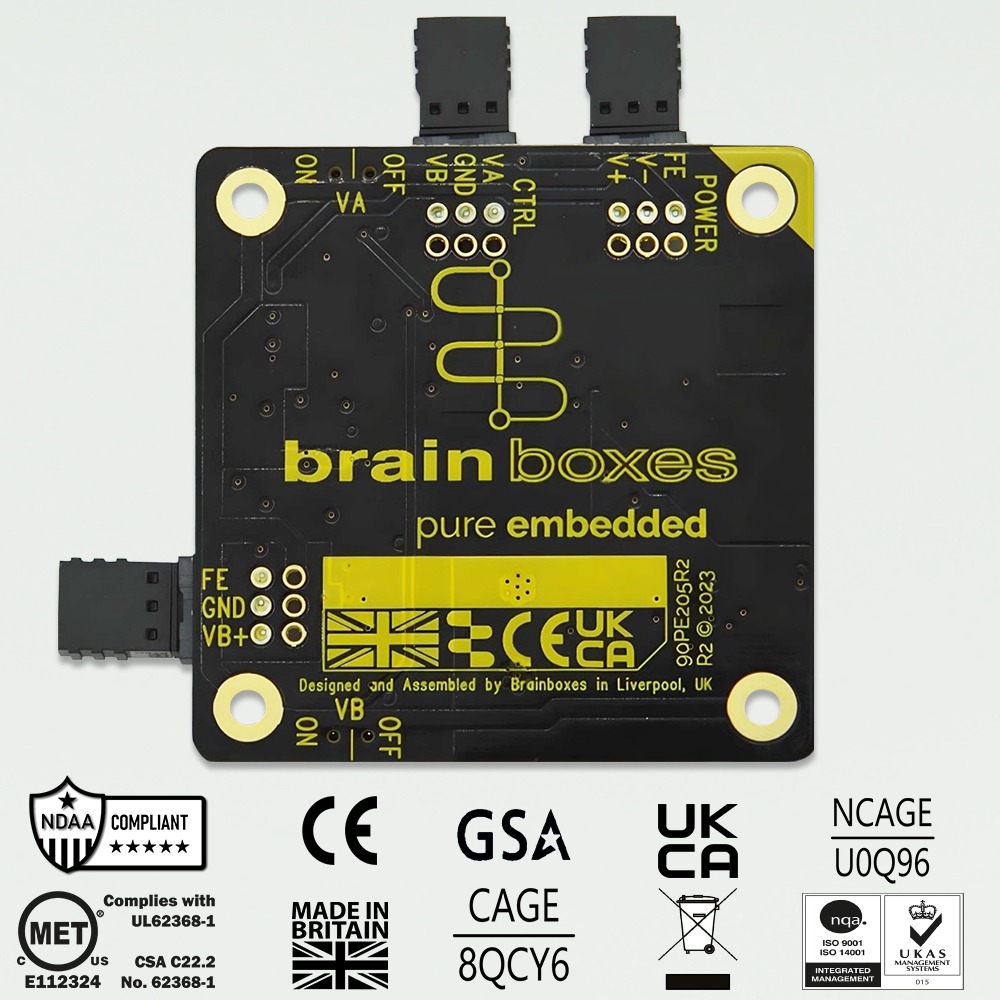

Brainboxes PE-205 industrial power supply module showing compliance certifications and regulatory approvals

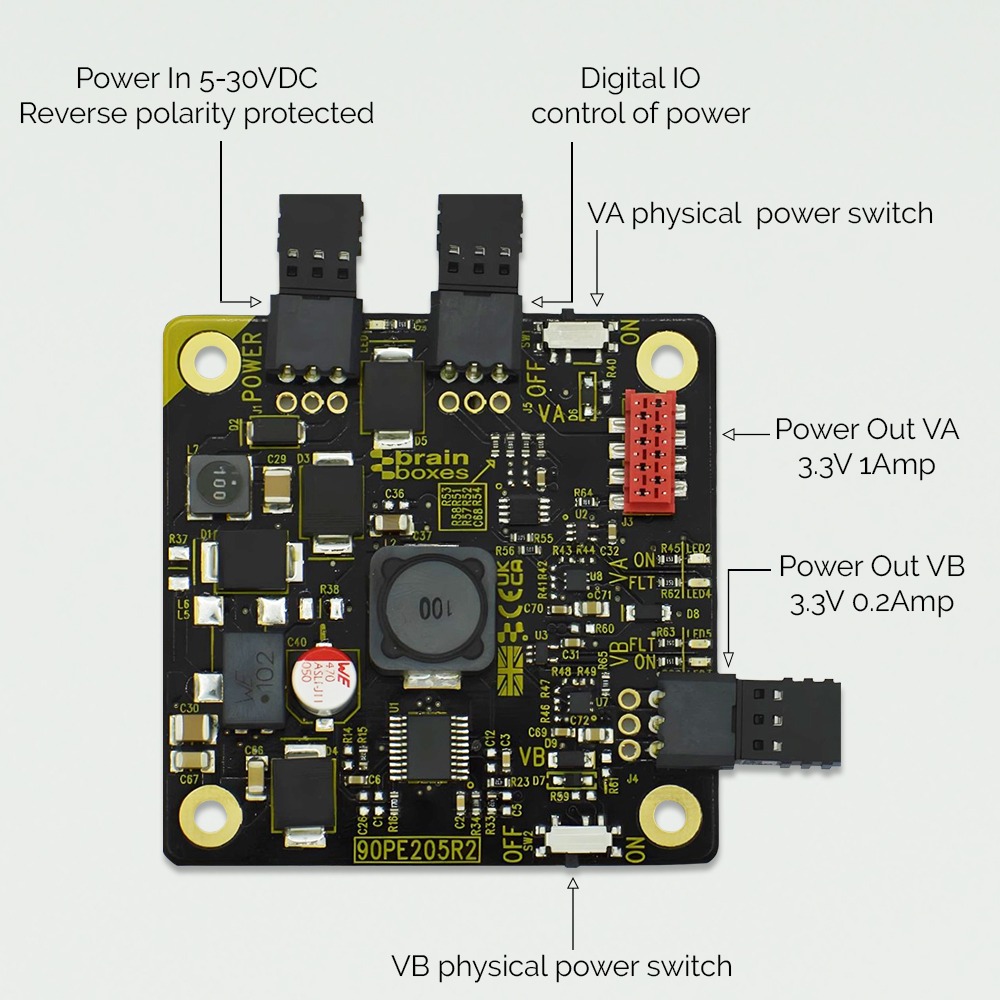

Brainboxes PE-205 industrial power supply module with labeled input output connections and switches

Brainboxes PE-205 compact industrial power supply module showing dimensions mounting holes and electrical contacts

Brainboxes PE-205 industrial power supply module showing micro match terminal and combicon ptsm terminals

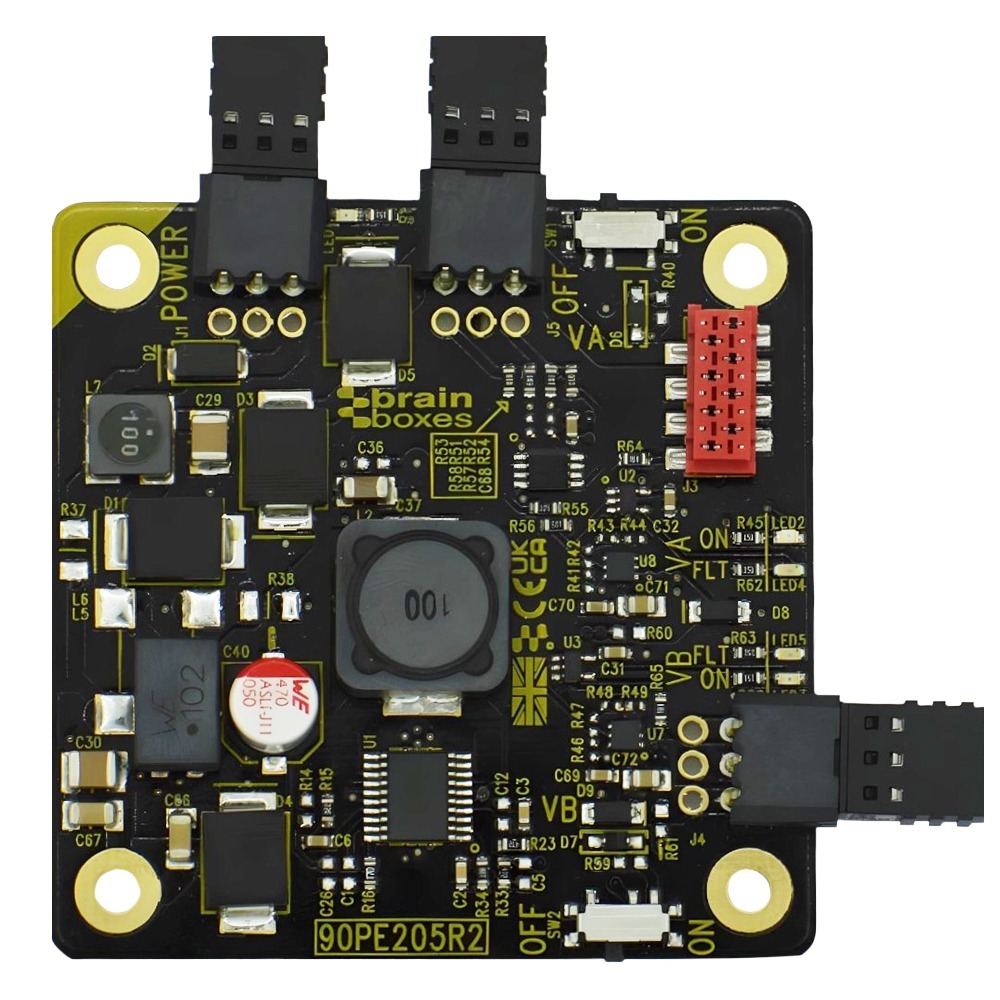

Brainboxes PE-205 industrial power supply module showing front panel with multiple connectors and components

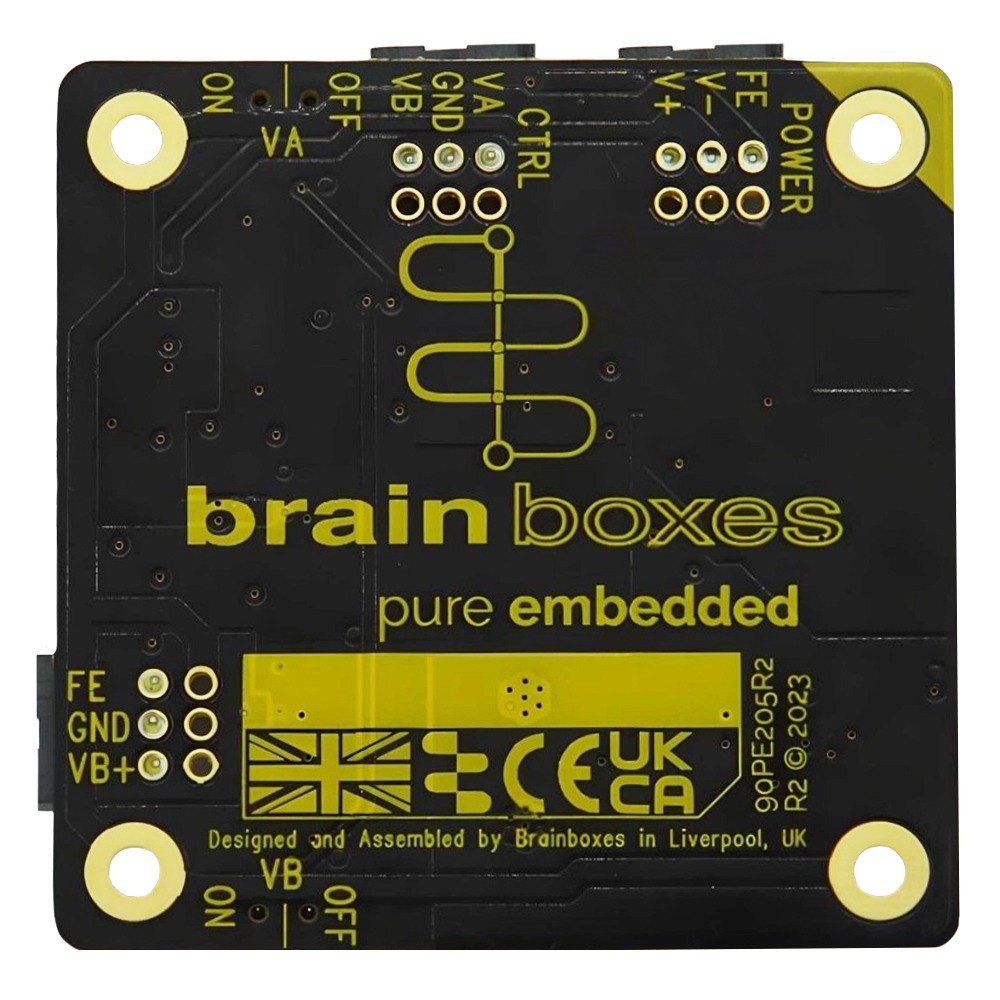

Brainboxes PE-205 back panel view showing ce ukca certifications and connection points

Brainboxes PE-205 back panel showing power connectors and ce ukca certification markings

Brainboxes PE-205 industrial power supply module shown in stacked dual board configuration

Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

PE-205 Pure Embedded Power Supply Module is a compact, industrial DC-DC power supply module offering a wide +5 to +30VDC input range, with two 3.3V outputs, designed to allow seamless integration with Brainboxes’ Pure Embedded (PE) range of compact industrial switches, or any other low voltage device where space is a premium.

See other products the same category as PE-205: Power Module

Power	Input Voltage	+5 V to +30 VDC, Reverse Polarity Protected
	Power Consumption	5 W Max: 1 A @ +5 VDC / 167 mA @ +30 VDC
	Power Output	4 W Max: 3.3 V
Environmental	Operating Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Humidity Rating	5 to 95% (Non-Condensing)
Physical	Form Factor	Embedded
	Product Weight	0.022 kg / 0.048 lbs
	Product Dimensions	66.7 x 67.3 x 9.4 mm / 2.62 x 2.64 x 0.37 in
	Packaged Weight	0.031 kg / 0.068 lbs
	Packaged Dimensions	100 x 90 x 30 mm / 3.93 x 3.54 x 1.18 in
Product Compliance	GTIN	837324005400
	HTS	8504.40.85.00
	ECCN	EAR99
Industry, EMC & Immunity Compliance	General	CE, UKCA, RoHS, REACH, WEEE
	Safety	IEC/EN/BS 62368-1
	EMC	EN/BS 55032
	EMC	EN/BS 55035
	Flammability	UL-94 V0
	RoHS	2015/863/EU
	RoHS	IEC/EN/BS 63000
	REACH	(EC)1907/2006
	Robustness	EN 60068-2-31
Company Compliance	General	ISO9001, ISO14001, AEO (C-TPAT)
	CAGE	8QCY6
	NCAGE	U0Q96
	GSA	47QTCA23D009X
	Sustainability	Ecovadis Silver Medal
	Country of Origin	Made in GB, United Kingdom of Great Britain & Northern Ireland
