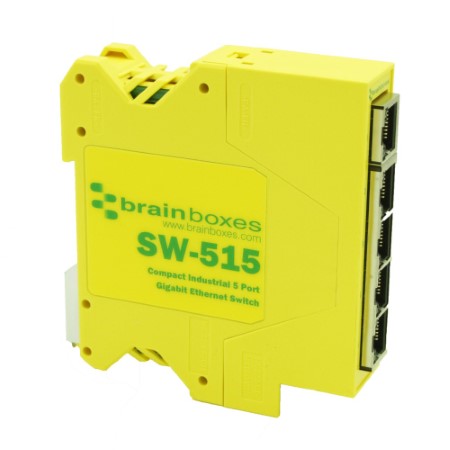

• sw 515 compact industrial 5 port gigabit ethernet switch
  • SW 515 back metlabs
  • SW 515 case dimensions
  • SW 515 din rail
  • SW 515 magjack side
  • SW 515 terminal block
sw 515 compact industrial 5 port gigabit ethernet switch
  • 5 Gigabit Ethernet ports
  • Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
  • Industrial operating temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
  • Redundant dual power inputs - reduces risk of power outage
  • Small Footprint Case, only 23mm wide, 94mm deep
  • SW-515-datasheet (1.82 MB)
Volume Purchase? Request a Quote

Request a Quote

Description

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Customer Feedback

Tech Spec

Ethernet
Ethernet Ports5
Ethernet Speed10/100/1000 Gigabit Ethernet
PoENo
Power
Power Input5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
General
Operating Temperature Range-40 °C to +80 °C / -40 °F to +176 °F
Storage Temperature-40 °C to +85 °C / -40 °F to +185 °F
Form FactorDin rail mounted
Power Consumption3.6W Max: [email protected]+5VDC/[email protected]+30VDC
Product Weight0.112 kg, 3.95 ounces
Product Dimensions99x94x23 mm, 3.9x3.7x0.9 inches
Packaged Weight0.191 kg, 6.74 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324004281
Interface
EthernetEthernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
