SW-125

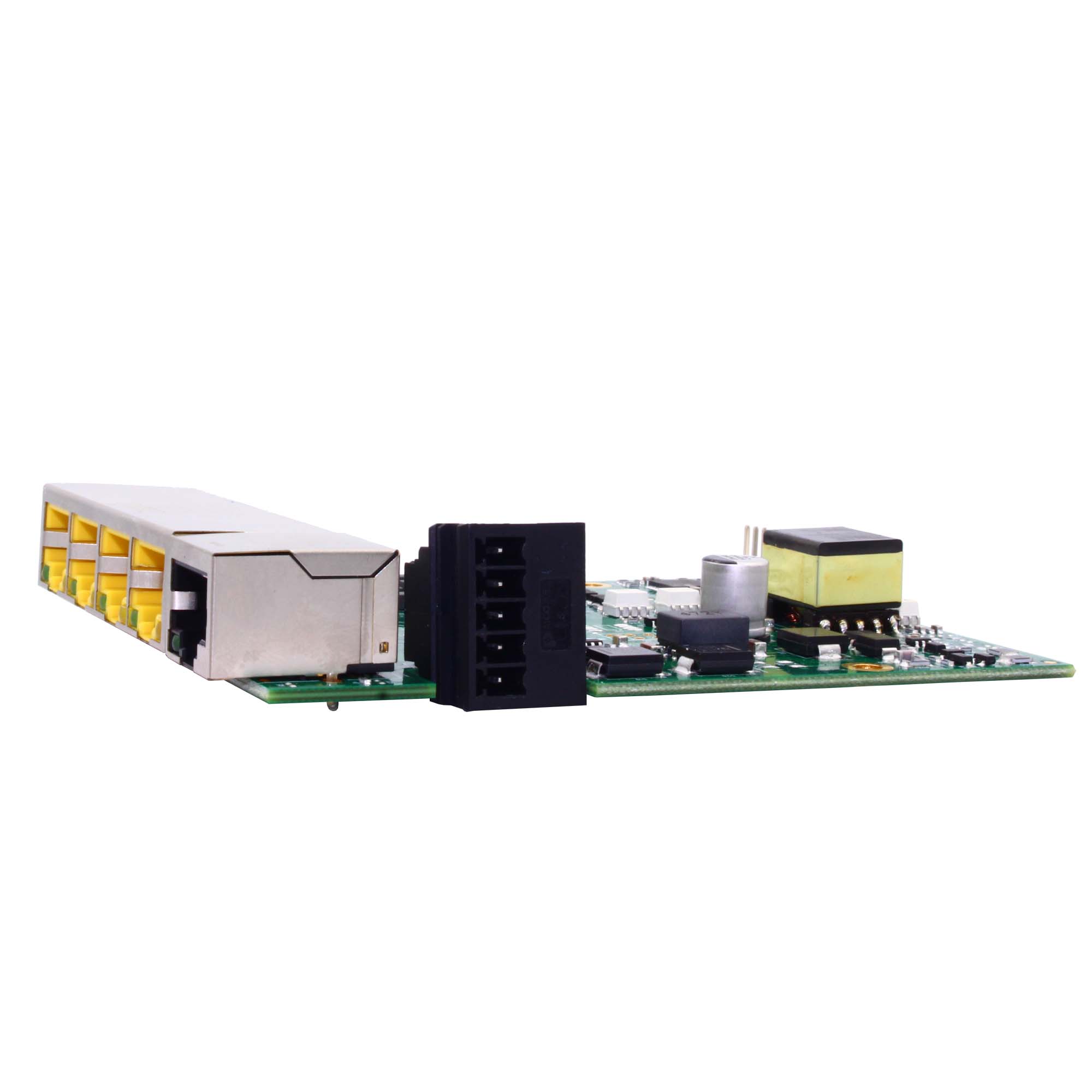

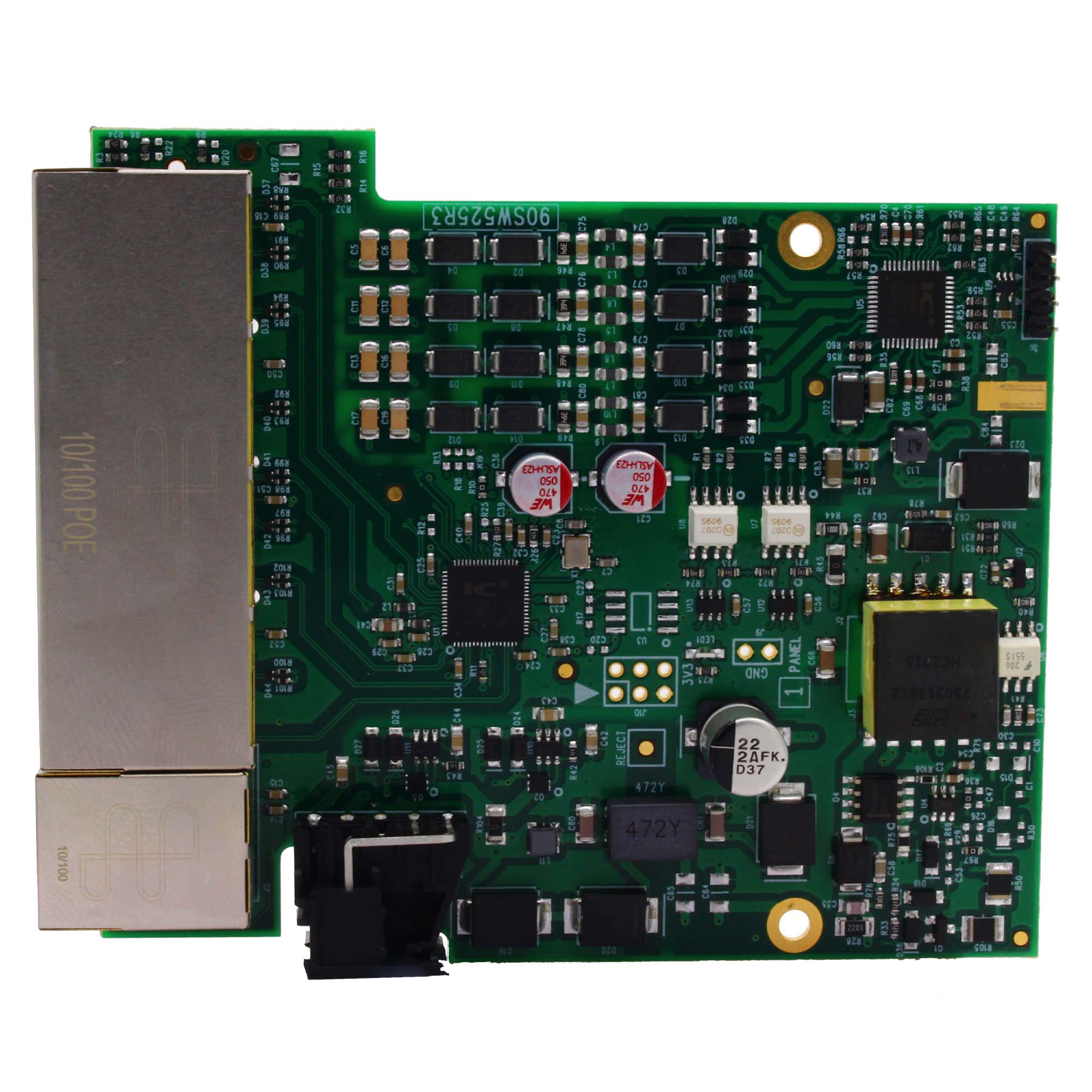

Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch

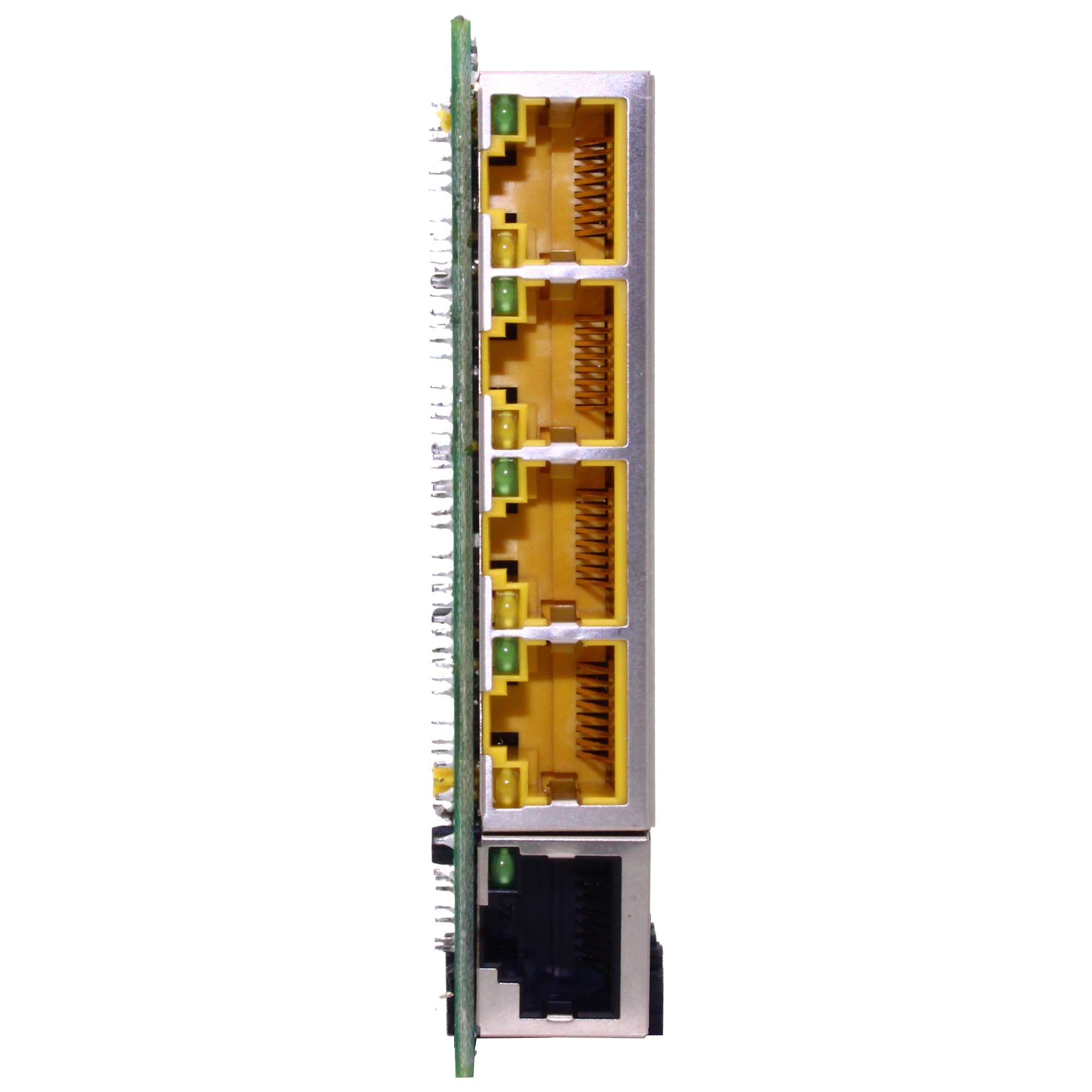

- 5x Port PoE+ 10/100 Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +44 V to +57 VDC
- Low Power Consumption: 4 W Max
- Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F
- Embeddable
Compact embeddable 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Download 3D Model
Download3D Model
