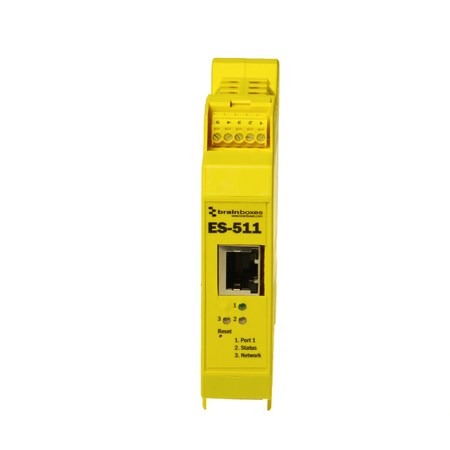

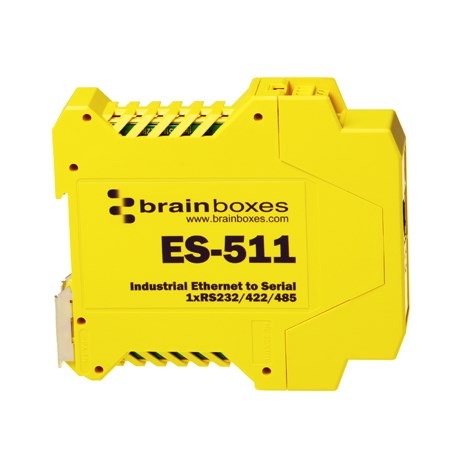

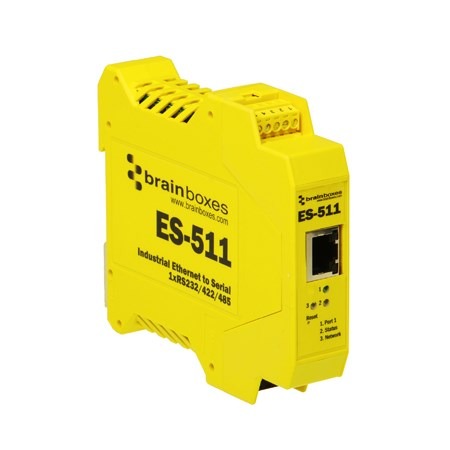

ES-511 Industrial Ethernet to Serial 1xRS232/422/485
- 1 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- Install Virtual Com ports, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
- Data rate from 110 to 1,000,000 baud (1 MegaBaud). Removable, colour-coded, number terminal blocks
- -40°C to +80°C/-40ºF to +176ºF Operating Temperature range

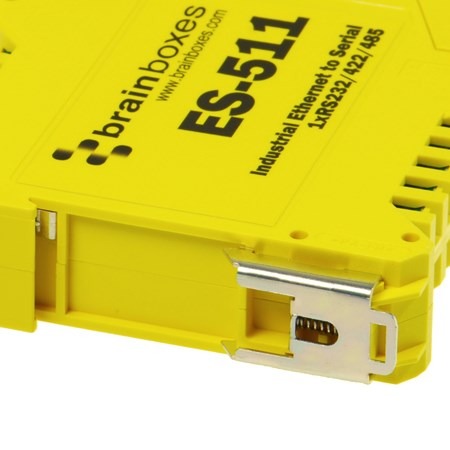

- Robust, Slim Design, Integrated DIN rail mount
Download ES-511 Technical Datasheet (PDF)
ES-511 Approvals
ES-511 Description

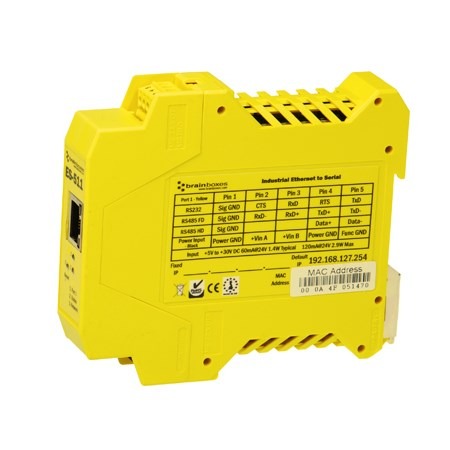

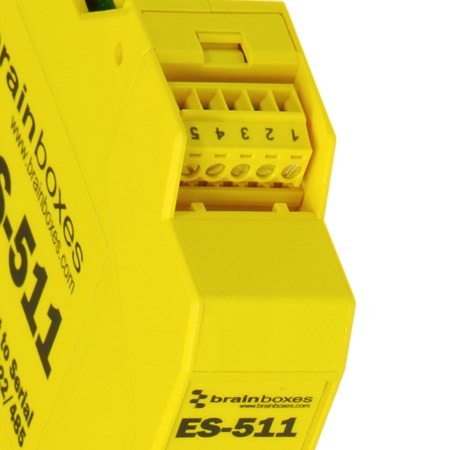

Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-511 has removable Screw Terminals Blocks for easy wiring, a slim ‘end on’ case and integral DIN rail mount.
Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments.
Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
See other products the same category as ES-511: Ethernet to Serial
Manage the ES-511 with BB Eco
Your devices, managed your way.
Free. Local-first. Air-gap ready. No account required.
BB Eco finds the ES-511 on your network, flashes it so you can spot it in the cabinet, upgrades its firmware and keeps its settings in step with a template - for one device or a hundred.
Transcript
BB Eco. Replaces Boost.IO and Boost.LAN.
An ES-522 turns into view as the BB mark draws.Discover.
The ES-522 appears in BB Eco with its name, address and firmware version.Locate.
One click on Locate and the ES-522 flashes its LEDs, so you can find it in the cabinet.Upgrade, with confidence.
BB Eco checks the firmware is right for the device, then upgrades it stage by stage.One device, or a hundred.
One ES-522, then a cabinet of fifteen devices, then a row of cabinets.Upgrade all, in one workflow.
Every device in the cabinet is upgraded in turn.Apply one template to them all.
A template is previewed on eight devices, then applied.BB Eco spots changes from your template.
A changed setting is shown against the saved baseline.Scan. Script. Automate.
A subnet scan, the command line, and automatic upgrades.BB Eco. Keep the Work Moving. Windows, macOS, Linux and CLI. Free. Local-first. Air-gap ready. No account. brainboxes.com/bb-eco.
The end card, with the ES-522 beside it.
ES-511 Media
Using C# to control Brainboxes' Ethernet to Serial devices
Using VB to control Brainboxes' Ethernet to Serial devices
ES-511 Supported Operating Systems
Related Products to ES-511 Ethernet to Serial
-
ES-551
£317.63 Add to cart -
ES-246
£98.17 Add to cart -

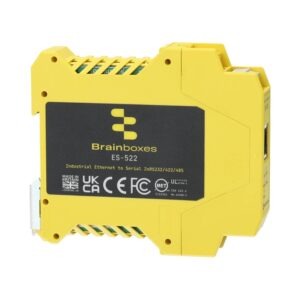

ES-522
£317.63 Add to cart -

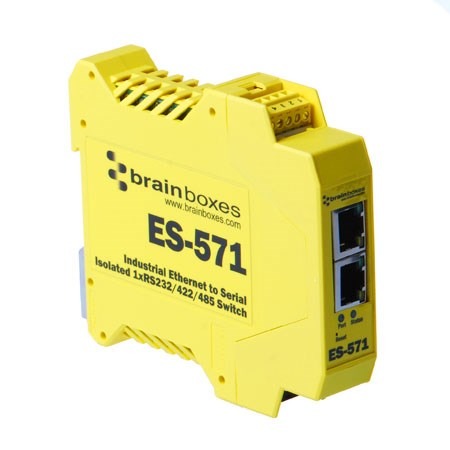

ES-571
