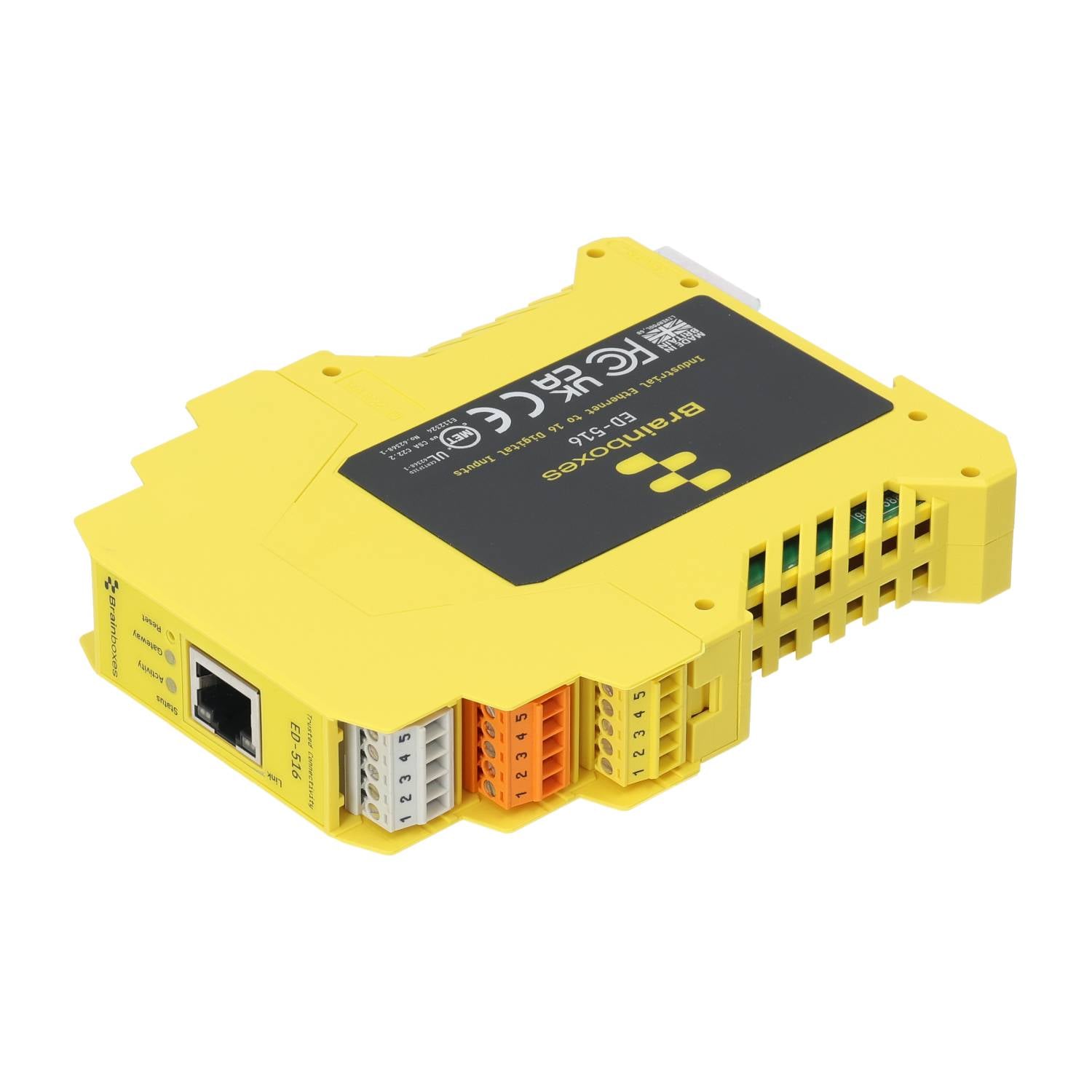

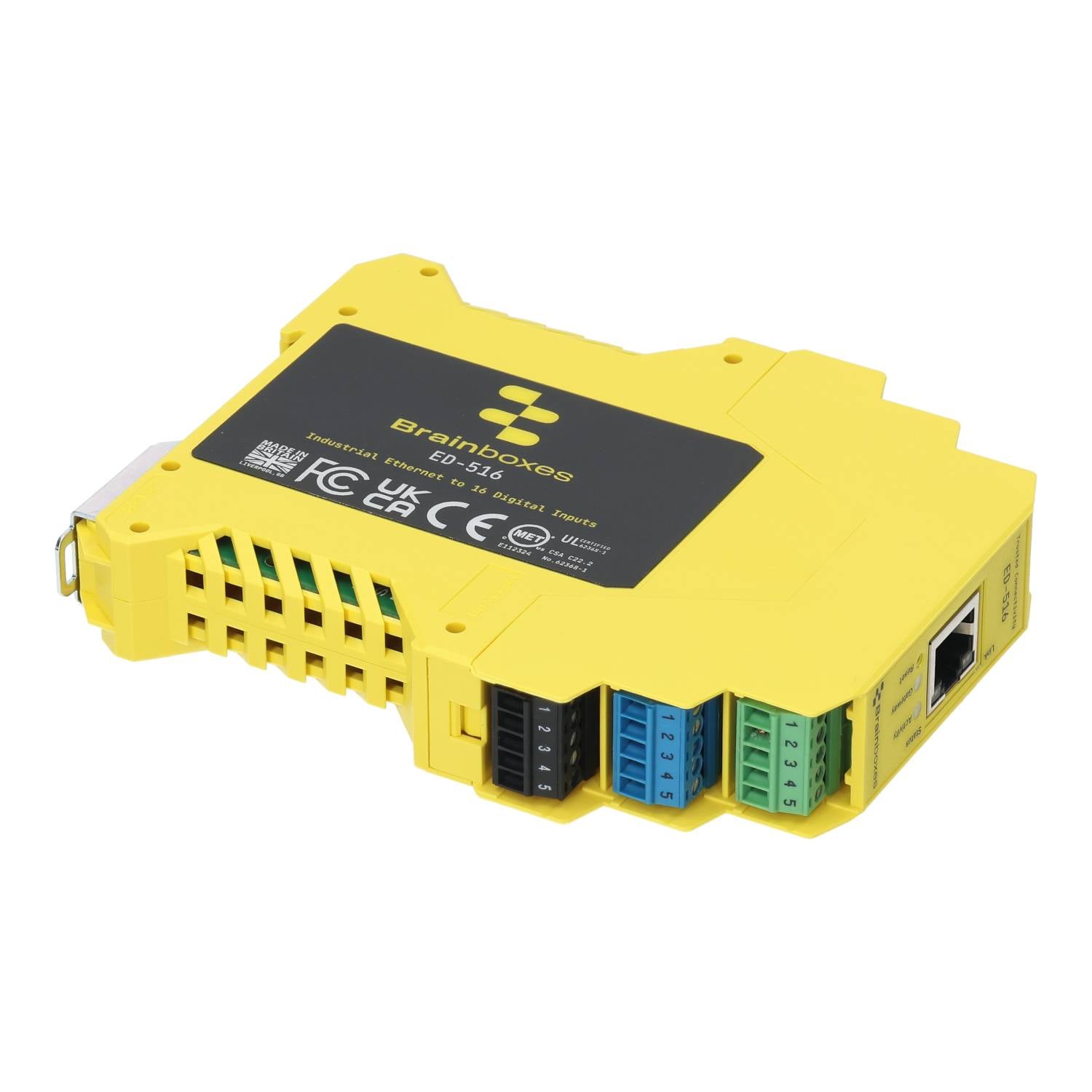

ed 516 ethernet to 16 digital inputs
  • 16 Digital Inputs and a RS485 Gateway Port
  • Monitor any input from TTL to high voltage high current industrial devices

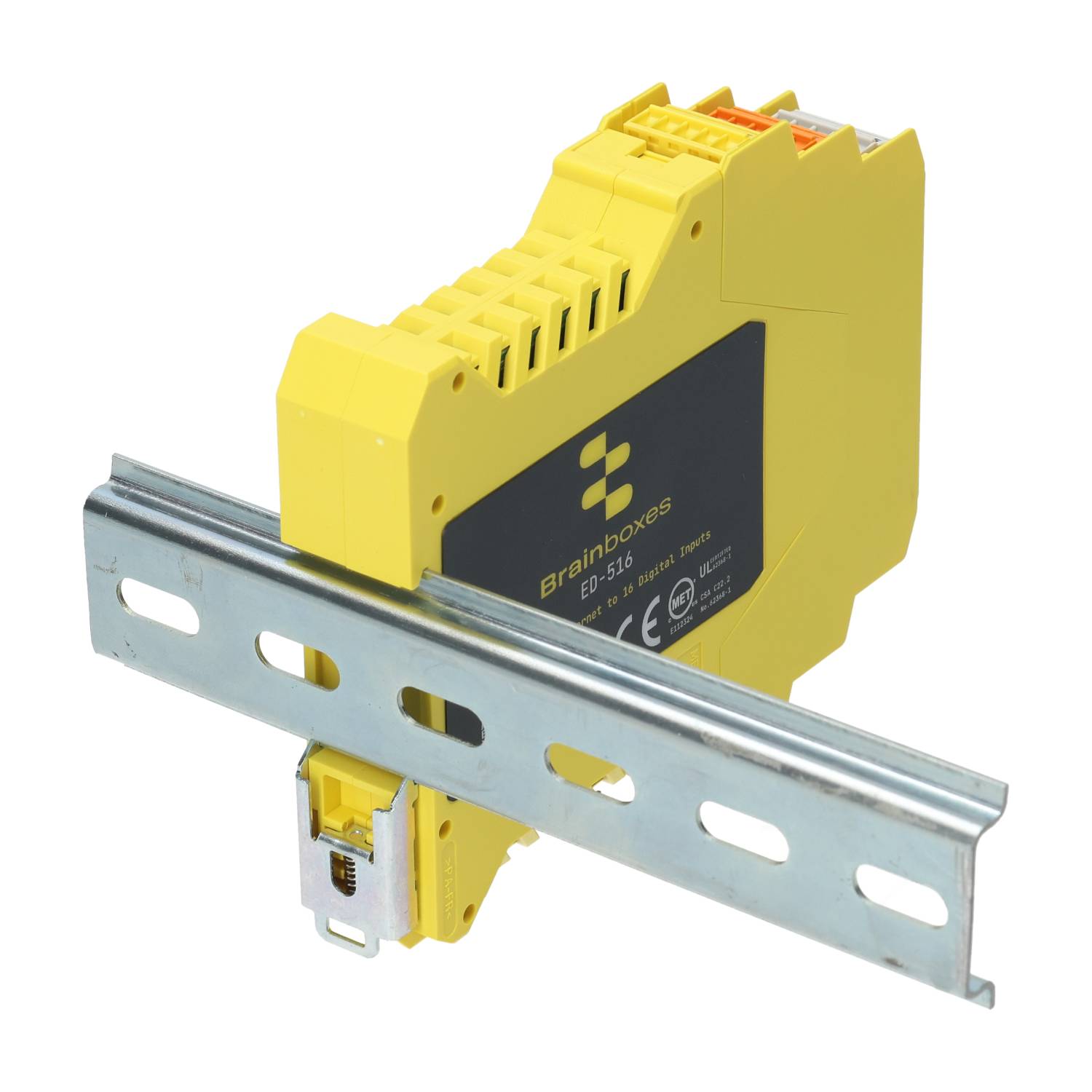

  • Factory floor process control and automation, Integrated DIN rail mount
  • Supports simple ASCII or industry standard Modbus TCP
  • -30°C to +80°C Temperature range
  • Software APIs for Visual Basic, C# and more
  • ED-516-datasheet (1.70 MB)
Volume Purchase? Request a Quote

Request a Quote

Description

Ethernet to DIO device: 16 non-isolated digital input channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU.

The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.

Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.

The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.

The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.

Customer Feedback

Product Videos

Operating Systems



Tech Spec

IO Channels
IO ProtocolsModbus TCP or DCON ASCII (over TCP or Virtual COM port)
Description16 Digital Inputs
Digital Inputs16
Digital Outputs0
Analog Inputs0
Analog Outputs0
WatchdogN/A
Power On ValuesN/A
Safe ValuesN/A
Digital IO
Input Logic Level 0-30.0V to +1.0V
Input Logic Level 1+2.0V to +30V
Input LatchesTriggered by user programmable positive or negative edges, stays true until acknowledged
Input CounterUser progammable- counts positive or negative transitions up to 200Hz
Digital Output TypeN/A
Maximum Output Load VoltageN/A
Maximum Output Current SinkN/A
Serial Port
Serial GatewayRS485 NuDam/ADAM compatible gateway
Network
Number of Ports1
Network Port TypeRJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
Network ProtocolsICMP, IP, TCP, DHCP, HTTP
Protection1500V Magnetic Isolation between ports and network
Power
Power InputRedundant DC Dual Power Inputs, reverse polarity protected +5 VDC to +30VDC
Power Supply 1 DescriptionGlobal Power Supply - PW-600
Power Supply 2 DescriptionPower supply PW-650
Max Input35 Volts
General
Operating Temperature Range-30 °C to +80 °C / -22 °F to +176 °F
Industrial StandardYes
Storage Temperature-40 °C to +85 °C / -40 °F to +185 °F
Galvanic IsolationNo
Power ConsumptionInput +5V to +30V DC 100mA@24V 2.5W max
Product Weight0.134 kg, 4.73 ounces
Product Dimensions128x102x23 mm, 5.0x4.0x0.9 inches
Packaged Weight0.230 kg, 8.11 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324003185
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions

Approvals

Microsoft Signed Drivers
