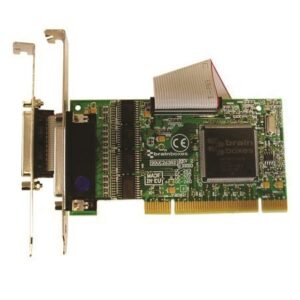

UC-414

4xRS232 PCI Serial Port Card (3x9 pin ports + 1x9 pin port) with LPT Parallel Port for Printer

PDF Datasheet Download

$313.50

Universal PCI providing four RS232 serial ports and one LPT port (3 industry standard 9 pin D RS232 ports on the bracket with a another 9 pin D RS232 port on a flylead. The 25pin D LPT port is also available by a flylead. Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Serial Port
Serial Port	Ports	4
	Protocol	RS232
	Connector	DB9 Connector (9 Pin Male) and LPT port
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	64
	Rx FIFO Size	64
	Operating Distance	EIA - RS232 Standard
	Cable	1 port RS232 on fly lead
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
Printer Port
Printer Port	Printer Port	1
	Printer Port Protocol	LPT
	Printer Port Connector	1 Port LPT on fly Lead
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	Yes
	Galvanic Isolation	No
	Power Consumption	300mA @ 5V, 60mA @ 12V
	Product Weight	0.098 kg
	Product Dimensions	133(l) x 120(w) x 18(h) mm
	Packaged Weight	0.268 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324002171
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions DOS
Interface
Interface	PCI 3.0	Peripheral Component Interface

Product Attributes

Weight	0.268 kg
Dimensions	160 × 135 × 45 mm
Ports	4 Ports
Form Factor	Standard Height
Protocol	RS232

2030
Ports: 4 Ports
Form Factor: Standard Height
Protocol: RS232
