UC-295

Name: UC-295 4xRS232 PCI Serial Port Card with LPT Parallel Port for Printer - Brainboxes
SKU: UC-295
Price: 378.00 USD
Availability: InStock

4xRS232 PCI Serial Port Card with LPT Parallel Port for Printer

PDF Datasheet Download

$378.00

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

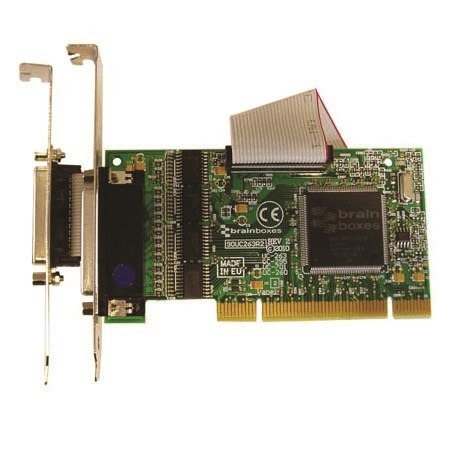

Universal PCI providing four RS232 serial ports and one LPT port (4 industry standard 9 pin D RS232 ports with 25 pin D LPT port on a flylead). Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Serial Port
Serial Port	Ports	4
	Protocol	RS232
	Connector	DB9 Connector (9 Pin Male) and LPT port (25 Pin Female)
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	64
	Rx FIFO Size	64
	Operating Distance	EIA - RS232 Standard
	Cable	4 port cable (44 way D to 4x9 Pin Male)
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
Printer Port
Printer Port	Printer Port	1
	Printer Port Protocol	LPT

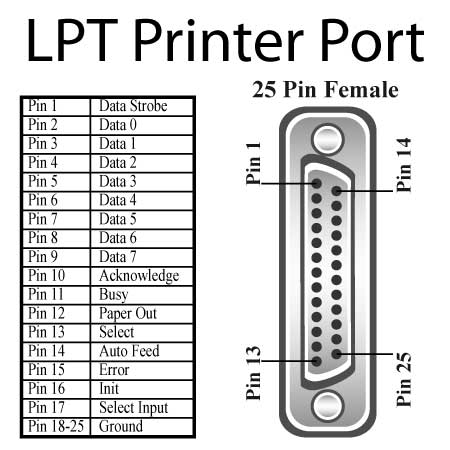

	Printer Port Connector	25 Pin Female D Connector on Fly Lead
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	Yes
	Galvanic Isolation	No
	Power Consumption	300mA @ 5V, 60mA @ 12V
	Product Weight	0.072 kg
	Product Dimensions	135(l) x 120(w) x 18(h) mm
	Packaged Weight	0.693 kg
	Packaged Dimensions	200(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324002164
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions DOS
Interface
Interface	PCI 3.0	Peripheral Component Interface
