PX-306 PCIe 4+1xRS232 + 1xLPT Printer Port

5 Port RS232 and 1 Port LPT
Data transfer rates up to 921,600
128 byte TX and RX FIFO
Drivers only for Linux

Download PX-306 Technical Datasheet (PDF)

£295.00

Volume Purchase?Request a Quote

Brainboxes PX-306 5 port rs232 and 1 port lptdata transfer rates up to

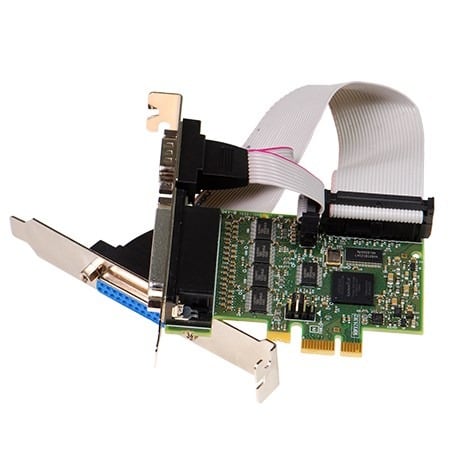

Brainboxes PX-306 pcie expansion card showing multiple serial ports and parallel port connector

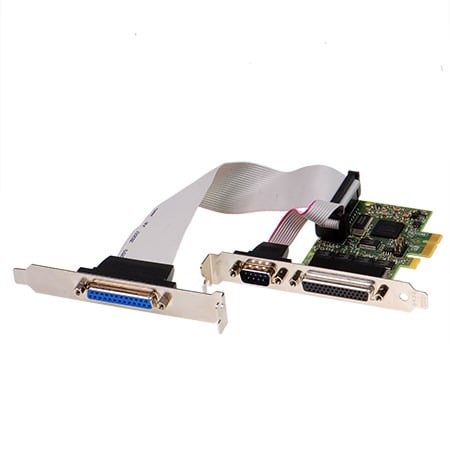

Brainboxes PX-306 pcie expansion card with multiple serial and parallel port connectors

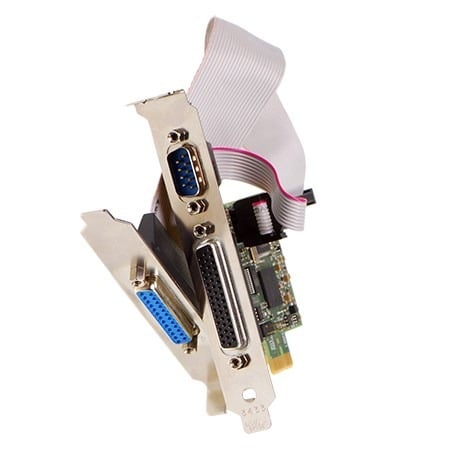

Brainboxes PX-306 expansion card showing multiple serial ports and parallel port connections

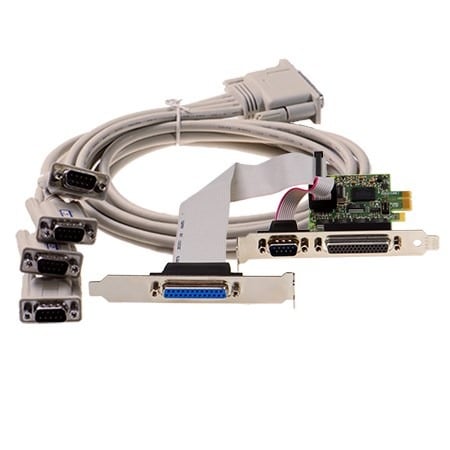

Brainboxes PX-306 pcie serial card with multiple rs232 breakout cables and bracket

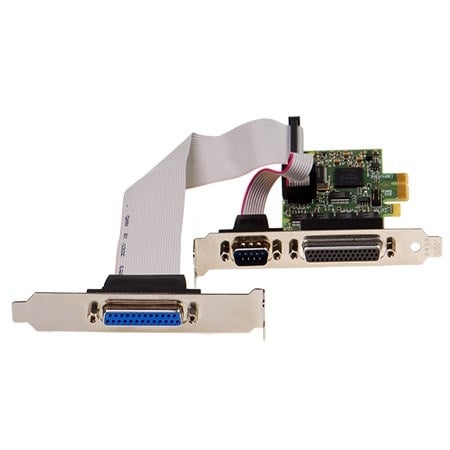

Brainboxes PX-306 pcie expansion card with serial and parallel port cables connected

PCI Express Card providing five RS232 serial ports and one LPT port (5 industry standard 9 pin D RS232 ports via a quad cable and 1 x 9 Pin D on a fly lead plus a 25 pin D LPT port on a flylead). Brainboxes’ own BB16C958 UART provides data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Linux.

See other products the same category as PX-306: PCI Express

Serial Port
Serial Port	Ports	5 x RS232 + 1 x LPT Printer
	Protocol	RS232 + LPT Printer
	Connector	DB9 Connector (9 Pin Male) and LPT port (25 Pin Female)
	UART	Oxford 950
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	4 port cable (44 way D to 4x9 Pin Male D) + 1 port 9 Pin Male D on Fly lead
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
Printer Port
Printer Port	Printer Port	1
	Printer Port Protocol	LPT IEEE-1284 with SPP/PS2/EPP/ECP support
	Printer Port Connector	25 Pin Female D Connector on Fly Lead
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	Yes
	Galvanic Isolation	No
	Power Consumption	awaiting
	Product Weight	0.653 kg
	Product Dimensions	240(l) x 170(w) x 60(h) mm
	Packaged Weight	1.234 kg
	Packaged Dimensions	200(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324002942
Operating System Compatibility
Operating System Compatibility	Operating Systems	Linux
Interface
Interface	PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
