SW-608

Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable

Discontinued

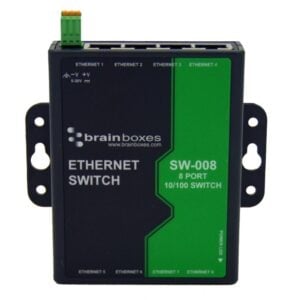

8 Port Hardened Ethernet Switch
Tough Powder Coated Aluminium Case and diecast Aluminium end covers
Redundant dual power inputs: +5V to +30V DC
Industrial temperature range -40°C to +75°C
Grounded Integrated Steel DIN Rail Mount
Lifetime Warranty and Support

Hardened Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +75°C (-40°F to 167°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Tough powder coated aluminium case with die-cast aluminium end covers.

Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Ethernet
Ethernet	Ethernet Ports	8
	Ethernet Speed	10/100 Fast Ethernet
	PoE	No
Power
Power	Power Input	5V - 30V DC input, reverse polarity protected
	PoE Power Budget	NA
General
General	Operating Temperature Range	-40 °C to +75 °C / -22 °F to +167 °F
	Storage Temperature	-40 °C to +85 °C / -40 °F to +185 °F
	Form Factor	Hardened Din rail mounted
	Power Consumption	1.5 Watts Max : 300 [email protected]+5VDC/[email protected]+30VDC
	Product Weight	0.431 kg, 15.20 ounces
	Product Dimensions	125x110x45 mm, 4.9x4.3x1.8 inches
	Packaged Weight	0.501 kg, 17.67 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324003918
Interface
Interface	Ethernet	Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
