SW-105 Embedded Industrial 5 Port 10/100 Ethernet Switch

  • 5x Port 10/100 Unmanaged Ethernet Switch
  • Dual Redundant, Wide Power Input: +5 V to +30 VDC
  • Low Power Consumption: 1.35 W Max
  • Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
  • Embeddable

Download SW-105 Technical Datasheet (PDF)

£58.85
Add to Cart
Buy from Reseller
Brainboxes SW-105 5x port 10/100 unmanaged ethernet switch dual redundant

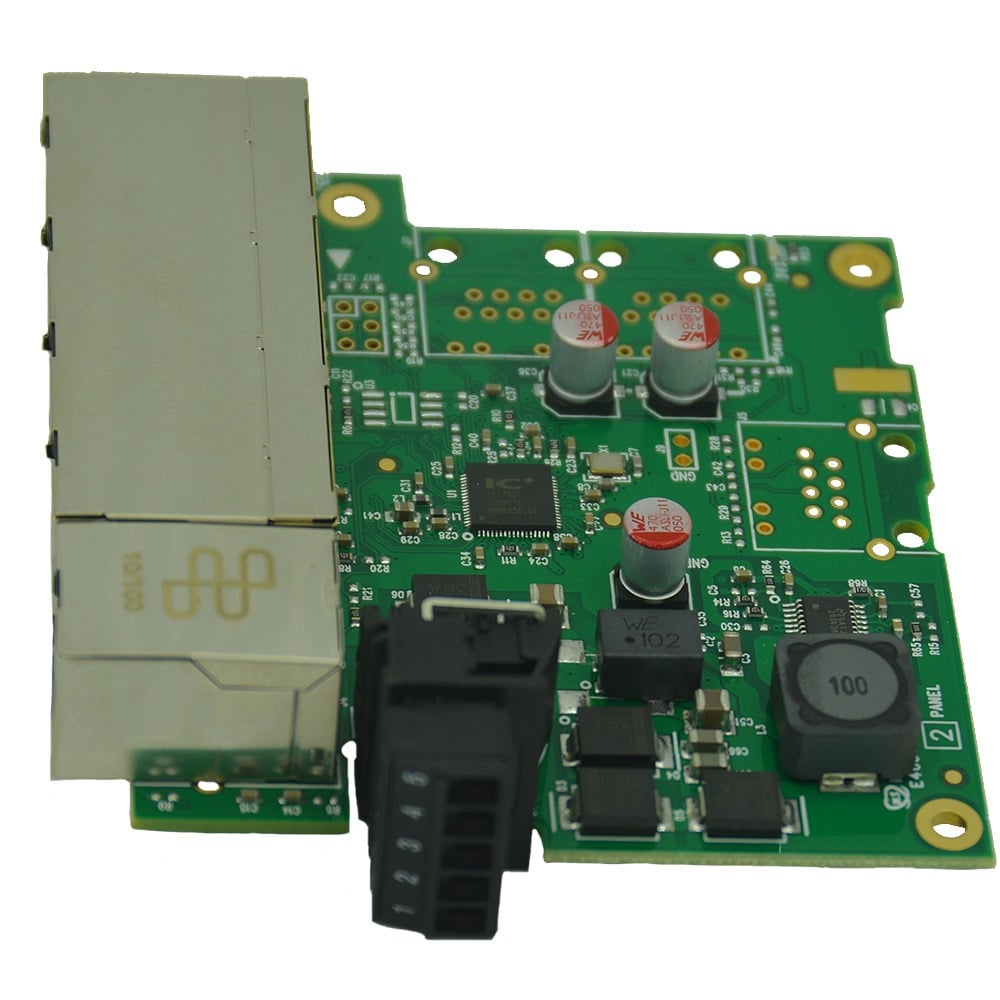

Brainboxes SW-105 ethernet switch circuit board showing rj45 connector and electronic components

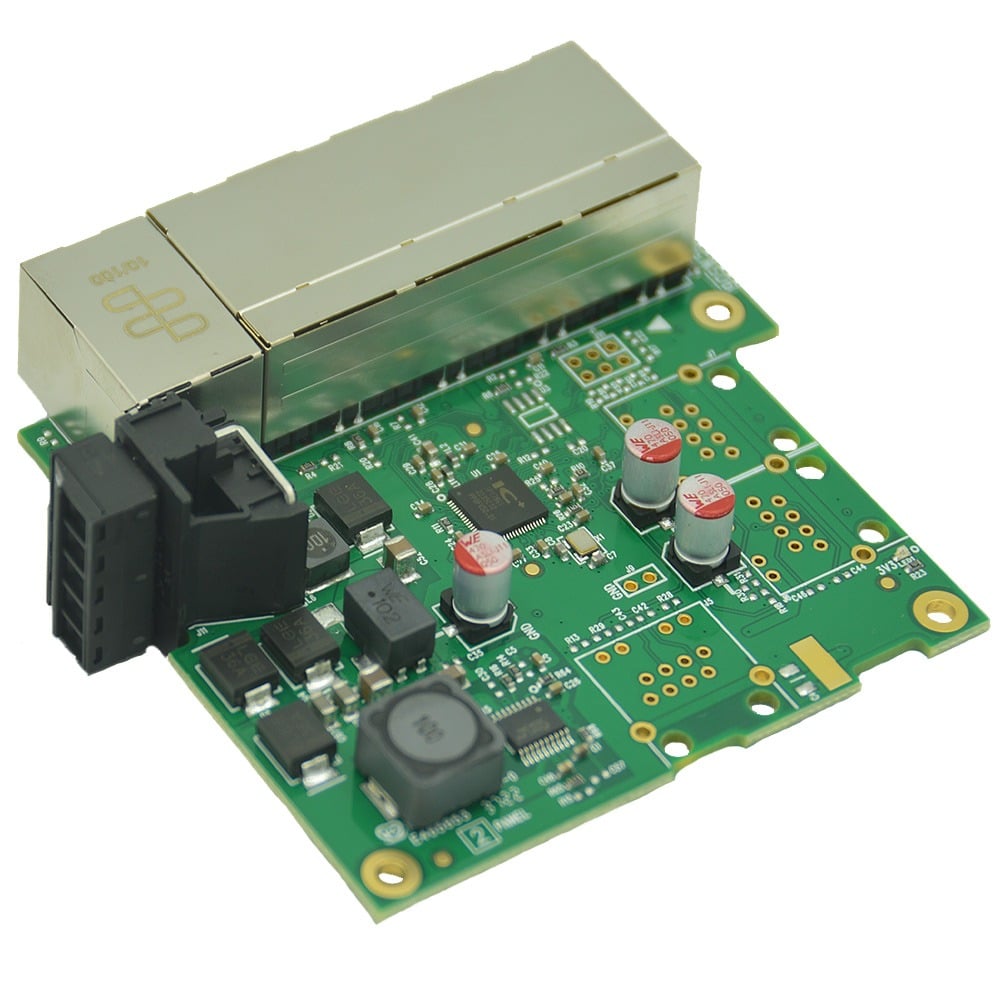

Brainboxes SW-105 industrial ethernet switch circuit board showing ports and electronic components
Brainboxes SW-105 circuit board showing connection pins and voltage labels

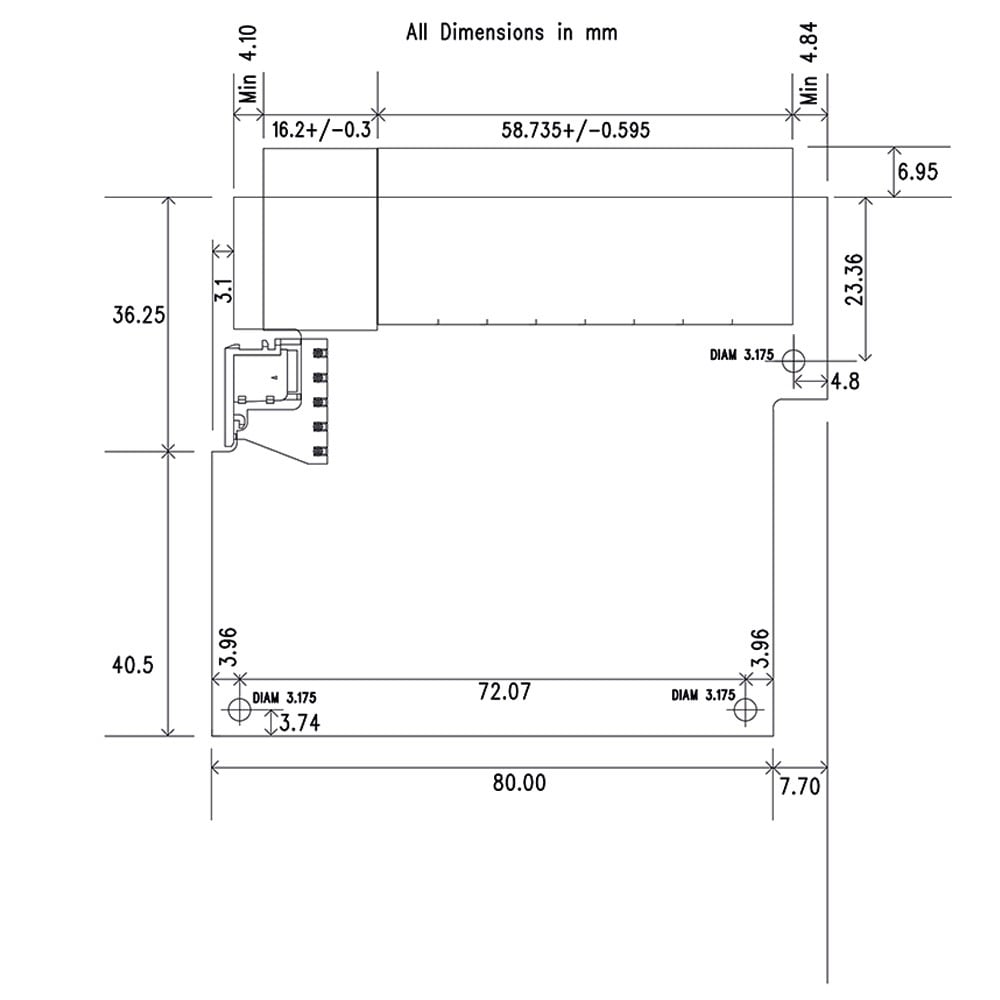

Brainboxes SW-105 detailed dimensional drawing showing pcb measurements and mounting specifications
AEO Authorised Economic Operator
CAGE Code 8QCY6
CE Mark
FCC
Lifetime Support
Lifetime Warranty
Made in Great Britain
NCAGE Code U0Q96
NDAA Compliant
TAA Compliant
UKCA Mark
UL6268 Certified

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

See other products the same category as SW-105: Industrial Ethernet Switches

Download SW-105 CAD 3D Model
