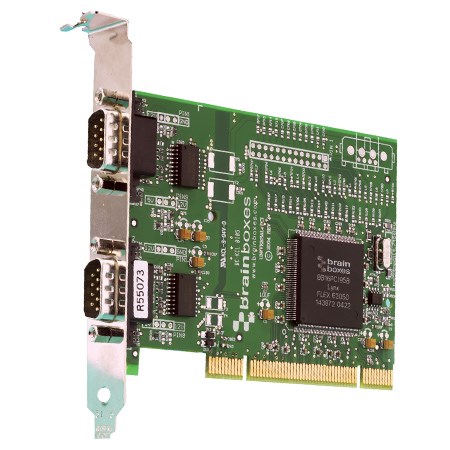

Universal PCI card provides 2 industry standard 9 pin RS232 serial COM ports in a single PCI slot, capable of baud rates up to 230,400.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.
Serial Port | ||
|---|---|---|
| Serial Port | Ports | 2 |
| Protocol | RS232 | |
| Connector | DB9 Connector - 9 Pin Male | |
| UART | Brainboxes 16C958 | |
| UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode | |
| Tx FIFO Size | 128 | |
| Rx FIFO Size | 128 | |
| Operating Distance | EIA - RS232 Standard | |
| Cable | No Cable; Integrated Connector | |
Serial Port Settings | ||
| Serial Port Settings | Max Baud Rate | 230,400 |
| Data Bits | 5,6,7 or 8 | |
| Parity | Odd, Even, None, Mark or Space | |
| Stop Bits | 1, 1.5 or 2 | |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF | |
| Tx/Rx Modes | Point to Point | |
General | ||
| General | PCB Layers | 4 |
| Form Factor | Standard Height | |
| Includes Printer Port | No | |
| Galvanic Isolation | No | |
| Power Consumption | 200mA @ 5V, 7mA @ 12V | |
| Product Weight | 0.079 kg | |
| Product Dimensions | 136(l) x 120(w) x 18(h) mm | |
| Packaged Weight | 0.19 kg | |
| Packaged Dimensions | 160(l) x 135(w) x 49(h) mm | |
| GTIN (barcode) | 837324000535 | |
Operating System Compatibility | ||
| Operating System Compatibility | Operating Systems |
|
Interface | ||
| Interface | PCI 3.0 | Peripheral Component Interface |
| Weight | 0.19 kg |
|---|---|
| Dimensions | 160 × 135 × 45 mm |
| Ports | 2 Ports |
| Form Factor | Standard Height |
| Protocol | RS232 |
