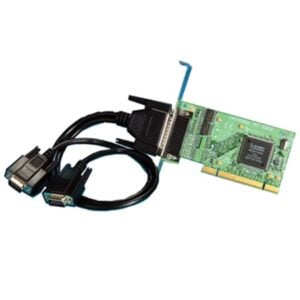

Low Profile Universal PCI providing two RS232 serial ports on cable. Data transfer rates up to 115,200 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 10.
Serial Port | ||
|---|---|---|
| Serial Port | Ports | 2 |
| Protocol | RS232 | |
| Connector | DB9 Connector - 9 Pin Male | |
| UART | Brainboxes 16C958 | |
| UART Compatibility | 16750/16550/16450 backwards compatible as well as an enhanced 950 mode | |
| Tx FIFO Size | 128 | |
| Rx FIFO Size | 128 | |
| Operating Distance | EIA - RS232 Standard | |
| Cable | 2 Port Cable: DB9 connector (9 Pin Male) | |
Serial Port Settings | ||
| Serial Port Settings | Max Baud Rate | 115,200 |
| Data Bits | 5,6,7 or 8 | |
| Parity | Odd, Even, None, Mark or Space | |
| Stop Bits | 1, 1.5 or 2 | |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF | |
| Tx/Rx Modes | Point to Point | |
General | ||
| General | PCB Layers | 4 |
| Form Factor | Low Profile | |
| Includes Printer Port | No | |
| Galvanic Isolation | No | |
| Power Consumption | 260mA @ 5V / 30mA @ 12V | |
| Product Weight | 0.067 kg | |
| Product Dimensions | 134(l) x 80(w) x 18(h) mm | |
| Packaged Weight | 0.179 kg | |
| Packaged Dimensions | 200(l) x 135(w) x 80(h) mm | |
| GTIN (barcode) | 837324000344 | |
Operating System Compatibility | ||
| Operating System Compatibility | Operating Systems |
|
Interface | ||
| Interface | PCI 3.0 | Peripheral Component Interface |
| Weight | 0.179 kg |
|---|---|
| Dimensions | 200 × 135 × 80 mm |
| Ports | 2 Ports |
| Form Factor | Low Profile |
| Protocol | RS232 |
