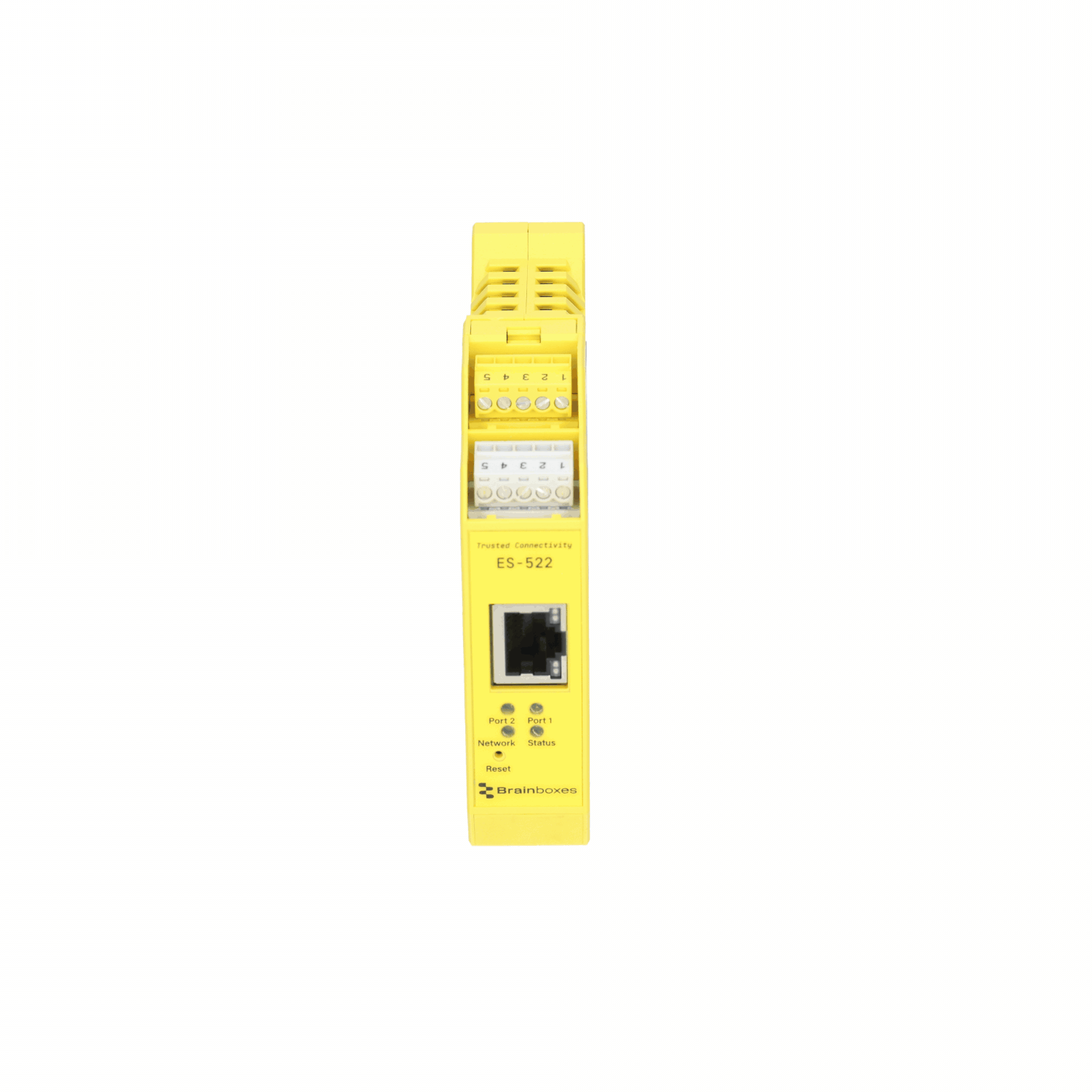

  • ES 522 Colour Coded Removable Terminal Blocks

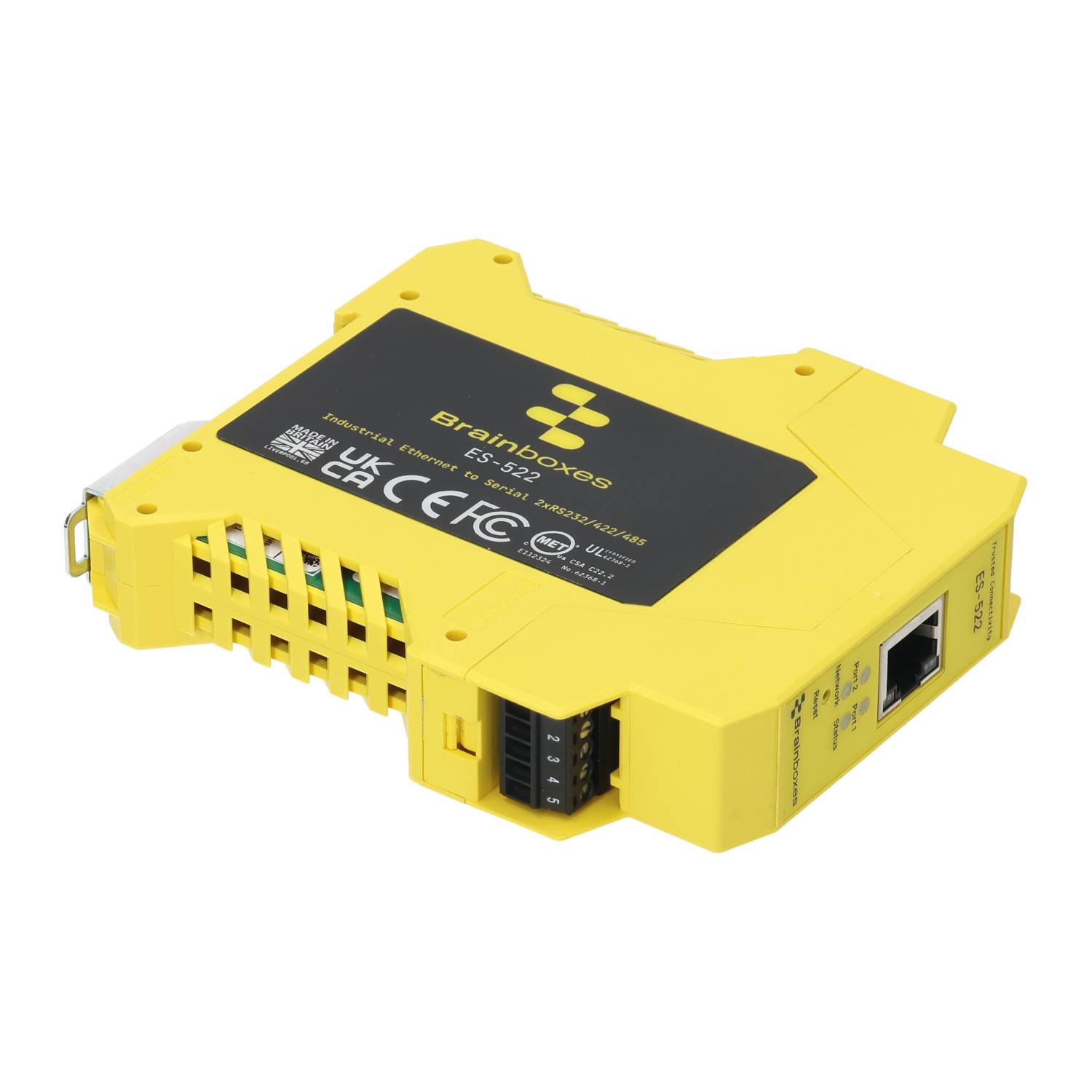

  • ES 522 Compact Book End Format
  • ES 522 Ethernet to Serial Device Server
  • ES 522 Integrated DIN Rail Mount
  • ES 522 Pin Out On Back Label
  • ES 522 Power Terminal Block
  • ES 522 Serial Port Terminal Blocks
es 522 ethernet industrial 2xrs232 422 485
  • 2 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
  • Data rate from 110 to 921,600 baud. Removable, colour-coded, number terminal blocks
  • Install Virtual Com ports in Windows, tunnel over ethernet between 2 devices, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
  • Removable, colour-coded, number terminal blocks
  • -40°C to +80°C/-40ºF to +176ºF Temperature range
  • Robust, Slim Design, Integrated DIN rail mount
  • ES-522-datasheet (2.62 MB)
Volume Purchase? Request a Quote

Request a Quote

Description

Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -40 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.

Customer Feedback

Product Videos

Operating Systems



Tech Spec

Serial Port
Ports2
ProtocolSoftware Selectable as RS232, RS422/485 Full Duplex, or RS485 Half Duplex
ConnectorRemovable Screw terminal block connector - 3.5 mm pitch
Tx FIFO Size2048
Rx FIFO Size2048
Operating DistanceRS422/485 Standard (4000 ft : 1200 metres) / EIA - RS232 Standard
Cable
Serial Port Settings
Max Baud Rate1,000,000 (1 MegaBaud)
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlXON/XOFF Software handshake or RTS/CTS hardware handshake
Tx/Rx ModesPoint to Point (RS232), Full Duplex, Half Duplex Autogating, Hardware Autogating, TxD always/ RTS true enabled, RxD always enabled, RxD RTS true disabled, CTS forced true (RS422/485)
Power
Power InputRedundant DC Dual Power Inputs, reverse polarity protected +5 VDC to +30VDC
Power Over EthernetNo - this product does not have PoE capability
Power Supply 1 DescriptionGlobal Power Supply - PW-600
Power Supply 2 Description
General
Mounting Accessories 1 DescriptionIntegrated DIN rail clip
Mounting Accessories 2 Description
PCB Layers4
Operating Temperature Range-30 °C to +80 °C / -22 °F to +176 °F
Device Dims with ears96.3x101x25
Device Dims without ears91.6x77x25
Power Consumption1.4 Watt typical 60mA@24V - 2.9 Watt Max
Product Weight0.113 kg, 3.99 ounces
Product Dimensions115x105x23 mm, 4.5x4.1x0.9 inches
Packaged Weight0.206 kg, 7.27 ounces
Packaged Dimensions160x135x45 mm, 6.3x5.3x1.8 inches
GTIN (barcode)837324002614
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Linux
Interface
EthernetEthernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
