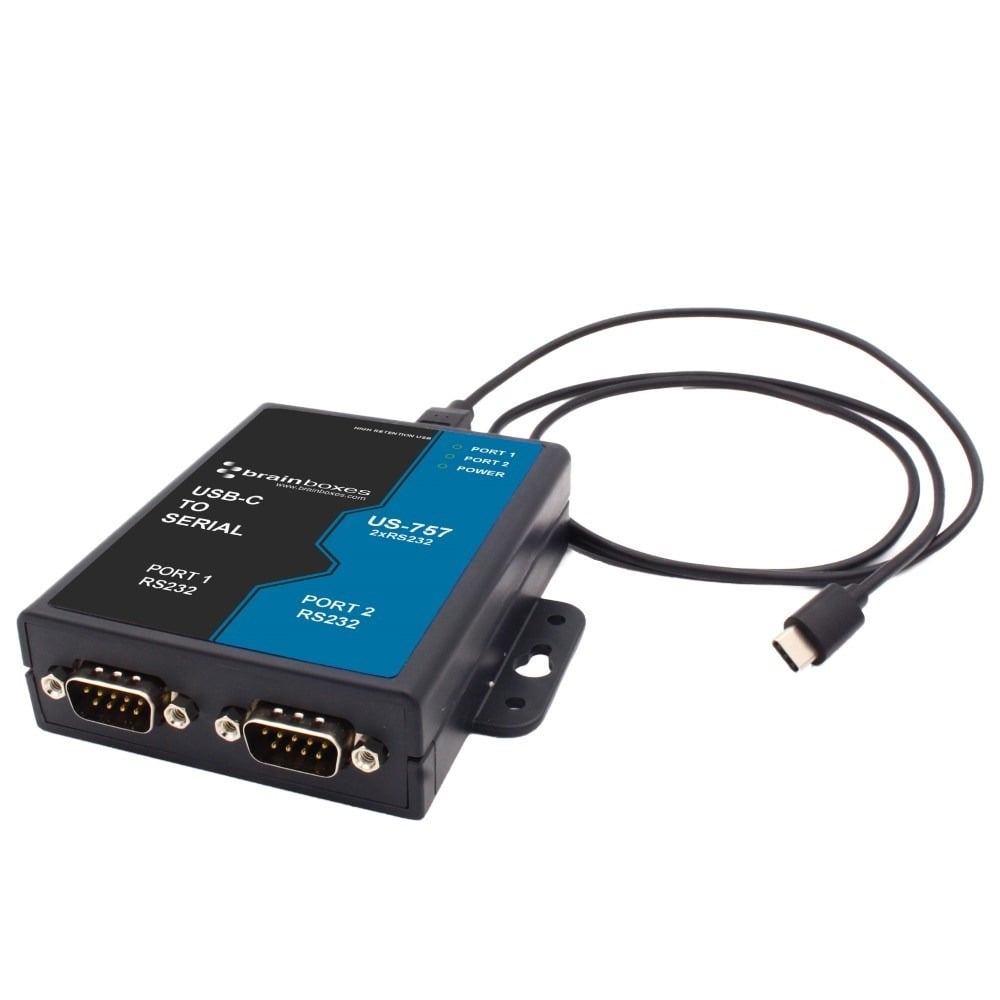

US-757

2 Port RS232 USB-C to Serial Adapter

2 port RS-232 USB-C to serial adapter
Data rate from 300 to 921,600 baud

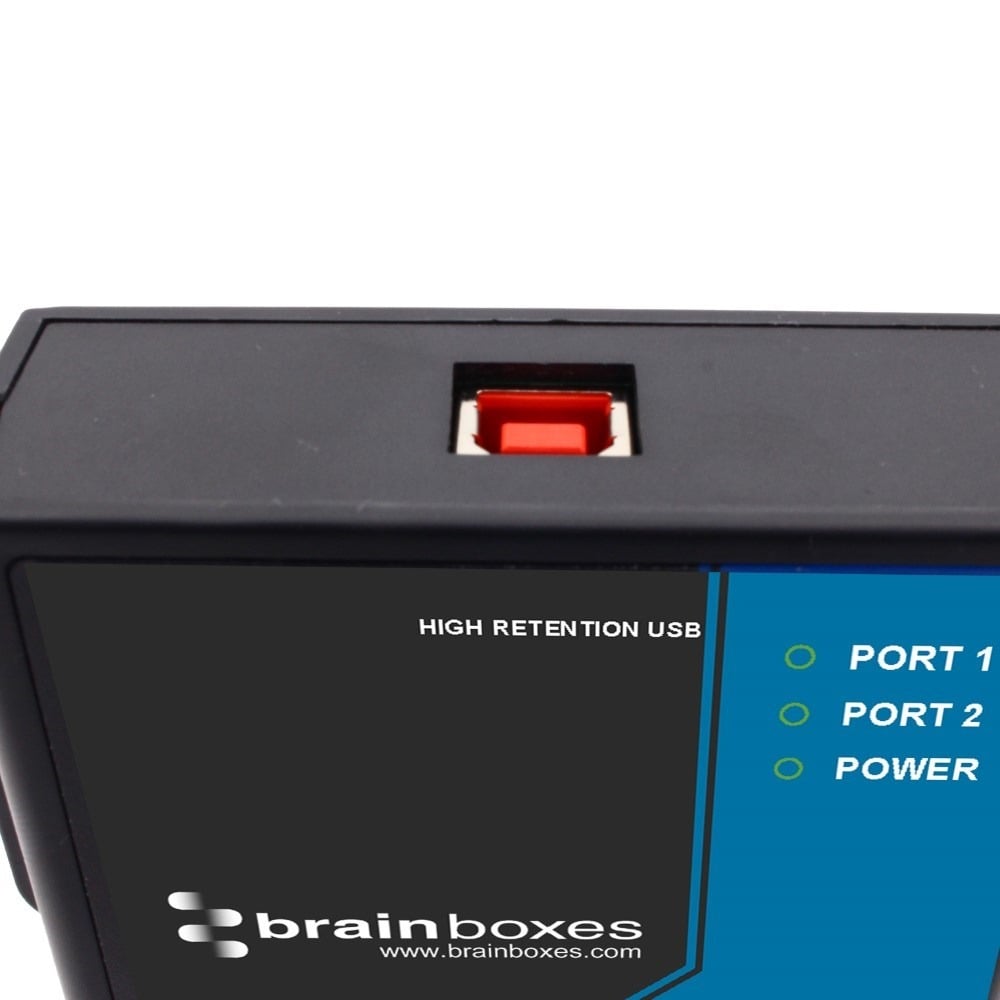

High Retention USB Socket with 1m USB-B to USB-C cable
Drivers for all popular operating systems including Windows 10
Works where many other USB to Serial devices do not
Lifetime Warranty and Support

PDF Datasheet Download

$59.39

Add to Cart

Volume Purchase?Request a Quote

USB-C to Serial adapter providing two RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte transmit and 384 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. High retention USB port gives a secure connection.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019.

Lifetime warranty and support.

Serial Port
Serial Port	Ports	2
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	Tx FIFO Size	128
	Rx FIFO Size	256
	Operating Distance	EIA - RS232 Standard
	Cable	USB cable Type A to B (0.5 metre ~ 1.5ft)
Serial Port Settings
Serial Port Settings	Max Baud Rate	1,000,000 (1 MegaBaud)
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Operating Temperature Range	0 °C to +60 °C / 32 °F to +140 °F
	Industrial Standard	No
	Power Consumption	100mA @ 3.3V
	Product Weight	0.109 kg, 3.84 ounces
	Product Dimensions	102x100x27 mm, 4.0x3.9x1.1 inches
	Packaged Weight	0.260 kg, 9.17 ounces
	Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
	GTIN (barcode)	837324004625
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Interface
Interface	USB 2.0	480 Mb/s USB 2.0 data rates.
