VX-001 1 Port RS232 ExpressCard Serial Adapter with integrated connector

Name: VX-001 1 Port RS232 ExpressCard Serial Adapter with integrated connector - Brainboxes
Brand: brainboxes
SKU: VX-001
Price: 78.38 GBP
Availability: InStock
Rating: 5.00 (3 reviews)

Discontinued

1 Port RS-232
ExpressCard Technology
Data rate from 110 to 921,600 baud
Fits in any 34mm or 54mm ExpressCard slot
Drivers for all popular operating systems
Lifetime Warranty and Support

Brainboxes VX-001 1 port rs-232expresscard technologydata rate from 110 to

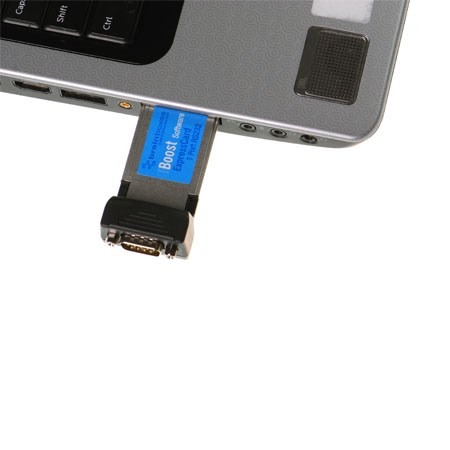

Brainboxes VX-001 expresscard serial adapter being inserted into laptop expresscard slot

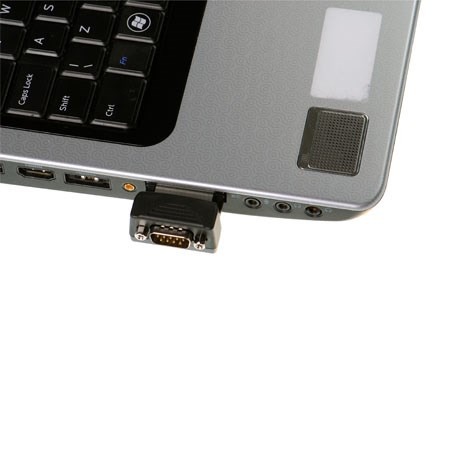

Brainboxes VX-001 rs-232 expresscard inserted into laptop expresscard slot showing connectivity

Brainboxes VX-001 rs-232 expresscard being inserted into laptop expresscard slot

Brainboxes ES-446 rs232 serial port pinout diagram showing 9 pin male connector wiring

ExpressCard providing one RS232 serial port. ExpressCard is 34mm wide and fits 34mm or 54mm slots. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7,8 and Windows 10.

See other products the same category as VX-001: Discontinued

Serial Port
Serial Port	Ports	1
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	Tx FIFO Size	128
	Rx FIFO Size	256
	Operating Distance	EIA - RS232 Standard
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	Ruggedised	Yes
	PCB Layers	4
	ExpressCard Width	34mm (fits both 34mm and 54mm ExpressCard slots)
	Power Consumption	40mA @ 3.3V
	Product Weight	0.031 kg
	Product Dimensions	103(l) x 38(w) x 20(h) mm
	Packaged Weight	0.273 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324001457
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Interface
Interface	USB 2.0	480 Mb/s USB 2.0 data rates.
