IS-550 Intashield 1 LPT Printer Port Low profile PCI Card

Discontinued

1 LPT Printer Port Low profile
PCI plug and play
Drivers for Win 7, Vista & XP
1 year warranty

Brainboxes IS-550 1 lpt printer port low profilepci plug and playdrivers for

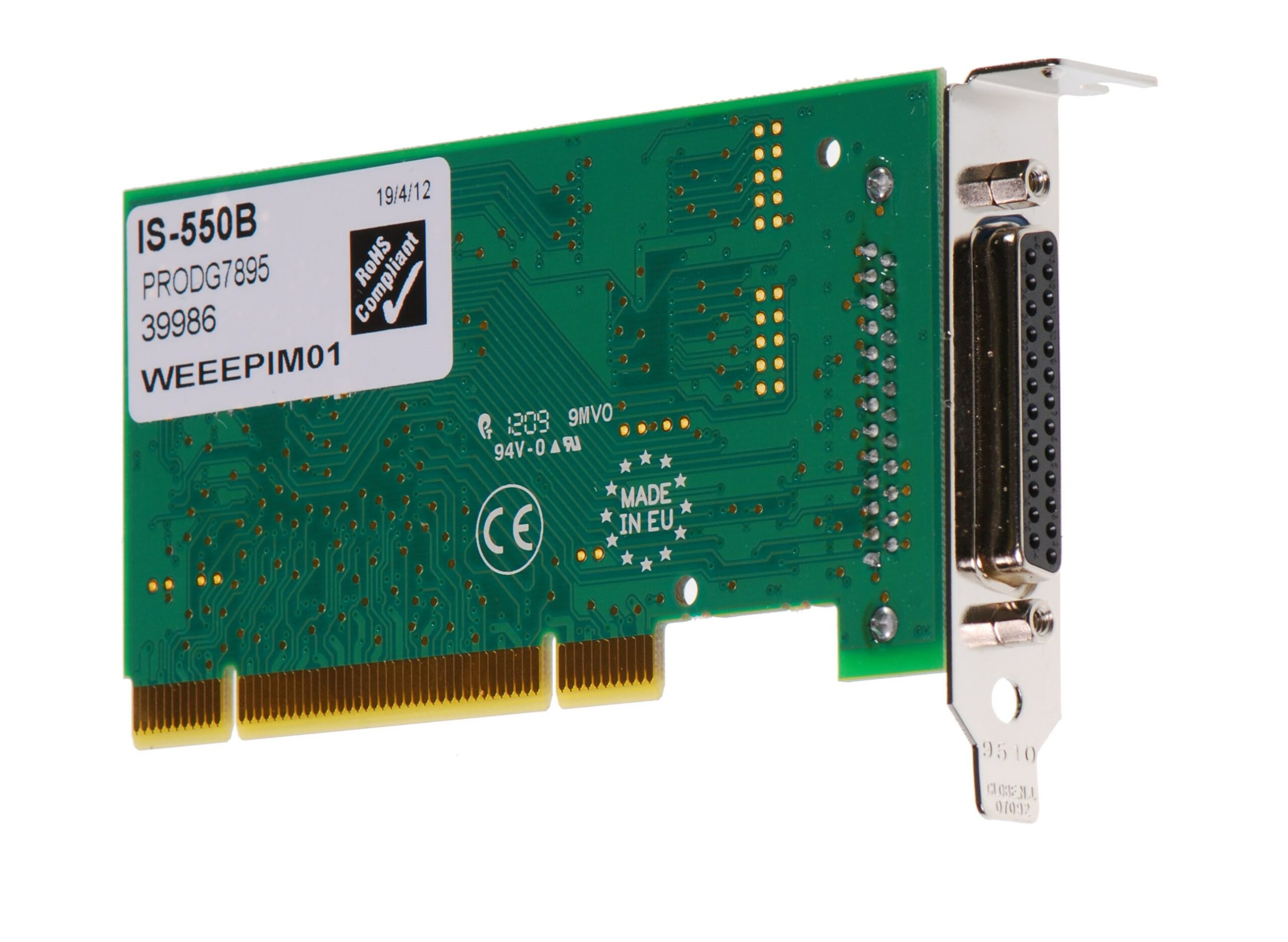

Brainboxes IS-550 pci card rear view showing db25 connector and ce certification markings

This card provides 1 industry standard 25 pin LPT parallel printer port in a single low profile PCI slot. As PCI is fully Plug and Play compatible your BIOS and operating system will automatically configure the card ensuring conflict free installation.

See other products the same category as IS-550: Discontinued

Serial Port
Serial Port	Ports	1
	Protocol	LPT Printer
	Connector	25 Pin Parallel Port Female Connector
	UART	550
	UART Compatibility	16550/16450
	Tx FIFO Size	16
	Rx FIFO Size	16
	Operating Distance	EIA - RS232 Standard
	Cable
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Low Profile
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	n/a
	Product Weight	0.065 kg
	Product Dimensions	134(l) x 80(w) x 18(h) mm
	Packaged Weight	0.146 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324002508
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI 2.3	Conventional PCI
