US-324

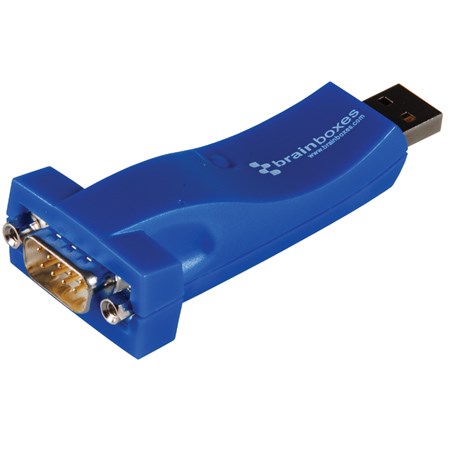

1 Port RS422/485 USB to Serial Adapter

1 Port RS-422/485 USB to Serial Adapter
Data rate from 300 to 921,600 baud
Drivers for all popular operating systems including Windows 10, 8, 7 and XP
Works where many other USB to Serial devices do not

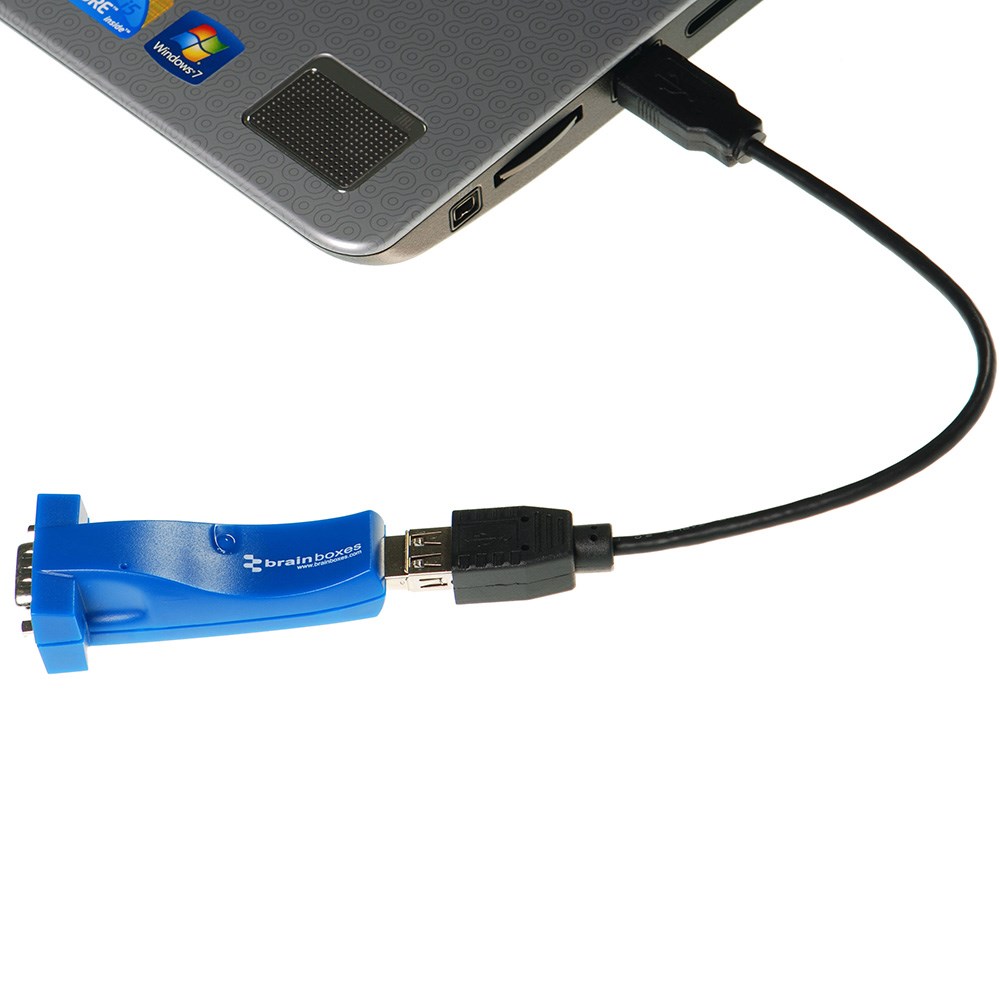

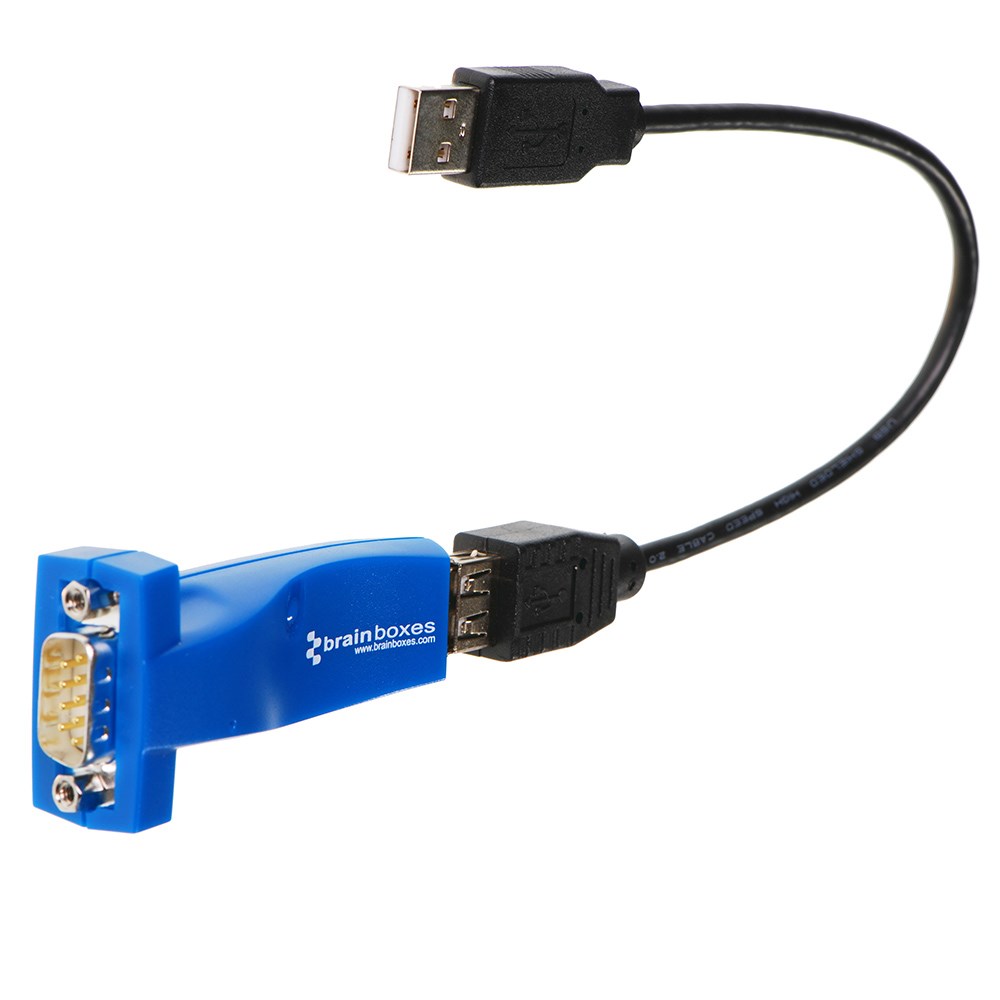

Includes 25cm USB Extender cable
Lifetime Warranty and Support

PDF Datasheet Download

$66.00

USB to Serial adapter providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.

Serial Port
Serial Port	Ports	1
	Protocol	RS422/485
	Connector	DB9 Connector - 9 Pin Male
	Tx FIFO Size	128
	Rx FIFO Size	256
	Operating Distance	RS422/485 Standard (4000 ft : 1200 metres)

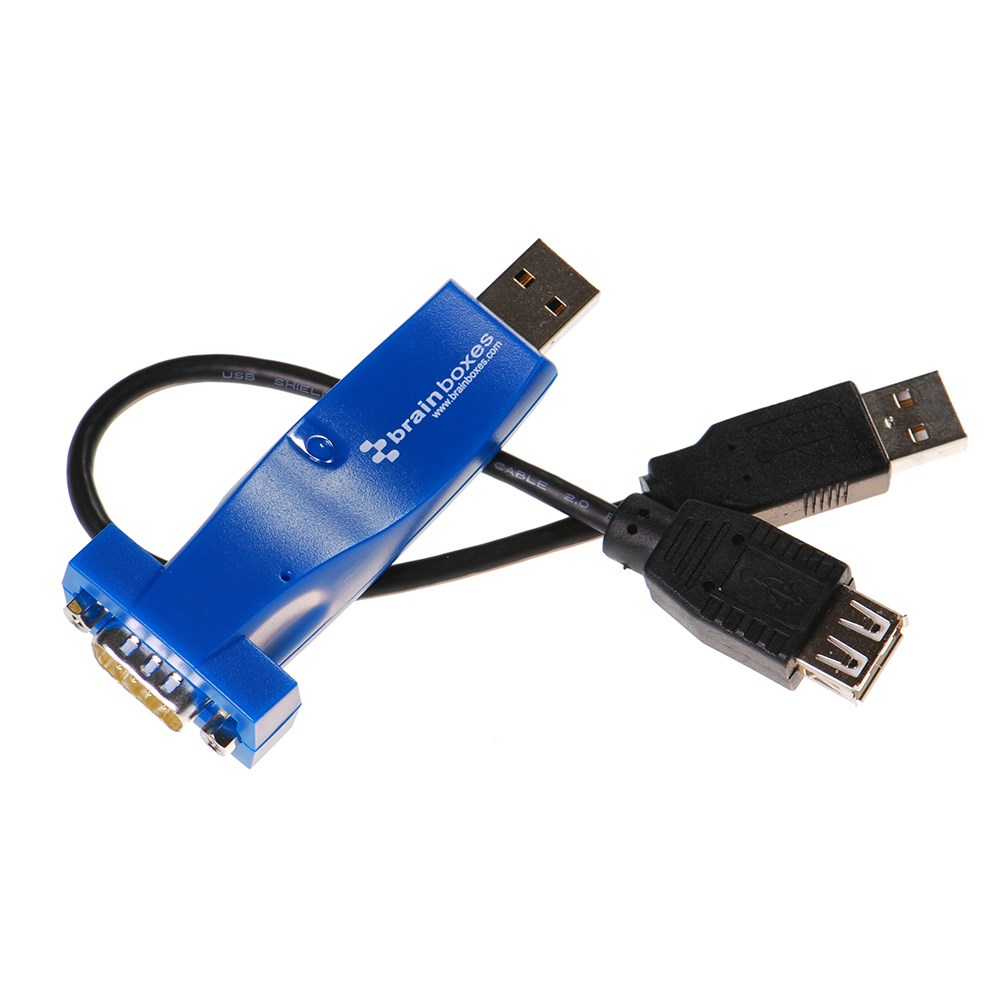

	Cable	USB extender cable (0.25 metre ~ 1ft)
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Tx/Rx Modes	Full Duplex, Half Duplex Autogating
General
General	PCB Layers	4
	Operating Temperature Range	0 °C to +60 °C / 32 °F to +140 °F
	Industrial Standard	No
	Power Consumption	80mA @ 5V
	Product Weight	0.023 kg
	Product Dimensions	89(l) x 35(w) x 20(h) mm
	Packaged Weight	0.133 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324002119
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Interface
Interface	USB 2.0	480 Mb/s USB 2.0 data rates.
