US-601

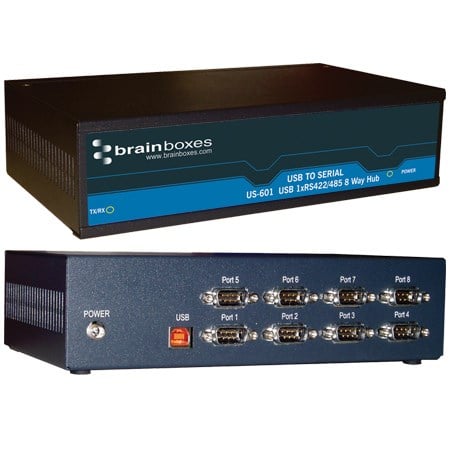

Name: US-601 8 Port RS422/485 USB to Serial Multi Drop Hub - Brainboxes
Brand: brainboxes
SKU: US-601
Price: 259.88 USD
Availability: InStock

8 Port RS422/485 USB to Serial Multi Drop Hub

PDF Datasheet Download

$259.88

Add to Cart

Buy from Reseller

Volume Purchase?Request a Quote

USB to Serial multi drop hub providing 1 RS422/485 serial port multiplexed 8 times for multibus applications. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux.

Serial Port
Serial Port	Ports	1 Multi Drop to 8
	Protocol	RS422/485
	Connector	8xDB9 Connector (9 Pin Male) USB Type B High Retention
	Tx FIFO Size	128
	Rx FIFO Size	256
	Operating Distance	RS422/485 Standard (4000 ft : 1200 metres)
	Cable	USB cable Type A to B (1 metre ~ 3ft)
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Flow Control	RTS/CTS, XON/XOFF
	Tx/Rx Modes	Full Duplex, Half Duplex Autogating
Power
Power	Power Input	5V DC input
	Power Supply 1 Description	Global Power Supply - PW-500
	Power Supply 2 Description
General
General	Mounting Accessories 1 Description	Wall Mounting kit for 4&8 ports - MK-059
	Mounting Accessories 2 Description	Snap In DIN Clip kit for 4&8 ports - MK-070
	PCB Layers	4
	Device Dims with ears	96.3x101x25
	Device Dims without ears	91.6x77x25
	Industrial Standard	Yes
	Power Consumption	1A@5V
	Product Weight	0.773 kg
	Product Dimensions	215(l) x 123(w) x 56(h) mm
	Packaged Weight	0.965 kg
	Packaged Dimensions	300(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324002706
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Interface
Interface	USB 2.0	480 Mb/s USB 2.0 data rates.
