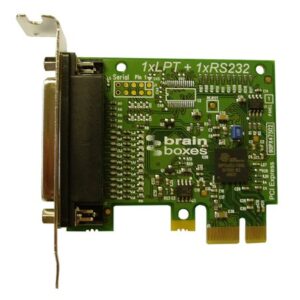

PCI Express card provides an industry standard 25 pin LPT port. PX-146 – Standard profile version; PX-157 – Low profile version. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 & Windows 10.
NOT RECOMMENDED FOR NEW DESIGNS
Serial Port | ||
|---|---|---|
| Serial Port | Ports | 1 |
| Protocol | LPT Printer | |
| Connector | 25 Pin Parallel Port Female Connector | |
| UART | Oxford 950 | |
| UART Compatibility | 16750/16550/16450 backwards compatibile | |
| Cable | ||
Printer Port | ||
| Printer Port | Printer Port | 1 |
| Printer Port Protocol | LPT IEEE-1284 with SPP/PS2/EPP/ECP support | |
| Printer Port Connector | 25 Pin Female D Connector on Fly Lead | |
General | ||
| General | PCB Layers | 4 |
| Form Factor | Standard Height | |
| Includes Printer Port | Yes | |
| Power Consumption | 380mA @ 3.3V | |
| Product Weight | 0.049 kg | |
| Product Dimensions | 120(l) x 80(w) x 18(h) mm | |
| Packaged Weight | 0.142 kg | |
| Packaged Dimensions | 160(l) x 135(w) x 49(h) mm | |
| GTIN (barcode) | 837324001983 | |
Operating System Compatibility | ||
| Operating System Compatibility | Operating Systems |
|
Interface | ||
| Interface | PCI Express x1, x4, x8 & x16 lane slots | PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant. |
| Weight | 0.142 kg |
|---|---|
| Dimensions | 160 × 135 × 49 mm |
| Ports | 1 Port |
| Form Factor | Standard Height |
| Protocol | LPT Printer |
