XC-475 1 Port RS232 and 1 Printer Port LPT Native ExpressCard Serial Adapter low latency, memory mapped

Discontinued

1 Port RS-232 and 1 LPT Printer Port
ExpressCard (PCIe) Technology: Absolute compatibility with classic desktop serial COM ports
Guaranteed low latency, memory mapped, no compromise high performance interface
Data rate from 110 to 921,600 baud
Fits in any 34mm or 54mm ExpressCard slot
Lifetime Warranty and Support

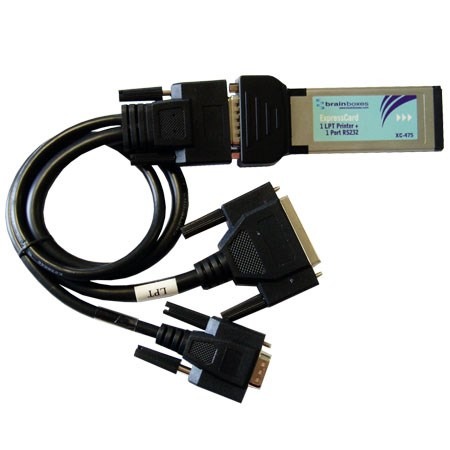

Brainboxes XC-475 1 port rs-232 and 1 lpt printer portexpresscard (pcie)

Brainboxes ES-446 rs232 serial port pinout diagram showing 9 pin male connector wiring

Brainboxes CC-468 rs232 opto isolated connector pinout diagram showing 9-pin male configuration

ExpressCard providing one RS232 serial port and one Printer port where absolute compatibility with classic desktop serial COM ports and parallel LPT printer ports is a necessity. ExpressCard is 34mm wide and fits 34mm or 54mm slots.

Guaranteed low latency, memory mapped, no compromise high performance interface. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.

See other products the same category as XC-475: Discontinued

Serial Port
Serial Port	Ports	2
	Protocol	RS232 + LPT Printer
	Connector	DB9 Connector (9 Pin Male) & DB25 Connector (25 Pin Male)
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	1xDB9 & 1xDB25
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	Ruggedised	No
	PCB Layers	4
	ExpressCard Width	34mm (fits both 34mm and 54mm ExpressCard slots)
	Power Consumption	380mA @ 3.3V
	Product Weight	0.044 kg
	Product Dimensions	110(l) x 46(w) x 20(h) mm
	Packaged Weight	0.356 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324002324
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions
Interface
Interface	ExpressCard PCIe Implementation	ExpressCard PCIe Implementation. Unlike the VX range which uses USB technology over ExpressCard, this uses PCI Express technology over ExpressCard. All Brainboxes XC cards are PCI Express Base Specification 1.1 Compliant.
