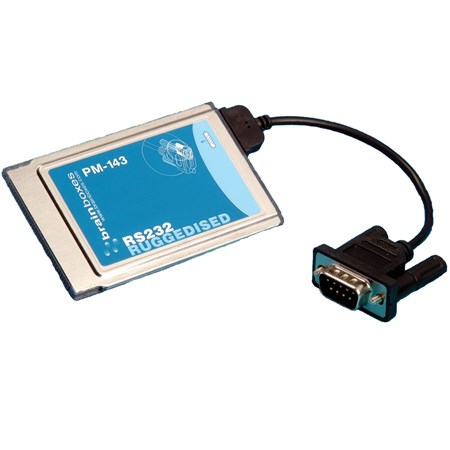

PM-143 1 Port RS232 PCMCIA with ruggedised integrated cable

Name: PM-143 1 Port RS232 PCMCIA with ruggedised integrated cable - Brainboxes
Brand: brainboxes
SKU: PM-143
Price: 135.00 GBP
Availability: InStock

Discontinued

Brainboxes ES-446 rs232 serial port pinout diagram showing 9 pin male connector wiring

PC Card providing one ruggedised RS232 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 and Windows 7.

See other products the same category as PM-143: Discontinued

Serial Port
Serial Port	Ports	1
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Brainboxes 16PCI950+
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	Fully wired moulded cable
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DTR/DSR
	Tx/Rx Modes	Point to Point
General
General	Ruggedised	Yes
	PCB Layers	4
	Power Consumption	210mA @ 5V
	Product Weight	0.05 kg
	Product Dimensions	85(l) x 54(w) x 5(h) mm
	Packaged Weight	0.166 kg
	Packaged Dimensions	160(l) x 135(w) x 45(h) mm
	GTIN (barcode)	837324000139
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 7 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCMCIA	PCMCIA (Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical. Change
