IS-250 Intashield 2 Port RS232 Low profile PCI Card

Discontinued

2 RS232 Serial Ports Low profile
PCI plug and play
Drivers for Win 7, Vista & XP
1 year warranty

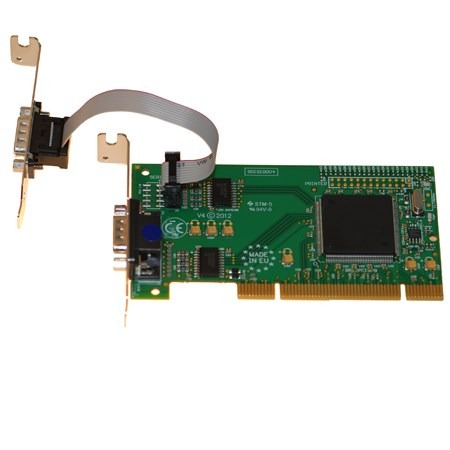

Brainboxes IS-250 2 rs232 serial ports low profilepci plug and playdrivers

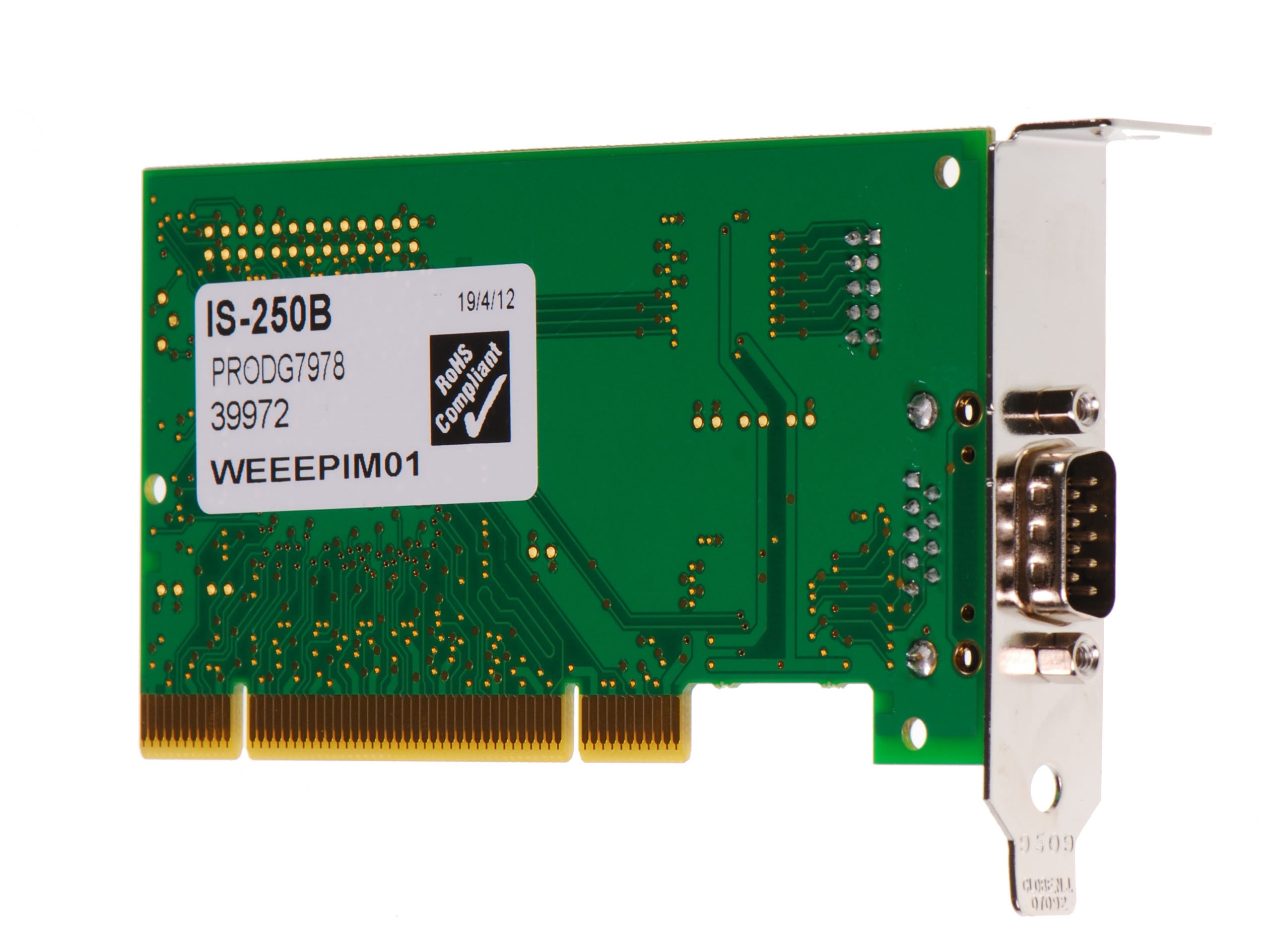

Brainboxes IS-250 pci card back panel showing serial port connectors and circuit board

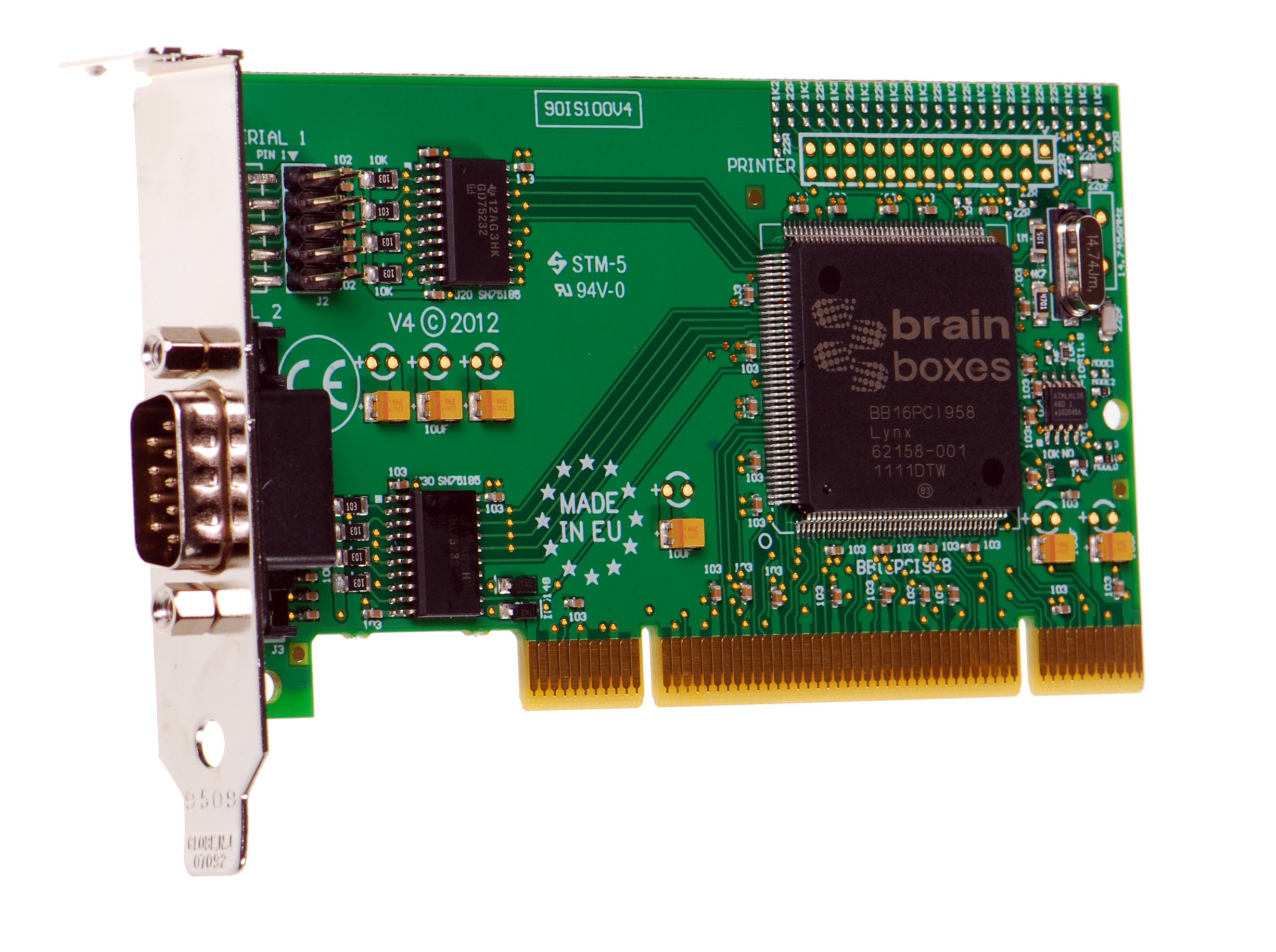

Brainboxes IS-250 pci expansion card showing dual serial ports and printer connector

This card provides 2 industry standard 9 pin RS232 serial COM ports in a low profile PCI slot with fly lead. As PCI is fully Plug & Play compatible the operating system or BIOS automatically configures the card ensuring conflict free installation.

Intashield offers a good serial connection at a great price. Many applications just need a simple, reliable serial connection, no high baud rate or powered cards, no opto-isolation, no custom options or alternative connectors, simply fit and forget RS232 serial.

See other products the same category as IS-250: Discontinued

Serial Port
Serial Port	Ports	2
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	550
	UART Compatibility	16550/16450
	Tx FIFO Size	16
	Rx FIFO Size	16
	Operating Distance	EIA - RS232 Standard
	Cable	1 port RS232 on fly lead
Serial Port Settings
Serial Port Settings	Max Baud Rate	115,200
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Low Profile
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	n/a
	Product Weight	0.076 kg
	Product Dimensions	134(l) x 80(w) x 18(h) mm
	Packaged Weight	0.158 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324002478
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI 2.3	Conventional PCI
