CC-673 ISA 4 Port RS232 Photon DB25

Name: CC-673 ISA 4 Port RS232 Photon DB25 - Brainboxes
Brand: Brainboxes
SKU: CC-673
Price: 235.00 GBP
Availability: InStock

Discontinued

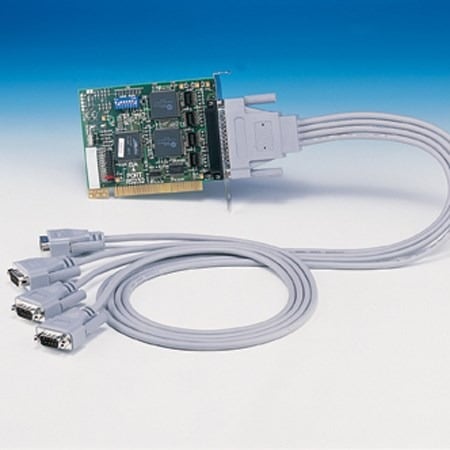

Brainboxes CC-673 at photon quad rs232 4x25 pin

Brainboxes CC-673 rs232 25 pin male connector pinout diagram showing pin assignments

Brainboxes ES-446 rs232 serial port pinout diagram showing 9 pin male connector wiring

A half size card provides 4 industry standard RS232 serial ports in a single slot. A fully moulded Quad cable terminated in 25 pin male ‘D’ plugs ensures neat & easy connections. The fast UART and line drivers give a maximum data rate of 230,400 baud. Serial Solutions Device Driver CD contains software for Windows Millennium, Windows 98, Windows 95, Windows NT4, Windows 3.x, DOS and OS/2. Informative manuals and sample programs are supplied with full source code on CD!

See other products the same category as CC-673: Discontinued

Serial Port
Serial Port	Ports	4
	Protocol	RS232
	Connector	DB25 Connector - 25 Pin Male
	UART	Oxford 950
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	4 port cable (44 way D to 4x25 Pin Male)
Serial Port Settings
Serial Port Settings	Max Baud Rate	230,400
	Data Bits	7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	140mA @ 5V, 40mA @ 12V
	Product Weight	awaiting
	Product Dimensions	awaiting
	Packaged Weight	awaiting
	Packaged Dimensions	awaiting
	GTIN (barcode)
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows ME Microsoft Windows 98 Microsoft Windows NT 4.0 Microsoft Windows 95 Microsoft Windows 3.x OS/2 DOS
Interface
Interface	ISA	Industry Standard Architecture

Software and Drivers
