CC-629 5V PCI 8 Port RS232 Photon DB9

Name: CC-629 5V PCI 8 Port RS232 Photon DB9 - Brainboxes
Brand: brainboxes
SKU: CC-629
Price: 425.00 GBP
Availability: InStock

Discontinued

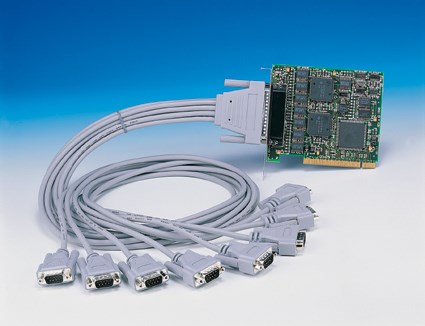

Brainboxes CC-629 pci photon 8 port rs232 8x9pin

Brainboxes ES-446 rs232 serial port pinout diagram showing 9 pin male connector wiring

This half size card provides 8 industry standard RS232 serial ports in a single PCI slot. A fully moulded "octopus" cable terminated in eight 9 pin male ‘D’ plugs ensures neat & easy connections. The fast UART and line drivers give a guaranteed maximum speed of 230,400 baud. Serial Solutions Device Driver CD contains software for Windows 7, Server 2008, Vista, Server 2003, XP, 2000, Millennium, 98, 95, NT4, Windows 3.x, DOS and OS/2. Informative manuals and sample programs are supplied with full source code on CD!

See other products the same category as CC-629: Discontinued

Serial Port
Serial Port	Ports	8
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Oxford 950
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	8 port cable (78 way D to 8x9 Pin Male)
Serial Port Settings
Serial Port Settings	Max Baud Rate	230,400
	Data Bits	7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	270mA @ 5V, 50mA @ 12V
	Product Weight	awaiting
	Product Dimensions	awaiting
	Packaged Weight	awaiting
	Packaged Dimensions	awaiting
	GTIN (barcode)
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows ME Microsoft Windows 2000 Microsoft Windows 98 Microsoft Windows NT 4.0 Microsoft Windows 95 Microsoft Windows 3.x OS/2 DOS
Interface
Interface	PCI 2.3	Conventional PCI
