CC-124 ISA 2 Port RS232 1 MegaBaud

Name: CC-124 ISA 2 Port RS232 1 MegaBaud - Brainboxes
Brand: Brainboxes
SKU: CC-124
Price: 125.00 GBP
Availability: InStock

Discontinued

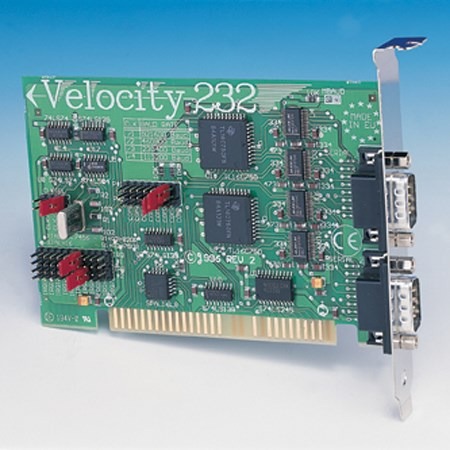

Brainboxes CC-124 at dual velocity rs232

Brainboxes ES-446 rs232 serial port pinout diagram showing 9 pin male connector wiring

This is simply the highest performance 100% PC UART compatible RS232 card available today! The half size card provides two independent RS232 ports. The UART clock can be set through software to provide maximum baud rates of either 921,600 baud, 460,800 baud, 230,400 baud, or 115,200 baud (standard PC). Serial Solutions Device Driver CD contains software for Windows Millennium, Windows 98, Windows 95, Windows NT4, Windows 3.x, DOS and OS/2. Informative manuals and sample programs are supplied with full source code on CD!

See other products the same category as CC-124: Discontinued

Serial Port
Serial Port	Ports	2
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	TI 750
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	64
	Rx FIFO Size	64
	Operating Distance	EIA - RS232 Standard
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1 or 2
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	425mA @ 5V
	Product Weight	0.086 kg
	Product Dimensions	awaiting
	Packaged Weight	0.261 kg
	Packaged Dimensions	awaiting
	GTIN (barcode)
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows ME Microsoft Windows 98 Microsoft Windows NT 4.0 Microsoft Windows 95 Microsoft Windows 3.x OS/2 DOS
Interface
Interface	ISA	Industry Standard Architecture

Software and Drivers
